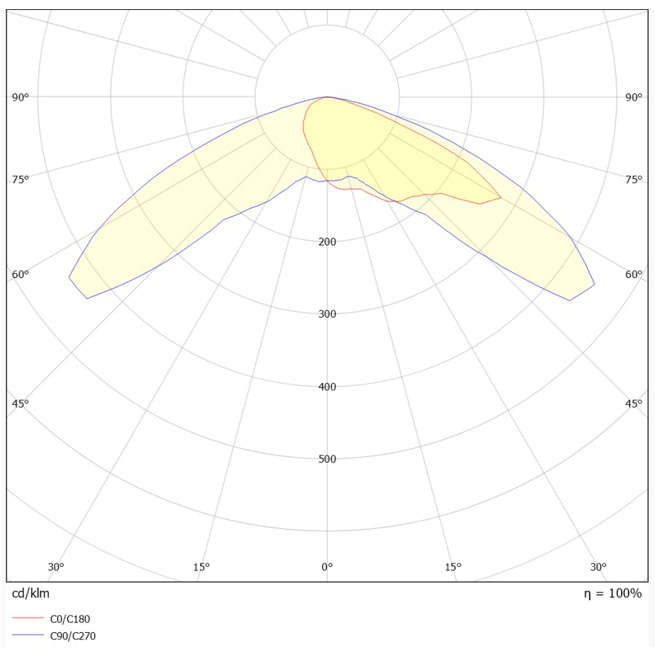

Tracksure’s specialised optics are designed to ensure the safe illumination of running tunnels during maintenance and emergencies, whilst providing the required light levels and uniformity for cross over tunnels during standard operation.

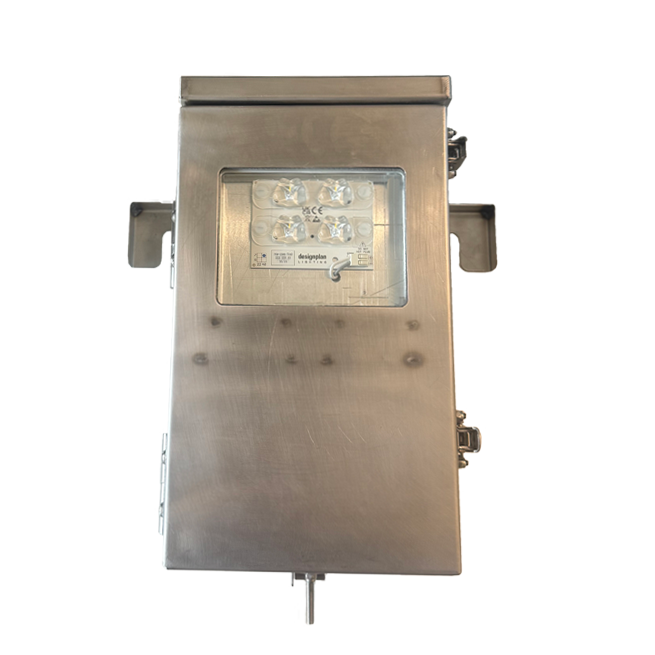

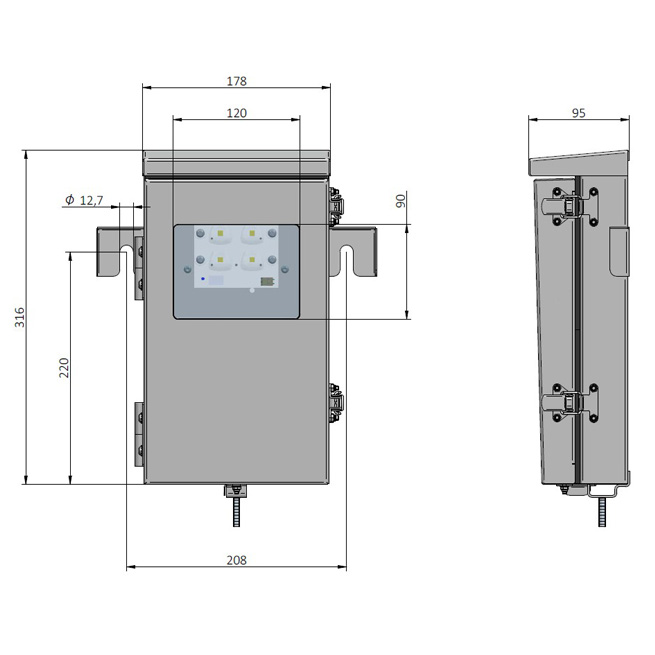

Tracksure is designed to be spaced up to 12 metres apart, in tunnels up to 8 metres in diameter. The terminals within the luminaire are designed for cable up to 16mm², with provision for terminating an SWA earth externally. Stainless steel draw latches and lift off hinges facilitate tool free maintenance and installation.
Tracksure complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.
This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.
