Flair Angled S12

IP65

IK08 (5J)

Linear

Class I

Surface

TM65/66

Transport

Flair Angled S12 is a linear luminaire designed specifically in accordance with fire precautions for subsurface rail stations (Section 12).

Product Information

Flair Angled S12 directs light where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Flair Angled S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Flair Angled S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

Applications include ticket areas, station forecourts, general circulation areas, covered platforms and subways.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK08 (5J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Toughened glass diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Wall.

Cable Entry: Provision for conduit entry in back.

Transport For London: PIR Reference PIR 4499.

Design Life: 30+ years. What is Design Life?

Rail Platform Lighting Transport Lighting

Technical Information

Flair Angled S12	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

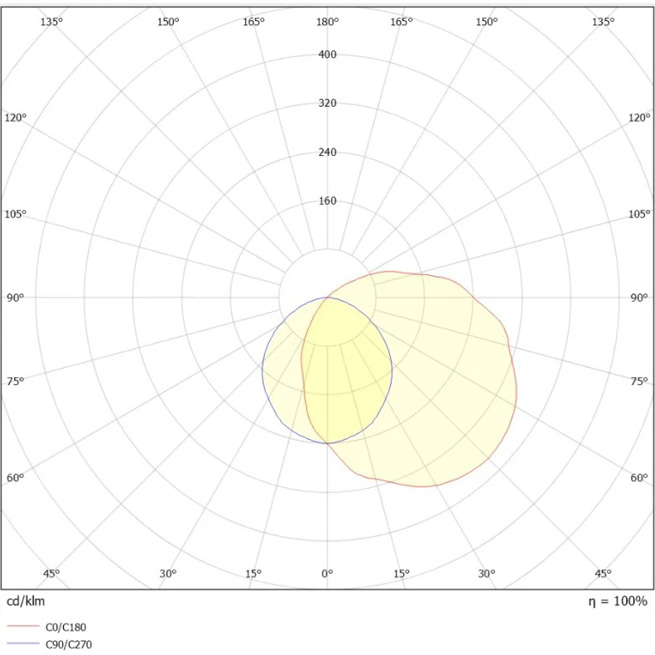

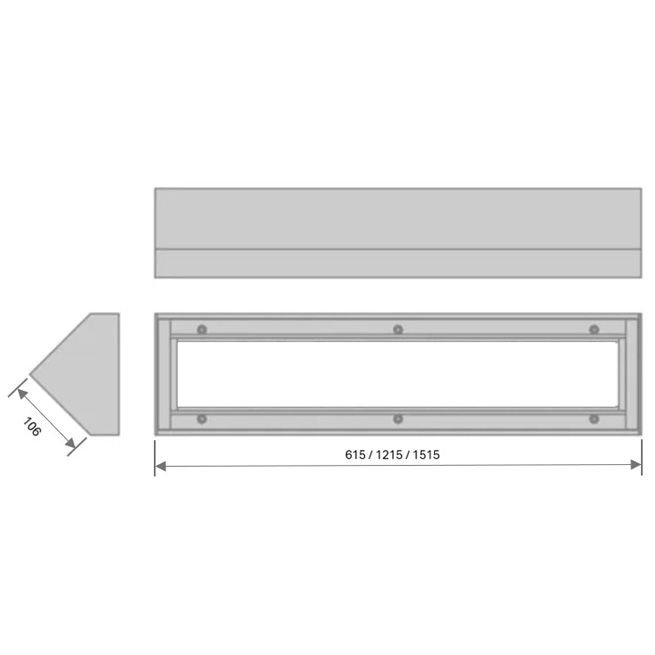

L615mm Frosted
FLRA-2-1500N-F-MS-ST	900	10.1	89	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-2000N-F-MS-ST	1271	13.2	97	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-2500N-F-MS-ST	1629	16.2	101	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-3000N-F-MS-ST	1997	19.7	101	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>110,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-1500W-F-MS-ST	855	10.1	85	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4
	LED Energy Rating	Dimensions
	D	150mm x 110mm
FLRA-2-2000W-F-MS-ST	1208	13.2	92	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4
	LED Energy Rating	Dimensions
	D	150mm x 110mm
FLRA-2-2500W-F-MS-ST	1547	16.2	96	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4
	LED Energy Rating	Dimensions
	D	150mm x 110mm
FLRA-2-3000W-F-MS-ST	1897	19.7	96	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4
	LED Energy Rating	Dimensions
	D	150mm x 110mm

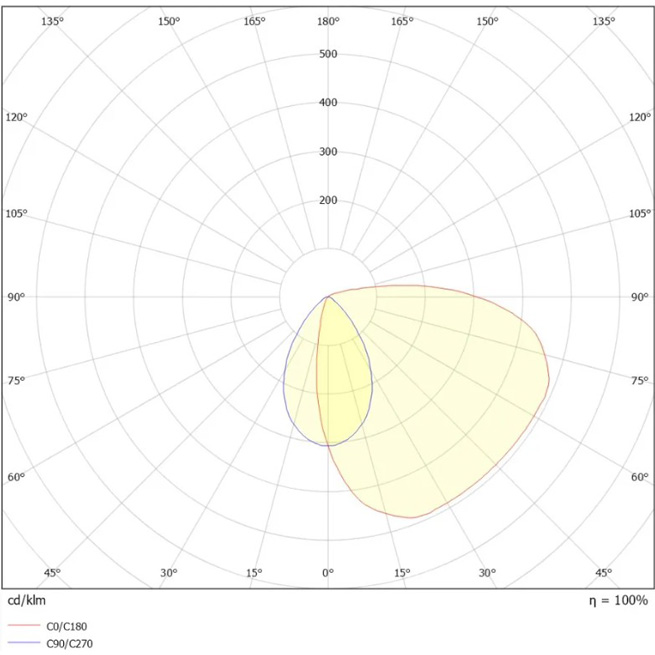

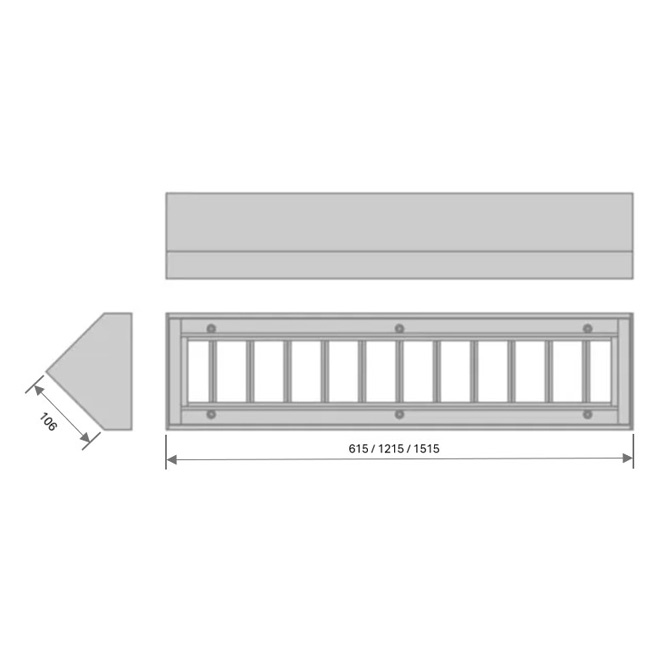

L615mm Clear
FLRA-2-1500N-C-MS-ST	1064	11.5	93	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	B	150mm x 110mm
FLRA-2-2000N-C-MS-ST	1421	15	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	B	150mm x 110mm
FLRA-2-2500N-C-MS-ST	1779	18.7	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	B	150mm x 110mm
FLRA-2-3000N-C-MS-ST	2234	23.6	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	B	150mm x 110mm
FLRA-2-1500W-C-MS-ST	1011	11.5	88	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-2000W-C-MS-ST	1350	15	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-2500W-C-MS-ST	1690	18.7	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
FLRA-2-3000W-C-MS-ST	2122	23.6	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₇₀B₁₀>100,000h	4
	LED Energy Rating	Dimensions
	C	150mm x 110mm
L1215mm Frosted
FLRA-4-3000N-F-MS-ST	1899	16.9	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-4000N-F-MS-ST	2710	23.8	114	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-5000N-F-MS-ST	3446	30.3	114	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-6000N-F-MS-ST	3781	33.4	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	553
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-3000W-F-MS-ST	1804	16.9	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	D	150mm x 110mm
FLRA-4-4000W-F-MS-ST	2575	23.8	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	D	150mm x 110mm
FLRA-4-5000W-F-MS-ST	3273	30.3	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	D	150mm x 110mm
FLRA-4-6000W-F-MS-ST	3592	33.4	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	525
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	D	150mm x 110mm
L1215mm Clear
FLRA-4-3000N-C-MS-ST	2153	20.2	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	B	150mm x 110mm
FLRA-4-4000N-C-MS-ST	2888	27.2	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	B	150mm x 110mm
FLRA-4-5000N-C-MS-ST	3692	34.8	106	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	B	150mm x 110mm
FLRA-4-6000N-C-MS-ST	4778	45.6	105	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	600
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	B	150mm x 110mm
FLRA-4-3000W-C-MS-ST	2045	20.2	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-4000W-C-MS-ST	2744	27.2	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-5000W-C-MS-ST	3507	34.8	101	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
FLRA-4-6000W-C-MS-ST	4539	45.6	100	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	570
	Weight (kg)	LED Energy Rating	Dimensions
	7.3	C	150mm x 110mm
L1515mm Frosted
FLRA-5-3750N-F-MS-ST	2471	20.8	119	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-5000N-F-MS-ST	3443	28.9	119	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-6250N-F-MS-ST	4334	36.6	119	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-7500N-F-MS-ST	5251	44.9	117	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	526
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-3750W-F-MS-ST	2347	20.8	113	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	D	150mm x 110mm
FLRA-5-5000W-F-MS-ST	3270	28.9	113	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	D	150mm x 110mm
FLRA-5-6250W-F-MS-ST	4118	36.6	113	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	D	150mm x 110mm
FLRA-5-7500W-F-MS-ST	4989	44.9	111	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	499
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	D	150mm x 110mm
L1515mm Clear
FLRA-5-3750N-C-MS-ST	3549	31.3	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	B	150mm x 110mm
FLRA-5-5000N-C-MS-ST	4535	40.2	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	B	150mm x 110mm
FLRA-5-6250N-C-MS-ST	5525	49.8	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	B	150mm x 110mm
FLRA-5-7500N-C-MS-ST	6591	61.6	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	670
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	B	150mm x 110mm
FLRA-5-3750W-C-MS-ST	3372	31.3	108	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-5000W-C-MS-ST	4308	40.2	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-6250W-C-MS-ST	5249	49.8	105	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm
FLRA-5-7500W-C-MS-ST	6261	61.6	102	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	636
	Weight (kg)	LED Energy Rating	Dimensions
	8.9	C	150mm x 110mm

Fitting Options

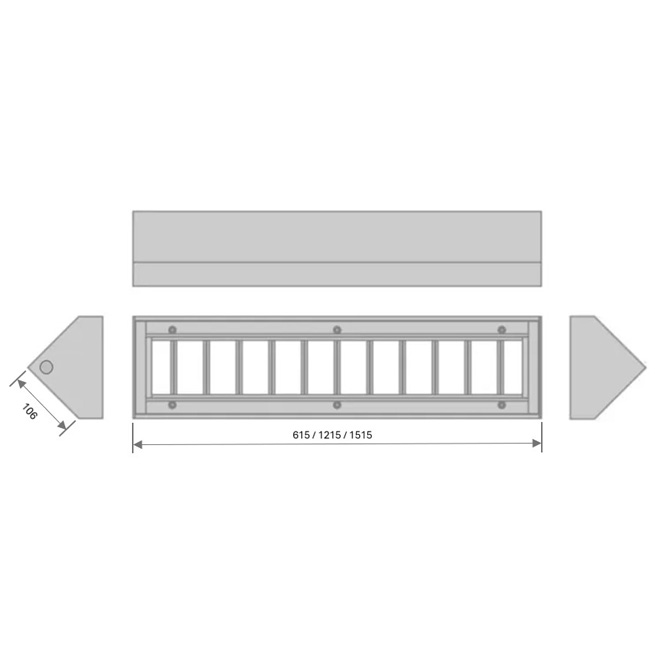

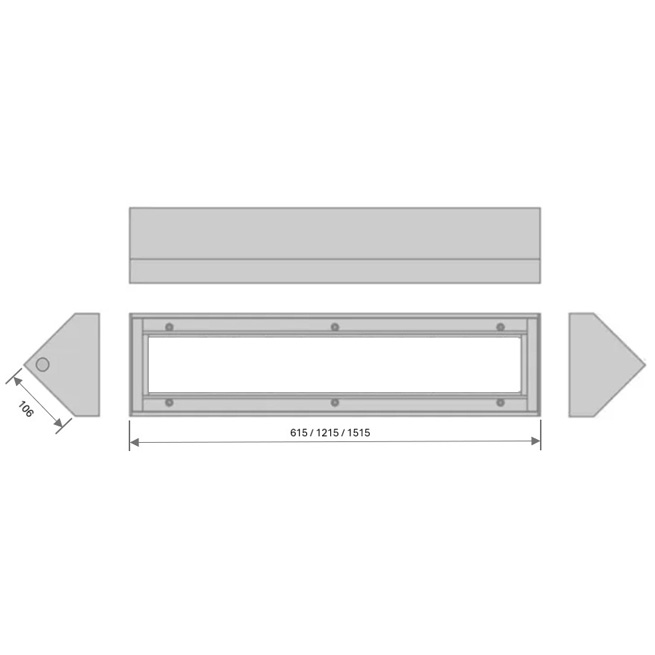

Conduit Hole in One End	-1H

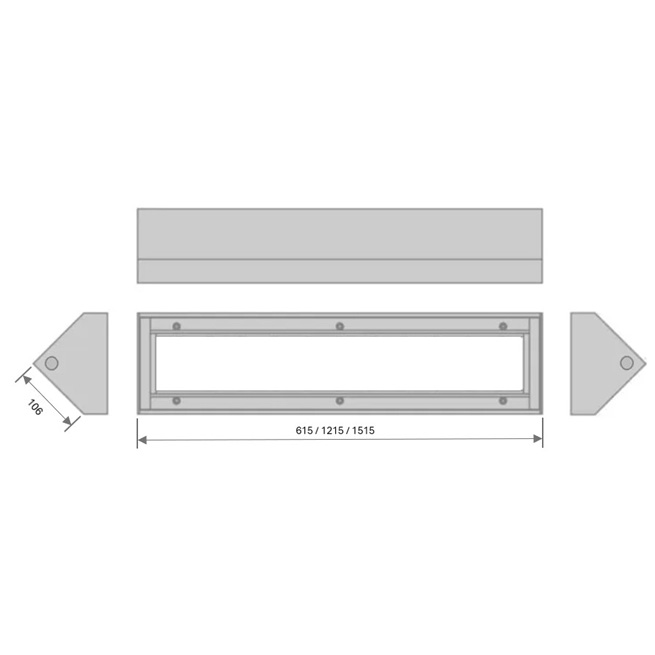

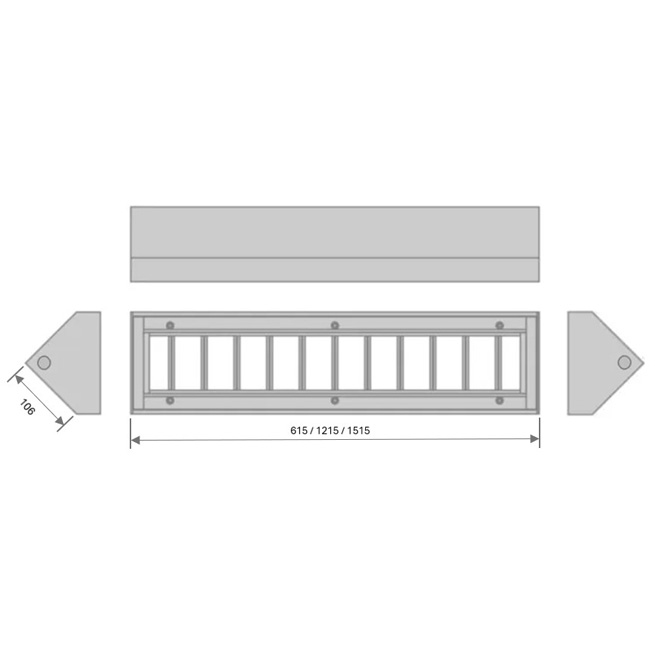

Conduit Hole in Both Ends	-2H
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA

• For paint colour options, please replace -MS with required paint code.
• -E3 / -ES / -ED options not available on all 615mm versions.
• -DA and -DI options are not available on all 615mm versions.
