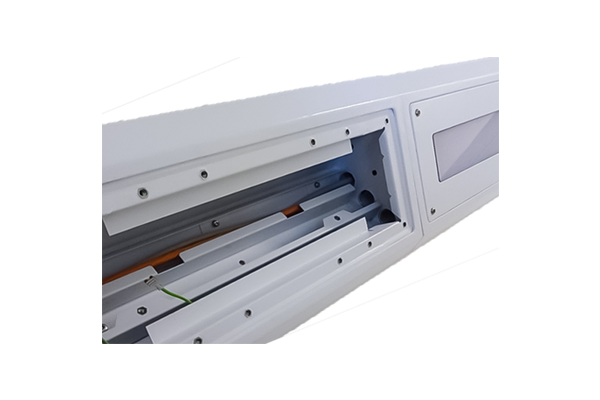

Obex Trunking is a cable management system specifically designed for custodial environments.

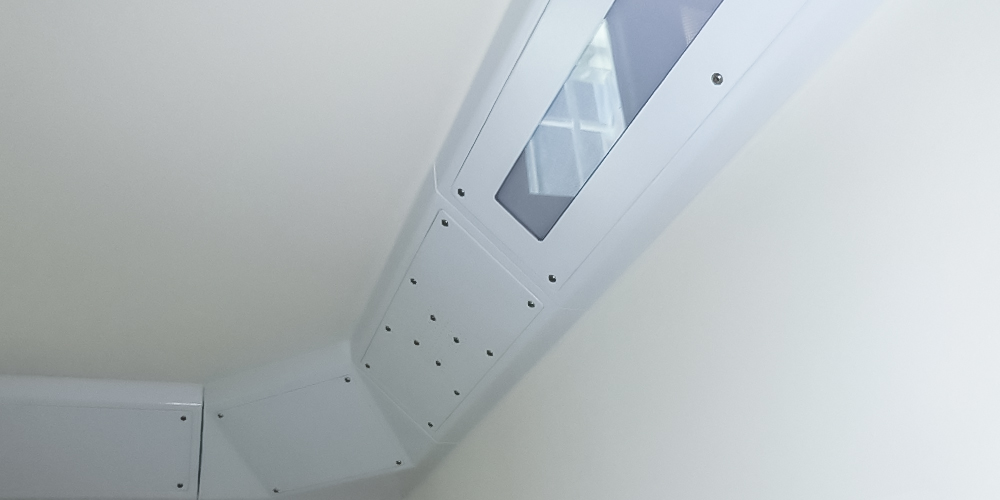

Obex Trunking provides a cable management system for our ligature resistant Obex luminaire which is specifically designed for challenging environments, such as custodial facilities.
Obex Trunking’s applications include police stations and law courts.
Each application is unique and will be catered to your requirements.
TRUNKING
Impact Resistance Rating: N/A
Ingress Protection Rating: N/A
Housing: Zinc coated steel body
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: N/A
Driver: N/A
Mounting: Cornice.
Cable Entry: N/A
LUMINAIRE
Impact Resistance Rating: IK20 (250J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Flush Opal polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on a removable tray with fused plug & socket connector block for 3 level switching & night light. DALI drivers as standard.
Mounting: Cornice
Cable Entry: Via Obex Trunking
| Obex Trunking | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| L200mm | ||||
| OBX-G1-DUM-200-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L350mm | ||||
| OBX-G1-DUM-350-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L450mm | ||||
| OBX-G1-DUM-450-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L654mm | ||||
| OBX-G1-DUM-650-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L850mm | ||||
| OBX-G1-DUM-850-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L1000mm | ||||
| OBX-G1-DUM-1000-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L1250mm | ||||
| OBX-G1-DUM-1250-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| L1548mm | ||||
| OBX-G1-DUM-1550-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| Extension unit 280mm-360mm | ||||
| OBX-G1-DUM-X300-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| Corner Unit with window for camera | ||||
| OBX-G1-90D-CAM-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
| Corner unit with blank front panel | ||||
| OBX-G1-90D-DUM-TW | ||||
| Dimensions | ||||
| 166mm x 166mm | ||||
