Product Information

Obex Tuneable White can adjust colour temperatures to help influence our wellbeing and replicate our natural circadian rhythm. Cool colour temperatures can boost activity whilst warm colour temperatures can aid relaxation. The opal diffuser provides a soft lit appearance and the discreet side mounted fixing ensures a clean, unobtrusive aesthetic.
Obex Tuneable White’s flush smooth diffuser and front plate assembly aids easy cleaning and enhanced ligature resistance capability.
The ligature resistant design helps prevent self-harming.
Applications include de-escalation rooms and therapy rooms.

Product Specification

Impact Resistance Rating: IK20 (250J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Flush opal polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on a removable tray with plug & socket connector block. DALI (Device type 8) driver(s) as standard. Controlled by DALI control system (additional control devices required).
Mounting: Cornice.
Cable Entry: Provision for conduit entry in ends.

Technical Information

Obex Tuneable White Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
L1250mm
OBX-G1-4-6600T-TW-DA 6629 @4000K 66.6 100 2700-6500
CRI Driver Lifetime (up to hours) Nightlight Output (Lum/lm) LED Lifetime
CRI>80 100,000 434 L₈₀B₁₀>72,000h

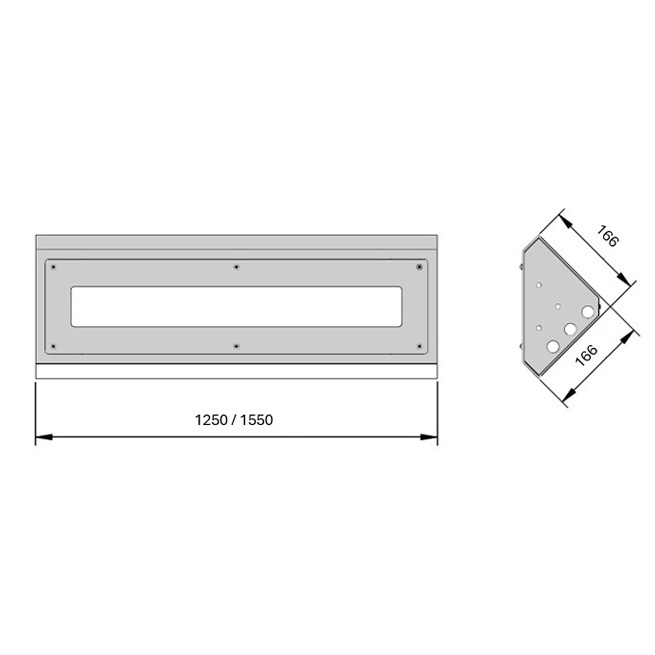

Weight (kg) LED Energy Rating Dimensions
18.8 C 166mm x 166mm
L1550mm
OBX-G1-5-9250T-TW-DA 9285 @4000K 98 95 2700-6500
CRI Driver Lifetime (up to hours) Nightlight Output (Lum/lm) LED Lifetime
CRI>80 100,000 434 L₈₀B₁₀>72,000h
Weight (kg) LED Energy Rating Dimensions
23.5 C 166mm x 166mm

Fitting Options

Night Light -NL

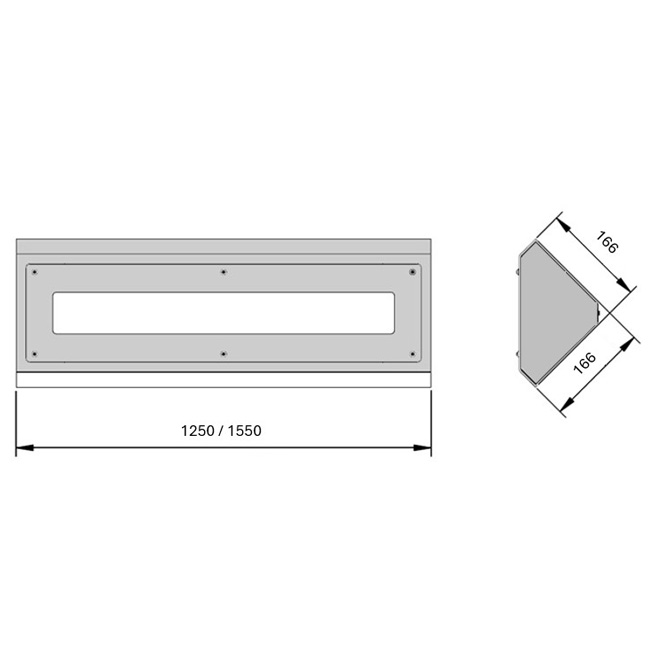

Blank Ends -BE

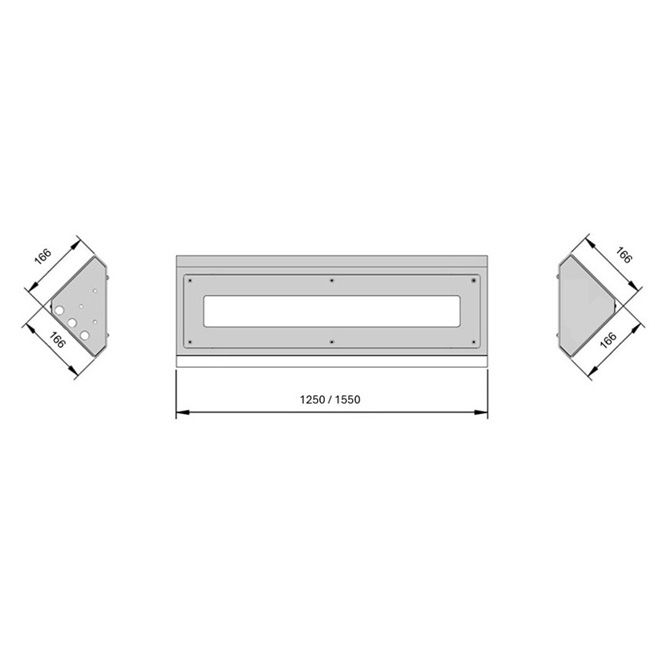

Right Blank End -RB

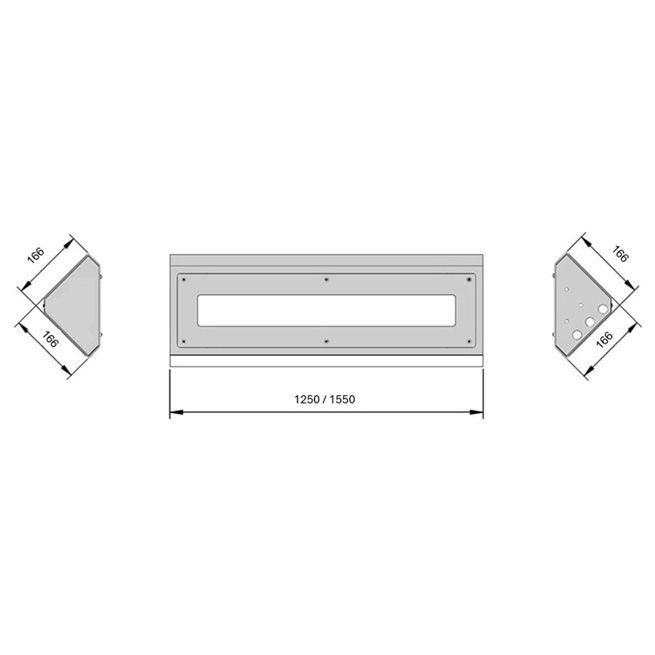

Left Blank End -LB
DALI-2 Dimming / Monitoring -DA
Textured White -TW
Casambi Node -DW

• For Casambi Node version, please replace -DA with DW.
• Night light CCT is 3000K.
• For Casambi User interface (White), order code CAUI-W.
• For Casambi User interface (Black), order code CAUI-B.

;
