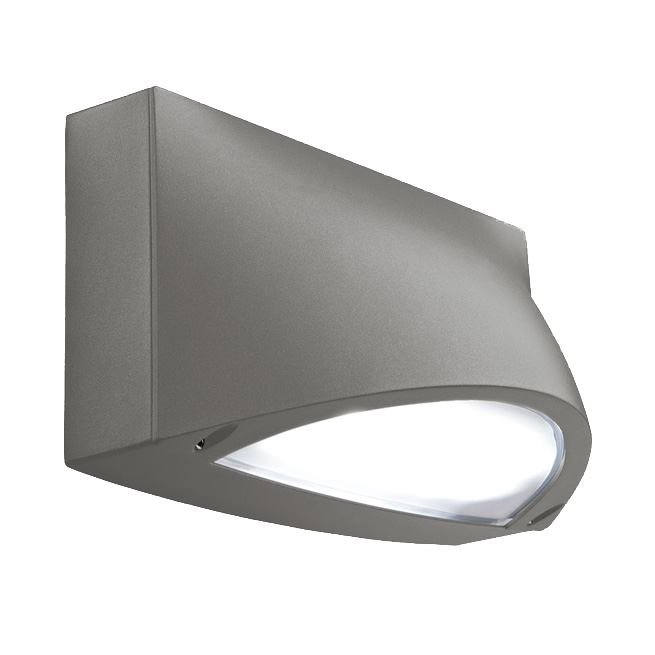

Solez Wall is a vandal resistant bulkhead specifically designed for community and public installations.
Standard Colours
Solez Wall’s frosted or opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution, with minimal upward light. Incorporating a removable gear tray ensures Solez Wall is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Community and Public applications include the perimeter of buildings, open car parks, staircases and footbridges.
Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Die cast aluminium body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Frosted or opal polycarbonate diffuser in casting secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall.
Cable Entry: Provision for conduit entry in back.
| Solez Wall | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|

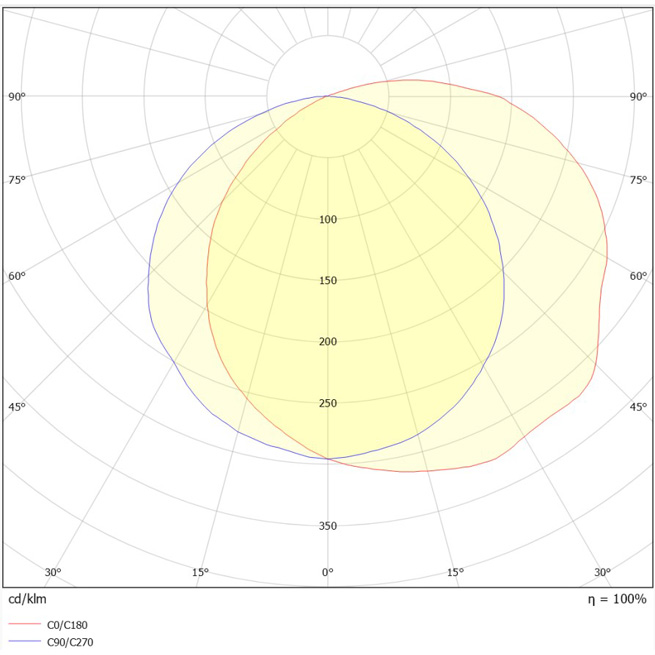

| Opal | ||||
| SOW-1100N-X-MT | 1154 | 13.4 | 86 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 404 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

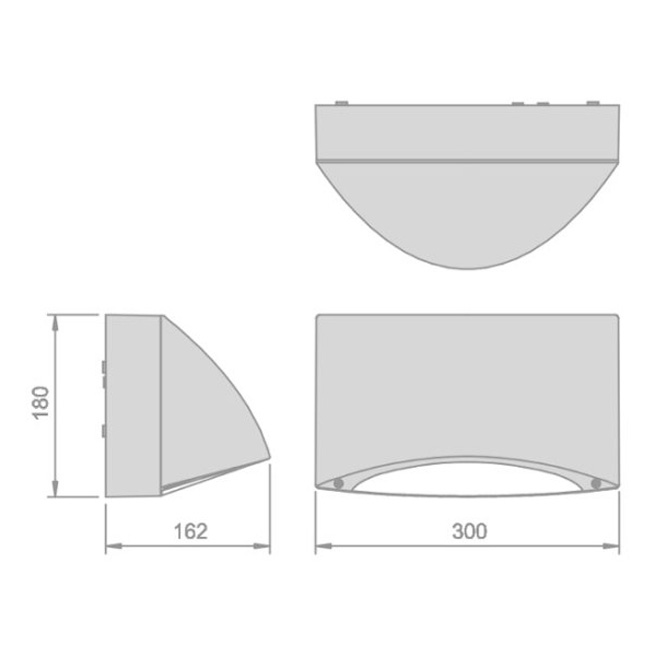

| 3.2 | D | 162mm x 300mm x 182mm | ||
| SOW-1500N-X-MT | 1516 | 17.6 | 86 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 404 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | D | 162mm x 300mm x 182mm | ||
| SOW-1900N-X-MT | 1939 | 22.9 | 85 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 404 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | D | 162mm x 300mm x 182mm | ||
| SOW-1100W-X-MT | 1096 | 13.4 | 82 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 383 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | D | 162mm x 300mm x 182mm | ||
| SOW-1500W-X-MT | 1440 | 17.6 | 82 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 383 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | D | 162mm x 300mm x 182mm | ||
| SOW-1900W-X-MT | 1842 | 22.9 | 80 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 383 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | D | 162mm x 300mm x 182mm | ||

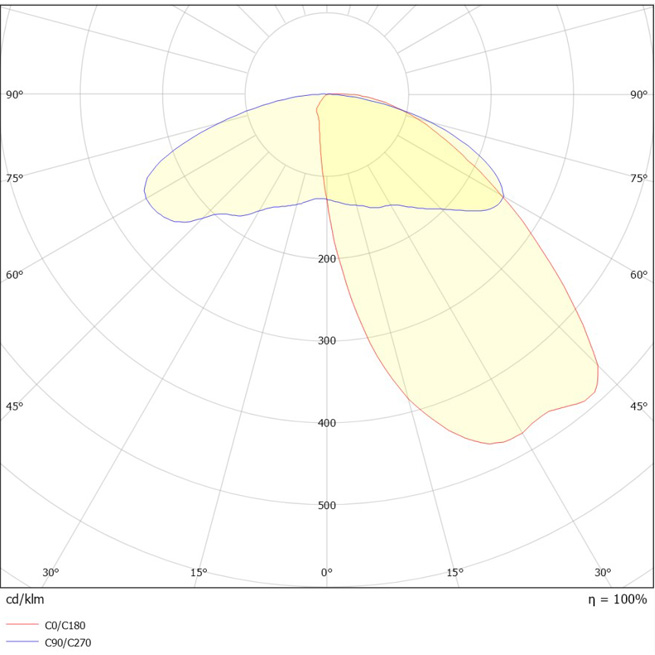

| Frosted | ||||
| SOW-2000N-F-MT | 1329 | 17.6 | 76 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 367 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||
| SOW-2500N-F-MT | 1567 | 21 | 75 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 367 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||
| SOW-3000N-F-MT | 2003 | 28.4 | 71 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 367 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||
| SOW-2000W-F-MT | 1263 | 17.6 | 72 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 348 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||
| SOW-2500W-F-MT | 1489 | 21 | 71 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 348 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||
| SOW-3000W-F-MT | 1903 | 28.4 | 67 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>102,000h | 348 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | F | 162mm x 300mm x 182mm | ||

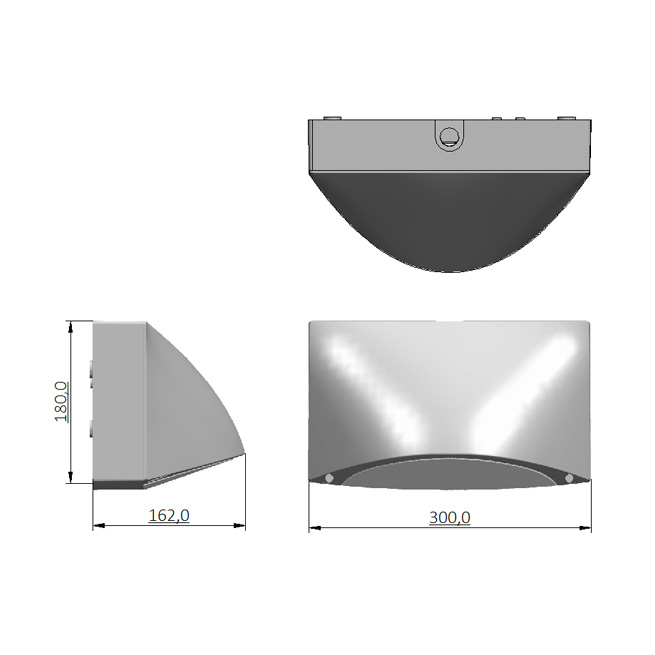

| Conduit Hole - Top of Fitting | -TH |

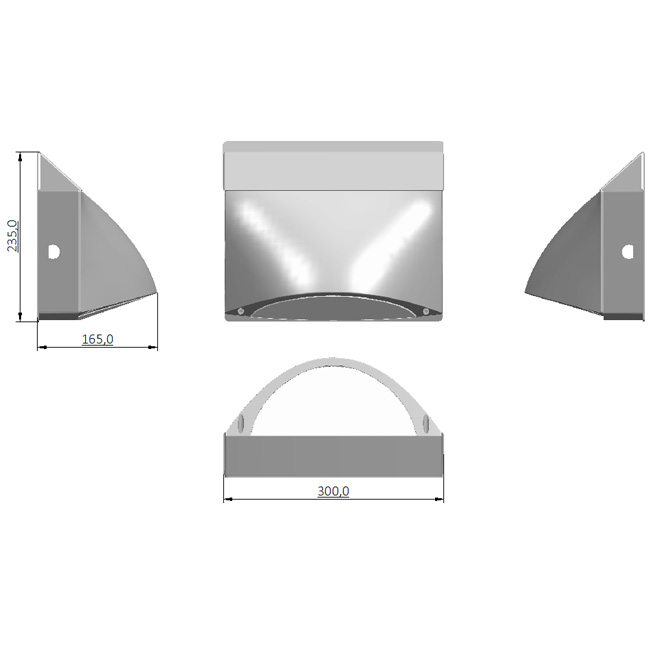

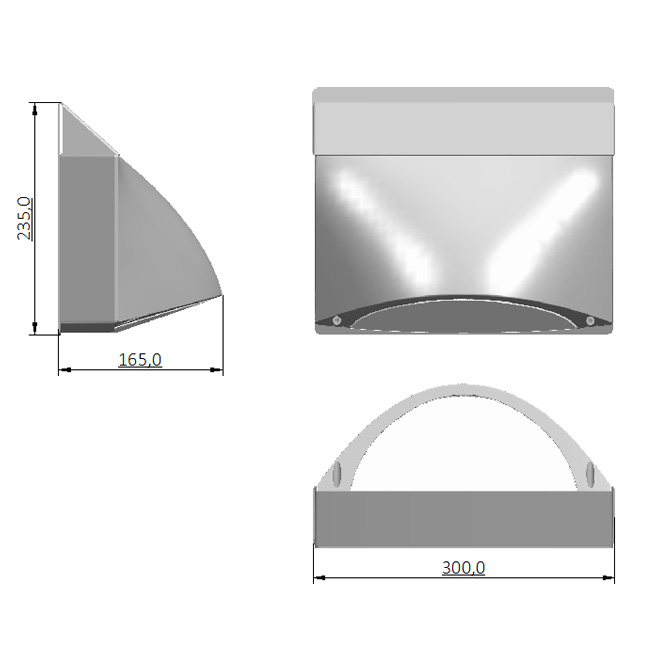

| Ski-Slope Body | -SK |

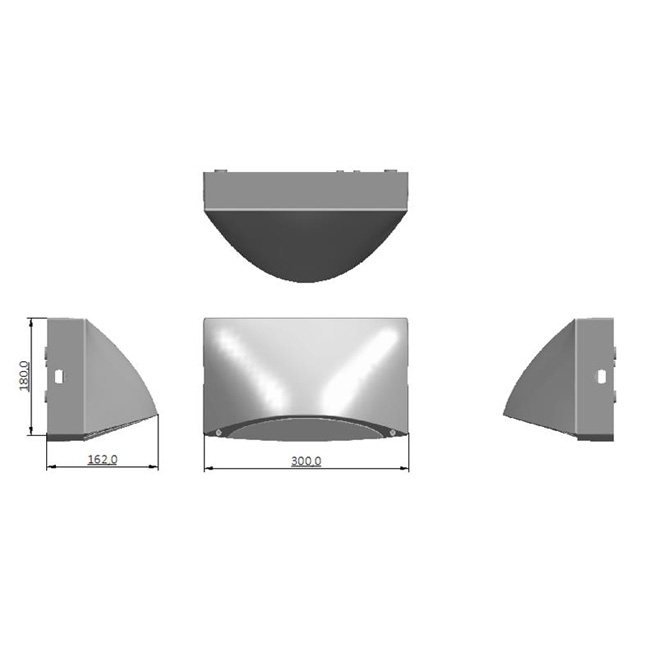

| Conduit Hole in Both Ends | -2H |
| DALI with **% Pre-set | -D |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Maintained Emergency 3 Hour, DALI | -ED |
| Maintained Emergency 3 Hour | -E3 |
| Matt Black | -MB |
| Matt White | -MW |
| Matt Titanium | -MT |
| DALI-2 Dimming / Monitoring | -DA |
• For paint colour options, please replace -MT with required paint code.
