Quadratum S12 G2 Surface

Quadratum S12 G2 Surface

IP65

IK08 (5J)

Modular

Class I

Surface

TM65/66

Transport

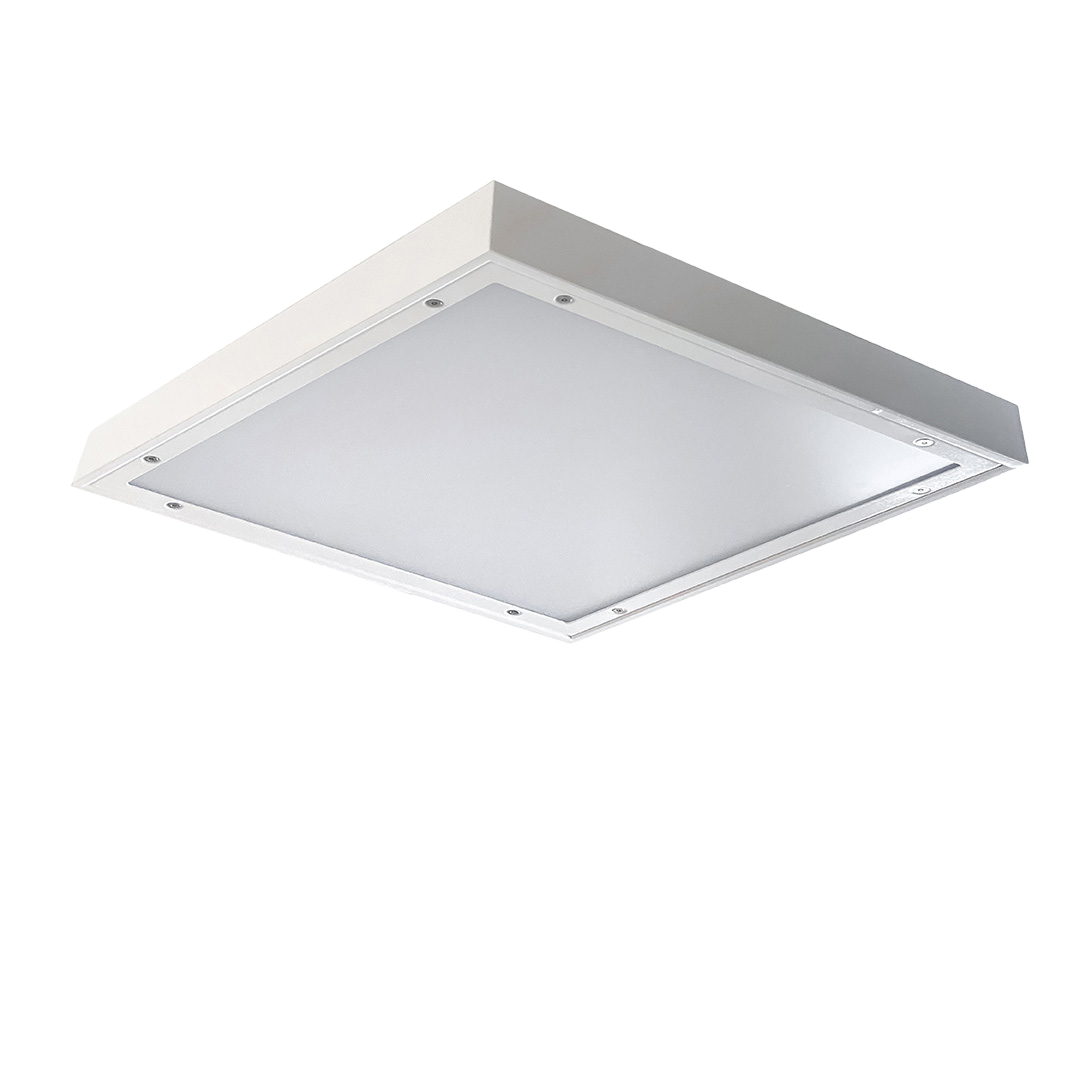

Quadratum S12 G2 Surface is a surface mounted luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).

Standard Colours

Product Information

Quadratum S12 G2 Surface’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Quadratum S12 G2 Surface is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Quadratum S12 G2 Surface complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

Applications include ticket areas, general circulation and back of house.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK08 (5J). Learn More.

Ingress Protection Rating: IP65. Learn More.

Housing: Mild steel body, zinc coated steel frame.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Frosted toughened glass diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removal tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Ceiling.

Cable Entry: Provision for cable entry in back.

Design Life: 30+ years. Learn More.

Technical Information

Quadratum S12 G2 Surface	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Glass
D936-G2-2000N-TW-ST	2110	17.4	122	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	560
	Weight (kg)	LED Energy Rating	Dimensions

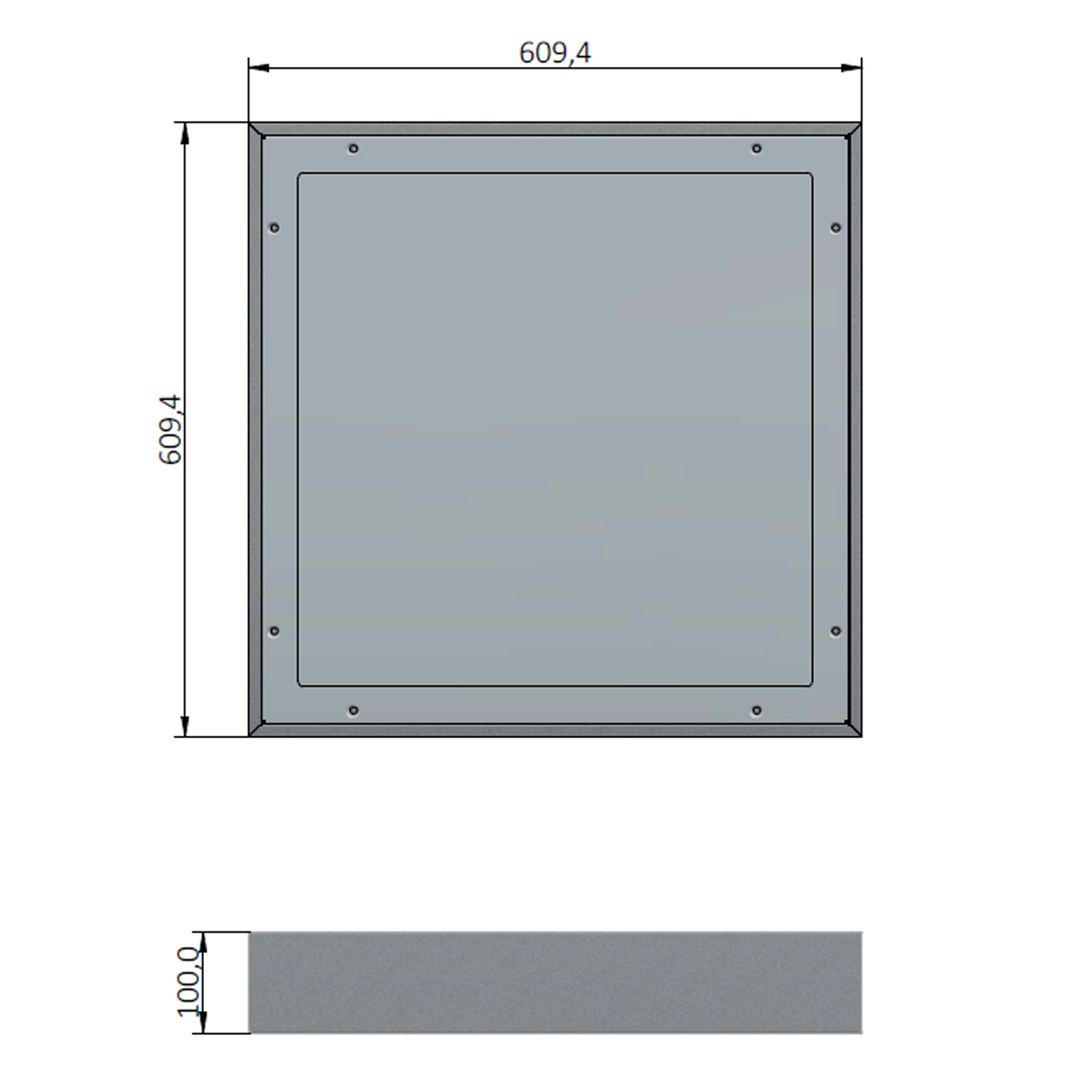

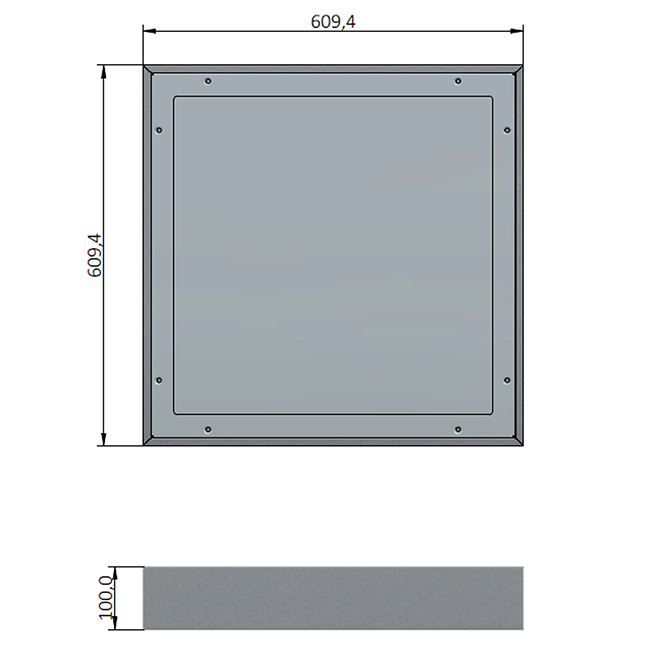

	12.3	C	610mm x 610mm x 100mm
D936-G2-3000N-TW-ST	3018	24.6	123	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	560
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-4000N-TW-ST	3997	31.7	126	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	560
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-5000N-TW-ST	5019	41.5	121	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	560
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-2000W-TW-ST	2028	17.4	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	538
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-3000W-TW-ST	2901	24.6	118	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	538
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-4000W-TW-ST	3842	31.7	121	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	538
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm
D936-G2-5000W-TW-ST	4824	41.5	116	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	538
	Weight (kg)	LED Energy Rating	Dimensions
	12.3	C	610mm x 610mm x 100mm

Fitting Options

Switch Dimming	-DI
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Maintained Emergency 3 Hour, Self Test	-ES
Maintained Emergency 3 Hour, DALI	-ED
Textured White	-TW
