Product Information

Redan 90 has been carefully designed to minimise glare, by restricting the output based on the illuminous surface area, in order to comply with BS-EN 12464-1 (1000lm per 300cm²).

At 895mm in length, Redan 90 has been constructed in a way that allows for it to be fixed between stanchions. Redan 90 provides uniform lighting for both the underside of vehicles and the pit floor, incorporating separate upward and downward illumination. With high levels of impact and ingress resistance, Redan 90 is designed to endure the harsh environments expected within this application.

Rail applications include safely illuminating raised, light duty maintenance pits within rail facilities.

Product Specification

Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP66. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Flush clear polycarbonate, with glare reduction film.
Driver: Electronic control gear on a removable tray with fused plug & socket connector block.
Mounting: Wall.
Cable Entry: Supplied with flying lead.

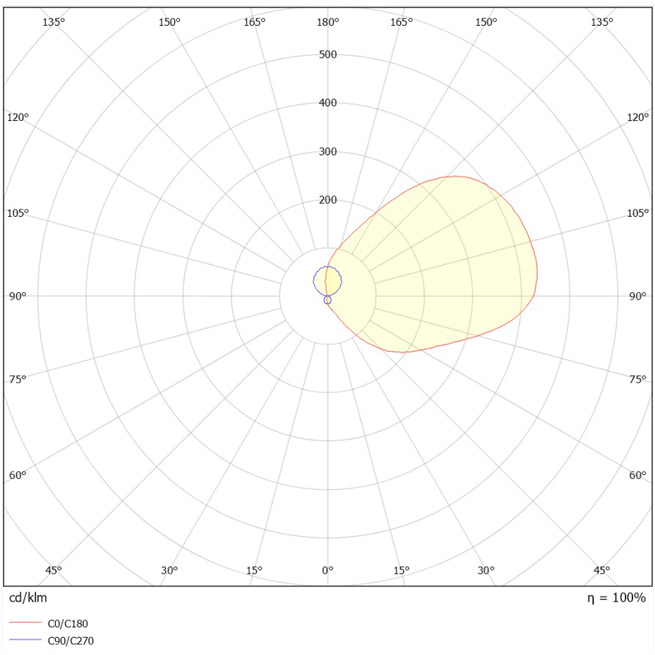

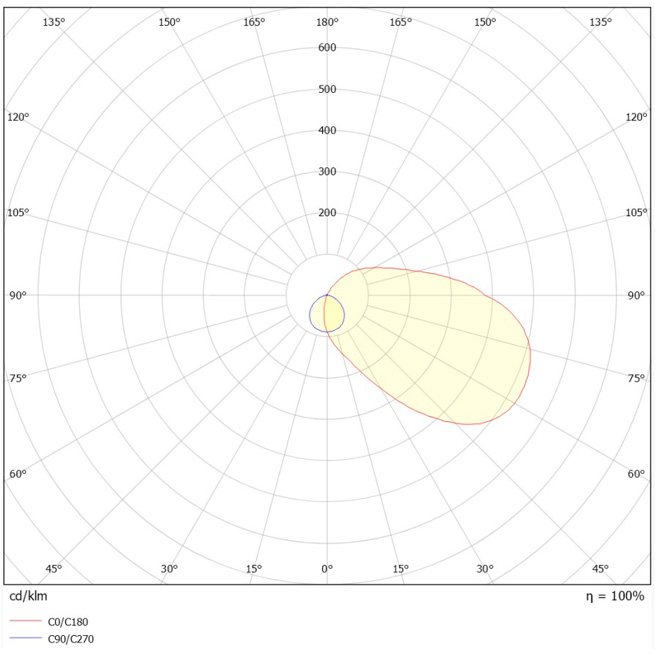

Technical Information

Redan 90 Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
L895mm
RDN-3-1400N-MT 1419 12 118 4000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 100,000 L₉₀B₁₀>72,000h 327

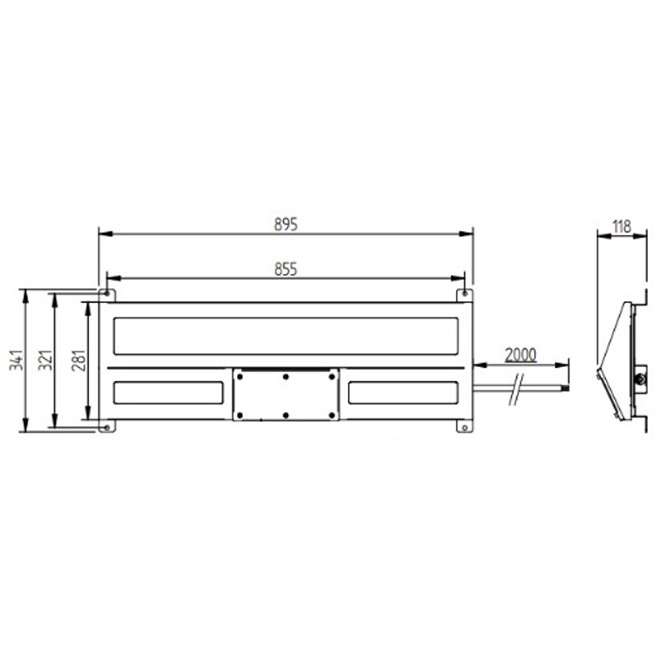

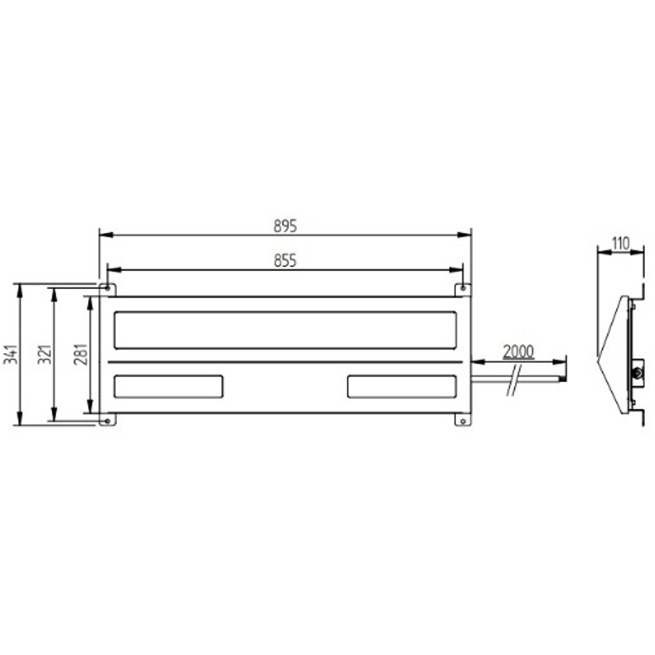

Weight (kg) LED Energy Rating Dimensions
14.5 B 895mm x 281mm x 110mm
RDN-3-3500N-MT 3442 26.2 131 4000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 100,000 L₉₀B₁₀>72,000h 327
Weight (kg) LED Energy Rating Dimensions
14.5 B 895mm x 281mm x 110mm

Fitting Options

Microwave Sensor - Intelligent (Basic) -M5
DALI-2 Dimming / Monitoring -DA
Emergency Lithium DALI -EK
Emergency Lithium, Self Test -EJ
Emergency Lithium -EL
Textured Black -TB
Matt Titanium -MT

• Remote control for Intelligent MWS -M5, order code : HRC-05.

;
