    • Trackline

    IP66
    IK16 (150J)
    Bollards
    Class I
    HT40°C
    TM65/66
    Transport

    Trackline is a vandal resistant bollard specifically designed for railway sidings.

    Standard Colours

    Matt Titanium

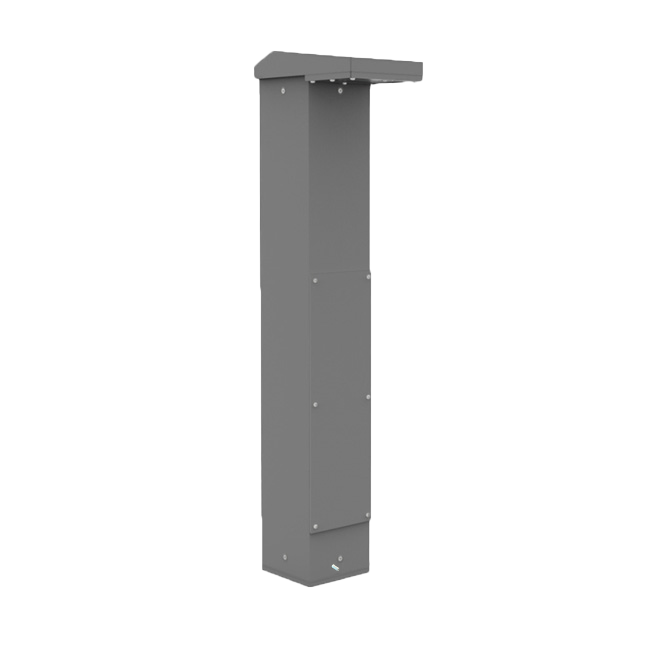

    Trackline Vandal Resistant Bollard

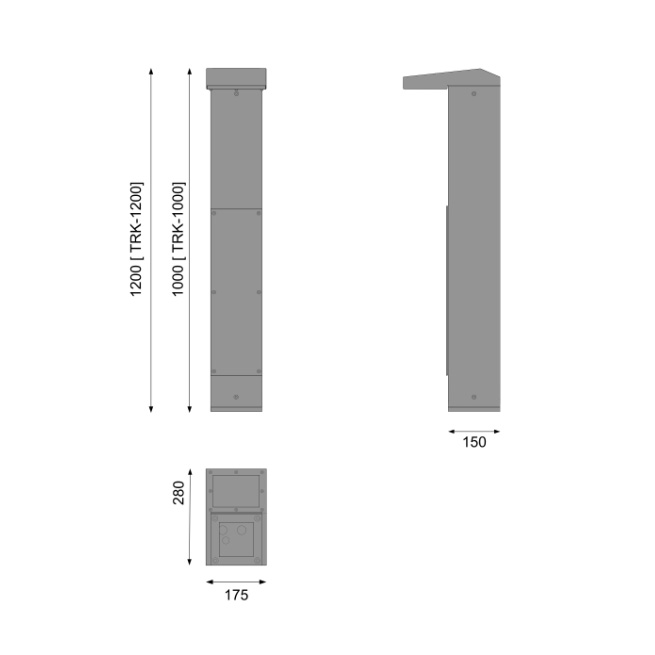

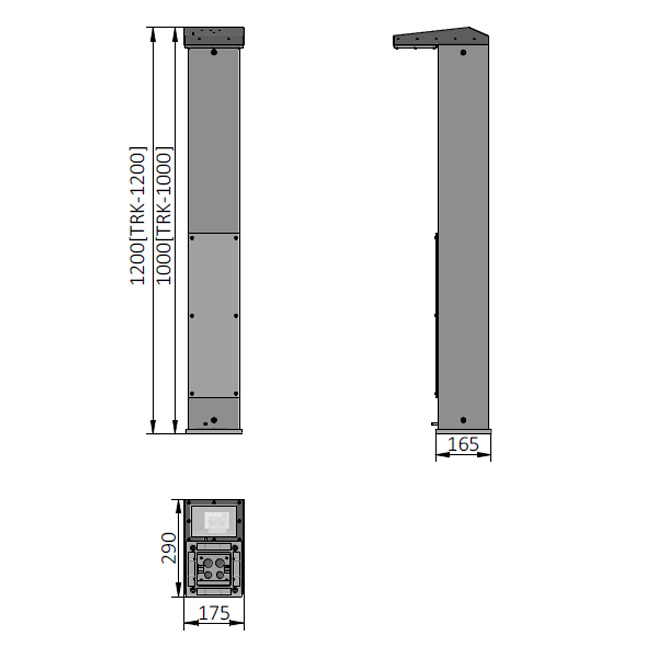

    Trackline Without Base Drawing

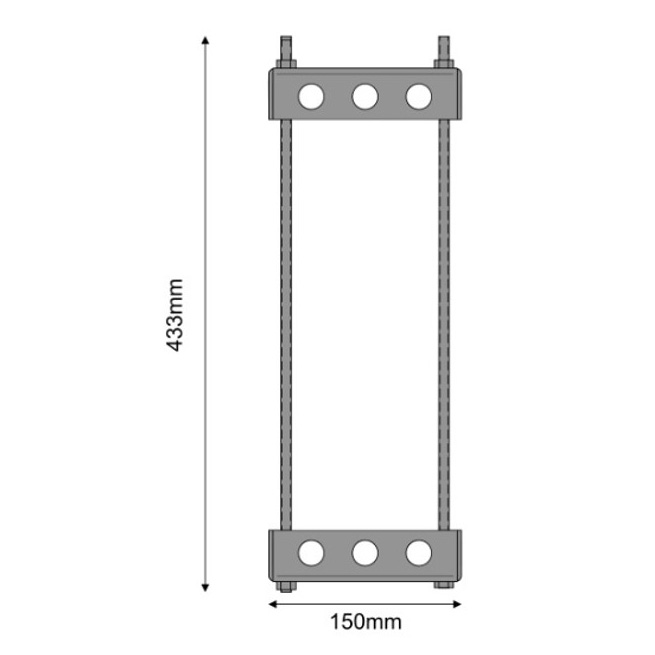

    Trackline Root Mounting Bracket Drawing
    Trackline B1 Option

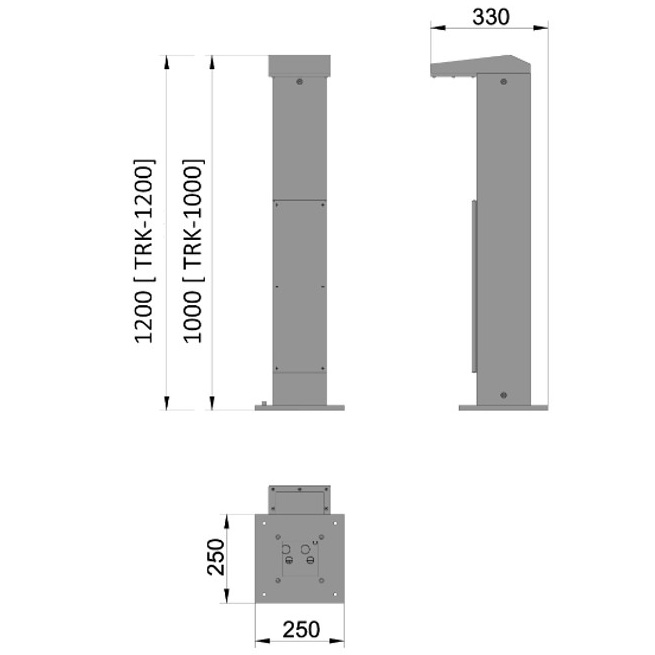

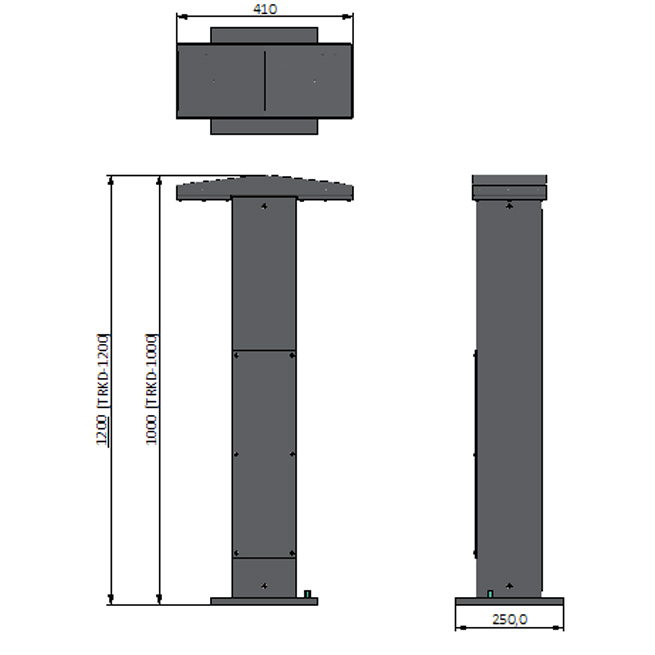

    Trackline B1 Option Drawing

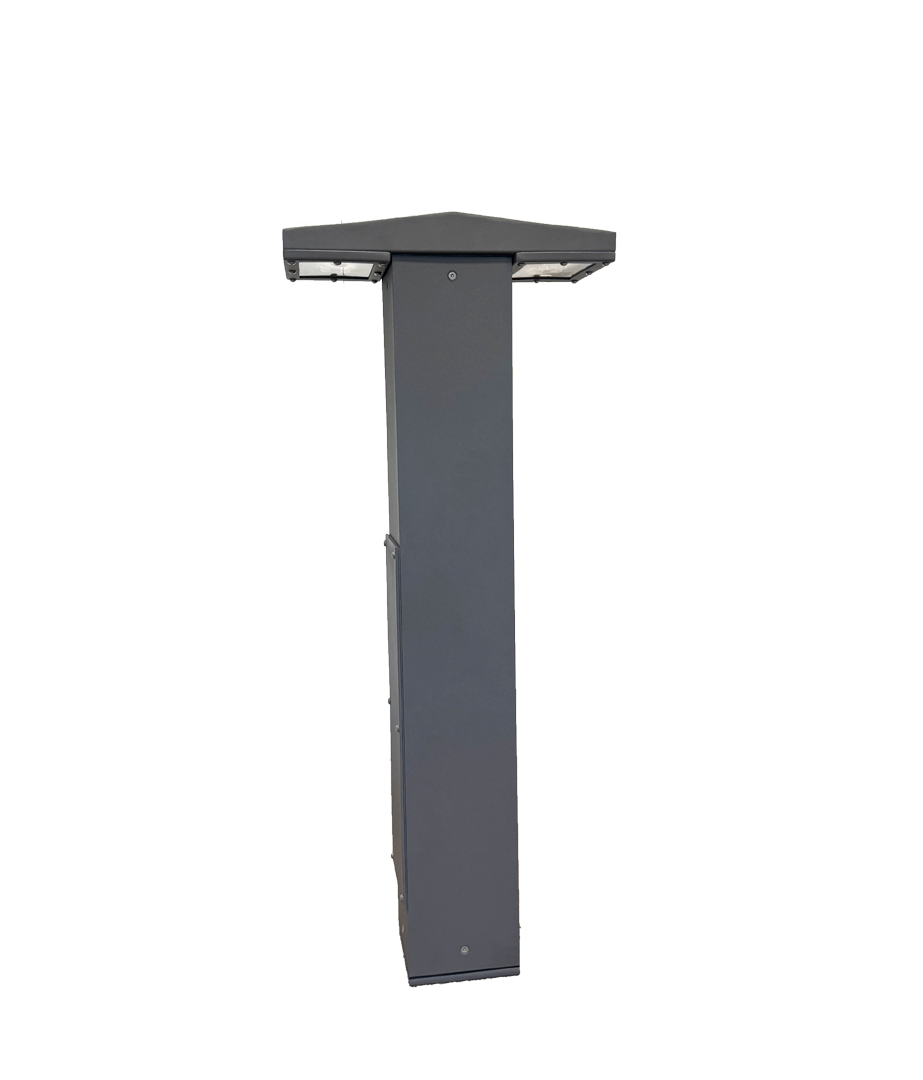

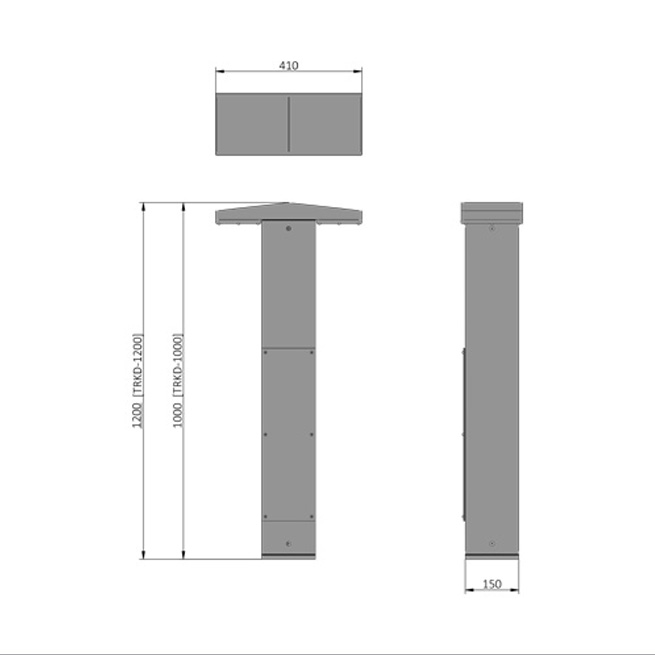

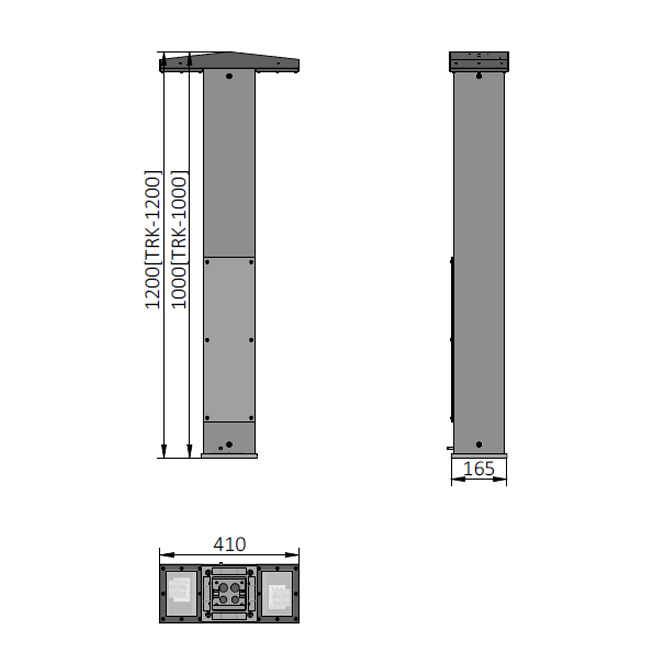

    Trackline Double Headed drawing

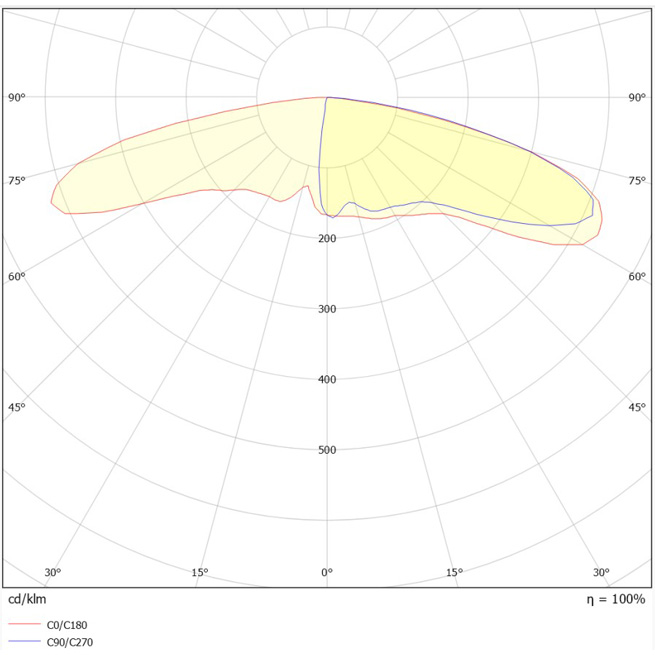

    Trackline Polar Curve

    Product Information

    Trackline’s specially sourced optics ensure zero upward light and wide beam distribution. Easily maintained through access hatch and removeable gear tray in head. Trackline complies with London Underground and Network Rail uniformity and illuminance specifications.

    Trackline’s spacings are up to 11.6 metres (1200mm version at 0.1 uniformity), with a provision for the Mounting of 16mm² earth cable, if installed into OLE or third rail applications. Horizontal load tested up to 1.5kN/m.

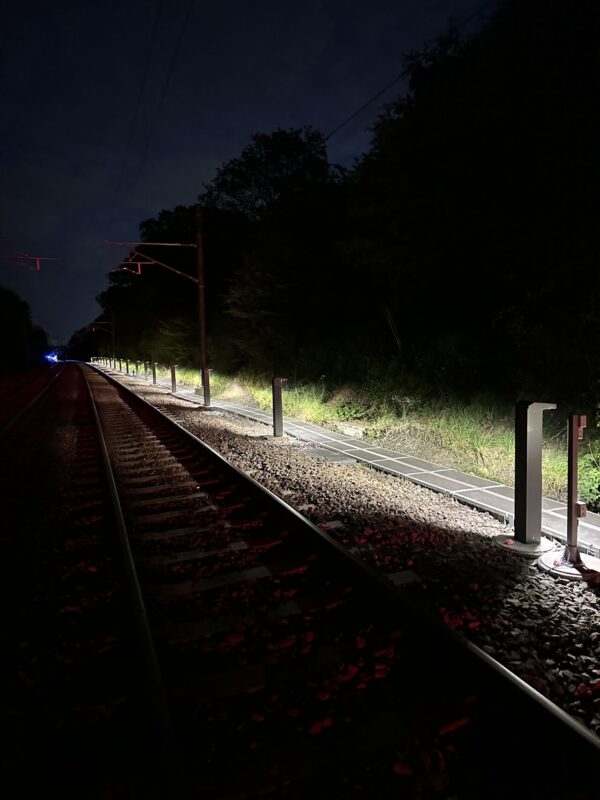

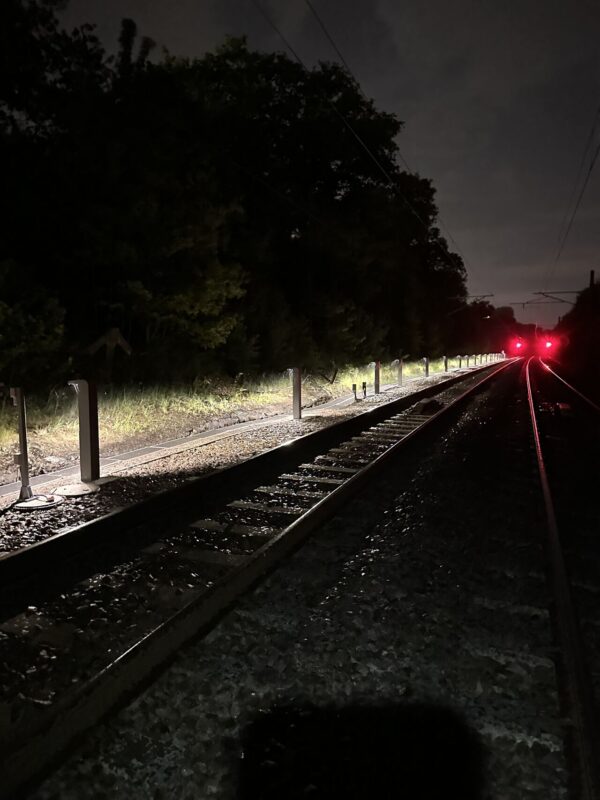

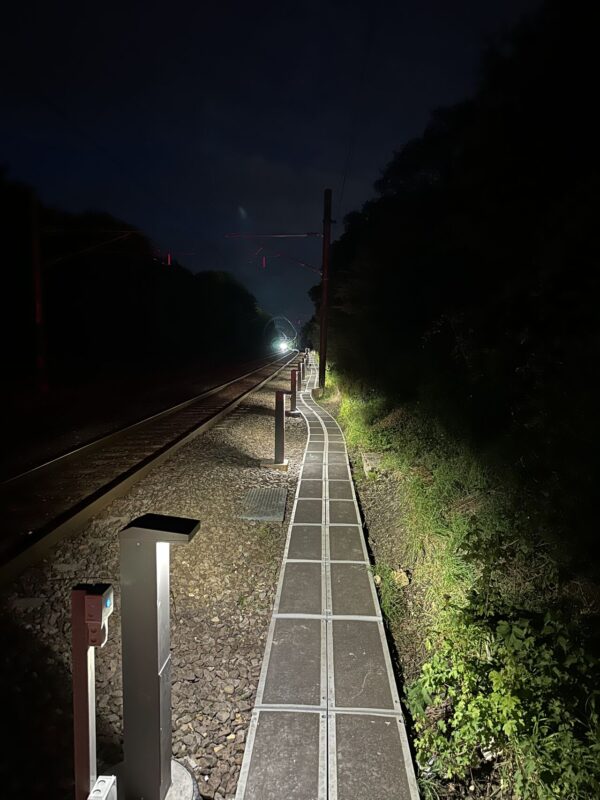

    Application includes railway sidings.

    This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.



    Product Specification

    Impact Resistance Rating: IK16 (150J). What is IK Rating?

    Ingress Protection Rating: IP66 (applies to head only). What is IP Rating?

    Housing: Extruded aluminium body with zinc coated steel head.

    Paint: Polyester powder coat. All Colour Options Available Here.

    Diffuser: Clear polycarbonate

    Driver: Integral electronic control gear. Supplied with plywood board for mounting of junction box or fused cutout.

    Mounting: Internal baseplate.

    Cable Entry: Provision for SWA cable entry in base.

    Design Life: 30+ years. What is Design Life?

    Uniformity and Spacings

    Output (lms) Height (mm) Lux level Uniformity Spacing (m)
    345 1000 10 0.13 8.6
    345 1000 11.2 0.25 7
    633 1200 11.1 0.1 11.6
    633 1200 16.6 0.25 8.3

    For lighting calculations utilising the double-sided Trackline version, please use 2 x single Trackline LDT files back-to-back.

    Technical Information

    Trackline Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
    1000mm 280mm
    TRK-1000-350N-MT 345 4.5 76 4000
    CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
    CRI>80 100,000 40 L₈₀B₁₀>100,000h
    Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
    379 15.5 D 280mm x 175mm (Single head), 410mm x 175mm (Double head)
    1200mm 280mm
    TRK-1200-350N-MT 345 4.5 76 4000
    CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
    CRI>80 100,000 40 L₈₀B₁₀>100,000h
    Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
    379 16.5 D 280mm x 175mm (Single head), 410mm x 175mm (Double head)
    TRK-1200-630N-MT 633 8.4 76 4000
    CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
    CRI>80 100,000 40 L₈₀B₁₀>100,000h
    Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
    379 16.5 D 280mm x 175mm (Single head), 410mm x 175mm (Double head)

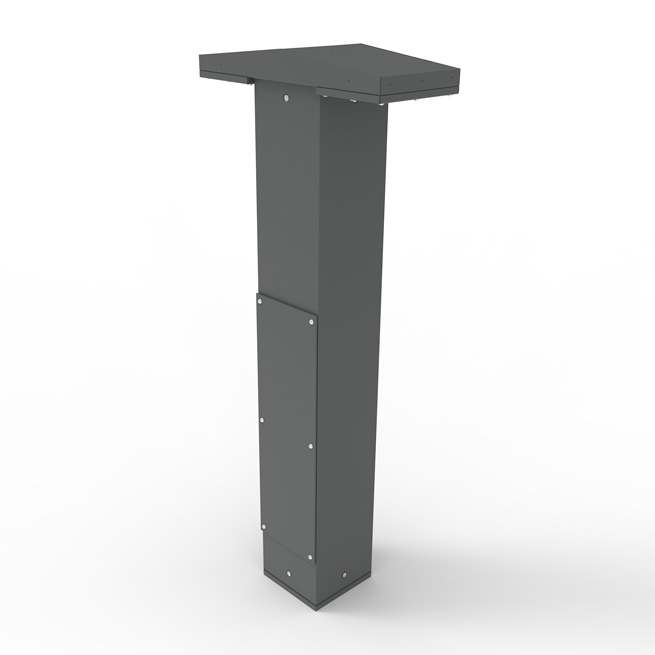

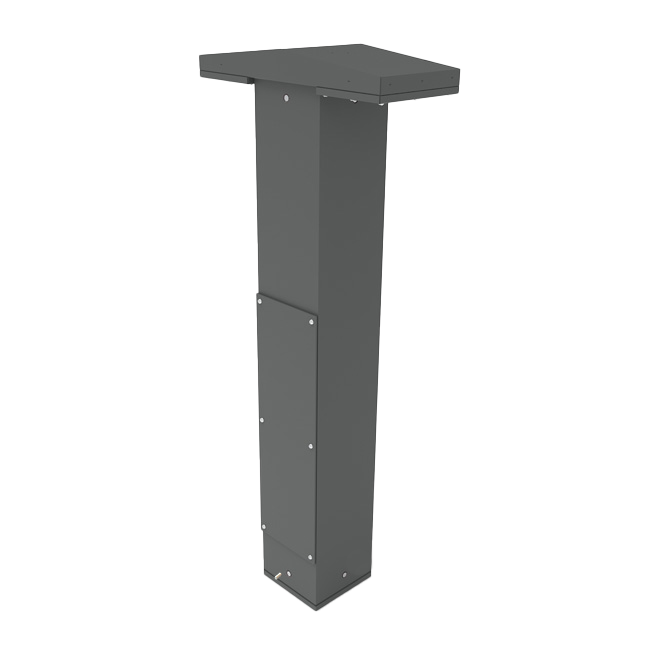

    1000mm Double-headed 410mm
    TRKD-1000-700N-MT 713 9.5 75 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>100,000h 183
    Weight (kg) LED Energy Rating Dimensions
    16 D 280mm x 175mm (Single head), 410mm x 175mm (Double head)
    1200mm Double-headed 410mm
    TRKD-1200-700N-MT 713 9.5 75 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>100,000h 183
    Weight (kg) LED Energy Rating Dimensions
    17 D 280mm x 175mm (Single head), 410mm x 175mm (Double head)

    Fitting Options

    Base Plate with External Earth Stud -B1
    Maintained Emergency 3 Hour, Self Test -ES
    Maintained Emergency 3 Hour, DALI -ED
    Maintained Emergency 3 Hour -E3
    Matt Titanium -MT
    DALI-2 Dimming / Monitoring -DA

    • HT Applies for standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
    • For lighting calculations utilising the double-headed Trackline version, please use 2 x single Trackline LDT files back-to-back. Emergency output refers to output of each head.
    • For Root mounting bracket, please order TRK-ROOT.

    Downloads

    Product Datasheet

    Trackline Spec Assist

    BIM

    DOFC

    LDT

    IES
