Product Information

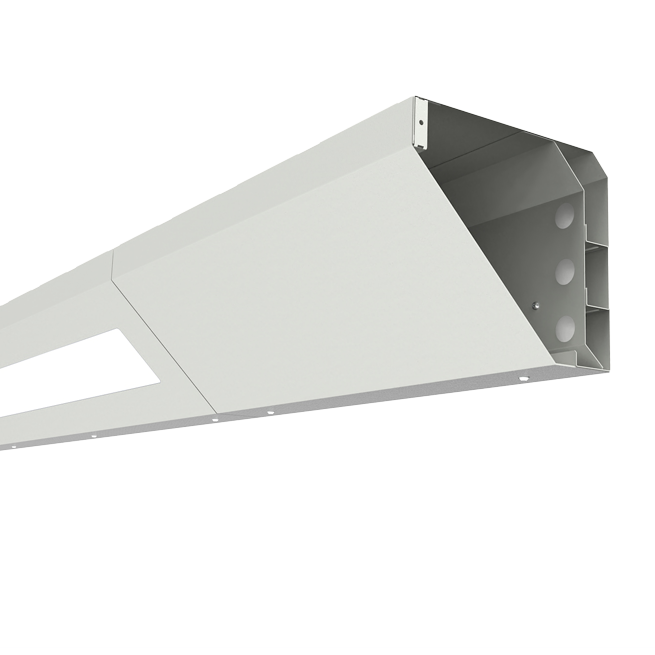

As part of the new generation of the Tuscan family, Tuscan G2 CMS luminaire combines improved efficiency, enhanced impact resistance, and a refined modern aesthetic. The specialist diffuser material provides a soft, uniform lit appearance, complemented by the durability expected from the Tuscan range. Designed as a cornice system, Tuscan G2 CMS luminaire efficiently directs light where it’s needed.

The innovative modular design delivers flexibility, speed, and precision throughout installation. Adjustable sections and corner modules accommodate on-site building tolerances, minimising fitting errors and helping to achieve a faster, more accurate installation. The three-compartment CMS enables power and service cables to be installed during the first-fix stage, while luminaire modules and infill covers can be fitted at uniform intervals during the second phase. This phased approach streamlines installation, reduces programme risk, and ensures a clean, consistent finish.

Applications include subways, underpasses, Custodial association areas, police stations and law courts.

Product Specification

Impact Resistance Rating: IK18 (200J). (Luminaire) What is IK Rating?

Ingress Protection Rating: IP65. (Luminaire) What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade.

Mounting: Cornice or Wall.

Cable Entry: Supplied with 230 mm flying lead and junction box.

Design Life: 30+ years. What is Design Life?

Technical Information

Tuscan G2 CMS Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Luminaire-L825mm
TUT-2-1900N-X-TW 1945 15.9 122 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9

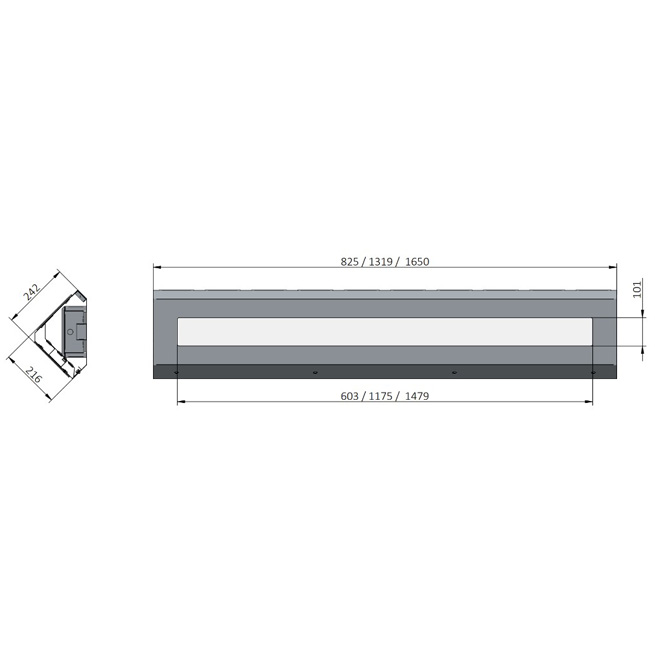

LED Energy Rating Dimensions
C 242mm x 216mm
TUT-2-2300N-X-TW 2256 18.2 124 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-2-2500N-X-TW 2541 20.4 125 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-2-1800W-X-TW 1848 15.9 116 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-2-2100W-X-TW 2145 18.2 118 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-2-2400W-X-TW 2440 20.5 119 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 6.9
LED Energy Rating Dimensions
C 242mm x 216mm
Luminaire-L1320mm
TUT-4-2000N-X-TW 1969 14.8 133 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-2600N-X-TW 2629 19.4 136 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-3300N-X-TW 3301 24 138 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-3900N-X-TW 3915 28.5 137 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-4500N-X-TW 4517 33 137 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUTA-4-5100N-X-TW 5110 37.6 136 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-1900W-X-TW 1872 14.9 126 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-2500W-X-TW 2512 19.5 129 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-3100W-X-TW 3141 24.1 130 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-3700W-X-TW 3723 28.6 130 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-4300W-X-TW 4302 33.1 130 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUT-4-4900W-X-TW 4874 37.8 129 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 50 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
Luminaire-L1650mm
TUT-5-2400N-X-TW 2384 17.6 135 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-3200N-X-TW 3181 23.2 137 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-4000N-X-TW 3983 28.9 138 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-4800N-X-TW 4762 34.6 138 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-5500N-X-TW 5530 40.4 137 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-6300N-X-TW 6335 46.6 136 4000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-2300W-X-TW 2271 17.6 129 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-3000W-X-TW 3047 23.3 131 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-3800W-X-TW 3835 29.1 132 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-4500W-X-TW 4524 34.6 131 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-5200W-X-TW 5280 40.4 131 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm
TUT-5-6000W-X-TW 5982 46.2 130 3000
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
80 100,000 L₈₀B₁₀>102,000h 14.8
LED Energy Rating Dimensions
C 242mm x 216mm

Fitting Options

Anti-Graffiti Diffuser Coating -AG
Coastal Paint Finish (Zone 2) -Z2
DALI with **% Pre-set -D
Maintained Emergency 3 Hour, Self Test -ES
Maintained Emergency 3 Hour, DALI -ED
Maintained Emergency 3 Hour -E3
Textured Black -TB
Textured White -TW
Matt Titanium -MT
DALI-2 Dimming / Monitoring -DA

• Please note that the weight stated is for the luminaire only.
• HT Applies for standard version. For any options (e.g. -E3) please contact technical sales on +44(0)208254 2022 or email technical@designplan.co.uk.
• -ED not available on 825mm version.
• -E3 / -ES and -DA cannot be combined on a 825mm versions.

;
