Product Information

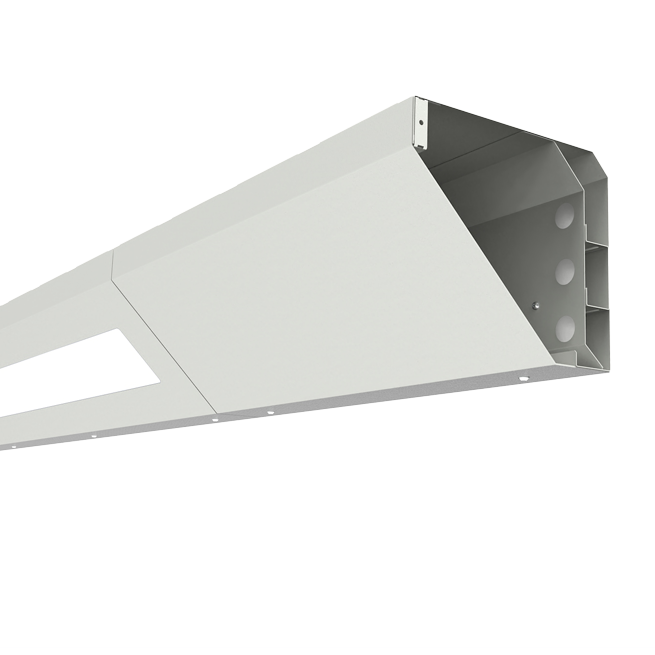

As part of the new generation of the Tuscan family, Tuscan G2 CMS Class II luminaire combines improved efficiency, enhanced impact resistance, and a refined modern aesthetic. The specialist diffuser material provides a soft, uniform lit appearance, complemented by the durability expected from the Tuscan range. Designed as a cornice system, Tuscan G2 CMS Class II luminaire efficiently directs light where it’s needed.

The innovative modular design delivers flexibility, speed, and precision throughout installation. Adjustable sections and corner modules accommodate on-site building tolerances, minimising fitting errors and helping to achieve a faster, more accurate installation. The three-compartment CMS enables power and service cables to be installed during the first-fix stage, while luminaire modules and infill covers can be fitted at uniform intervals during the second phase. This phased approach streamlines installation, reduces programme risk, and ensures a clean, consistent finish.

Applications include subways, underpasses, Custodial association areas, police stations and law courts.

Product Specification

Impact Resistance Rating: IK18 (200J). (Luminaire) What is IK Rating?

Ingress Protection Rating: IP65. (Luminaire) What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade.

Mounting: Cornice or Wall

Cable Entry: Supplied with 230mm flying lead and junction box.

Design Life: 30+ years. What is Design Life?

Technical Information

Tuscan G2 CMS Class II Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Luminaire-L825mm
TUTCL-2-1700N-X-TW 1679 14.4 117 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions

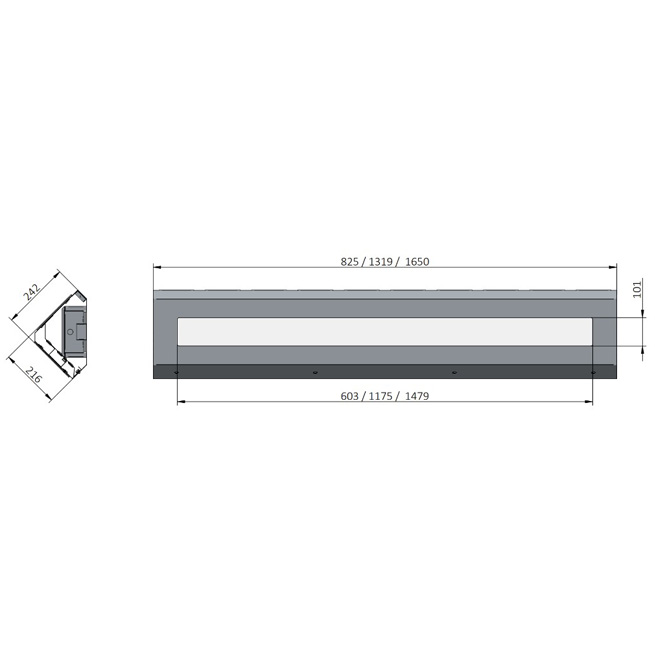

6.9 C 242mm x 216mm
TUTCL-2-2000N-X-TW 2038 17.1 119 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
6.9 C 242mm x 216mm
TUTCL-2-1600W-X-TW 1579 14.4 110 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
6.9 C 242mm x 216mm
TUTCL-2-1900W-X-TW 1905 17 112 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
6.9 C 242mm x 216mm
Luminaire-L1320mm
TUTCL-4-3000N-X-TW 3007 25.2 120 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUTCL-4-3900N-X-TW 3933 32.3 122 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUTCL-4-3000W-X-TW 2990 27.2 110 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
TUTCL-4-4000W-X-TW 3962 36.2 110 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
11.9 C 242mm x 216mm
Luminaire-L1650mm
TUTCL-5-3500N-X-TW 3484 29 120 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
14.8 C 242mm x 216mm
TUTCL-5-4700N-X-TW 4714 39.2 120 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
14.8 C 242mm x 216mm
TUTCL-5-3400W-X-TW 3374 29 116 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
14.8 C 242mm x 216mm
TUTCL-5-4500W-X-TW 4528 39 116 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
80 100,000 45 L₈₀B₁₀>102,000h
Weight (kg) LED Energy Rating Dimensions
14.8 C 242mm x 216mm

Fitting Options

Class II + In-rush Limiter -CD
Class II + Surge Protection -CC
Class II + Surge Protection + In-rush Limiter -CB
Anti-Graffiti Diffuser Coating -AG
Emergency luminaire monitoring module (CEAG) -EC
Textured Black -TB
Textured White -TW
Matt Titanium -MT
DALI-2 Dimming / Monitoring -DA

• Please note that the weight stated is for the luminaire only.

;
