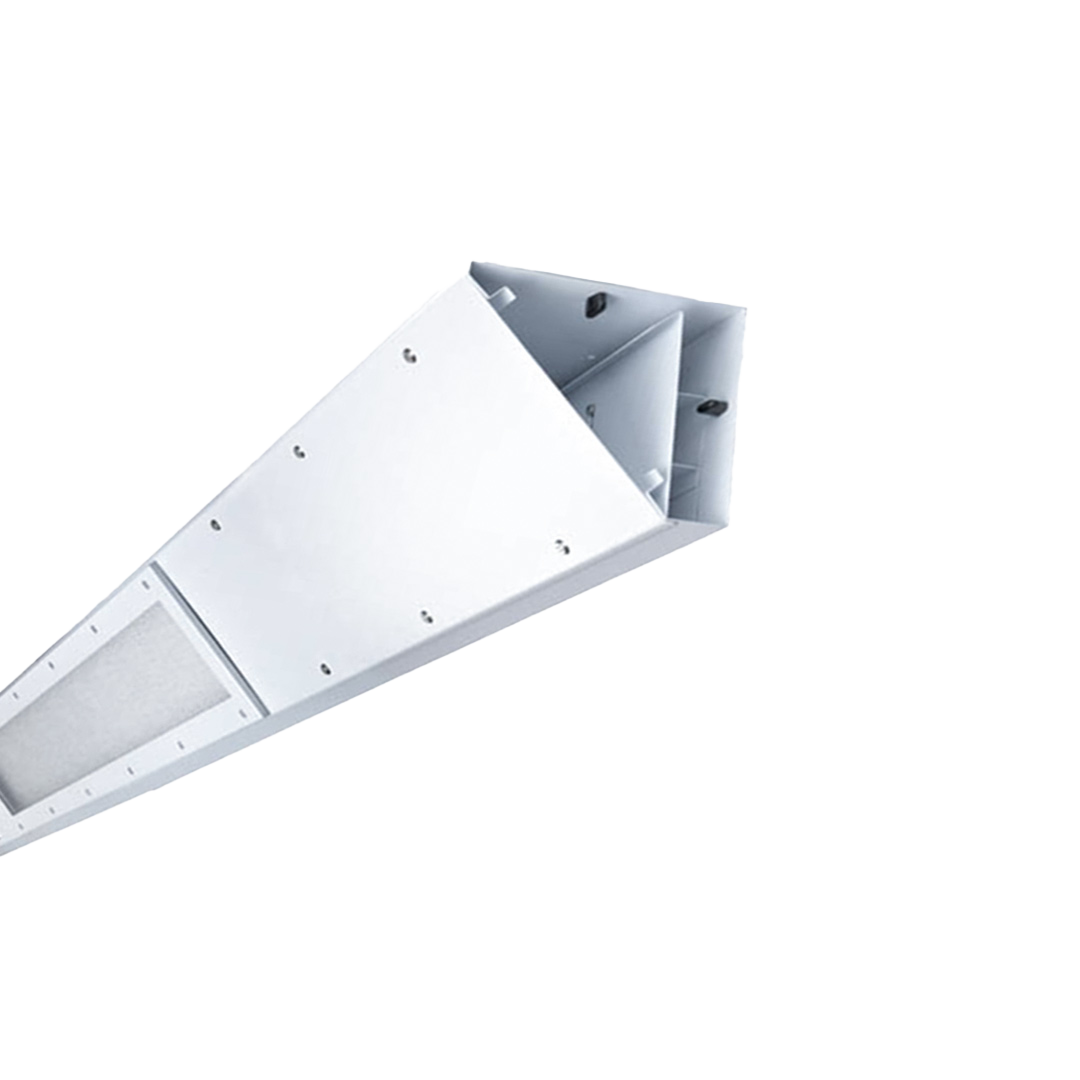

Tuscan Trunking is a cable management system specifically designed for challenging environments, such as custodial facilities, transport applications and community and public installations.
Tuscan Trunking is a three-compartment trunking system for power, telephones, TV, alarm, door opening, CCTV or other required services neatly behind the light fitting. Available in 45 degree angle with straight sections supplied up to 1800mm in length (maintaining a 300mm centre).

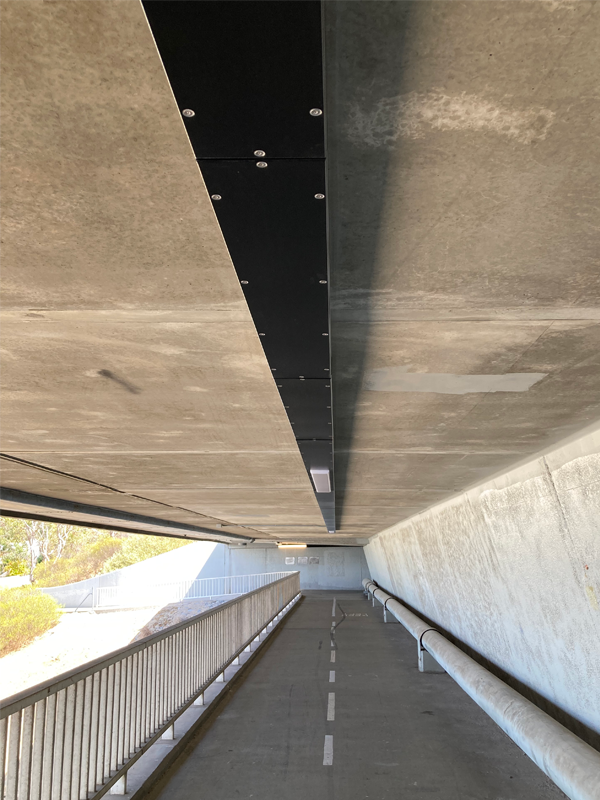

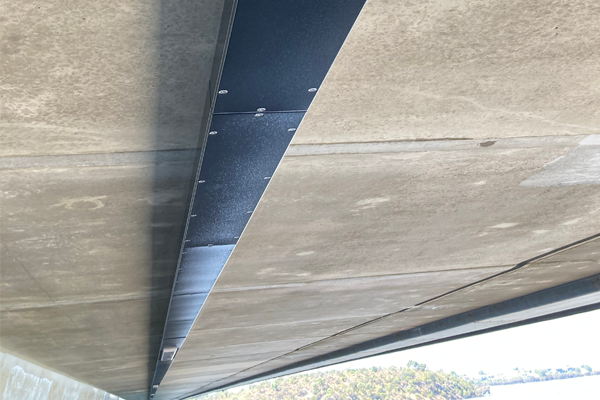

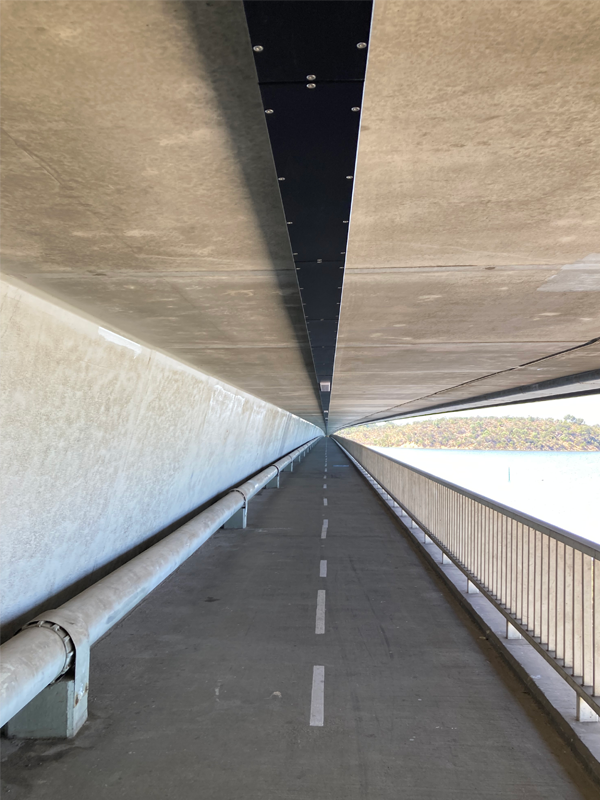

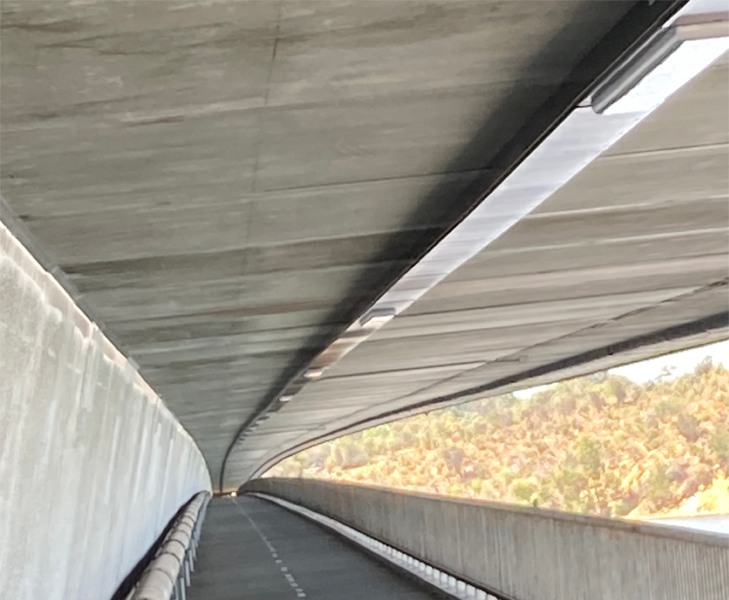

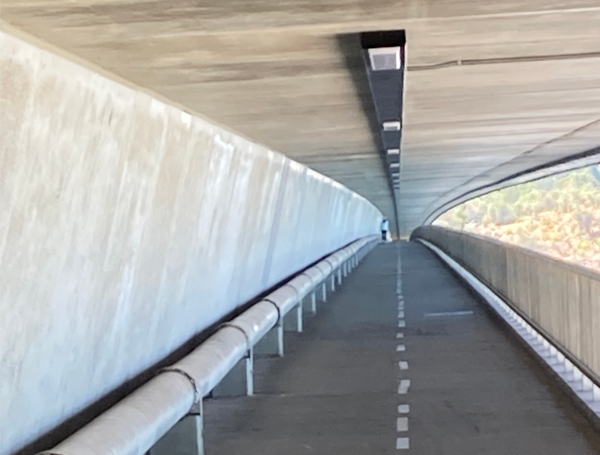

Community and Public applications include subways and underpasses. Custodial applications include association areas, police stations and law courts. Each application is unique and will be catered to your requirements.
TRUNKING:
Impact Resistance Rating: N/A
Ingress Protection Rating: N/A
Housing: Zinc coated steel body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: N/A
Driver: N/A
Mounting: Cornice
Cable Entry: 3 compartment CMS
LUMINAIRE:
Impact Resistance Rating: N/A
Ingress Protection Rating: . More information, CLICK HERE.
Housing: Zinc coated steel gear tray and diffuser frame.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: In Tuscan Trunking section
Cable Entry: Via Tuscan CMS.

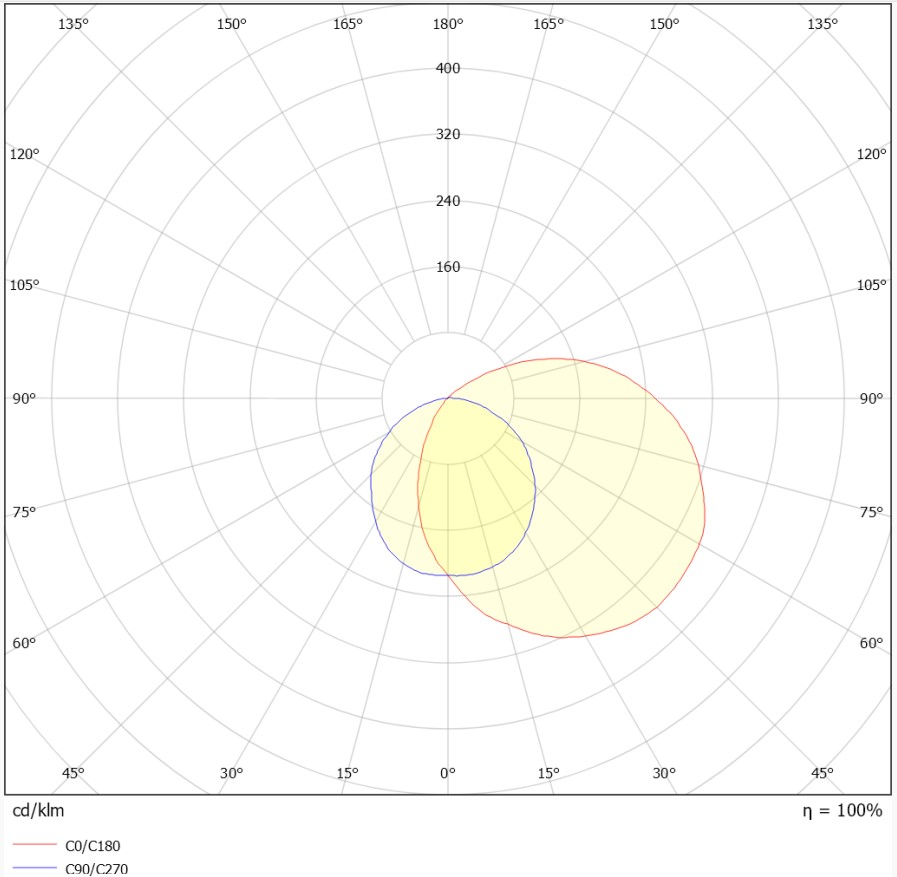

| Tuscan Trunking | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| L1500mm | ||||
| TRGT-5-6250N | 4735 | 49.5 | 96 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 588 | |
| LED Energy Rating | Dimensions | |||
| C | 1500mm | |||
| Coastal Paint Finish (Zone 2) | -Z2 |
| Screw Allen Head | -SA |
| Maintained Emergency 3 Hour | -E3 |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Maintained Emergency 3 Hour, DALI | -ED |
