Product Information

DP-E44 is available with optics specifically designed for corridors, anti-panic areas and for illuminating emergency equipment and call points.
DP-E44 is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2. It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.
Supplied with on board LED indicator, optional external indicator available upon request.
Secure Health and Custodial applications both include emergency lighting for all areas of the facility.

Product Specification

Impact Resistance Rating: IK16 (150 joules of energy).
Ingress Protection Rating: IP65 (from front only).
Housing: Machined aluminium body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Clear polycarbonate diffuser.
Driver: Remote DALI/Self test 3h non-maintained emergency module and battery.

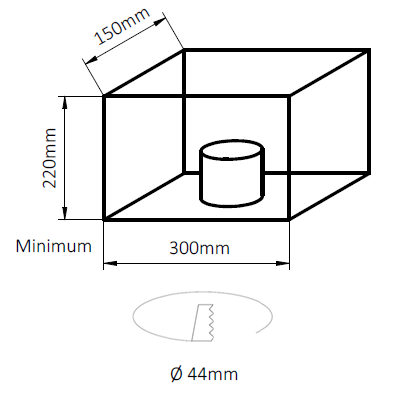

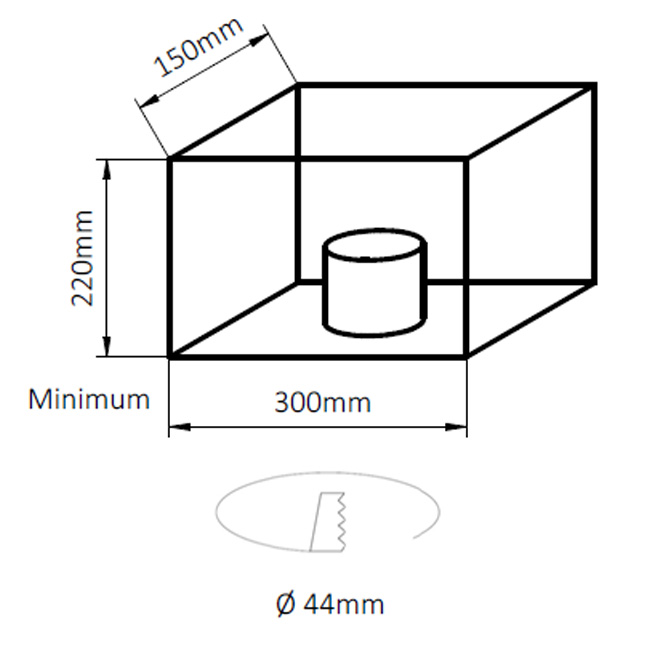

Mounting: Ceiling, recessed
Cable Entry: Provision for cable entry in remote module.

Technical Information

DP-E44 Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)

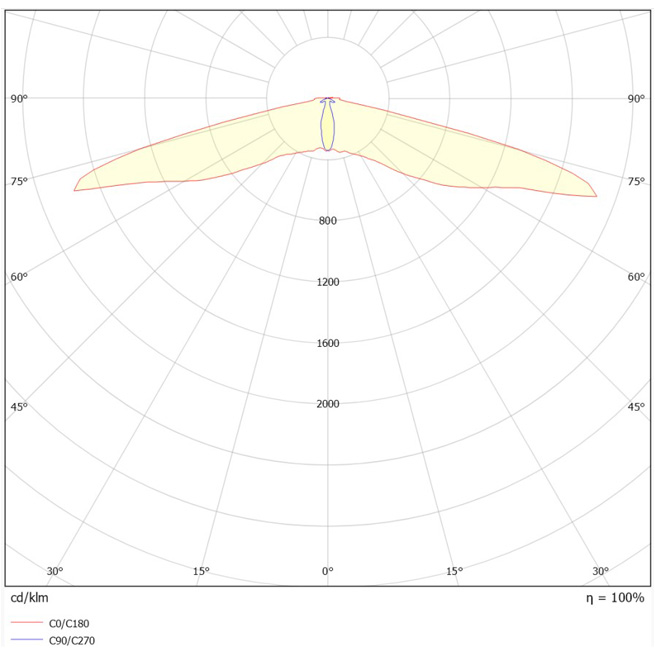

Corridor
E44-250N1-MW-ND N/A 4.3 4000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 263
Weight (kg) LED Energy Rating Dimensions

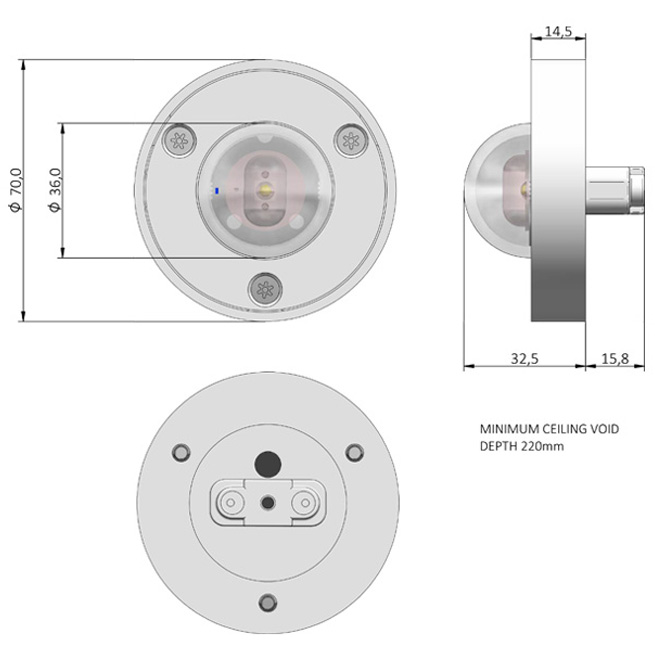

0.4 D Ø70mm, 49mm
E44-250W1-MW-ND N/A 4.3 3000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 250
Weight (kg) LED Energy Rating Dimensions
0.4 E Ø70mm, 49mm

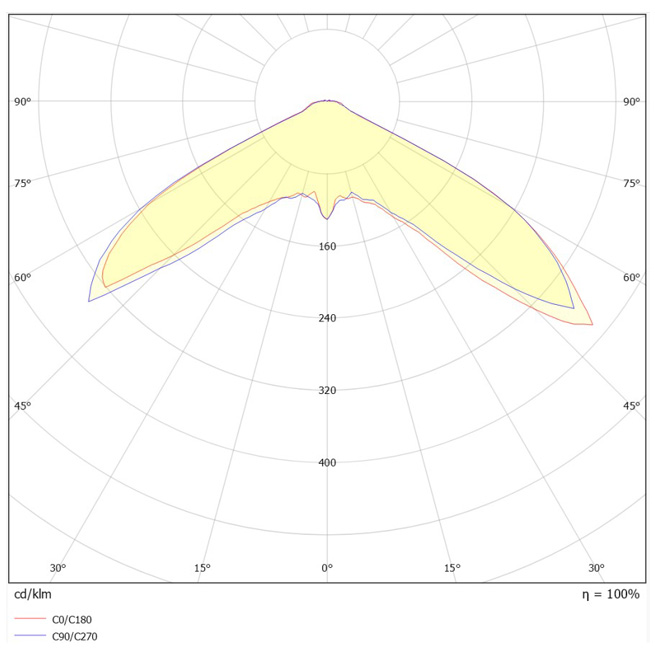

Anti-panic
E44-250N2-MW-ND N/A 4.3 4000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 273
Weight (kg) LED Energy Rating Dimensions
0.4 D Ø70mm, 49mm
E44-250W2-MW-ND N/A 4.3 3000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 259
Weight (kg) LED Energy Rating Dimensions
0.4 E Ø70mm, 49mm

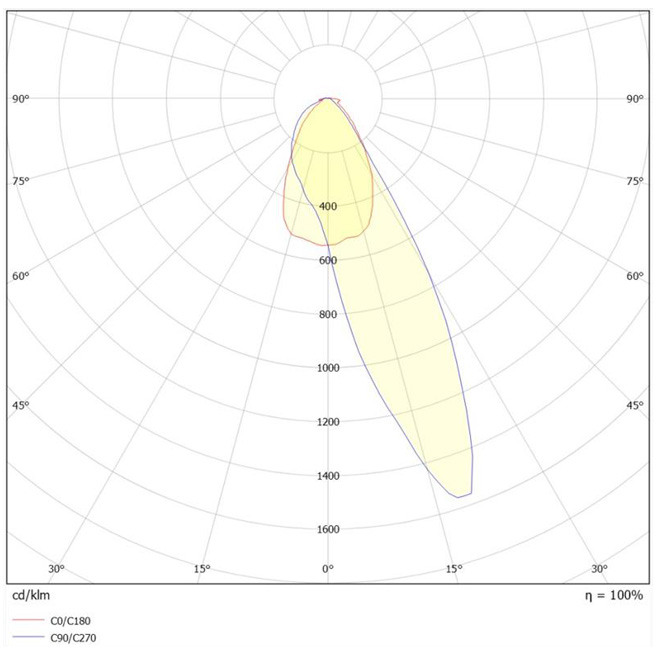

Illuminating emergency equipment
E44-250N3-MW-ND N/A 4.3 4000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 273
Weight (kg) LED Energy Rating Dimensions
0.4 D Ø70mm, 49mm
E44-250W3-MW-ND N/A 4.3 3000
CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
CRI>80 70,000 L₇₀B₁₀>50,000h 259
Weight (kg) LED Energy Rating Dimensions
0.4 E Ø70mm, 49mm

Fitting Options

Matt White -MW

• IP rating applies from below.
• 6W in charging mode.

;
