Flair

  • Reset Filter

  • Product Type

  • IK Rating

  • IP Rating

  • High Temperature

  • Anti-Ligature

  • Section 12

  • Electrical Class

  • Sectors

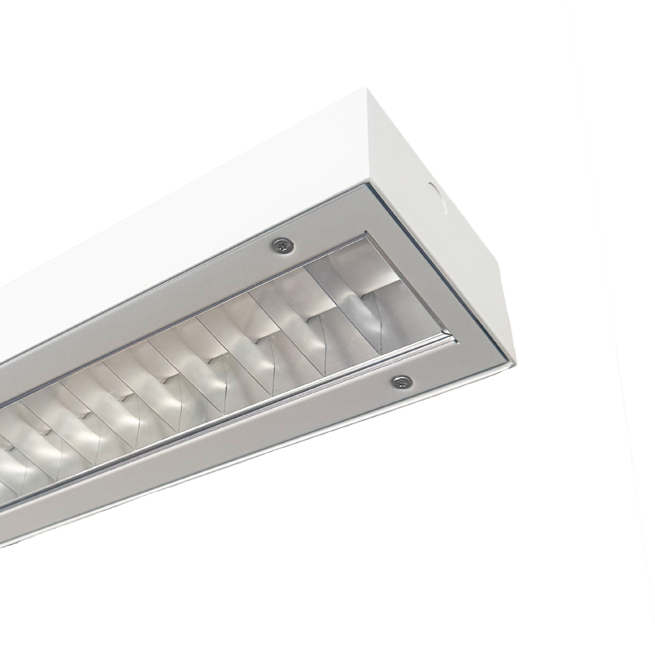

Robust vandal and weather resistant linear fitting for interior or exterior use.
  • Suitable for ceiling or optional recessed mounting.
  • Extruded aluminium body and die cast end caps finished in matt silver polyester powder coat.
  • Clear polycarbonate diffuser and reflective louvre held against silicone gasket by tamperproof screws.
  • Electronic control gear on removable tray with fused plug & socket connector block.
  • Provision for conduit entry in back, gaskets provided.

Lamp options

LAMP OPTIONS

CLEAR DIFFUSER

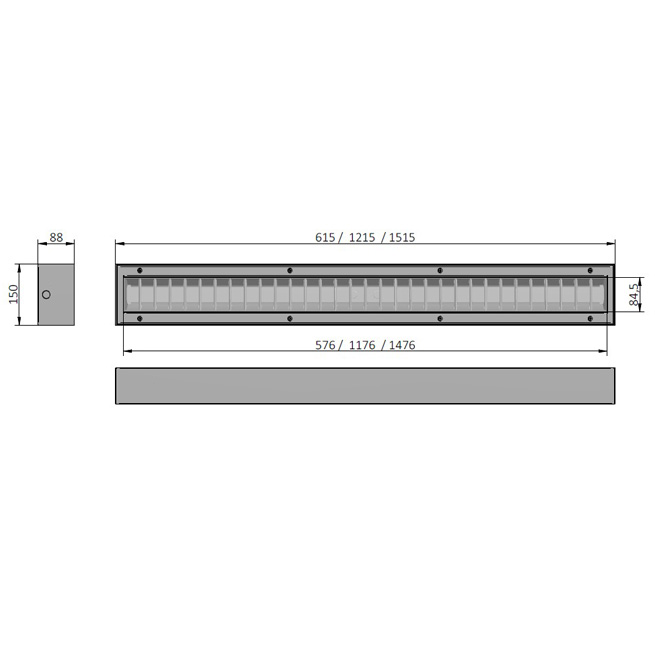

615mm LONG
LED Lamps Temp Load Lum/lms Efficacy Weight
FLR/2/1500NW/PC48 LED Array 4000K 15W 1314lms 88lm/W 4.5KG
FLR/2/2000NW/PC48 LED Array 4000K 18W 1752lms 97lm/W 4.5KG
FLR/2/2500NW/PC48 LED Array 4000K 22W 2190lms 99lm/W 4.5KG
FLR/2/3000NW/PC48 LED Array 4000K 26W 2628lms 101lm/W 4.5KG
1215mm LONG
LED Lamps Temp Load Lum/lms Efficacy Weight HT
FLR/4/3000NW/PC48 LED Array 4000K 28W 2628lms 94lm/W 8.5KG HT40°
FLR/4/4000NW/PC48 LED Array 4000K 35W 3504lms 100lm/W 8.5KG HT40°
FLR/4/5000NW/PC48 LED Array 4000K 43W 4380lms 102lm/W 8.5KG HT40°
FLR/4/6000NW/PC48 LED Array 4000K 51W 5256lms 102lm/W 8.5KG HT40°
1515mm LONG
FLR/5/3750NW/PC48 LED Array 4000K 35W 3285lms 94lm/W 11.5KG
FLR/5/5000NW/PC48 LED Array 4000K 44W 4380lms 99lm/W 11.5KG
FLR/5/6250NW/PC48 LED Array 4000K 54W 5475lms 101lm/W 11.5KG
FLR/5/7500NW/PC48 LED Array 4000K 63W 6570lms 104lm/W 11.5KG

Fitting options

FITTING OPTIONS

Pure white finish replace C48 with C32

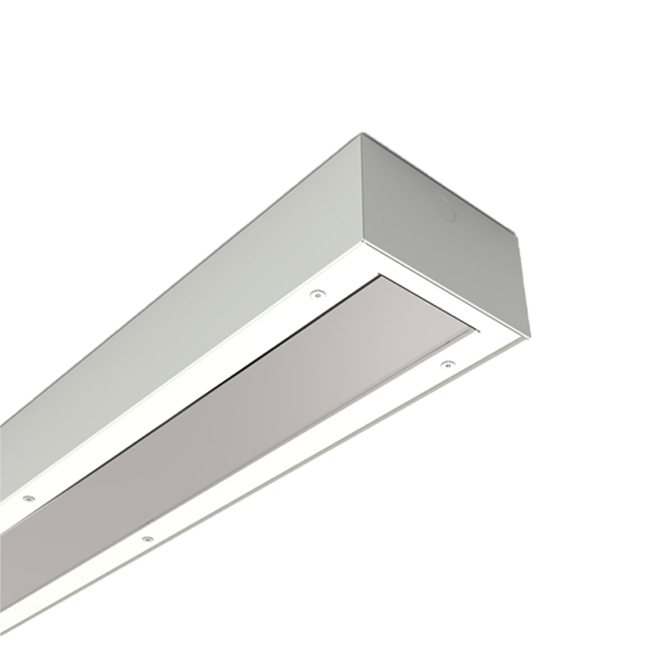

Opal diffuser (no louvre) replace P with X
Section glass clear glass (IK8) replace P with S12C
Section 12 frosted glass (IK8) replace P with S12F
Integral 3 hour duration emergency* add suffix /EM3
Self test 3 hour duration emergency* add suffix /EM3S
DALI 3 hour duration emergency* add suffix /EM3D
DALI dimming/monitoring add suffix /DALI
Switch dimming add suffix /DIM
Warm white LEDs (3000K) replace NW with WW
End entry(s) add suffix /H or /HH

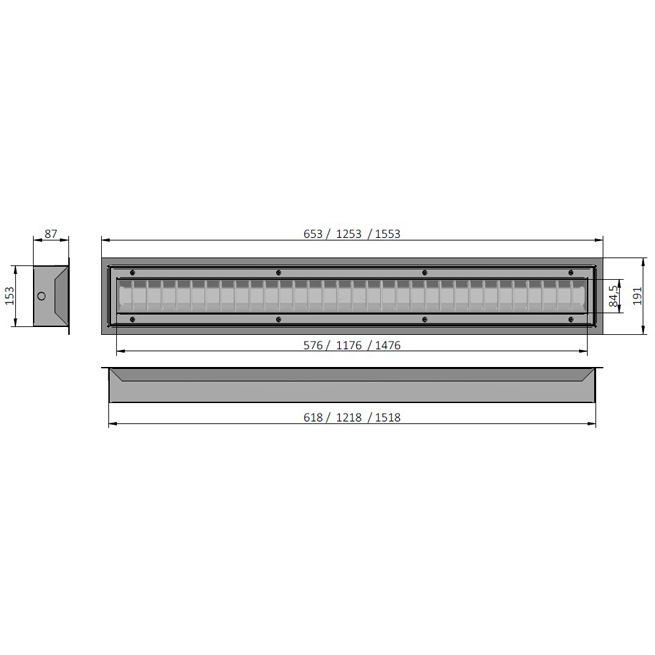

Recessed (includes 20mm flange all round, add 8mm to width and length shown). add suffix /R

* No emergency options available on all 2 foot (615mm) versions

Robust vandal and weather resistant linear fitting for interior or exterior use.


Sectors

, ,

Finishes


Downloads

Download PDF Download LDT Download BIM Specification Assists

Flair

Robust vandal and weather resistant linear fitting for interior or exterior use.
  • Suitable for ceiling or optional recessed mounting.
  • Extruded aluminium body and die cast end caps finished in matt silver polyester powder coat.
  • Clear polycarbonate diffuser and reflective louvre held against silicone gasket by tamperproof screws.
  • Electronic control gear on removable tray with fused plug & socket connector block.
  • Provision for conduit entry in back, gaskets provided.

Robust vandal and weather resistant linear fitting for interior or exterior use.

Sectors

, ,

Finishes

Lamp options

LAMP OPTIONS

CLEAR DIFFUSER
615mm LONG
LED Lamps Temp Load Lum/lms Efficacy Weight
FLR/2/1500NW/PC48 LED Array 4000K 15W 1314lms 88lm/W 4.5KG
FLR/2/2000NW/PC48 LED Array 4000K 18W 1752lms 97lm/W 4.5KG
FLR/2/2500NW/PC48 LED Array 4000K 22W 2190lms 99lm/W 4.5KG
FLR/2/3000NW/PC48 LED Array 4000K 26W 2628lms 101lm/W 4.5KG
1215mm LONG
LED Lamps Temp Load Lum/lms Efficacy Weight HT
FLR/4/3000NW/PC48 LED Array 4000K 28W 2628lms 94lm/W 8.5KG HT40°
FLR/4/4000NW/PC48 LED Array 4000K 35W 3504lms 100lm/W 8.5KG HT40°
FLR/4/5000NW/PC48 LED Array 4000K 43W 4380lms 102lm/W 8.5KG HT40°
FLR/4/6000NW/PC48 LED Array 4000K 51W 5256lms 102lm/W 8.5KG HT40°
1515mm LONG
FLR/5/3750NW/PC48 LED Array 4000K 35W 3285lms 94lm/W 11.5KG
FLR/5/5000NW/PC48 LED Array 4000K 44W 4380lms 99lm/W 11.5KG
FLR/5/6250NW/PC48 LED Array 4000K 54W 5475lms 101lm/W 11.5KG
FLR/5/7500NW/PC48 LED Array 4000K 63W 6570lms 104lm/W 11.5KG

Fitting options

FITTING OPTIONS

Pure white finish replace C48 with C32
Opal diffuser (no louvre) replace P with X
Section glass clear glass (IK8) replace P with S12C
Section 12 frosted glass (IK8) replace P with S12F
Integral 3 hour duration emergency* add suffix /EM3
Self test 3 hour duration emergency* add suffix /EM3S
DALI 3 hour duration emergency* add suffix /EM3D
DALI dimming/monitoring add suffix /DALI
Switch dimming add suffix /DIM
Warm white LEDs (3000K) replace NW with WW
End entry(s) add suffix /H or /HH
Recessed (includes 20mm flange all round, add 8mm to width and length shown). add suffix /R

* No emergency options available on all 2 foot (615mm) versions
