Product Information

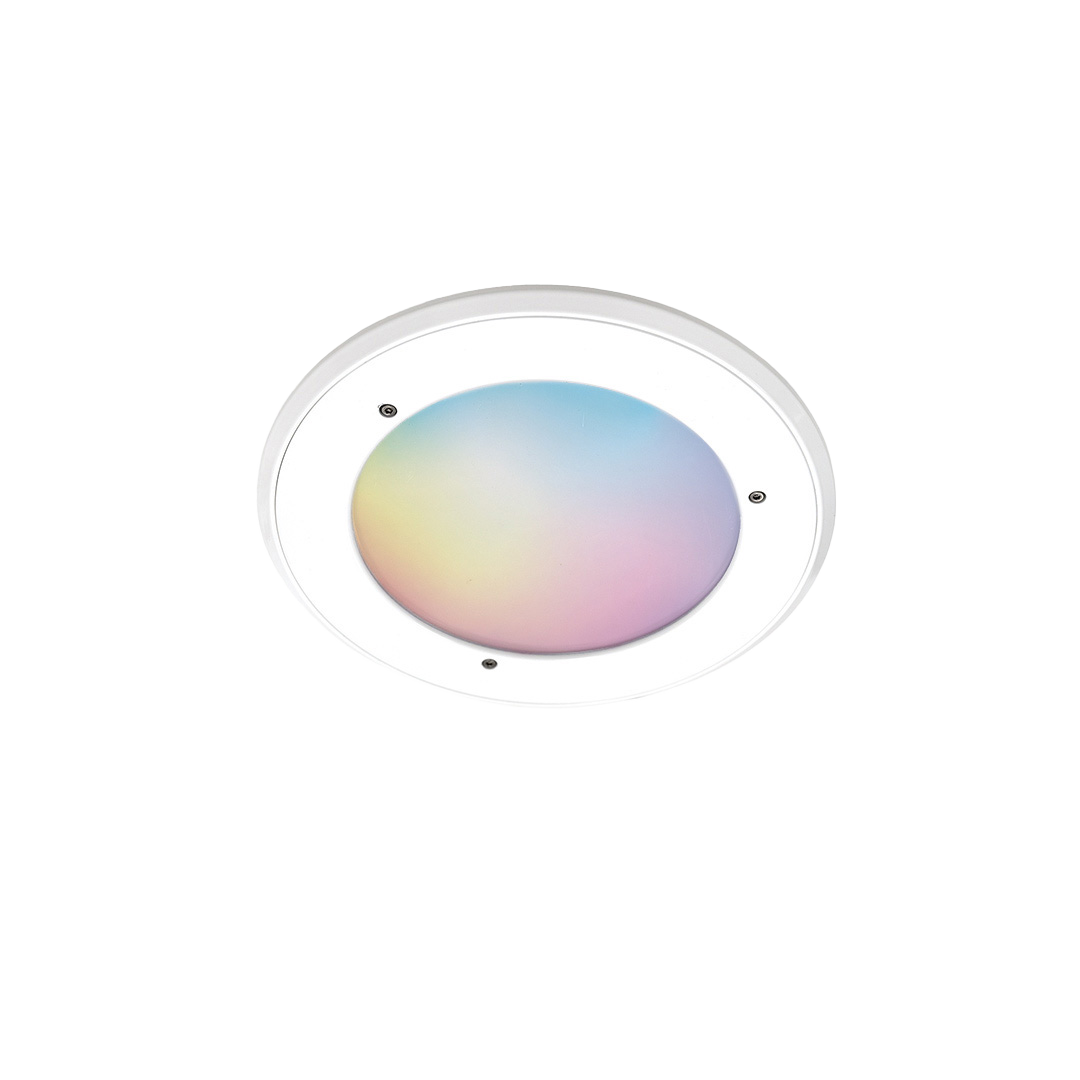

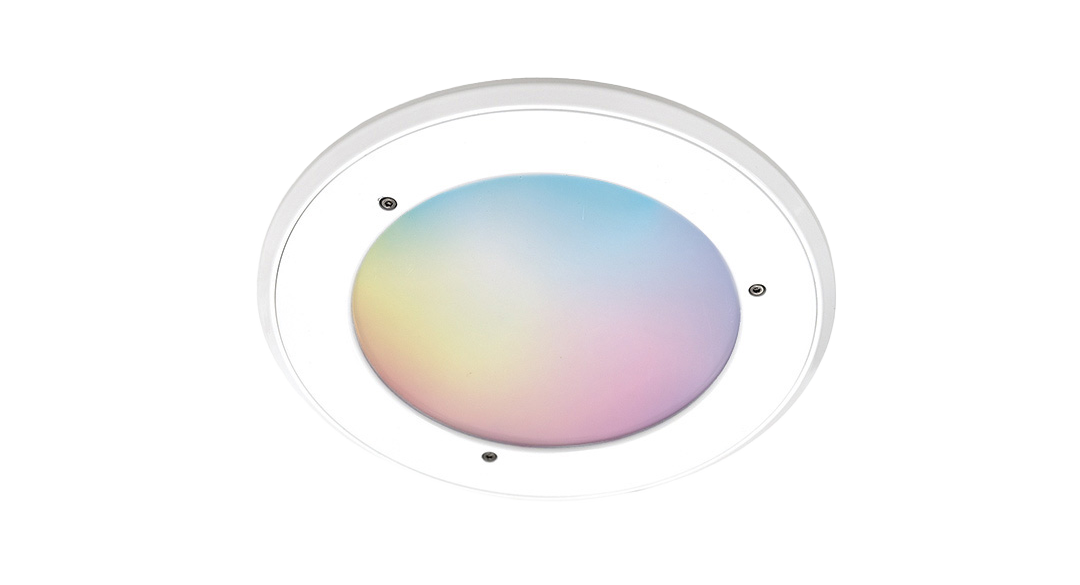

RDL AL G2 RGBW allows for customisable coloured lighting effects, including white, to create a dynamic or therapeutic setting. RDL AL G2 RGBW’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare to create a comfortable feel.

RDL AL G2 RGBW is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2. RDL AL G2 RGBW is a ligature resistant fitting, designed to help prevent self-harming, with ligature resistant first fix bezel.

Designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.

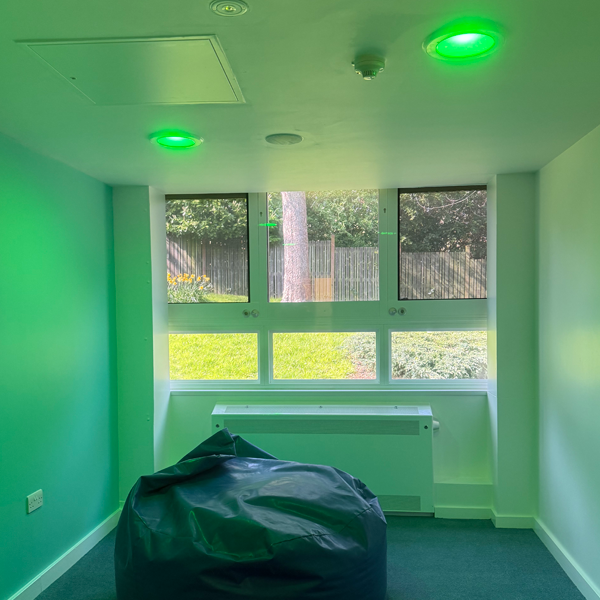

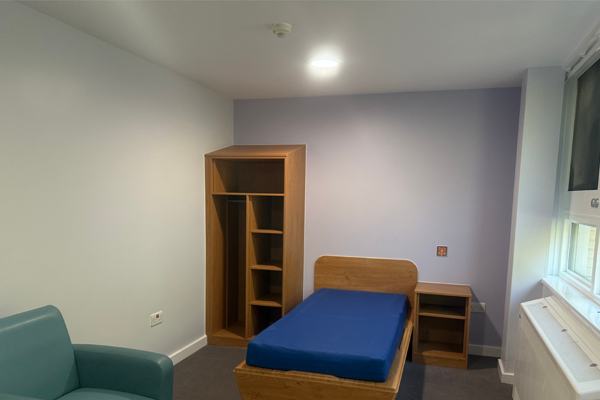

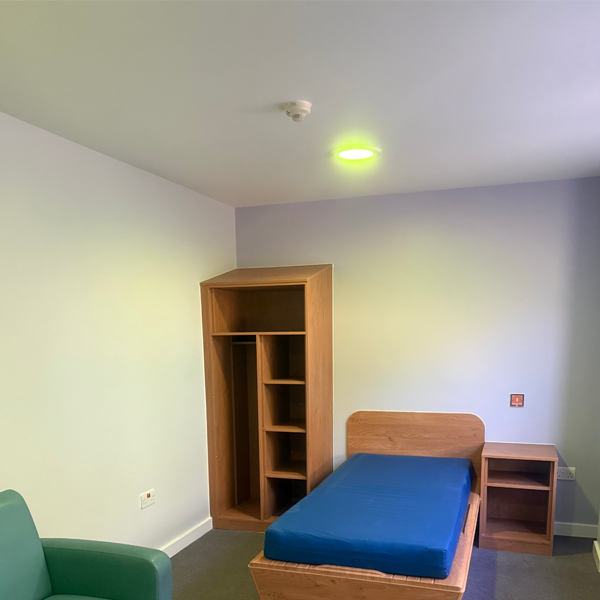

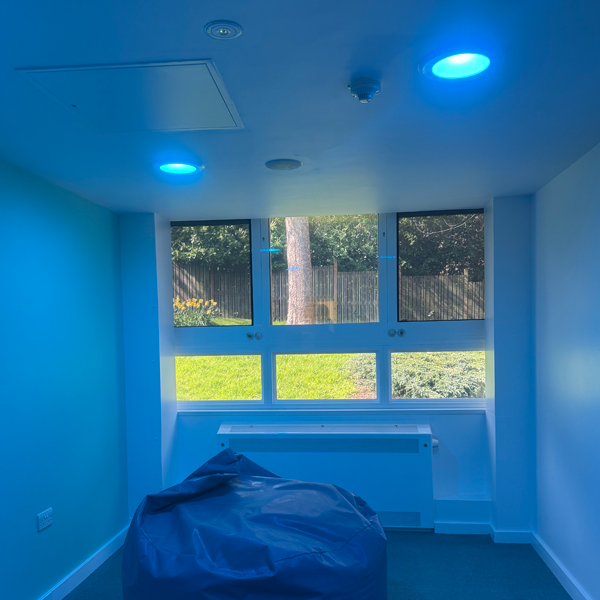

Applications include therapy rooms, de-escalation rooms, bedrooms and en-suites.

Product Specification

Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.

Ingress Protection Rating: IP65 (from below only). More information, CLICK HERE.

Housing: Zinc coated steel body with machined aluminium bezel and face.

Paint: Polyester powder coat. All colours available, CLICK HERE

Diffuser: Polycarbonate diffuser with opal liner in frame secured with tamperproof screws.

Driver: Remote electronic control gear. DALI (Device type 6) drivers as standard. Casambi wireless enabled (User Interface required).

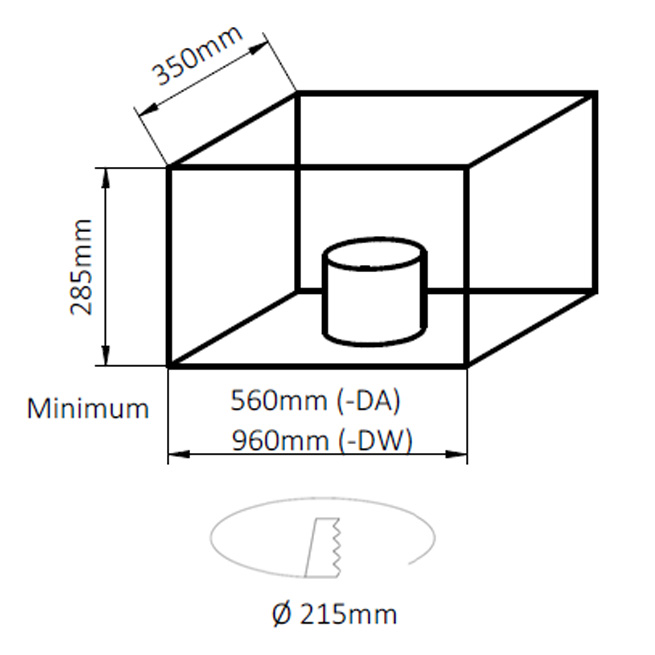

Mounting: Ceiling, recessed

Cable Entry: Provision for cable entry in remote driver box.

Technical Information

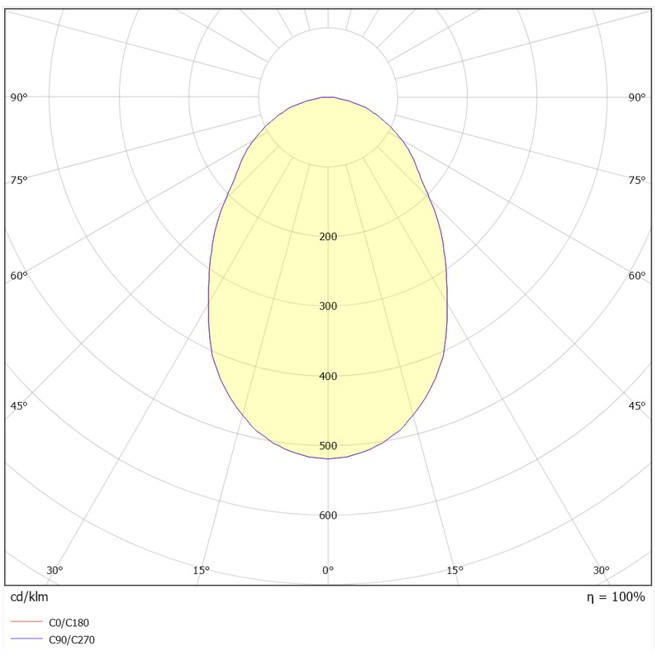

RDL AL G2 RGBW Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Opal
ALRDL-G2-RGBW-X-SW-DW 1191 lm (white 4000K CRI90 channel) 17.5 RGBW
Driver Lifetime (up to hours) LED Lifetime Weight (kg) LED Energy Rating
50,000 L₇₀B₁₀>50,000h 1.8 E

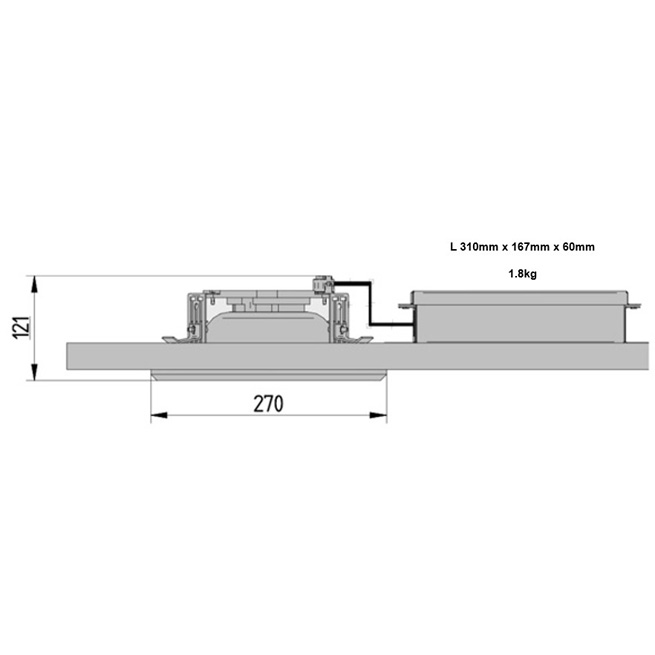

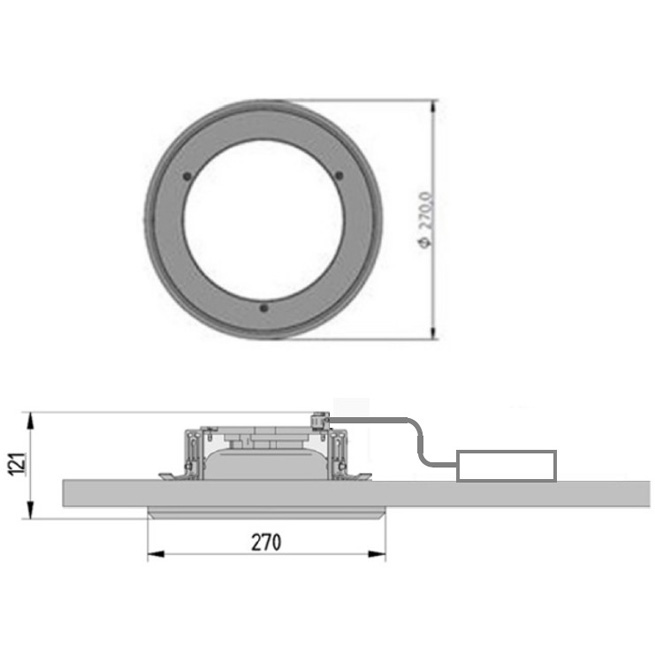

Dimensions
Ø270mm, 121mm

Fitting Options

DALI-2 Dimming / Monitoring -DA
Smooth White -SW
Matt Black -MB

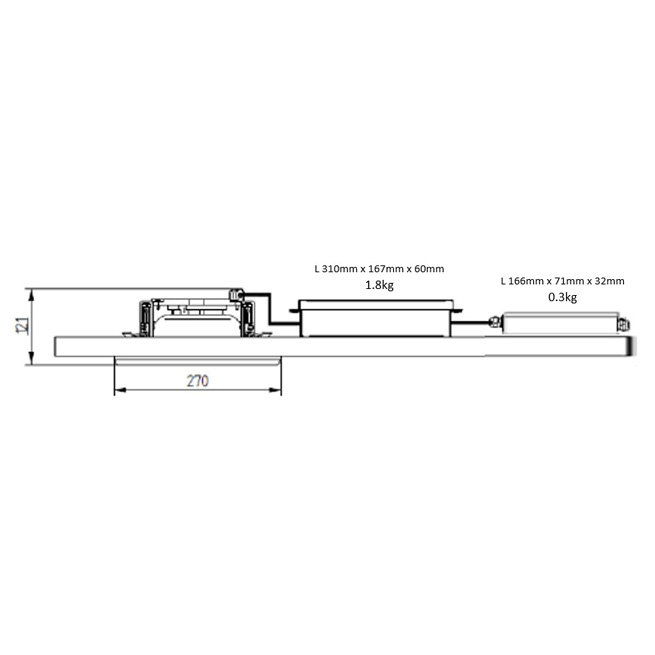

Casambi Node -DW

• For paint colour options, please replace -SW with required paint code.
• For DALI only version, please replace -DW with -DA. (DALI control system required).
• For Casambi User interface (White), order code CAUI-W.
• For Casambi User interface (Black), order code CAUI-B.

;
