Product Information

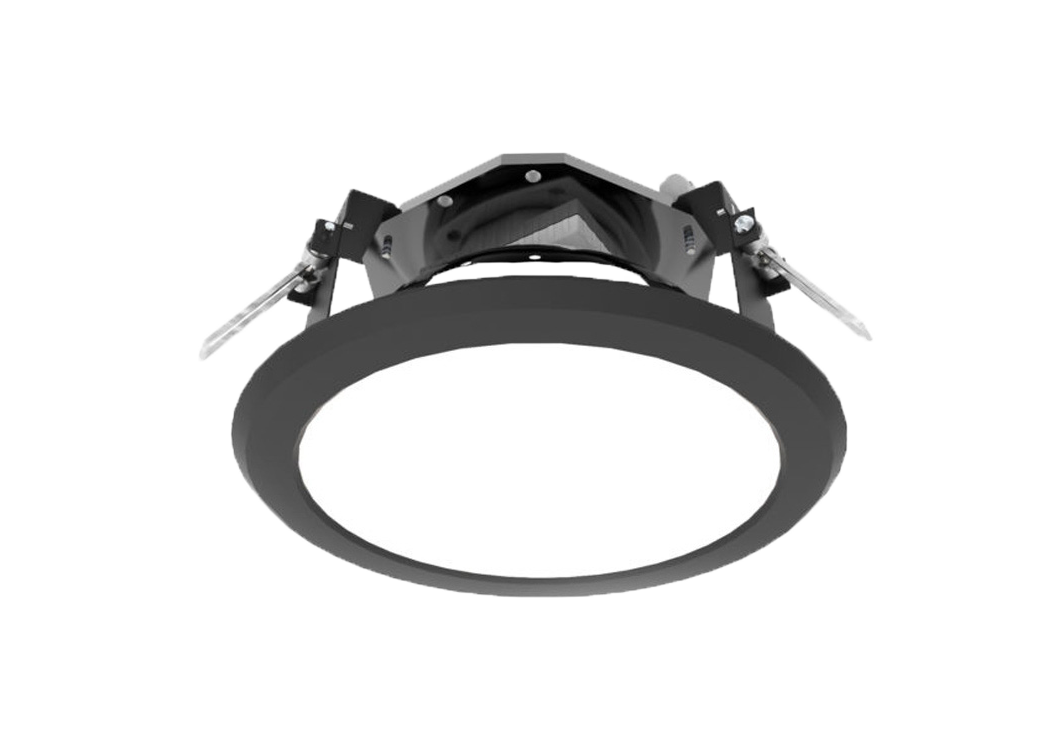

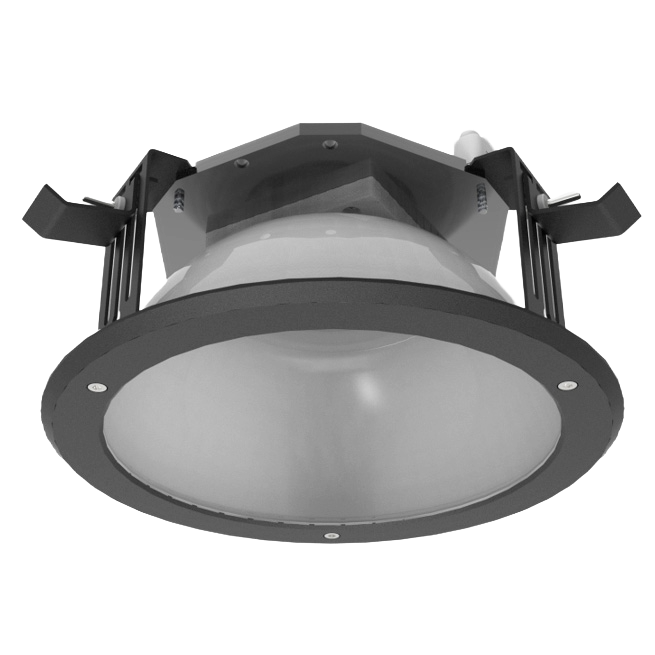

RDL G2’s uniform light distribution reduces glare and provides focused illumination for specific areas or objects. Incorporating a removable gear tray ensures RDL G2 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Community and Public applications include the interior communal spaces of buildings. Secure Health applications include corridors and circulation spaces. Transport applications include public toilets and waiting rooms.

Product Specification

Impact Resistance Rating: IK12 (62.5 joules of energy).

Ingress Protection Rating: IP65 (from below only.)

Housing: Zinc coated steel body with machined aluminium bezel ring.

Paint: Polyester powder coat. For all colours available, CLICK HERE.

Diffuser: Clear polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Remote electronic driver.

Mounting: Ceiling, recessed.

Cable Entry: Provision for cable entry in remote driver.

Technical Information

RDL G2 Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Clear
RDL-G2-1100N-C-MB 995 10 100 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions

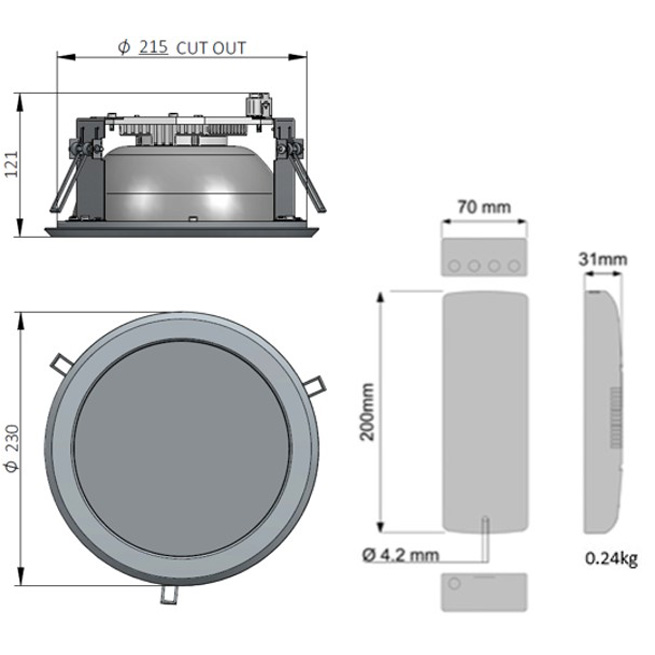

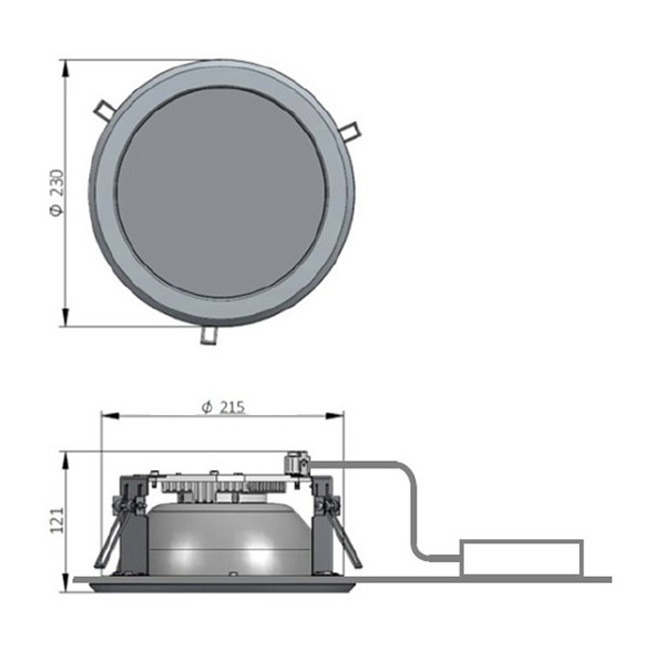

310 1 E Ø230mm, 121mm
RDL-G2-1500N-C-MB 1448 14.5 100 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
310 1 E Ø230mm, 121mm
RDL-G2-2000N-C-MB 1795 18.3 98 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
310 1 E Ø230mm, 121mm
RDL-G2-2500N-C-MB 2224 21.7 102 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
310 1 E Ø230mm, 121mm
RDL-G2-3000N-C-MB 2614 26.1 100 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
310 1 E Ø230mm, 121mm
RDL-G2-1100W-C-MB 951 10 95 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
296 1 E Ø230mm, 121mm
RDL-G2-1500W-C-MB 1384 14.5 95 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
296 1 E Ø230mm, 121mm
RDL-G2-2000W-C-MB 1715 18.3 94 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
296 1 E Ø230mm, 121mm
RDL-G2-2500W-C-MB 2149 21.7 99 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
295 1 E Ø230mm, 121mm
RDL-G2-3000W-C-MB 2525 26.1 97 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
296 1 E Ø230mm, 121mm
Opal
RDL-G2-1100N-X-MB 914 10.2 89 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
266 1 E Ø230mm, 121mm
RDL-G2-1500N-X-MB 1328 14.9 89 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
266 1 E Ø230mm, 121mm
RDL-G2-2000N-X-MB 1668 18.6 90 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
266 1 E Ø230mm, 121mm
RDL-G2-2500N-X-MB 2268 24.9 91 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
266 1 E Ø230mm, 121mm
RDL-G2-3000N-X-MB 2431 26.5 92 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
266 1 E Ø230mm, 121mm
RDL-G2-1100W-X-MB 873 10.2 86 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
254 1 E Ø230mm, 121mm
RDL-G2-1500W-X-MB 1269 14.9 85 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
254 1 E Ø230mm, 121mm
RDL-G2-2000W-X-MB 1594 18.6 86 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
254 1 E Ø230mm, 121mm
RDL-G2-2500W-X-MB 2191 24.9 88 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
254 1 E Ø230mm, 121mm
RDL-G2-3000W-X-MB 2349 26.5 89 3000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 40 L₈₀B₁₀>50,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
254 1 E Ø230mm, 121mm

Fitting Options

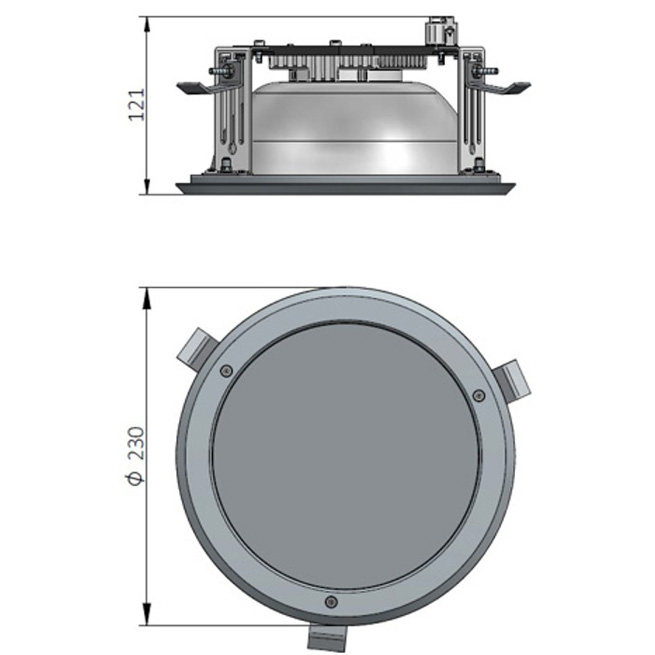

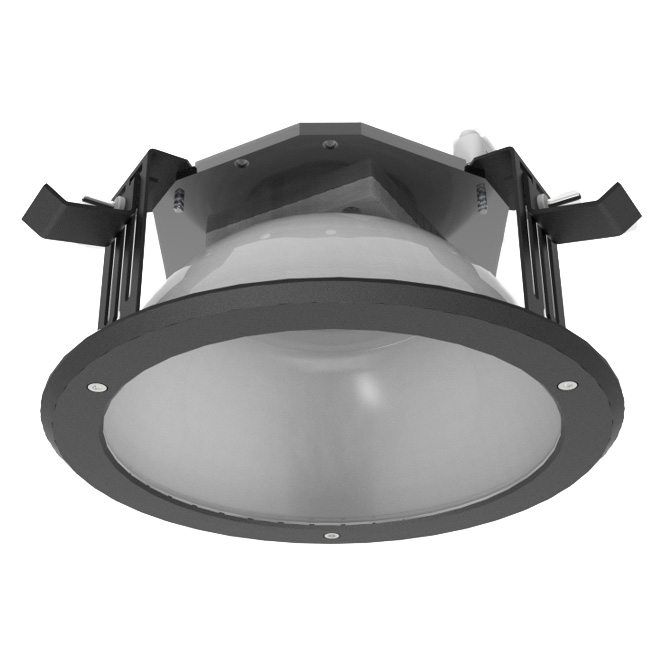

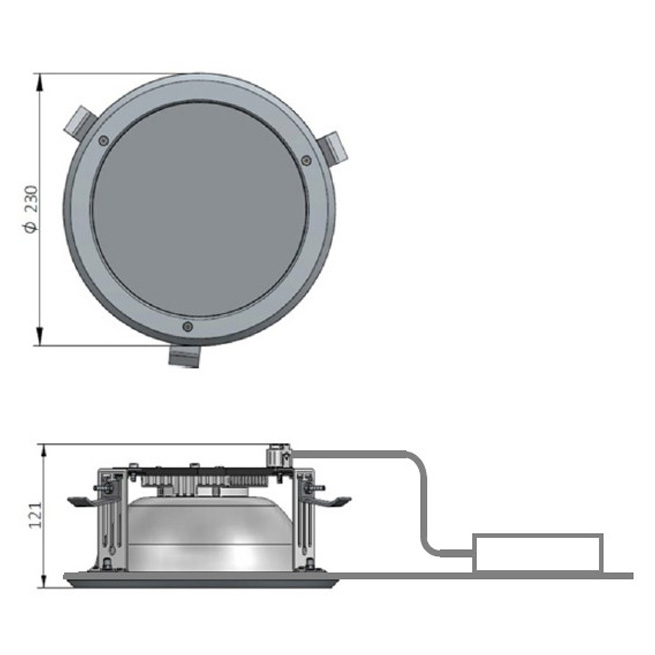

Front Access -FA
Switch Dimming -DI
DALI-2 Dimming / Monitoring -DA
Maintained Emergency 3 Hour -E3
Central Battery Maintained 110V -EV
Change Over Relay, 240V Relay Supplied -ER
Maintained Emergency 3 Hour, Self Test -ES
Maintained Emergency 3 Hour, DALI -ED
Smooth White -SW
Matt Black -MB

• For paint colour options, please replace -MB with required paint code.
• IP rating applies from below.
• HT Applies for standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -EV option fitting is Electrical Class I.
• -ER option fitting is Electrical Class I.

;
