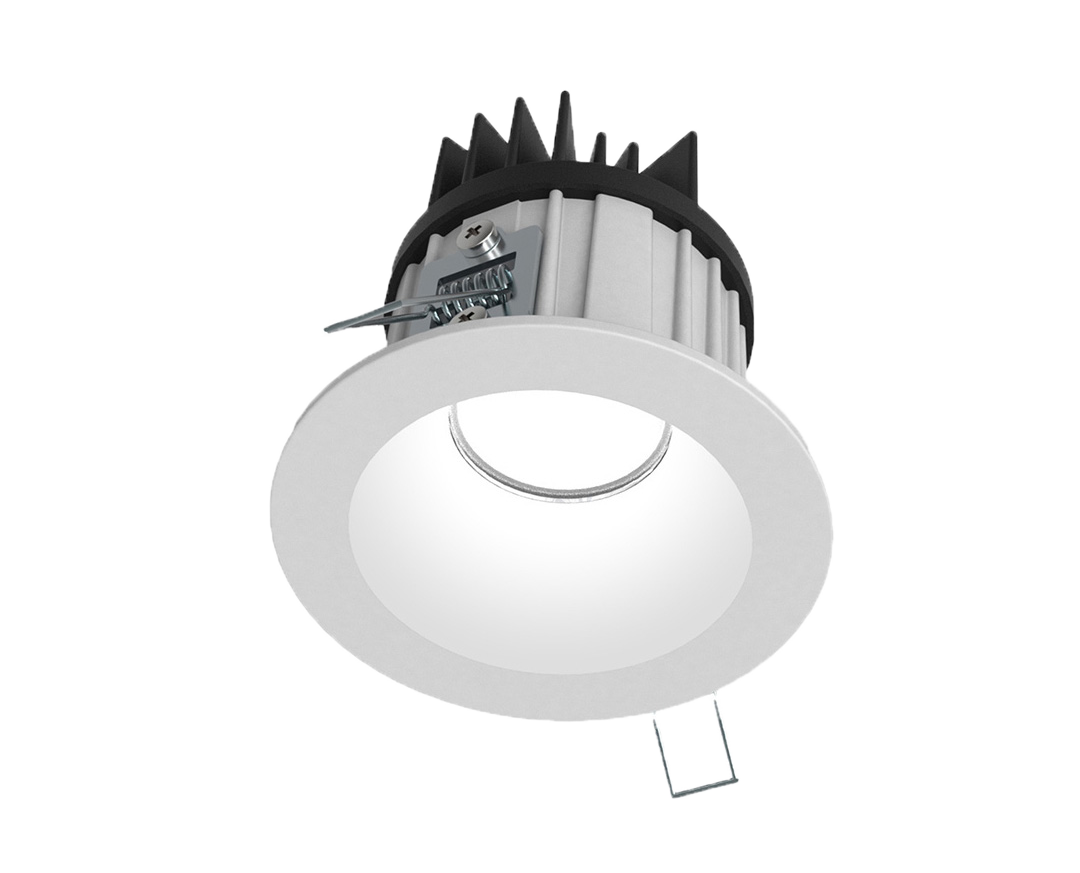

DL86 vandal resistant luminaire

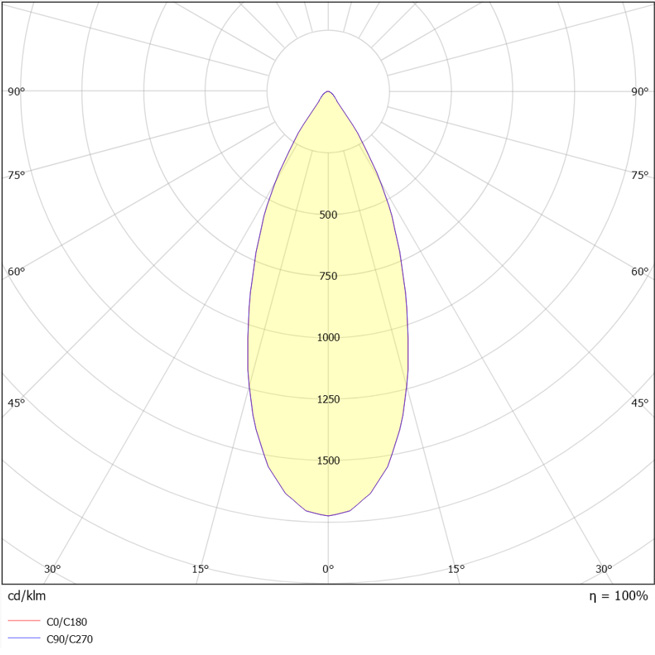

DL86-polar_curve_medium

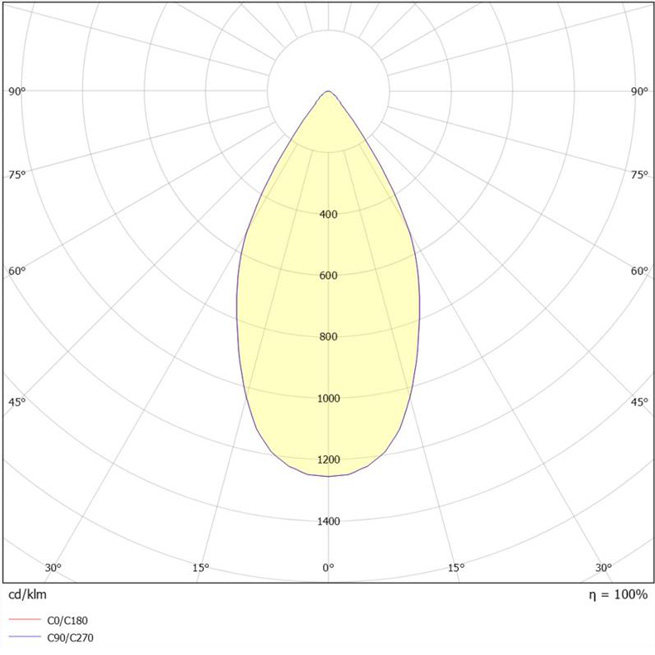

DL86-polar_curve_wide

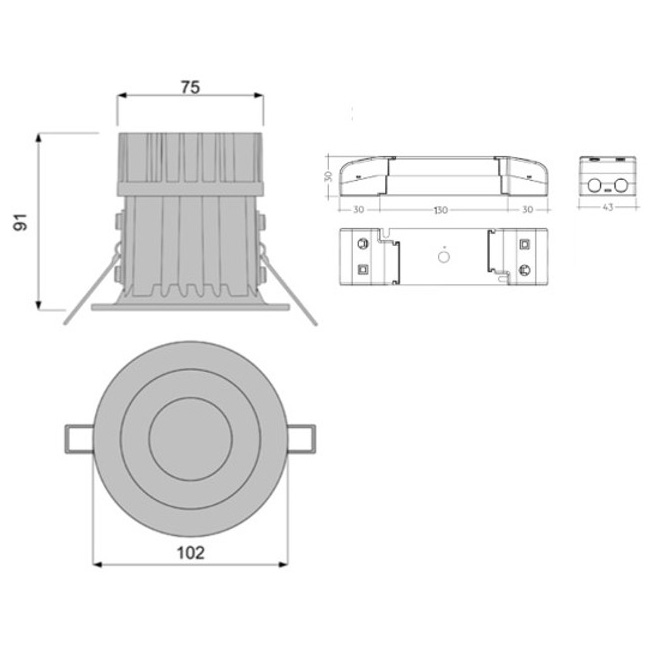

DL86-drawing-1

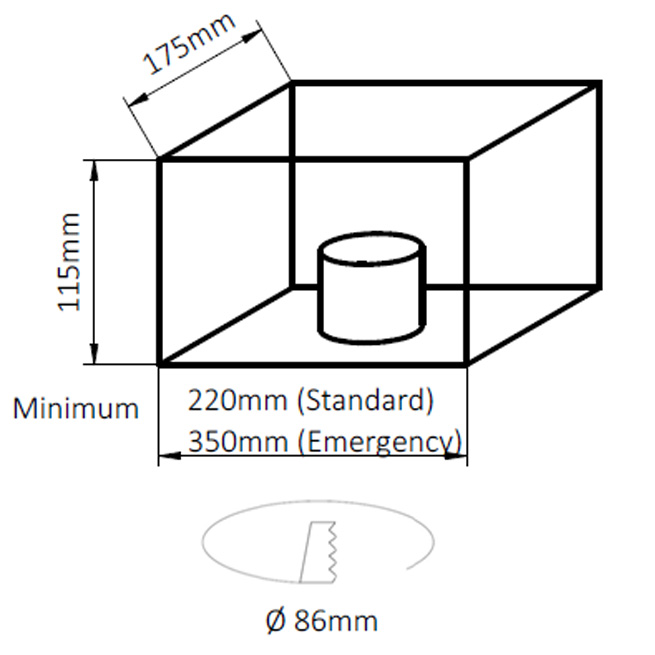

DL86-ceiling-void
DL86 is a downlight for interior community and public applications.
  • LED fitting, providing uniform light distribution and an impressive light output of up to 109 lm/W.
  • Impact resistance rating: IK11 (50 joules of energy).
  • Ingress protection rating: IP65. (Please note: stated IP rating applies from below only.)
  • This ceiling mounted luminaire fits into a standard 86mm cut-out with spring clips for quick and easy installation.
  • Aluminium die-cast body, finished with a matt white powder coat.
  • Polycarbonate diffuser maintains product strength.
  • DALI.
  • Maintained emergency available.



Other available product versions

Technical Information

Ø102mm, H91mm
LED, Clear Diffuser Temp Load Lum/lm Efficacy CRI Weight HT
Medium beam
DL86-G1-750W-M-MW-DA 3000 K 7.4 W 754 lm 102 lm/W CRI>80 0.6kg HT40°
DL86-G1-950W-M-MW-DA 3000 K 9.3 W 973 lm 105 lm/W CRI>80 0.6kg HT40°
DL86-G1-1150W-M-MW-DA 3000 K 11 W 1175 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-750N-M-MW-DA 4000 K 7.4 W 783 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-1000N-M-MW-DA 4000 K 9.3 W 1012 lm 109 lm/W CRI>80 0.6kg HT40°
DL86-G1-1200N-M-MW-DA 4000 K 11 W 1201 lm 109 lm/W CRI>80 0.6kg HT40°
LED, Clear Diffuser Temp Load Lum/lm Efficacy CRI Weight HT
Wide beam
DL86-G1-750W-W-MW-DA 3000 K 7.4 W 765 lm 103 lm/W CRI>80 0.6kg HT40°
DL86-G1-950W-W-MW-DA 3000 K 9.3 W 989 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-1150W-W-MW-DA 3000 K 11.2 W 1182 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-750N-W-MW-DA 4000 K 7.3 W 781 lm 107 lm/W CRI>80 0.6kg HT40°
DL86-G1-1000N-W-MW-DA 4000 K 9.2 W 1007 lm 110 lm/W CRI>80 0.6kg HT40°
DL86-G1-1200N-W-MW-DA 4000 K 10.9 W 1199 lm 110 lm/W CRI>80 0.6kg HT40°
Emergency Output 4000 K – 293 lm – – – –

HT Applies for standard version. For any options please check with technical sales.

DL86 contains a light source of energy efficiency class D.

DL86 LED Lifetime L80B10>33,000h at 25oC ambient.

DL86 Driver Lifetime up to 100,000h at 25oC ambient.



Fitting Options

Option Suffix
Maintained emergency add suffix -E3
Non-maintained emergency replace -DA with NM3
For use with 110V ac/dc central battery systems add suffix -EV
240V changeover relay Call technical sales on +44 (0)20 8254 2022 to discuss your requirements.

HT Applies to standard versions. For any options (e.g. E3), please check with technical sales +44 (0)20 8254 2022.

DL86 is a downlight for interior community and public applications.


Sectors

Standard Colours


More colours including RAL codes CLICK HERE


Downloads

PDF Datasheet LDT BIM IES Specification Assists DofC

DL86

DL86 is a downlight for interior community and public applications.
  • LED fitting, providing uniform light distribution and an impressive light output of up to 109 lm/W.
  • Impact resistance rating: IK11 (50 joules of energy).
  • Ingress protection rating: IP65. (Please note: stated IP rating applies from below only.)
  • This ceiling mounted luminaire fits into a standard 86mm cut-out with spring clips for quick and easy installation.
  • Aluminium die-cast body, finished with a matt white powder coat.
  • Polycarbonate diffuser maintains product strength.
  • DALI.
  • Maintained emergency available.



Other available product versions

DL86 is a downlight for interior community and public applications.

Sectors

Finishes


Technical Information

Ø102mm, H91mm
LED, Clear Diffuser Temp Load Lum/lm Efficacy CRI Weight HT
Medium beam
DL86-G1-750W-M-MW-DA 3000 K 7.4 W 754 lm 102 lm/W CRI>80 0.6kg HT40°
DL86-G1-950W-M-MW-DA 3000 K 9.3 W 973 lm 105 lm/W CRI>80 0.6kg HT40°
DL86-G1-1150W-M-MW-DA 3000 K 11 W 1175 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-750N-M-MW-DA 4000 K 7.4 W 783 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-1000N-M-MW-DA 4000 K 9.3 W 1012 lm 109 lm/W CRI>80 0.6kg HT40°
DL86-G1-1200N-M-MW-DA 4000 K 11 W 1201 lm 109 lm/W CRI>80 0.6kg HT40°
LED, Clear Diffuser Temp Load Lum/lm Efficacy CRI Weight HT
Wide beam
DL86-G1-750W-W-MW-DA 3000 K 7.4 W 765 lm 103 lm/W CRI>80 0.6kg HT40°
DL86-G1-950W-W-MW-DA 3000 K 9.3 W 989 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-1150W-W-MW-DA 3000 K 11.2 W 1182 lm 106 lm/W CRI>80 0.6kg HT40°
DL86-G1-750N-W-MW-DA 4000 K 7.3 W 781 lm 107 lm/W CRI>80 0.6kg HT40°
DL86-G1-1000N-W-MW-DA 4000 K 9.2 W 1007 lm 110 lm/W CRI>80 0.6kg HT40°
DL86-G1-1200N-W-MW-DA 4000 K 10.9 W 1199 lm 110 lm/W CRI>80 0.6kg HT40°
Emergency Output 4000 K – 293 lm – – – –

HT Applies for standard version. For any options please check with technical sales.

DL86 contains a light source of energy efficiency class D.

DL86 LED Lifetime L80B10>33,000h at 25oC ambient.

DL86 Driver Lifetime up to 100,000h at 25oC ambient.



Fitting Options

Option Suffix
Maintained emergency add suffix -E3
Non-maintained emergency replace -DA with NM3
For use with 110V ac/dc central battery systems add suffix -EV
240V changeover relay Call technical sales on +44 (0)20 8254 2022 to discuss your requirements.

HT Applies to standard versions. For any options (e.g. E3), please check with technical sales +44 (0)20 8254 2022.

DL86-polar_curve_medium
DL86-polar_curve_wide
DL86-drawing-1
DL86-ceiling-void
