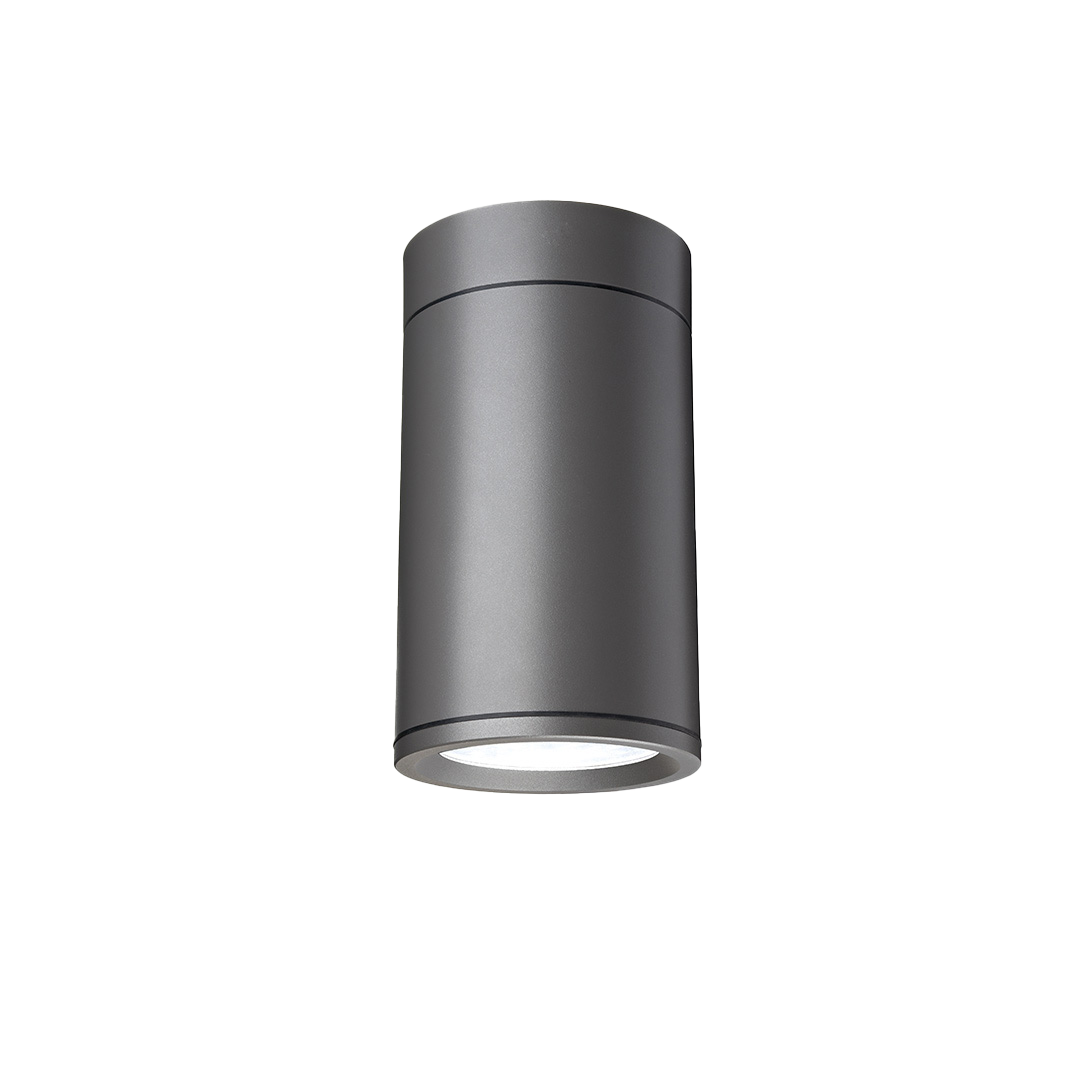

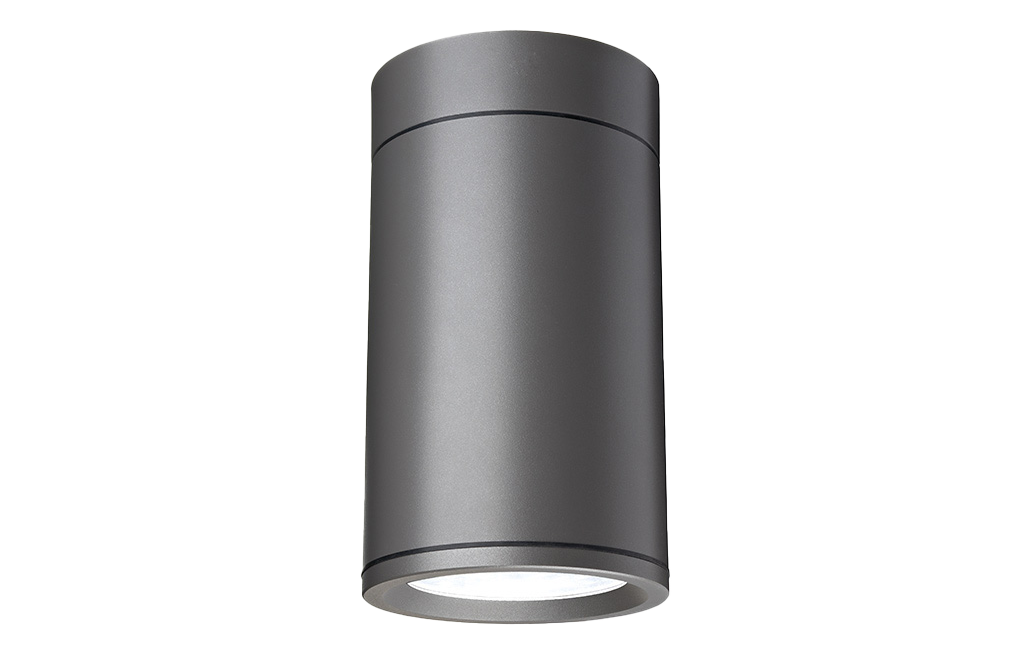

Terminus Surface is a vandal resistant luminaire specifically designed for transport applications and community and public installations.
Standard Colours
Terminus Surface’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Terminus Surface is quick and easy to maintain, whilst enabling sustainable technology upgrades.

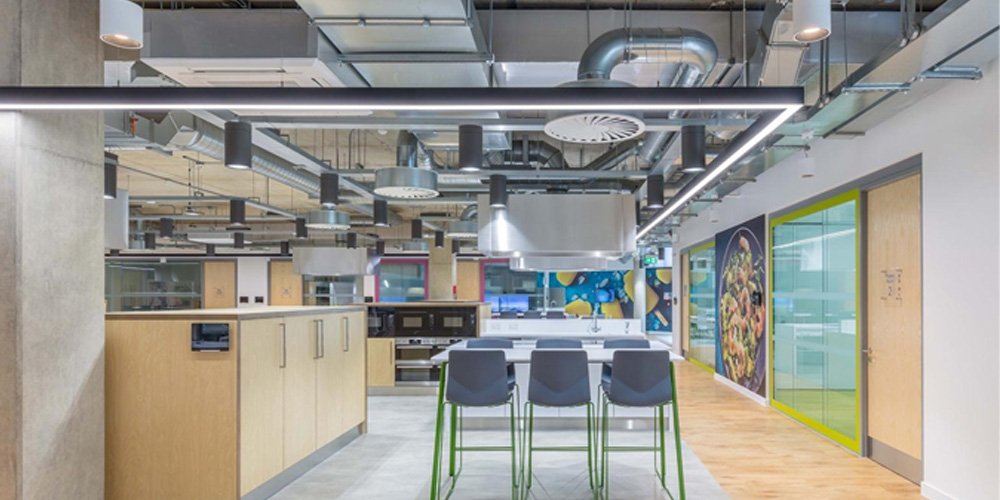

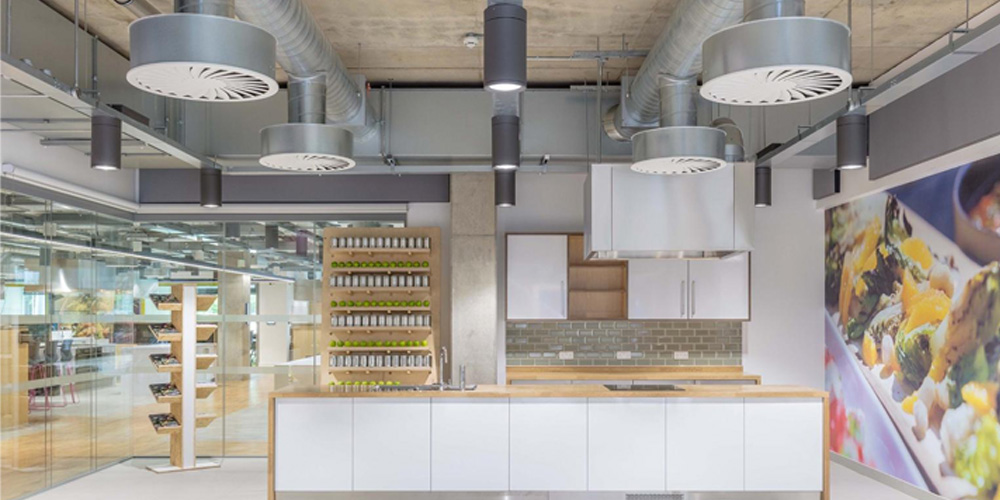

Community and Public applications include the exterior and perimeter of buildings. Transport applications include general circulation areas, public toilets, waiting rooms, station forecourts and ticket areas.
Impact Resistance Rating: IK11 (50J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Extruded and die cast aluminium body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Clear polycarbonate diffuser.
Driver: Integral electronic control gear with terminal box.
Mounting: Ceiling.
Cable Entry: Provision for cable entry into terminal box.
| Terminus Surface | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|

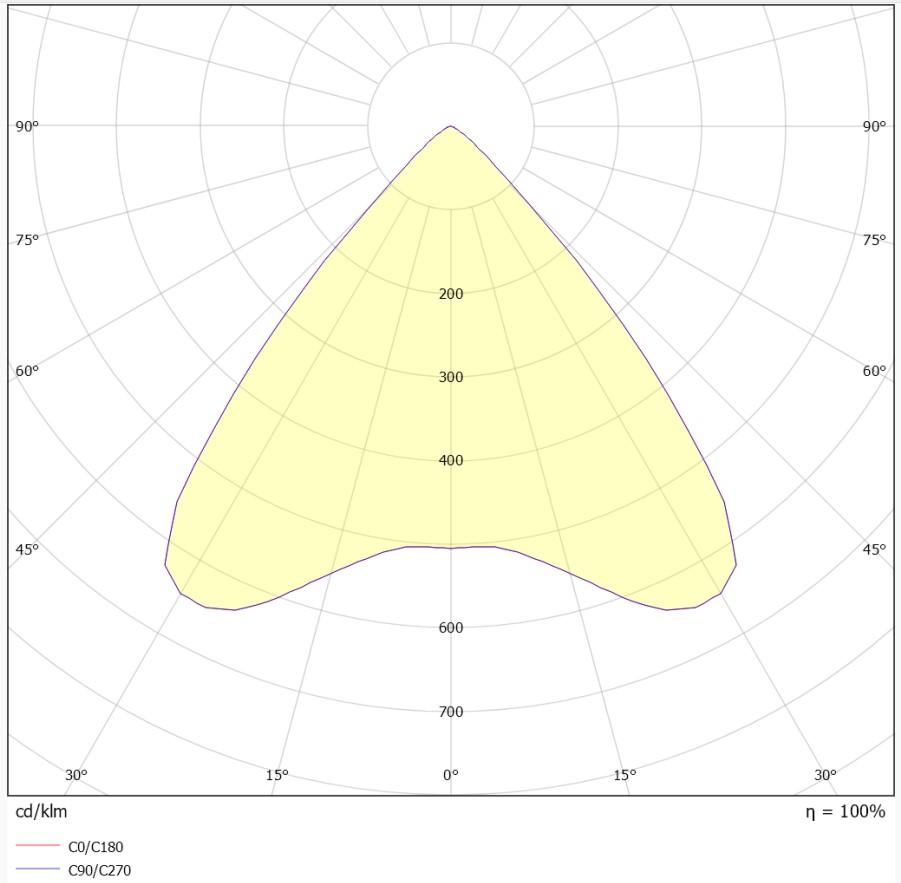

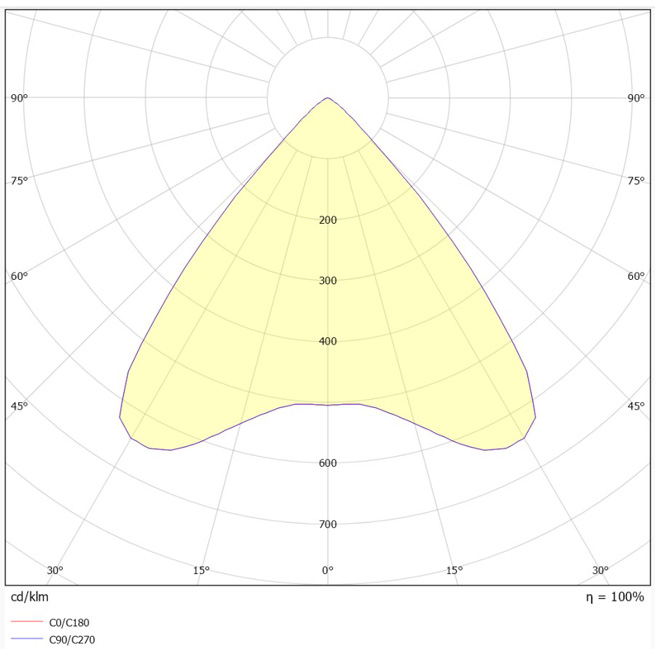

| Wide Beam | ||||
| TMS-1100NW-C-MT | 966 | 8.3 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |

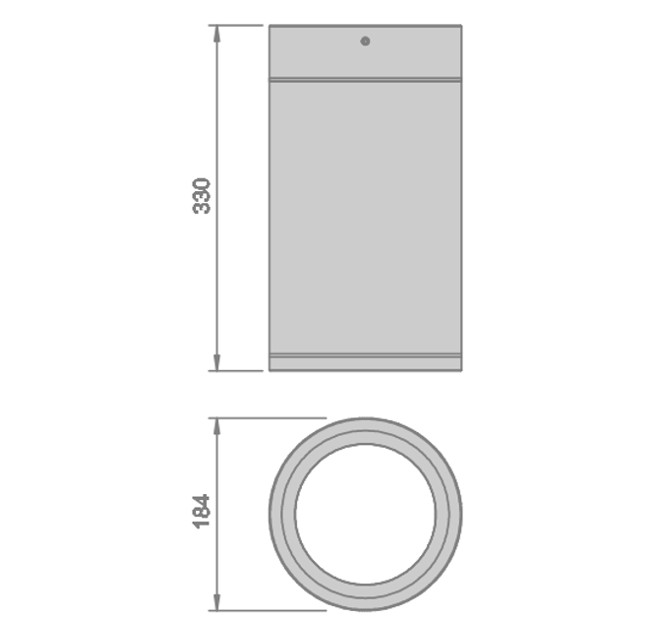

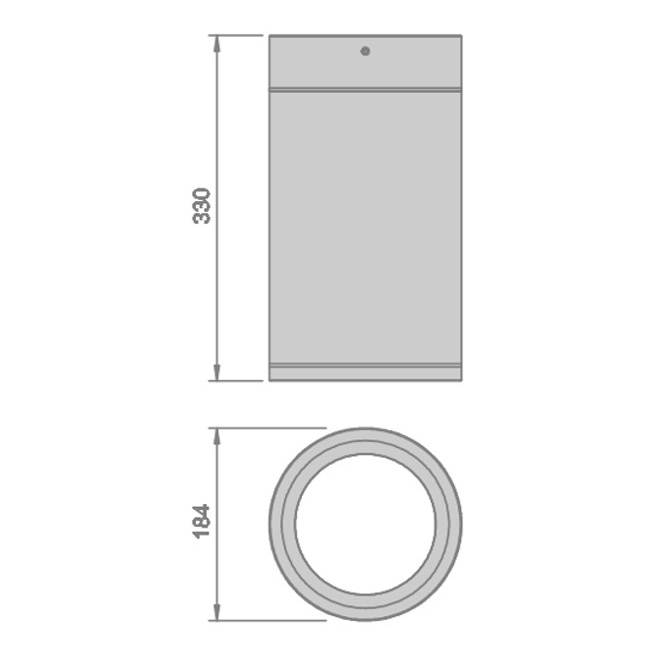

| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000NW-C-MT | 1674 | 14.2 | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000NW-C-MT | 2367 | 19.8 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500NW-C-MT | 3635 | 31.2 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000NW-C-MT | 4465 | 39.7 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-1100WW-C-MT | 918 | 8.3 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000WW-C-MT | 1590 | 14.2 | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000WW-C-MT | 2249 | 19.8 | 114 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500WW-C-MT | 3453 | 31.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000WW-C-MT | 4242 | 39.7 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||

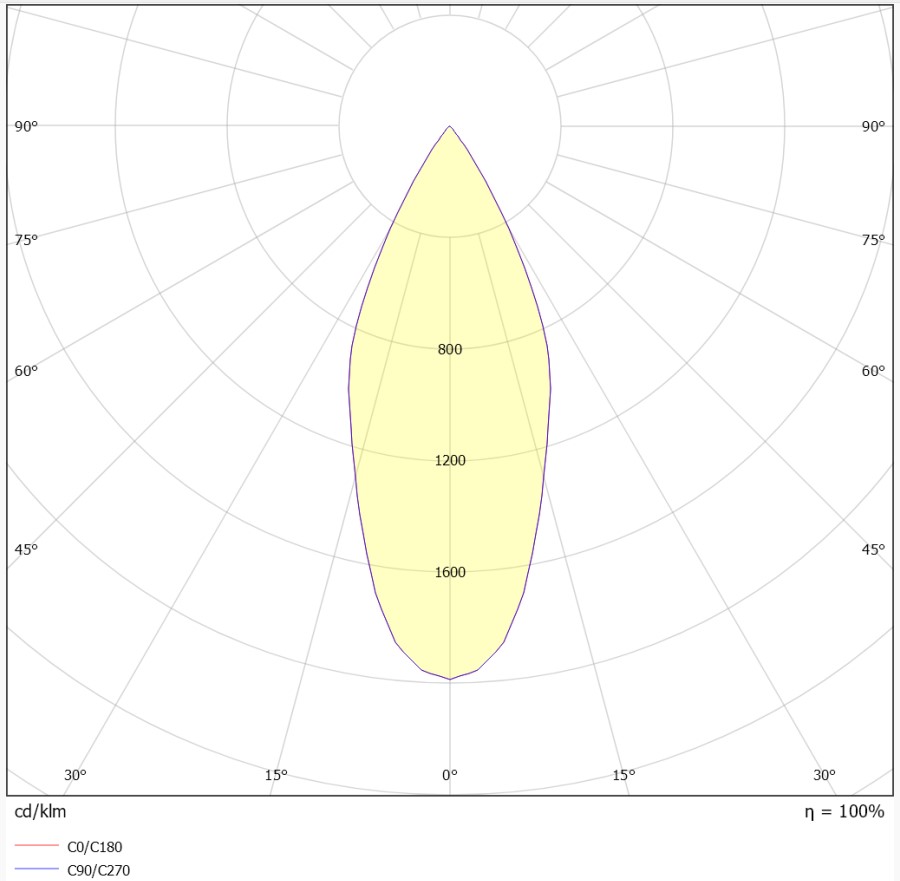

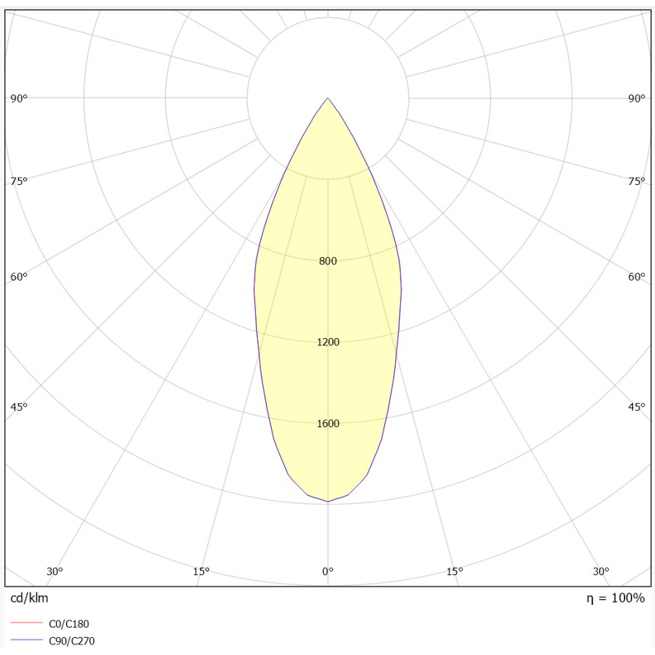

| Medium Beam | ||||
| TMS-1100NM-C-MT | 943 | 8.2 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000NM-C-MT | 1664 | 14.2 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000NM-C-MT | 2332 | 20.1 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500NM-C-MT | 3511 | 31.2 | 113 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000NM-C-MT | 4426 | 39.9 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-1100WM-C-MT | 896 | 8.2 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000WM-C-MT | 1581 | 14.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000WM-C-MT | 2215 | 20.1 | 110 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500WM-C-MT | 3335 | 31.2 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000WM-C-MT | 4205 | 39.9 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||

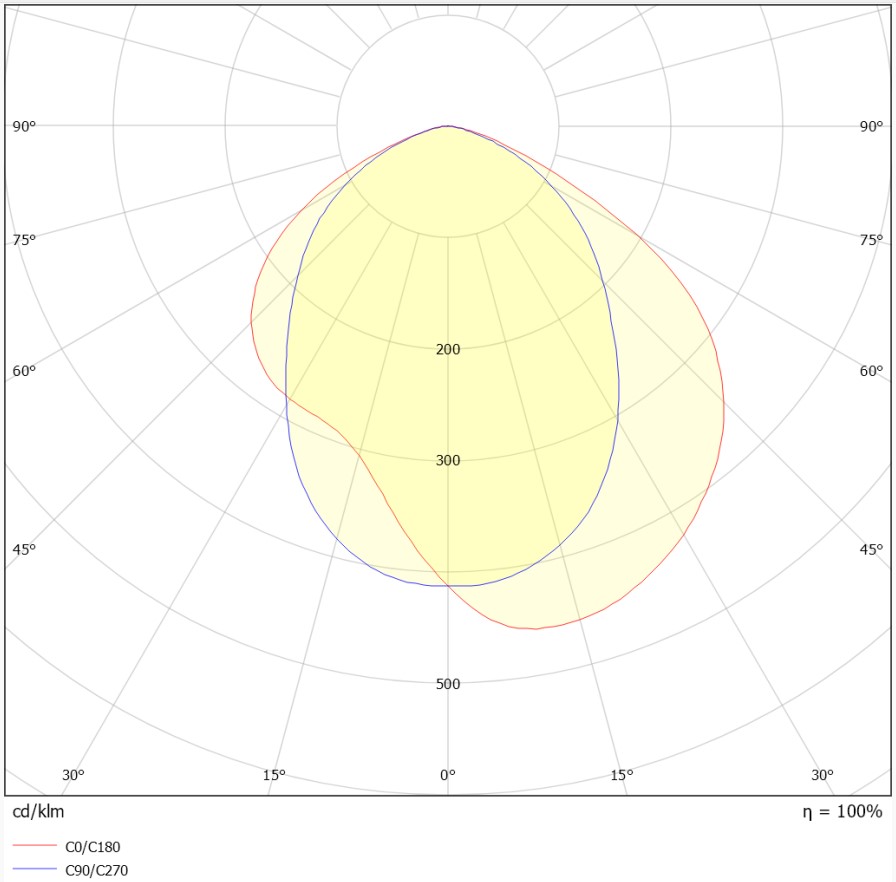

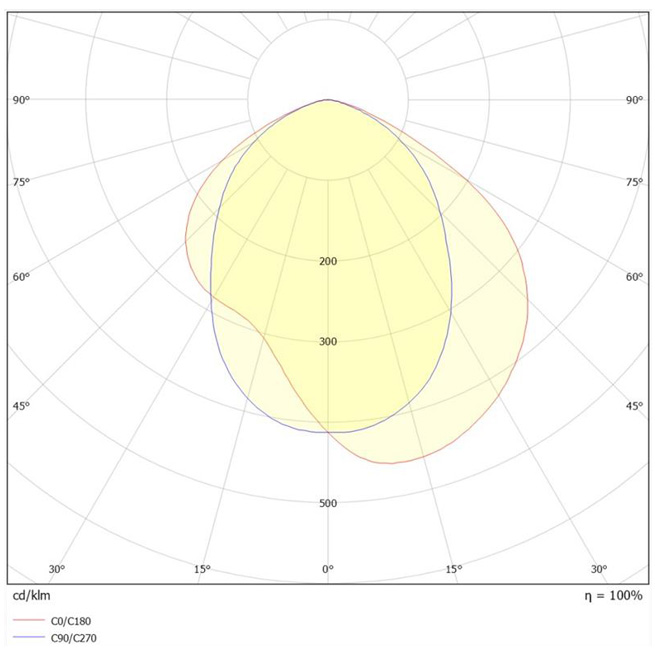

| Wide Asymmetric | ||||
| TMS-1100NWA-C-MT | 813 | 8.1 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 453 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000NWA-C-MT | 1443 | 14.3 | 101 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 453 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000NWA-C-MT | 2059 | 20.2 | 102 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 453 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500NWA-C-MT | 3104 | 31 | 100 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 453 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000NWA-C-MT | 3858 | 39.6 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 453 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-1100WWA-C-MT | 772 | 8.1 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 430 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000WWA-C-MT | 1371 | 14.3 | 96 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 430 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000WWA-C-MT | 1956 | 20.2 | 97 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 430 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500WWA-C-MT | 2949 | 31 | 95 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 430 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000WWA-C-MT | 3665 | 39.6 | 93 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 430 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||

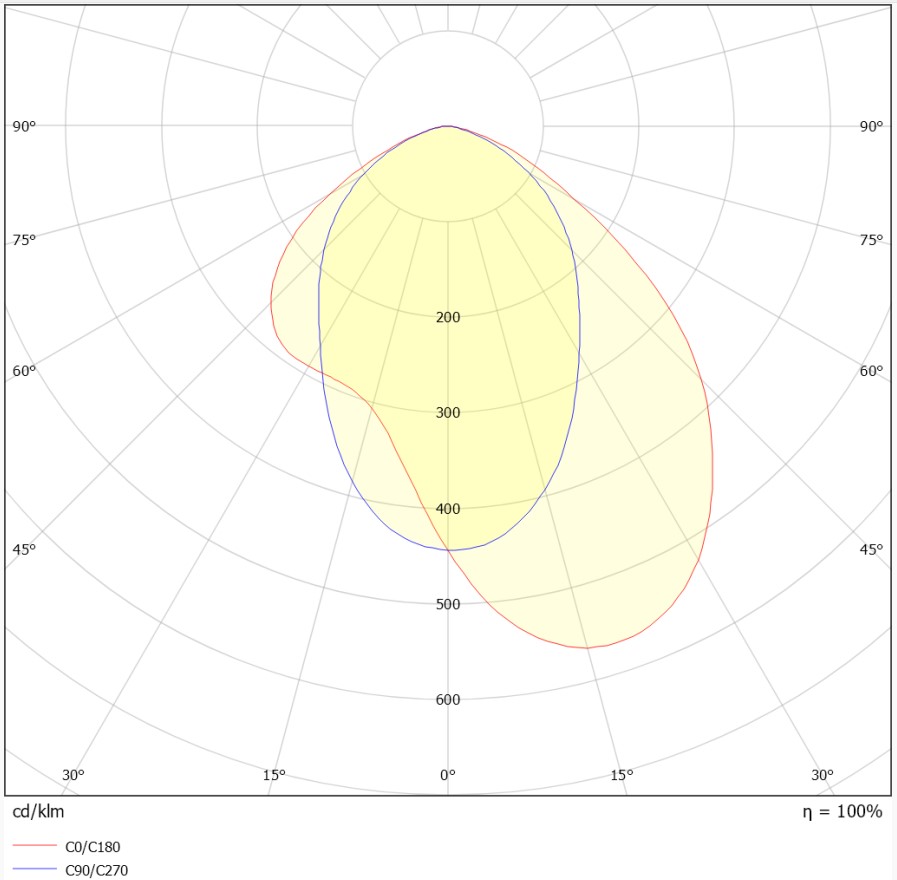

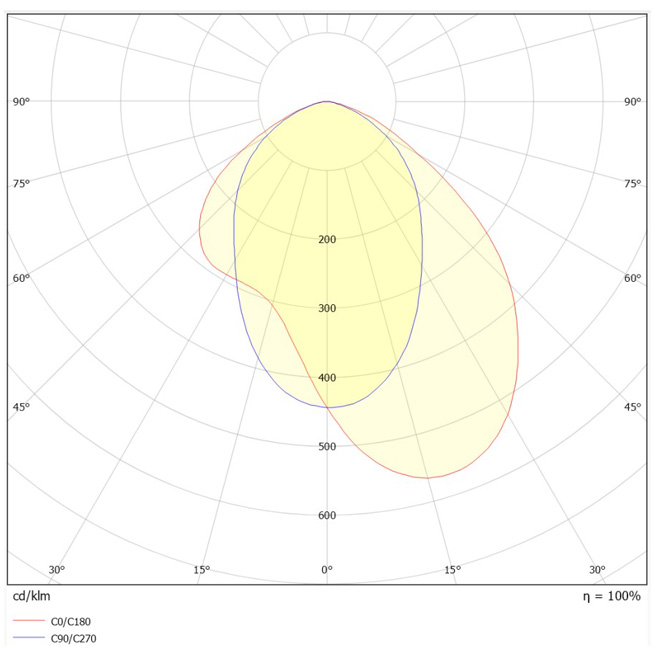

| Medium Asymmetric | ||||
| TMS-1100NMA-C-MT | 731 | 8.1 | 90 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 416 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000NMA-C-MT | 1290 | 14.3 | 90 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 416 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000NMA-C-MT | 1838 | 20.2 | 91 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 416 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500NMA-C-MT | 2795 | 31.2 | 90 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 416 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000NMA-C-MT | 3500 | 40.1 | 87 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 416 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-1100WMA-C-MT | 694 | 8.1 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 395 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-2000WMA-C-MT | 1226 | 14.3 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 395 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-3000WMA-C-MT | 1746 | 20.2 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 395 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-4500WMA-C-MT | 2655 | 31.2 | 85 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 395 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| TMS-6000WMA-C-MT | 3325 | 40.1 | 83 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 395 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.7 | C | Ø184mm, 330mm | ||
| DALI-2 Dimming / Monitoring | -DA |
| Central Battery Maintained 110V | -EV |

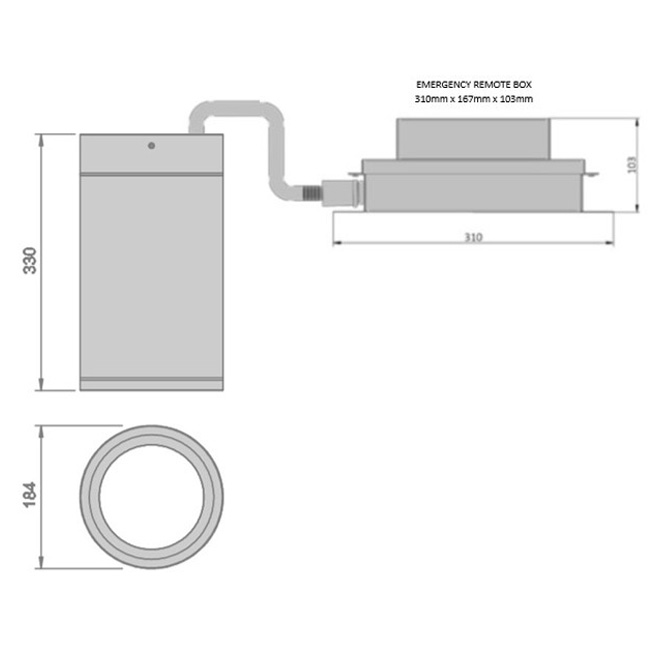

| Maintained Emergency 3 Hour in Remote Box | -EB |
| Change Over Relay, 240V Relay Supplied | -ER |
| Matt White | -MW |
| Matt Titanium | -MT |
| Matt Silver | -MS |
• For paint colour options, please replace -MT with required paint code.
• For -EB option, please note that remote box is IP65 rated.
