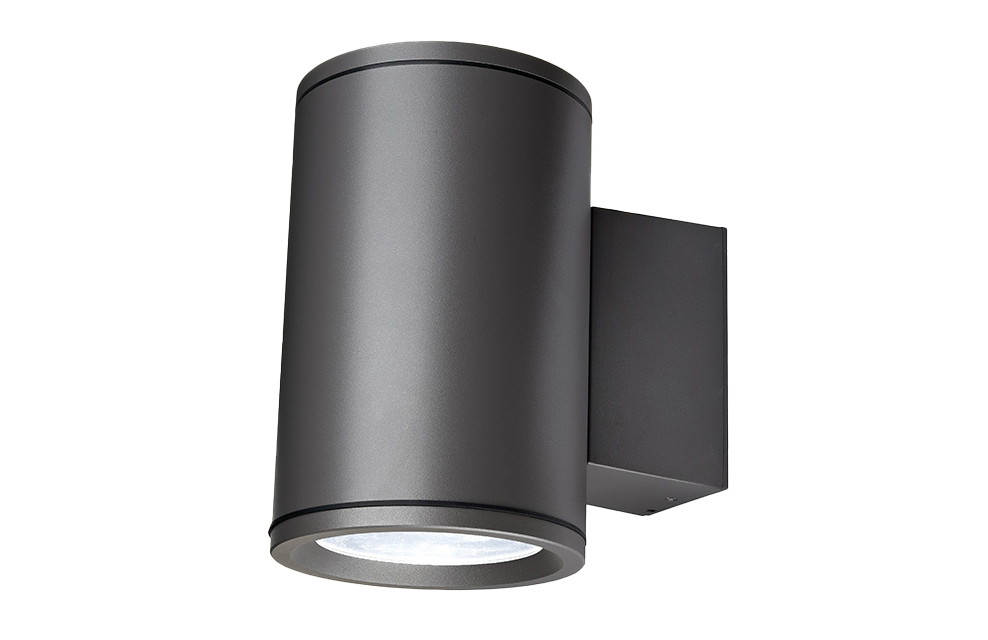

Terminus Wall is a vandal resistant luminaire specifically designed for transport applications and community and public installations.
Standard Colours
Terminus Wall’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Terminus Wall is quick and easy to maintain, whilst enabling sustainable technology upgrades.

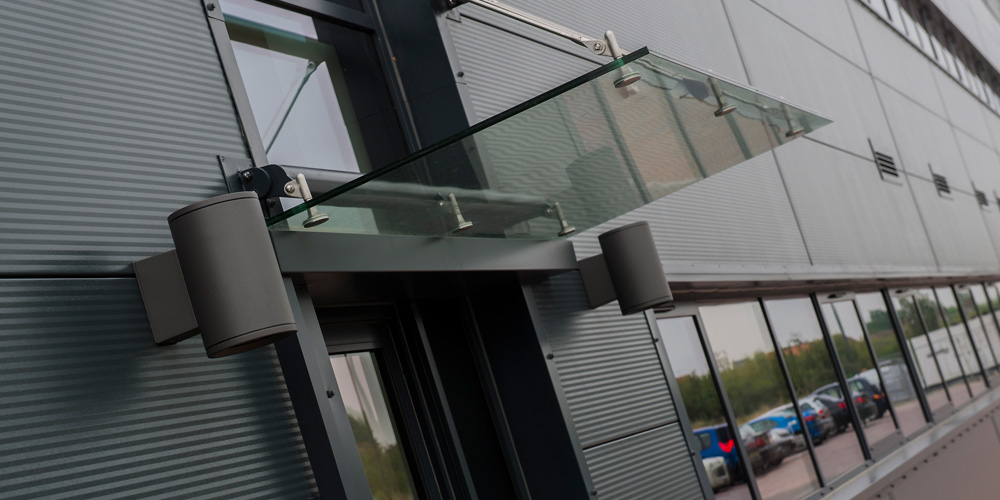

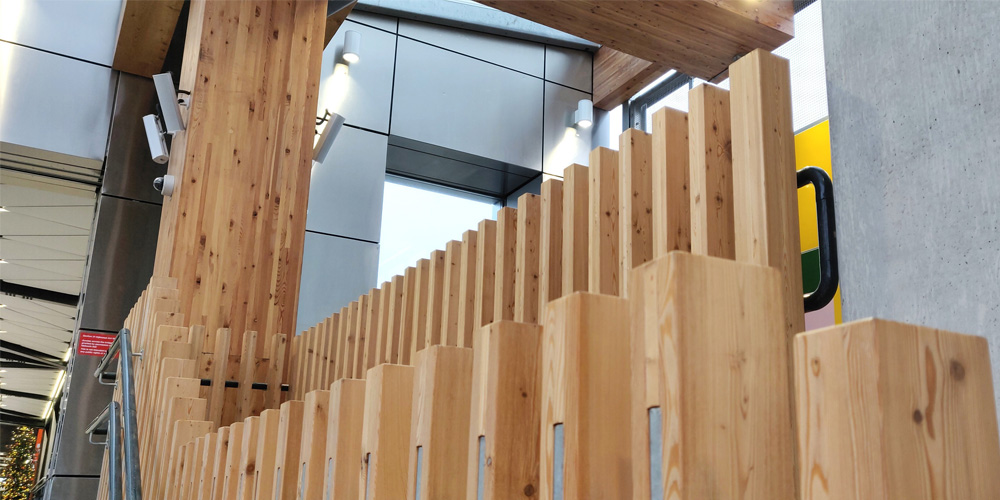

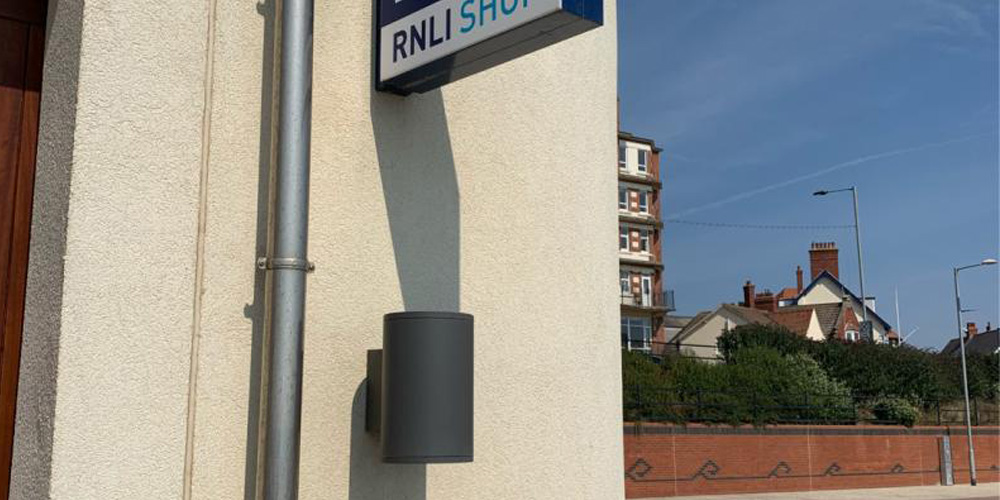

Community and Public applications include the exterior and perimeter of buildings. Transport applications include station forecourts.
Impact Resistance Rating: IK11 (50J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Extruded and die cast aluminium body.
Paint: Polyester power coat. For all colours available, CLICK HERE.
Diffuser: Clear polycarbonate diffuser.
Driver: Integral electronic control gear with terminal box.
Mounting: Wall.
Cable Entry: Provision for cable entry into terminal box.
| Terminus Wall | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|

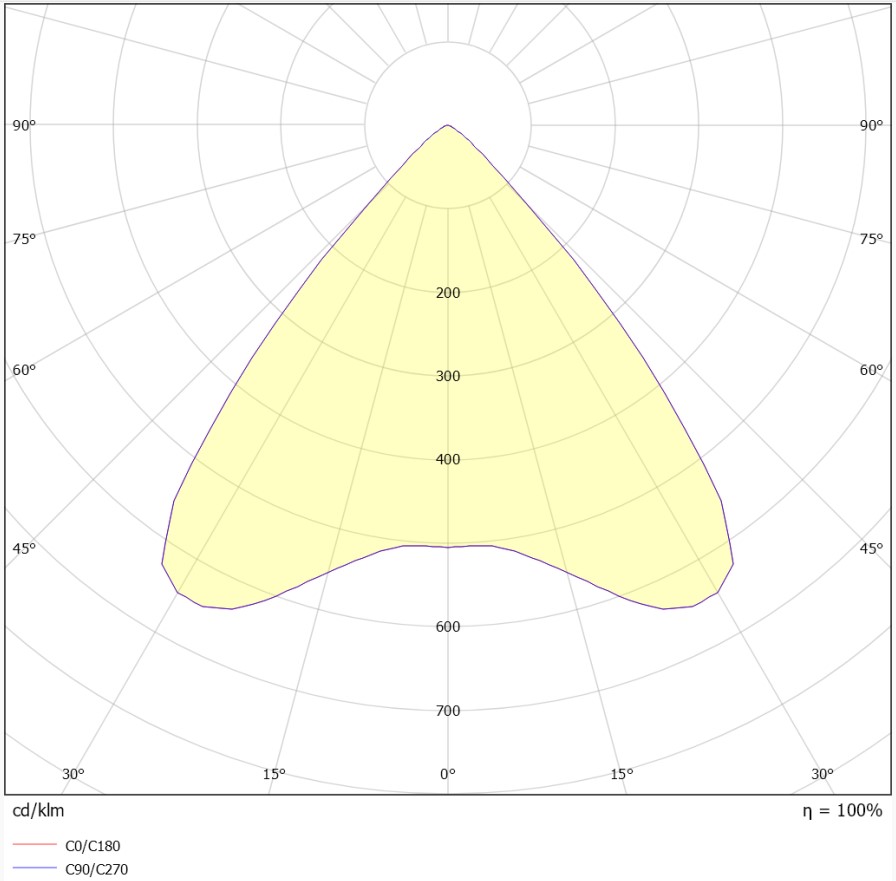

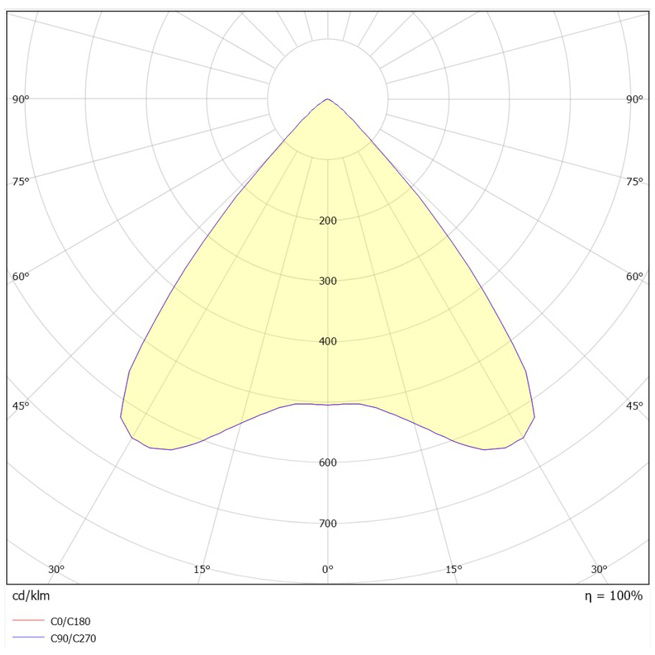

| Wide Beam | ||||
| TMW-1100NW-C-MT | 966 | 8.3 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |

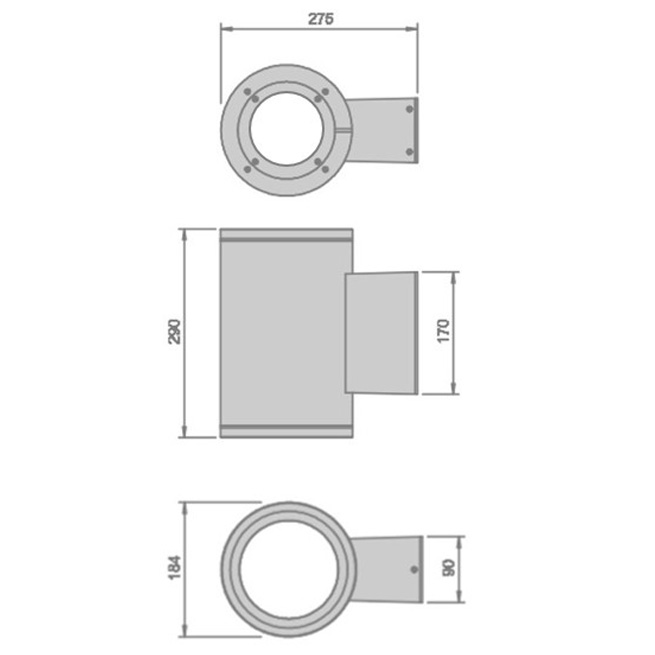

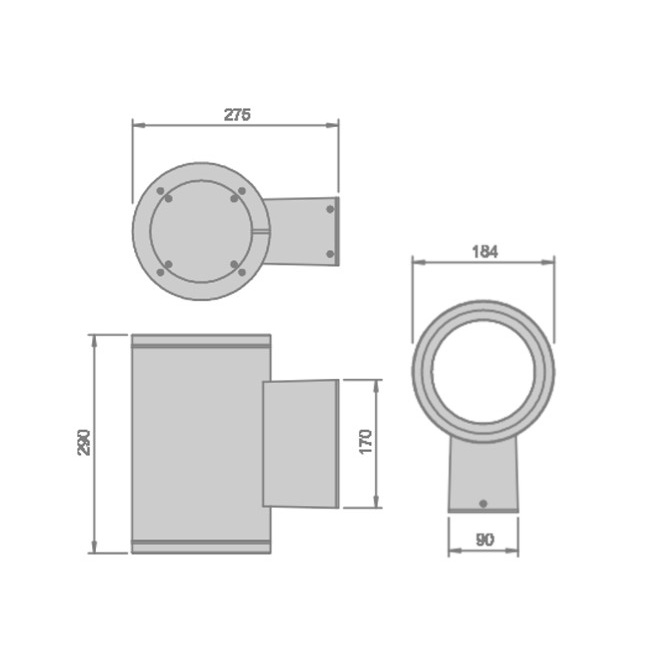

| 544 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-2000NW-C-MT | 1674 | 14.2 | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 544 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-3000NW-C-MT | 2367 | 19.8 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 544 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-4500NW-C-MT | 3635 | 31.2 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 544 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-1100WW-C-MT | 918 | 8.3 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 516 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-2000WW-C-MT | 1590 | 14.2 | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 516 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-3000WW-C-MT | 2249 | 19.8 | 114 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 516 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-4500WW-C-MT | 3453 | 31.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 516 | 4.5 | C | Ø184mm, 290mm, 275mm | |

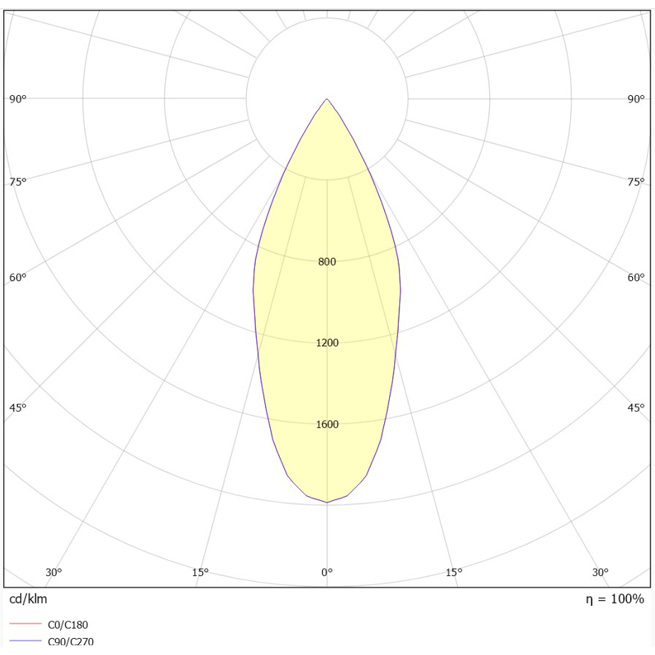

| Medium Beam | ||||
| TMW-1100NM-C-MT | 943 | 8.2 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 527 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-2000NM-C-MT | 1664 | 14.2 | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 527 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-3000NM-C-MT | 2332 | 20.1 | 116 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 527 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-4500NM-C-MT | 3511 | 31.2 | 113 | 4000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 527 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-1100WM-C-MT | 896 | 8.2 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 500 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-2000WM-C-MT | 1581 | 14.2 | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 500 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-3000WM-C-MT | 2215 | 20.1 | 110 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 500 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| TMW-4500WM-C-MT | 3335 | 31.2 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | High Temp (°C) | LED Lifetime | |
| CRI>80 | 100,000 | 40 | L₈₀B₁₀>60,000h | |
| Emergency Output (Lum/lm) | Weight (kg) | LED Energy Rating | Dimensions | |
| 500 | 4.5 | C | Ø184mm, 290mm, 275mm | |
| Wide Up/Down | ||||
| TMWD-1100NW-C-MT | 966/966 (Down/Up) | 8.3/8.3 (Down/Up) | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-2000NW-C-MT | 1674/966 (Down/Up) | 14.2/8.3 (Down/Up) | 118 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 544 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-1100WW-C-MT | 918/918 (Down/Up) | 8.3/8.3 (Down/Up) | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-2000WW-C-MT | 1590/918 (Down/Up) | 14.2/8.3 (Down/Up) | 112 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 516 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| Medium Up/Down | ||||
| TMWD-1100NM-C-MT | 943/943 (Down/Up) | 8.2/8.2 (Down/Up) | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-2000NM-C-MT | 1664/943 (Down/UP) | 14.2/8.2 (Down/Up) | 117 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 527 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-1100WM-C-MT | 896/896 (Down/Up) | 8.2/8.2 (Down/Up) | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| TMWD-2000WM-C-MT | 1581/896 (Down/Up) | 14.2/8.2 (Down/Up) | 111 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>60,000h | 500 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 4.5 | C | Ø184mm, 290mm, 275mm | ||
| DALI-2 Dimming / Monitoring | -DA |
| Central Battery Maintained 110V | -EV |

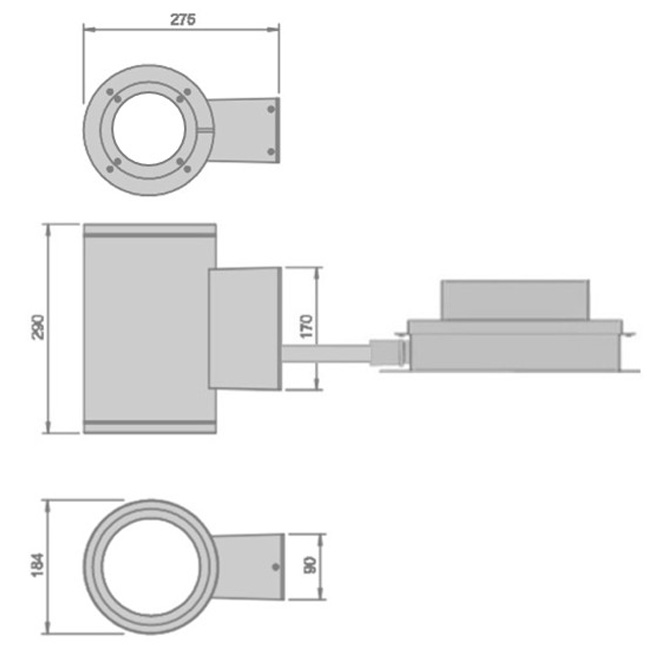

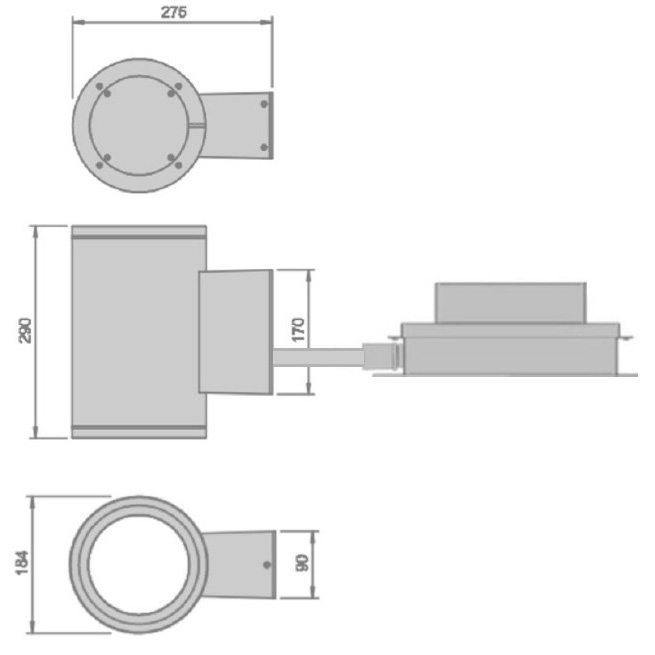

| Maintained Emergency 3 Hour in Remote Box | -EB |
| Change Over Relay, 240V Relay Supplied | -ER |
| Matt White | -MW |
| Matt Titanium | -MT |
| Matt Silver | -MS |
• For paint colour options, please replace -MT with required paint code.
• HT Applies to standard version. For any options (e.g. -E3), please check with technical sales.
• For Post Top version, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• Upward light only available on 1100lm and 2000lm versions.
• For -EB option, please note that remote box is IP65 rated.
