    • Terminus Surface S12

    IP65
    IK08 (5J)
    Downlights
    Class I
    Surface
    Transport

    Terminus Surface S12 is a vandal resistant luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).

    Standard Colours

    Matt White
    Matt Titanium
    Matt Silver
    Terminus Surface S12 Luminaire

    Product Information

    Terminus Surface S12’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare. Incorporating a removable gear tray ensures Terminus Surface S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

    Terminus Surface S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

    Applications include general circulation areas, public toilets, waiting rooms, station forecourts and ticket areas.

    Product Specification

    Impact Resistance Rating: IK08 (5J). More information, CLICK HERE.

    Ingress Protection Rating: IP65. More information, CLICK HERE.

    Housing: Extruded and die cast aluminium body.

    Paint: Polyester powder coat.  For all colours available, CLICK HERE.

    Diffuser: Clear toughened glass diffuser.

    Driver: Integral fused electronic control gear with terminal box.

    Mounting: Ceiling.

    Cable Entry: Provision for cable entry into terminal box.

    Technical Information

    Terminus Surface S12 Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
    Wide Beam
    TMS-1100NW-C-MT-ST 966 8.3 117 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 544

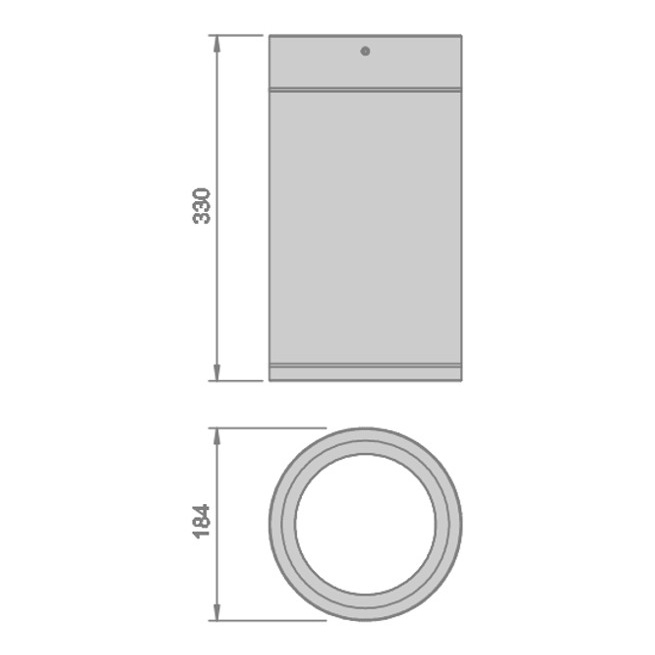

    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NW-C-MT-ST 1674 14.2 118 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 544
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NW-C-MT-ST 2367 19.8 119 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 544
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NW-C-MT-ST 3635 31.2 116 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 544
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NW-C-MT-ST 4465 39.7 112 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 544
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WW-C-MT-ST 918 8.3 111 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 516
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WW-C-MT-ST 1590 14.2 112 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 516
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WW-C-MT-ST 2249 19.8 114 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 516
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WW-C-MT-ST 3453 31.2 111 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 516
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WW-C-MT-ST 4242 39.7 107 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 516
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm

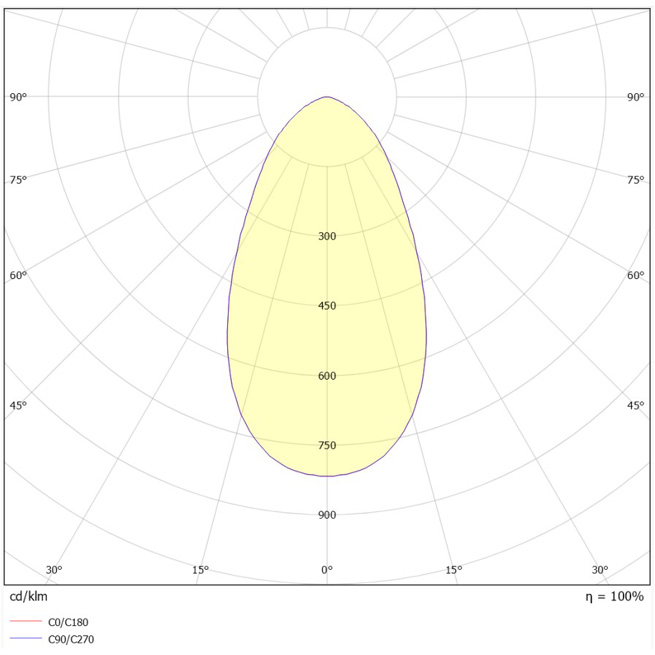

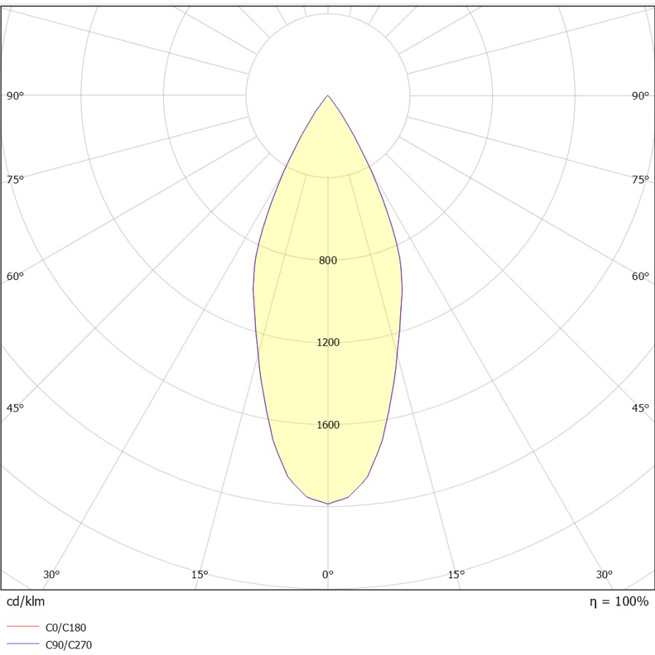

    Medium Beam
    TMS-1100NM-C-MT-ST 943 8.2 115 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 527
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NM-C-MT-ST 1664 14.2 117 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 527
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NM-C-MT-ST 2332 20.1 116 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 527
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NM-C-MT-ST 3511 31.2 113 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 527
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NM-C-MT-ST 4426 39.9 111 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 527
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WM-C-MT-ST 896 8.2 109 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 500
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WM-C-MT-ST 1581 14.2 111 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 500
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WM-C-MT-ST 2215 20.1 110 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 500
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WM-C-MT-ST 3335 31.2 107 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 500
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WM-C-MT-ST 4205 39.9 105 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 500
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm

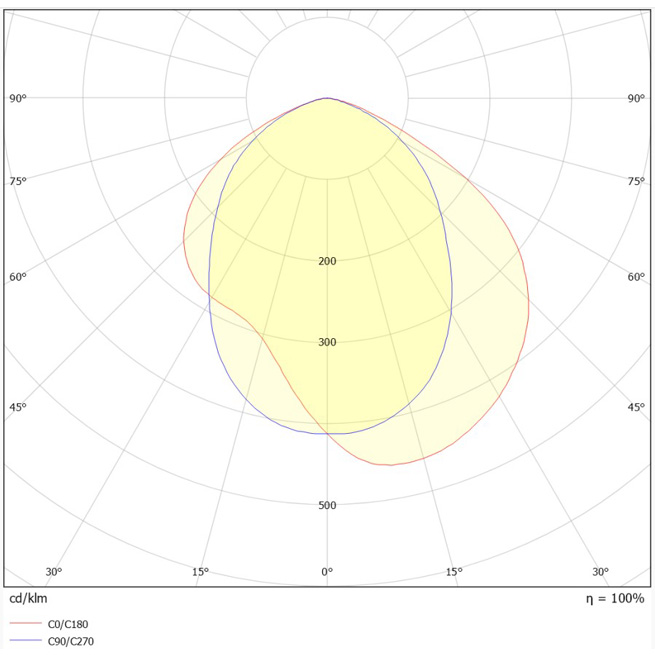

    Wide Asymmetric
    TMS-1100NWA-C-MT-ST 813 8.1 100 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 453
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NWA-C-MT-ST 1443 14.3 101 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 453
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NWA-C-MT-ST 2059 20.2 102 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 453
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NWA-C-MT-ST 3104 31 100 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 453
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NWA-C-MT-ST 3858 39.6 97 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 453
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WWA-C-MT-ST 772 8.1 95 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 430
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WWA-C-MT-ST 1371 14.3 96 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 430
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WWA-C-MT-ST 1956 20.2 97 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 430
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WWA-C-MT-ST 2949 31 95 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 430
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WWA-C-MT-ST 3665 39.6 93 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 430
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm

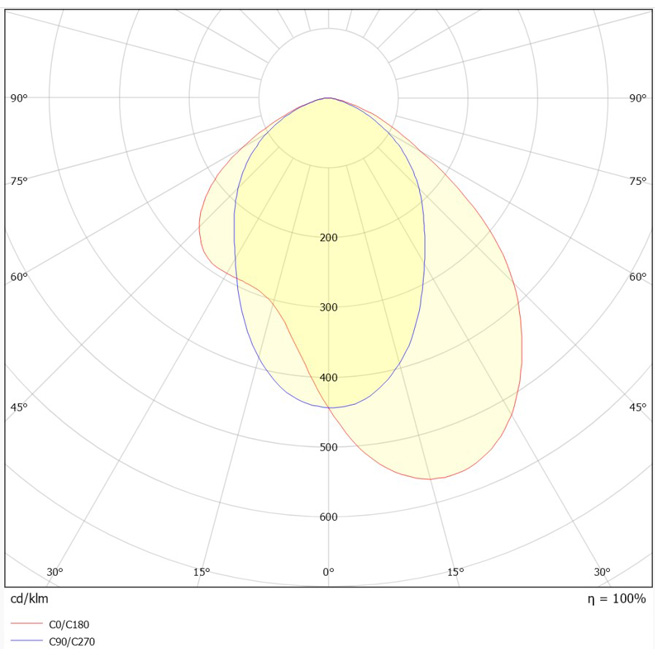

    Medium Asymmetric
    TMS-1100NMA-C-MT-ST 731 8.1 90 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 416
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NMA-C-MT-ST 1290 14.3 90 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 416
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NMA-C-MT-ST 1838 20.2 91 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 416
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NMA-C-MT-ST 2795 31.2 90 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 416
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NMA-C-MT-ST 3500 40.1 87 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 416
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WMA-C-MT-ST 694 8.1 86 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 395
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WMA-C-MT-ST 1226 14.3 86 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 395
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WMA-C-MT-ST 1746 20.2 86 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 395
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WMA-C-MT-ST 2655 31.2 85 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 395
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WMA-C-MT-ST 3325 40.1 83 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 395
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm

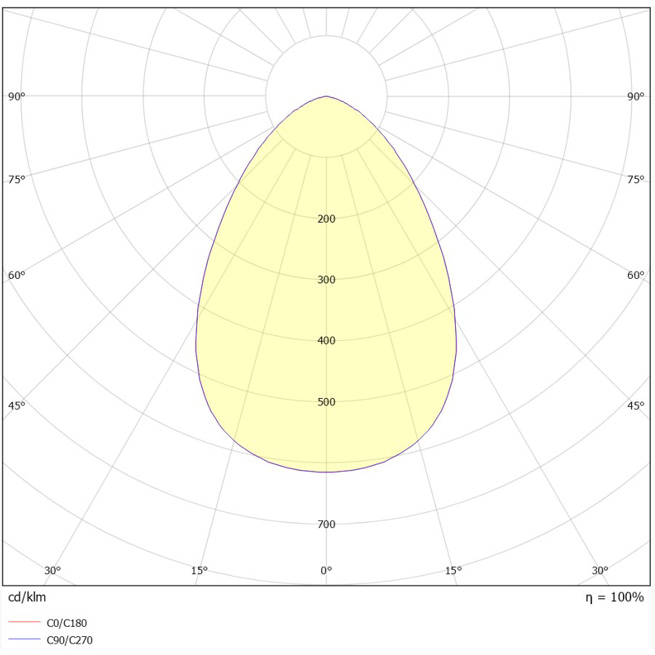

    Wide Frosted
    TMS-1100NW-F-MT-ST 853 8.1 105 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 489
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NW-F-MT-ST 1484 13.4 111 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 489
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NW-F-MT-ST 2152 20.1 107 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 489
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NW-F-MT-ST 3292 31.5 105 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 489
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NW-F-MT-ST 4150 40.6 102 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 489
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WW-F-MT-ST 810 8.1 100 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 464
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WW-F-MT-ST 1410 13.4 105 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 464
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WW-F-MT-ST 2044 20.1 102 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 464
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WW-F-MT-ST 3127 31.5 99 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 464
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WW-F-MT-ST 3943 40.6 97 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 464
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    Medium Frosted
    TMS-1100NM-F-MT-ST 762 8.1 94 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 463
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000NM-F-MT-ST 1365 14.5 94 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 463
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000NM-F-MT-ST 1926 20.2 95 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 463
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500NM-F-MT-ST 2955 31.3 94 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 463
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000NM-F-MT-ST 3714 40.5 92 4000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 463
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-1100WM-F-MT-ST 724 8.1 89 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 439
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-2000WM-F-MT-ST 1297 14.5 89 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 439
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-3000WM-F-MT-ST 1830 20.2 91 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 439
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-4500WM-F-MT-ST 2807 31.3 90 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 439
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm
    TMS-6000WM-F-MT-ST 3528 40.5 87 3000
    CRI Driver Lifetime (up to hours) LED Lifetime Emergency Output (Lum/lm)
    CRI>80 100,000 L₈₀B₁₀>60,000h 439
    Weight (kg) LED Energy Rating Dimensions
    4.7 C Ø184mm, 330mm

    Fitting Options

    DALI-2 Dimming / Monitoring -DA

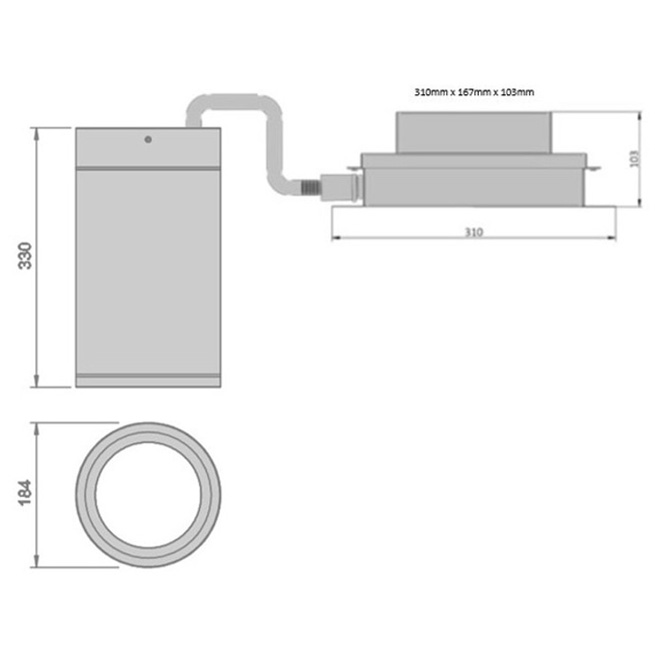

    Maintained Emergency 3 Hour in Remote Box -EB
    Matt White -MW
    Matt Titanium -MT
    Matt Silver -MS

    • For paint colour options, please replace -MT with required paint code.

    Downloads

    Product Datasheet

    Spec Assist

    BIM

    DOFC

    LDT

    IES

    Related Products

    Let's Talk!

    +44 (0)20 8254 2020

    sales@designplan.co.uk

    16 Kimpton Park Way
    Sutton
    Surrey
    United Kingdom
    SM3 9QS

    Get in touch

      ;
