Terminus S12

Terminus S12

IP65

IK08 (5J)

Downlights

Class I

Recessed

Terminus S12 is a downlight specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).

Standard Colours

Product Information

Terminus S12’s uniform light distribution reduces glare and provides focused illumination for specific areas or objects. Incorporating a removable gear tray ensures Terminus S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Terminus S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

Applications include general circulation areas, public toilets, waiting rooms, station forecourts and ticket areas.

Product Specification

Impact Resistance Rating: IK08 (5J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Die cast aluminium body.

Paint: Polyester powder coat. For all colours available, CLICK HERE.

Diffuser: Clear toughened glass diffuser.

Driver: Remote fused electronic control gear

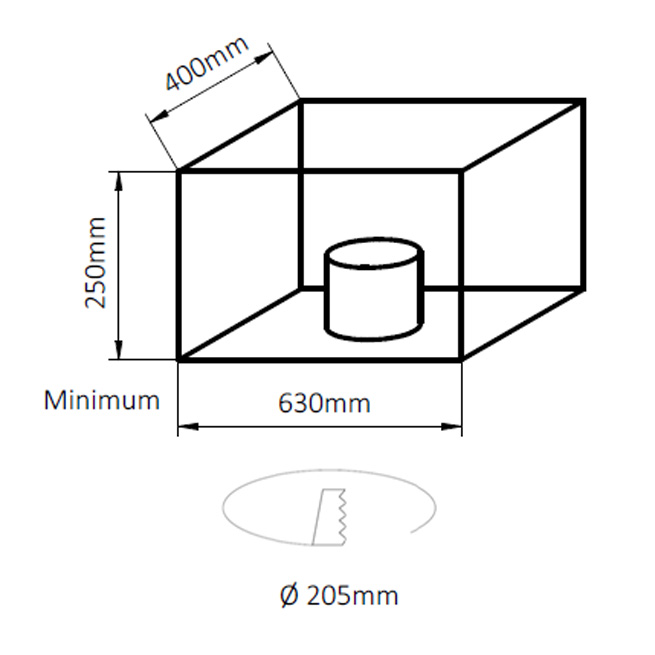

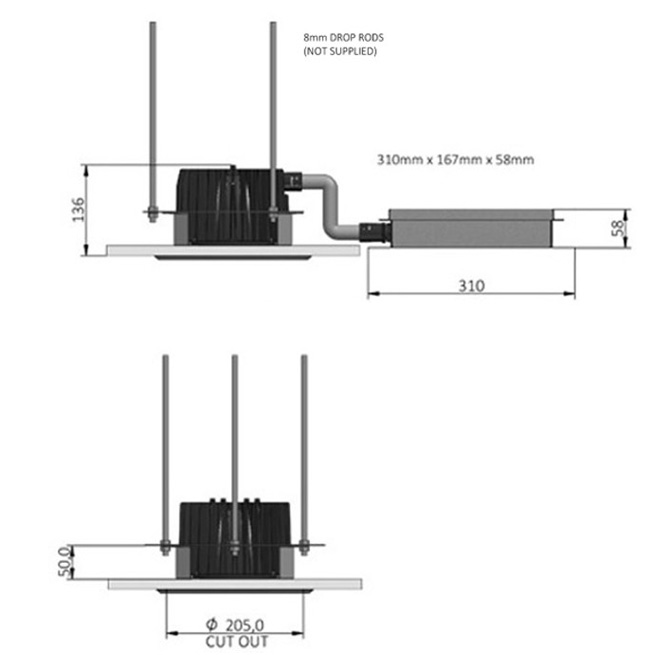

Mounting: Ceiling, recessed.

Cable Entry: Provision for cable entry in remote driver box.

Technical Information

Terminus S12	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

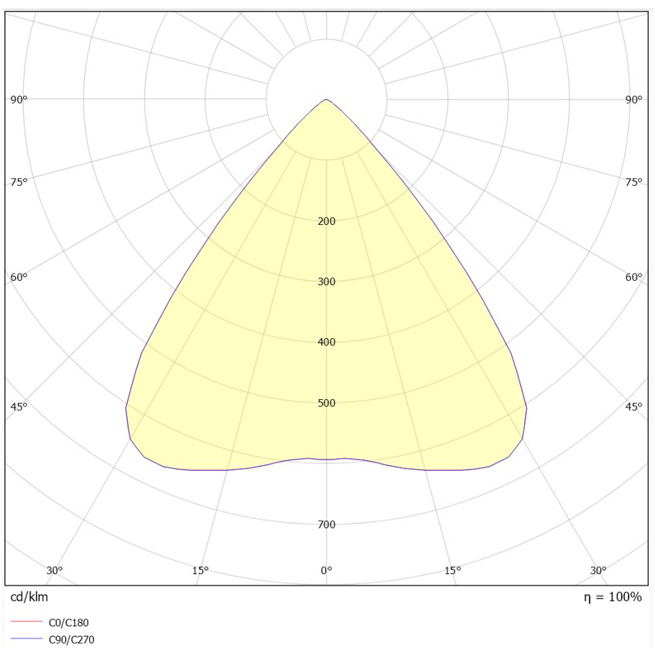

Wide Clear
TMR-1100NW-C-MT-ST	964	8.2	118	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NW-C-MT-ST	1676	14.2	118	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NW-C-MT-ST	2387	20	119	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NW-C-MT-ST	3636	31.3	116	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WW-C-MT-ST	916	8.2	112	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WW-C-MT-ST	1592	14.2	112	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WW-C-MT-ST	2268	20	113	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WW-C-MT-ST	3454	31.3	110	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm

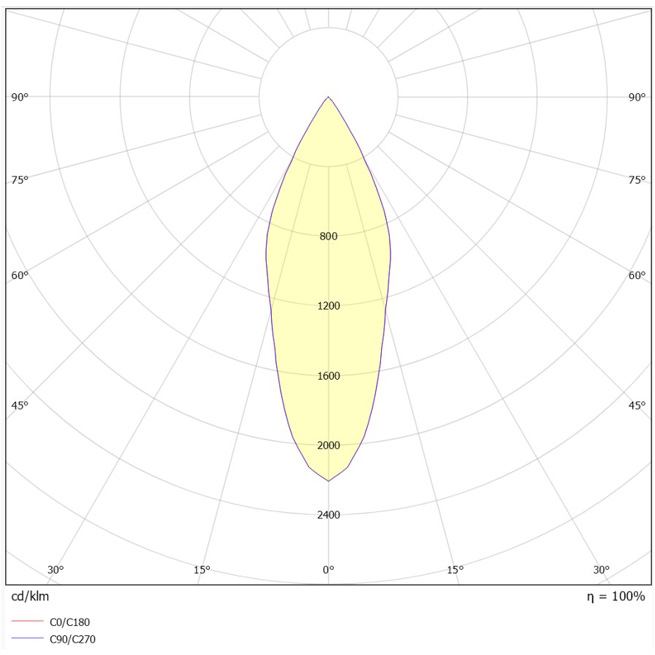

Medium Clear
TMR-1100NM-C-MT-ST	908	8.1	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NM-C-MT-ST	1585	14.2	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NM-C-MT-ST	2269	19.8	115	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NM-C-MT-ST	3463	30.8	112	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WM-C-MT-ST	863	8.1	106	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WM-C-MT-ST	1506	14.2	106	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WM-C-MT-ST	2156	19.8	109	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WM-C-MT-ST	3290	30.8	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
Wide Clear Asymmetric
TMR-1100NWA-C-MT-ST	791	8.3	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NWA-C-MT-ST	1414	14.9	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NWA-C-MT-ST	1981	21.1	94	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NWA-C-MT-ST	3232	31.1	104	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	472
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WWA-C-MT-ST	751	8.2	91	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WWA-C-MT-ST	1343	14.2	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WWA-C-MT-ST	1882	20	89	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WWA-C-MT-ST	3070	31.3	99	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm

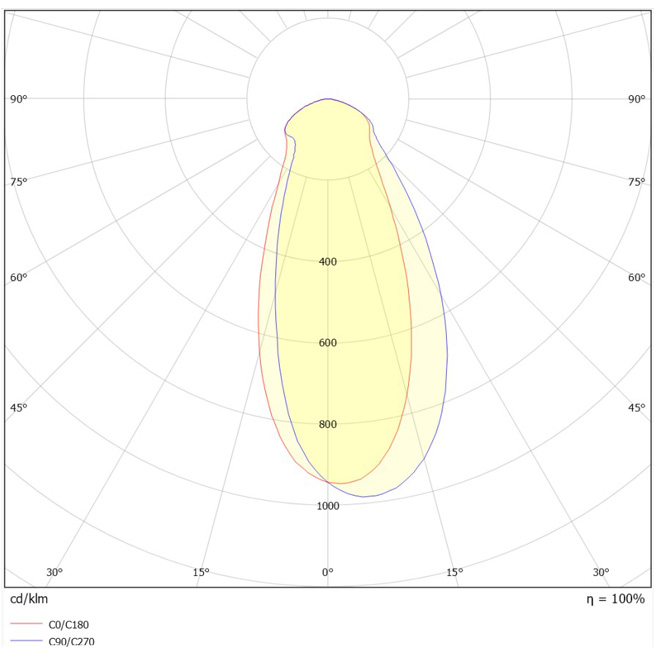

Medium Clear Asymmetric
TMR-1100NMA-C-MT-ST	788	8.3	95	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NMA-C-MT-ST	1406	15	94	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NMA-C-MT-ST	1969	21.2	93	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NMA-C-MT-ST	2814	31	91	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WMA-C-MT-ST	749	8.1	90	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WMA-C-MT-ST	1336	14.2	89	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WMA-C-MT-ST	1871	19.8	88	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WMA-C-MT-ST	2673	30.8	86	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm

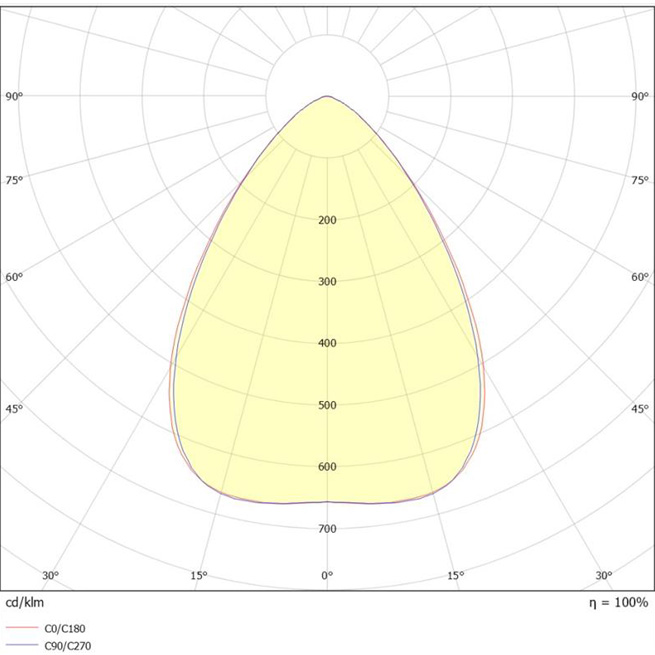

Wide Frosted
TMR-1100NW-F-MT-ST	908	8.2	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NW-F-MT-ST	1585	14.3	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NW-F-MT-ST	2275	20.2	113	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NW-F-MT-ST	3452	31.2	111	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	448
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WW-F-MT-ST	863	8.2	105	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WW-F-MT-ST	1506	14.3	105	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WW-F-MT-ST	2161	20.2	107	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WW-F-MT-ST	3279	31.2	105	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	425
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
Medium Frosted
TMR-1100NM-F-MT-ST	878	8.2	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000NM-F-MT-ST	1558	14.4	108	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000NM-F-MT-ST	2213	20.2	110	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500NM-F-MT-ST	3363	31.4	107	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	434
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-1100WM-F-MT-ST	834	8.2	102	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	412
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-2000WM-F-MT-ST	1480	14.4	103	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	412
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-3000WM-F-MT-ST	2102	20.2	104	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	412
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm
TMR-4500WM-F-MT-ST	3195	31.4	102	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>60,000h	412
	Weight (kg)	LED Energy Rating	Dimensions
	4	C	Ø235mm, 136mm

Fitting Options

DALI-2 Dimming / Monitoring	-DA

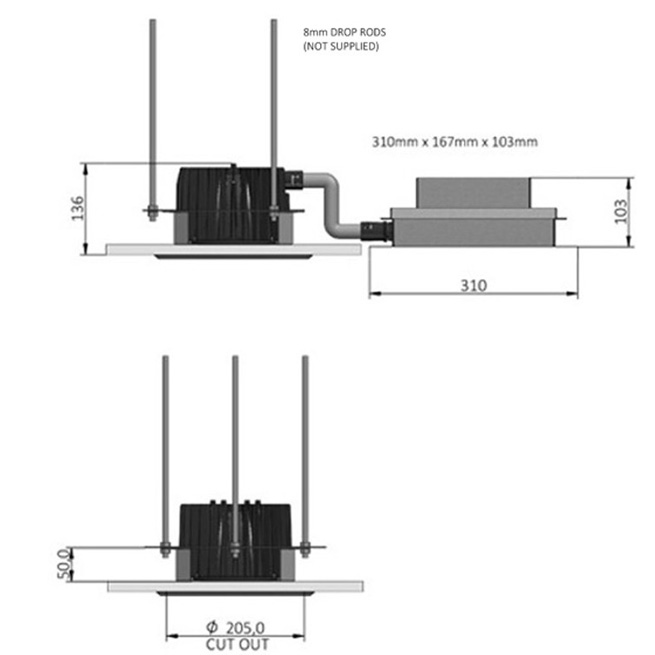

Maintained Emergency 3 Hour in Remote Box	-EB
Matt White	-MW
Matt Titanium	-MT
Matt Silver	-MS

• For paint colour options, please replace -MT with required paint code.
• Various fixing options available, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
