Scipio 2

Scipio 2

IP21

Linear

Class I

Surface

Transport

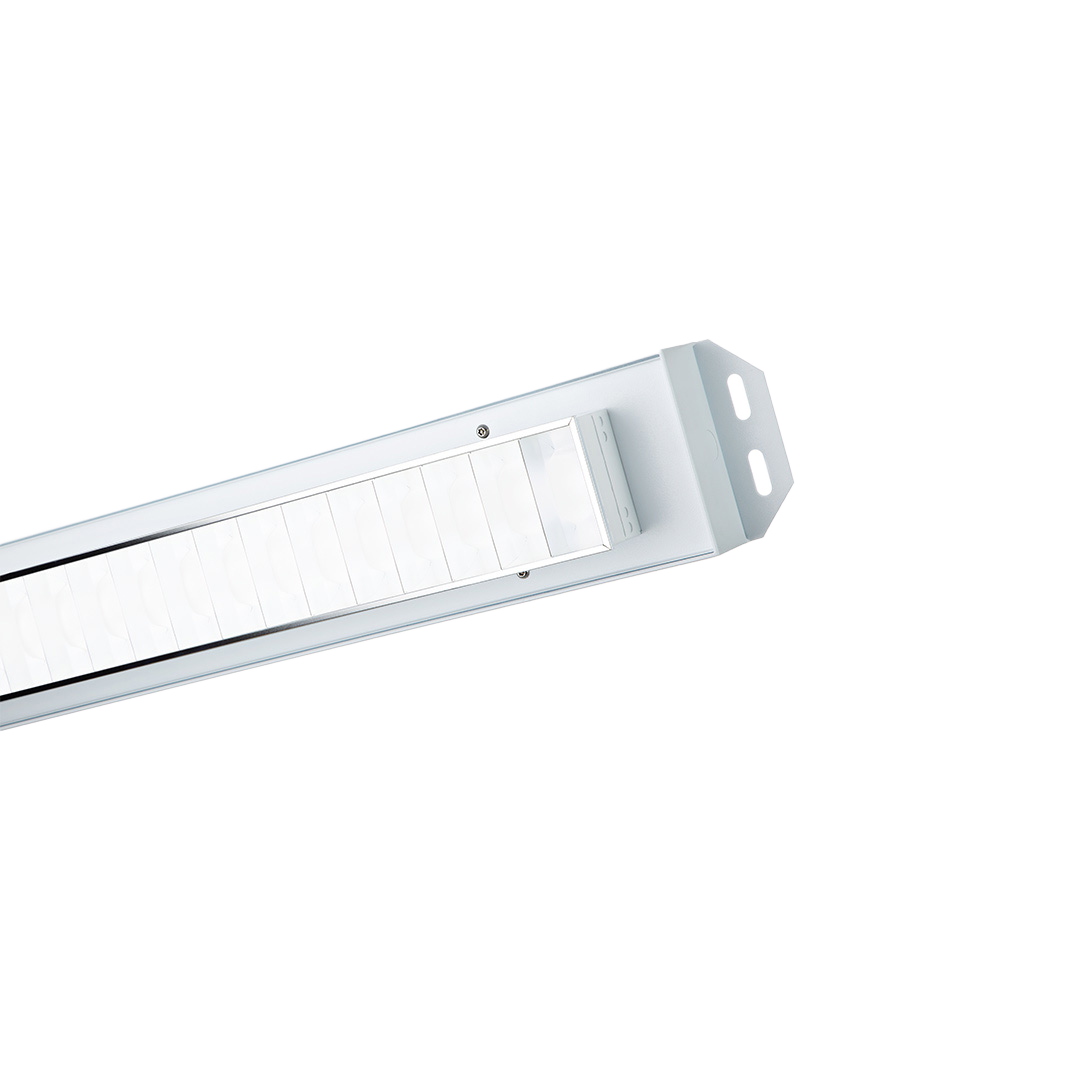

Scipio 2 is an S12 linear luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).

Standard Colours

Product Information

Scipio 2’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Scipio 2 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

Scipio 2 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.

Applications include general circulation and back of house.

Product Specification

Impact Resistance Rating: N/A. More information, CLICK HERE.

Ingress Protection Rating: IP21. More information, CLICK HERE.

Housing: Zinc coated steel body.

Paint: Polyester powder coat. For all colours available, CLICK HERE.

Diffuser: Aluminium louvre with opal liner.

Driver: Electronic control gear on removable tray with fused plug and socket connector block.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in ends.

Technical Information

Scipio 2	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
SP2-5-5000N-TW-ST	3849	33	117	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	8.1
	LED Energy Rating	Dimensions

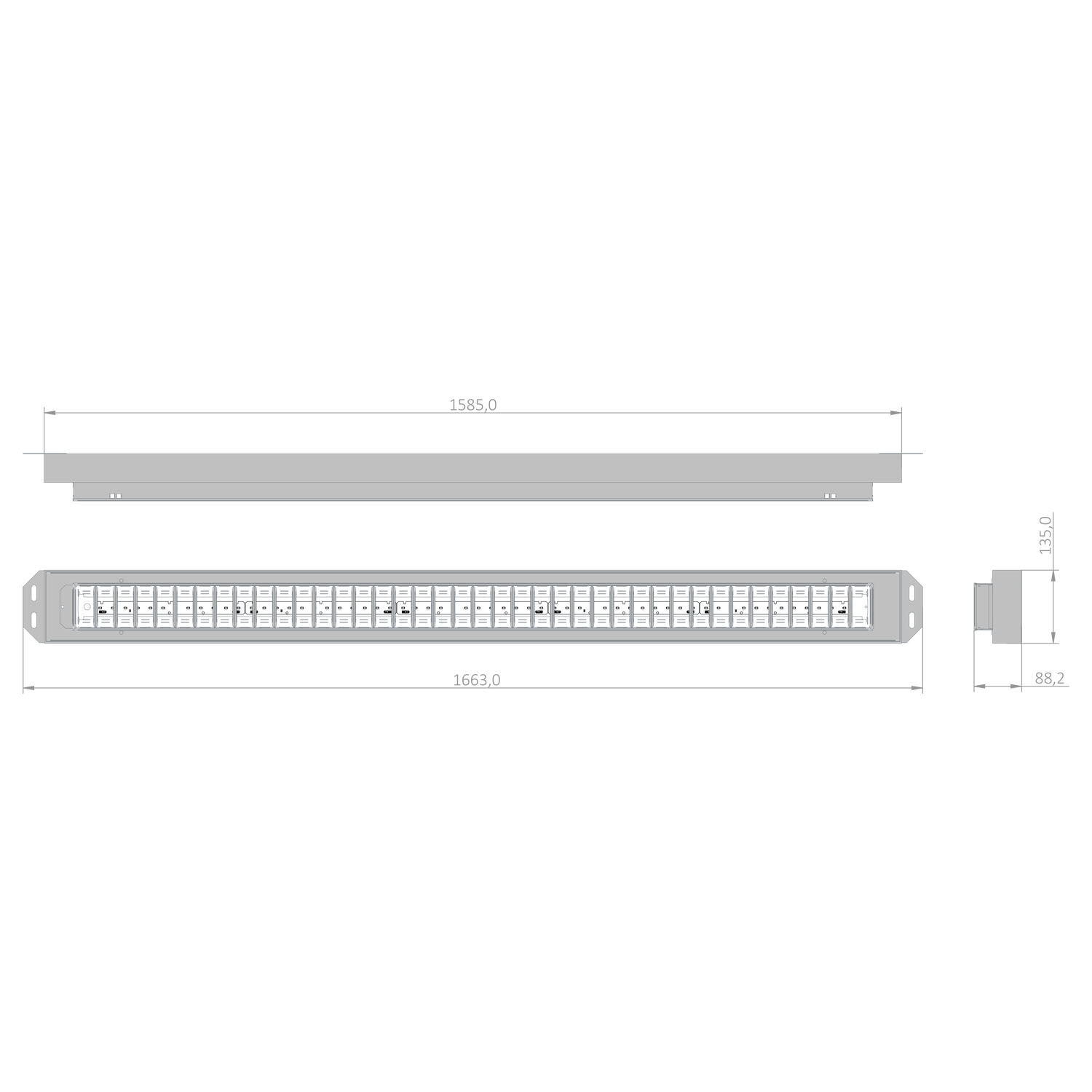

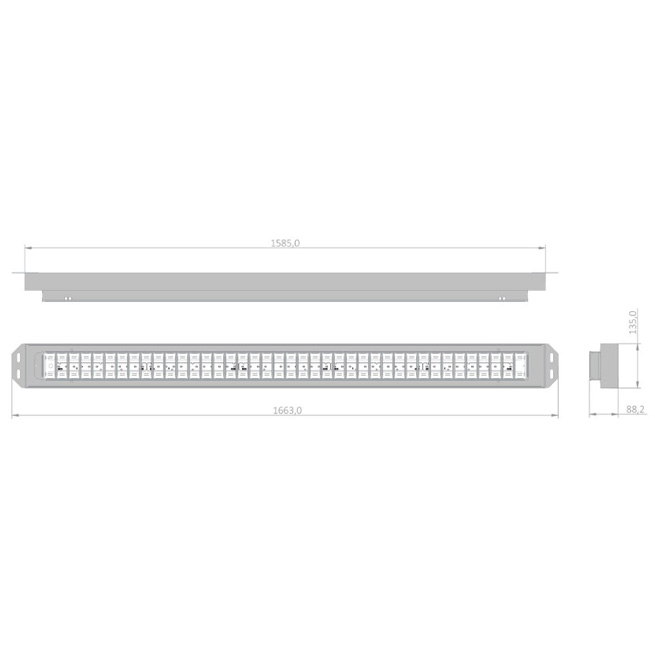

	C	1663mm x 135mm x 89mm
SP2-5-9000N-TW-ST	7094	62	114	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>72,000h	8.1
	LED Energy Rating	Dimensions
	C	1663mm x 135mm x 89mm

Fitting Options

DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Textured White	-TW
