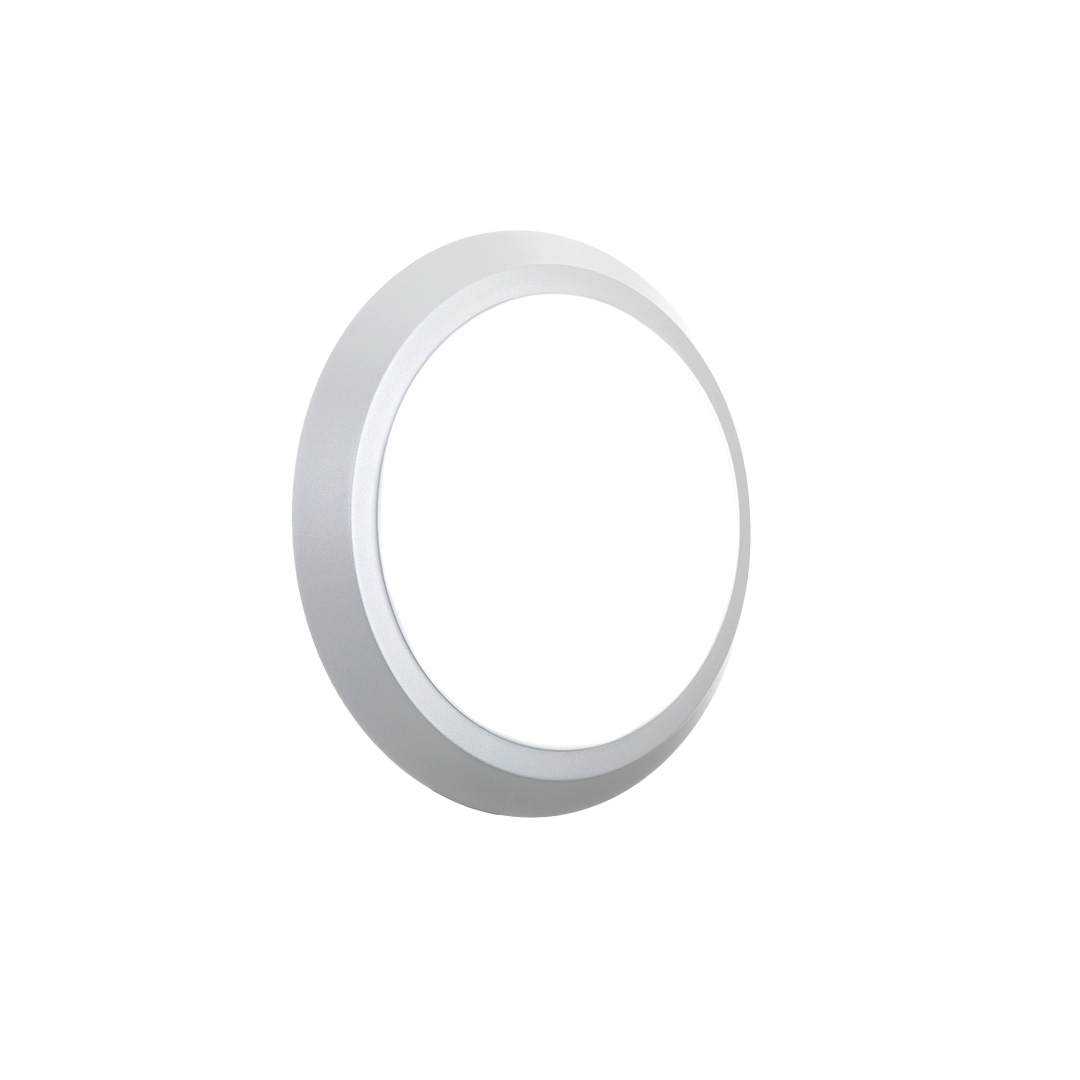

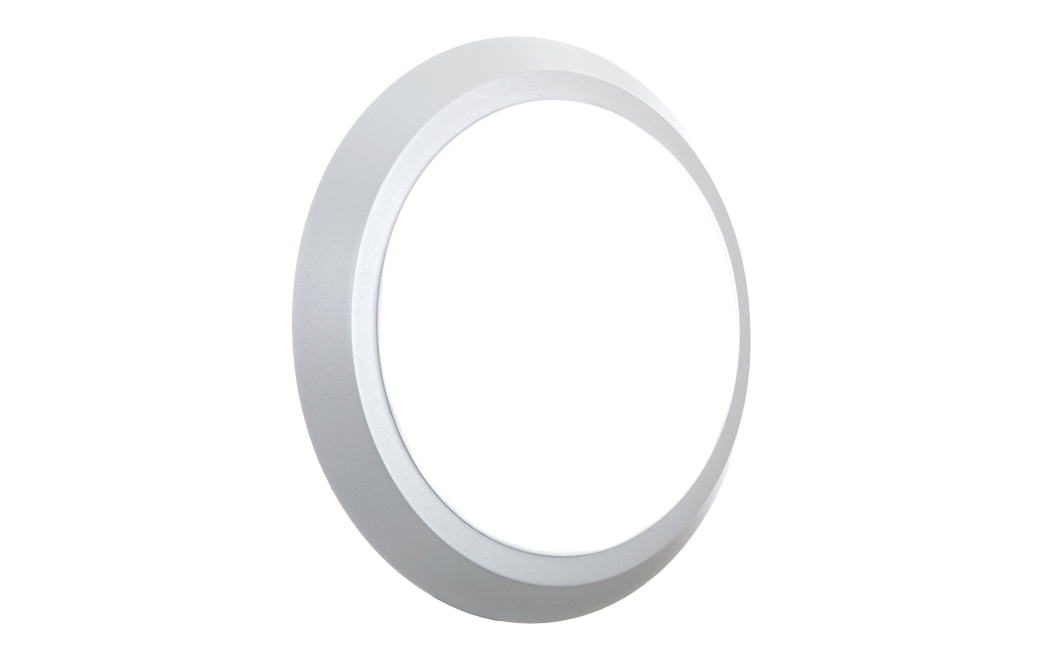

Torino G2 is a vandal resistant bulkhead specifically designed for transport applications and community and public installations.
Standard Colours
Torino G2’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Torino G2 is quick and easy to maintain, whilst enabling sustainable technology upgrades.

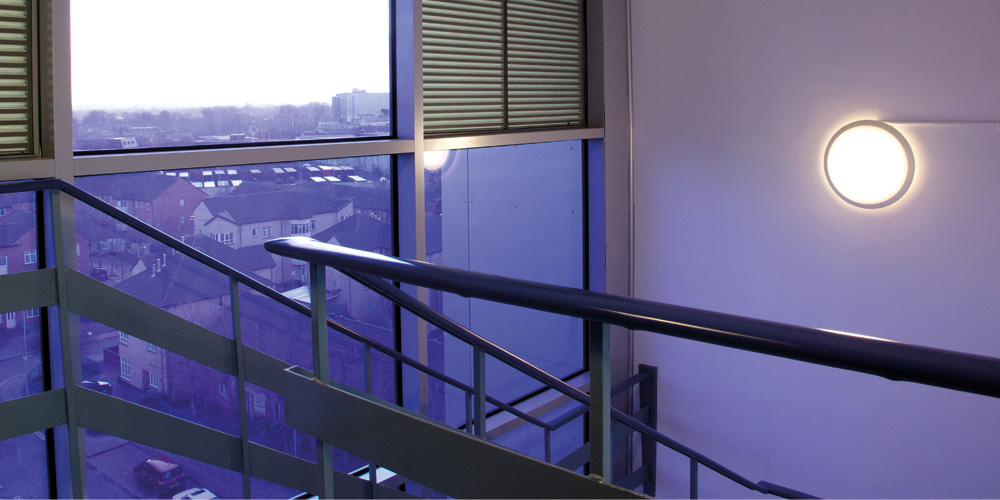

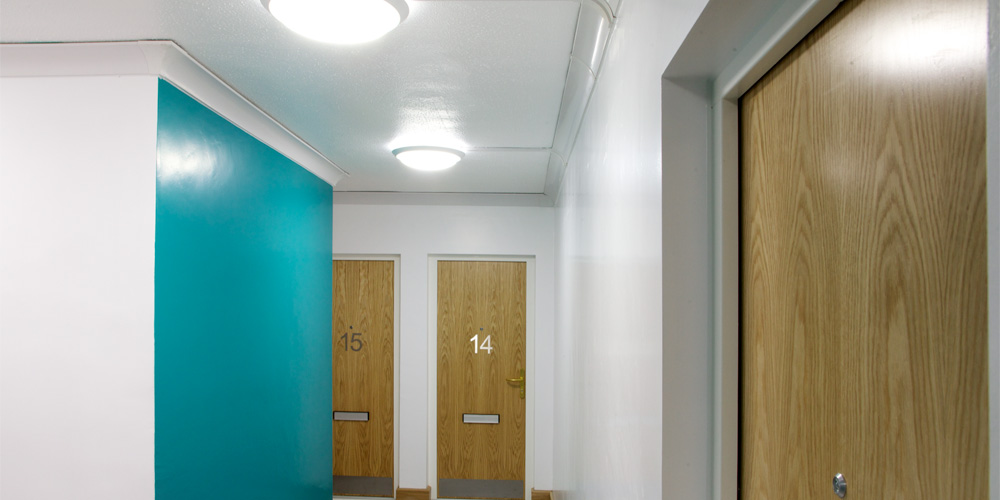

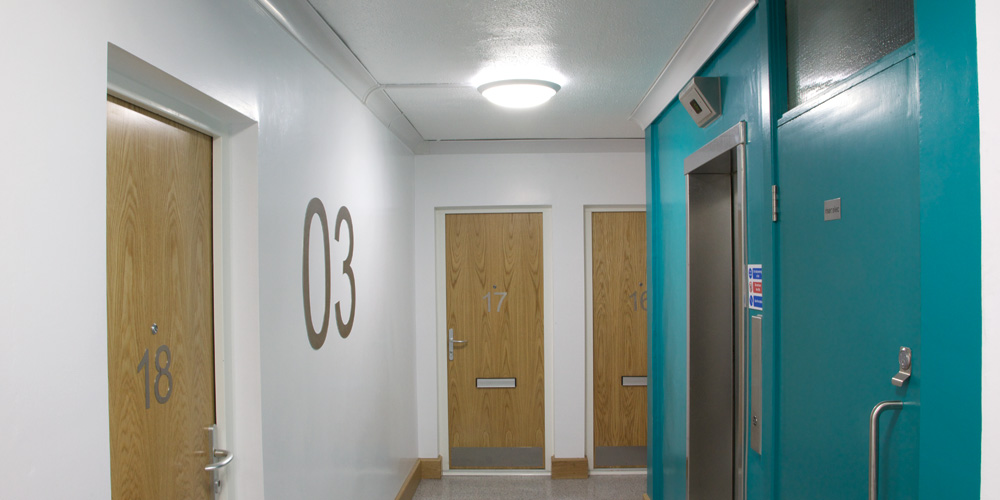

Transport applications include office and back of house. Community and Public applications include the interior communal spaces of buildings.
Impact Resistance Rating: IK11 (50J). Learn More.
Ingress Protection Rating: IP21. Learn More.
Housing: Zinc coated steel body and trim.
Paint: Polyester powder coat. All Colour Options Available Here.
Diffuser: Opal polycarbonate diffuser with trim secured with tamperproof screws.
Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.
Mounting: Wall or ceiling
Cable Entry: Provision for conduit entry in back.
Design Life: 30+ years. Learn More.
| Torino G2 | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| TOR-G2-1500N-MW | 1589 | 14.5 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 394 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

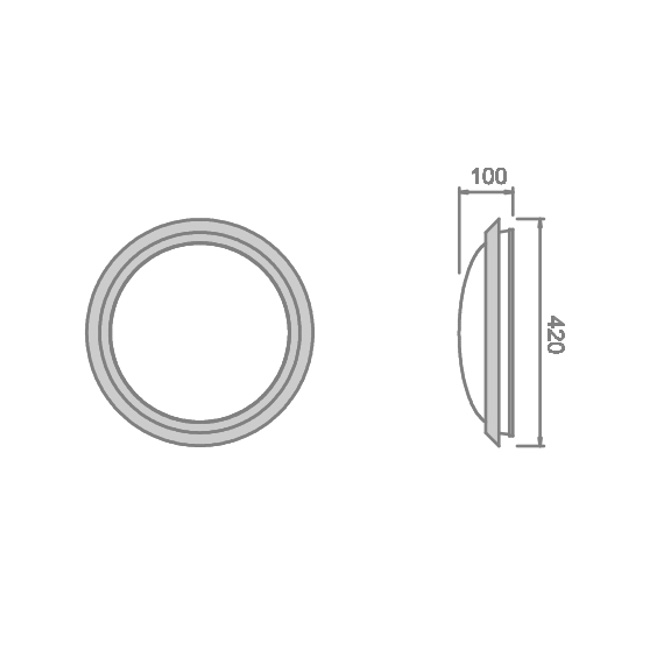

| 2.3 | C | Ø420mm, 100mm | ||
| TOR-G2-2100N-MW | 2227 | 20.4 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 394 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 2.3 | C | Ø420mm, 100mm | ||
| TOR-G2-2500N-MW | 2655 | 24.3 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₇₀B₁₀>110,000h | 394 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 2.3 | C | Ø420mm, 100mm | ||
| Microwave Sensor - Basic | -M1 |
| Switch Dimming | -DI |
| DALI-2 Dimming / Monitoring | -DA |
| Maintained Emergency 3 Hour | -E3 |
| Central Battery Maintained 110V | -EV |
| Matt White | -MW |
| Matt Silver | -MS |
| Corridor Function | -CF |
• For paint colour options, please replace -MW with required paint code.
• -CF will only work if combined with -M1 or an external presence detection sensor supplied by others.
• -DA / -DI and -M1 options cannot be combined.
• For 240V changeover relay option, please call technical sales on +44 (0)20 8254 2022 to discuss your requirements.
