Tuscan 88 Angled S12 is a vandal resistant luminaire specifically designed in accordance with fire precautions for subsurface rail stations (Section 12).
Standard Colours

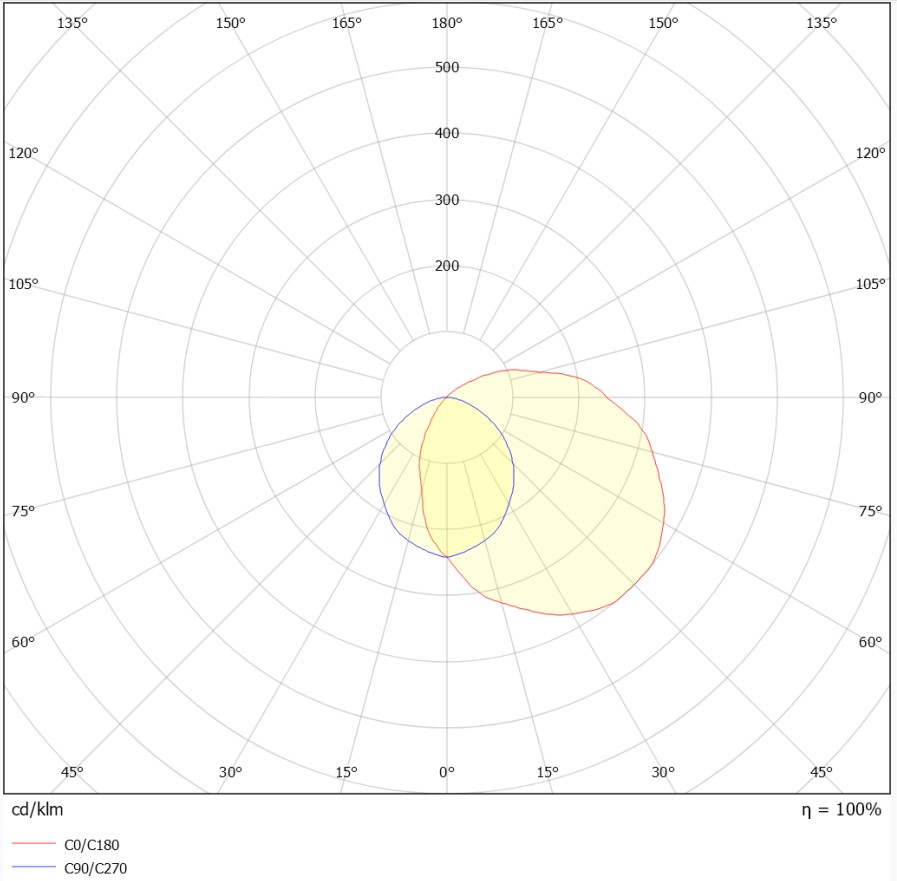

Tuscan 88 Angled S12 directs light precisely where it’s needed, reducing wasted illumination and minimising glare. Incorporating a removable gear tray ensures Tuscan 88 Angled S12 is quick and easy to maintain, whilst enabling sustainable technology upgrades.
Tuscan 88 Angled S12 complies with London Underground subsurface standard S1085 utilising low smoke, zero halogen cables and control gear.
Impact Resistance Rating: IK08 (5J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Frosted toughened glass diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Cornice mounting at either 45° or 30°/60°.
Cable Entry: N/A (Blank body).
| Tuscan 88 Angled S12 | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| L700mm x H188mm x W139mm - 30/60 Degree angle | ||||
| D882-2-1500N-F-TB-ST | 1357 | 12.9 | 105 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-2000N-F-TB-ST | 1625 | 15.4 | 106 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-2500N-F-TB-ST | 1867 | 17.5 | 107 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-3000N-F-TB-ST | 2171 | 20.1 | 108 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-1500W-F-TB-ST | 1289 | 12.9 | 100 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-2000W-F-TB-ST | 1544 | 15.4 | 100 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-2500W-F-TB-ST | 1774 | 17.5 | 101 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| D882-2-3000W-F-TB-ST | 2062 | 20.1 | 103 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 6.1 | C | |||
| L1300mm x H188mm x W139mm - 30/60 Degree angle | ||||
| D882-4-2000N-F-TB-ST | 1939 | 17.8 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-3000N-F-TB-ST | 2530 | 22.9 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-4000N-F-TB-ST | 3028 | 27.3 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-5000N-F-TB-ST | 3881 | 34.9 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-6000N-F-TB-ST | 4142 | 37.8 | 110 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-2000W-F-TB-ST | 1842 | 17.8 | 103 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-3000W-F-TB-ST | 2404 | 22.9 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-4000W-F-TB-ST | 2877 | 27.3 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-5000W-F-TB-ST | 3687 | 34.9 | 106 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| D882-4-6000W-F-TB-ST | 3935 | 37.8 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 9.1 | C | |||
| L1600mm x H188mm x W139mm - 30/60 Degree angle | ||||
| D882-5-2500N-F-TB-ST | 2543 | 21.4 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-3750N-F-TB-ST | 3269 | 27.4 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-5000N-F-TB-ST | 3822 | 33.3 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-6250N-F-TB-ST | 4702 | 39.5 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-7500N-F-TB-ST | 5154 | 45.9 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-2500W-F-TB-ST | 2416 | 21.4 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-3750W-F-TB-ST | 3106 | 27.4 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-5000W-F-TB-ST | 3631 | 33.3 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-6250W-F-TB-ST | 4467 | 39.5 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| D882-5-7500W-F-TB-ST | 4896 | 45.9 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12.1 | C | |||
| L700mm x H158mm x W158mm - 45 Degree angle | ||||
| D883-2-1500N-F-TB-ST | 1357 | 12.9 | 105 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-2000N-F-TB-ST | 1625 | 15.4 | 106 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-2500N-F-TB-ST | 1867 | 17.5 | 107 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-3000N-F-TB-ST | 2171 | 20.1 | 108 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 495 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-1500W-F-TB-ST | 1289 | 12.9 | 100 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-2000W-F-TB-ST | 1544 | 15.4 | 100 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-2500W-F-TB-ST | 1774 | 17.5 | 101 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| D883-2-3000W-F-TB-ST | 2062 | 20.1 | 103 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 470 | |
| Weight (kg) | LED Energy Rating | |||
| 5.5 | C | |||
| L1300mm x H158mm x W158mm - 45 Degree angle | ||||
| D883-4-2000N-F-TB-ST | 1939 | 17.8 | 109 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-3000N-F-TB-ST | 2530 | 22.9 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-4000N-F-TB-ST | 3028 | 27.3 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-5000N-F-TB-ST | 3881 | 34.9 | 111 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-6000N-F-TB-ST | 4142 | 37.8 | 110 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 610 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-2000W-F-TB-ST | 1842 | 17.8 | 103 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-3000W-F-TB-ST | 2404 | 22.9 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-4000W-F-TB-ST | 2877 | 27.3 | 105 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-5000W-F-TB-ST | 3687 | 34.9 | 106 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| D883-4-6000W-F-TB-ST | 3935 | 37.8 | 104 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 579 | |
| Weight (kg) | LED Energy Rating | |||
| 10.1 | C | |||
| L1600mm x H158mm x W158mm - 45 Degree angle | ||||
| D883-5-2500N-F-TB-ST | 2543 | 21.4 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-3750N-F-TB-ST | 3269 | 27.4 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-5000N-F-TB-ST | 3822 | 33.3 | 115 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-6250N-F-TB-ST | 4702 | 39.5 | 119 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-7500N-F-TB-ST | 5154 | 45.9 | 112 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 767 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-2500W-F-TB-ST | 2416 | 21.4 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-3750W-F-TB-ST | 3106 | 27.4 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-5000W-F-TB-ST | 3631 | 33.3 | 109 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-6250W-F-TB-ST | 4467 | 39.5 | 113 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| D883-5-7500W-F-TB-ST | 4896 | 45.9 | 107 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 728 | |
| Weight (kg) | LED Energy Rating | |||
| 12 | C | |||
| Zone 2 (Seafront Areas) | -Z2 |
| Switch Dimming | -DI |
| DALI-2 Dimming / Monitoring | -DA |
| Maintained Emergency 3 Hour | -E3 |
| Central Battery Maintained 110V | -EV |
| Change Over Relay, 240V Relay Supplied | -ER |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Maintained Emergency 3 Hour, DALI | -ED |
| Smooth White | -SW |
| Pure White | -PW |
| Textured White | -TW |
| Textured Black | -TB |
• For paint colour options, please replace -TB with required paint code.
• -ED option not available on all 700mm versions.
Complete the form below to download this resource.
