Product Information

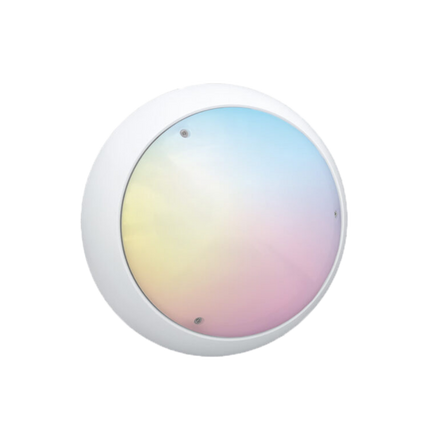

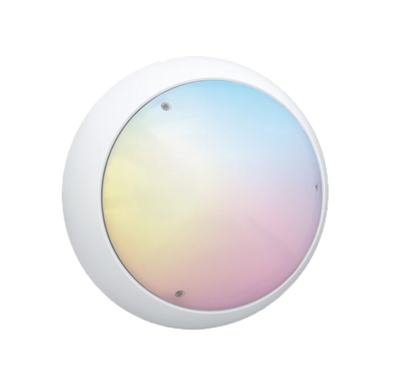

Basilica RGBW allows for customisable coloured lighting effects, including white, to create a dynamic or therapeutic setting. Basilica RGBW’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare to create a comfortable feel. The smooth surface enables easy cleaning, helping to maintain a bright welcoming environment.
Basilica RGBW is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2 (ceiling mounted) and LIG5-5 (wall mounted). It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.
Applications include de-escalation rooms and therapy rooms.

Product Specification

Impact Resistance Rating: IK20 (250J). More information, CLICK HERE.
Ingress Protection Rating: IP66. More information, CLICK HERE.
Housing: Die cast aluminium body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on a removable tray for ease of repair/upgrade with fused plug and socket connector block. DALI (Device type 6) drivers as standard. Casambi Wireless enabled (Casambi user Interface required).
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back.

Technical Information

Basilica RGBW Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Opal
BA35-RGBW-X-SW-DW 1099 (White 4000K CRI90 channel) 17.4 RGBW
CRI Driver Lifetime (up to hours) LED Lifetime Weight (kg)
CRI>90 50,000 L₇₀B₁₀>50,000h 3.5
LED Energy Rating Dimensions
E Ø367mm, 119mm

Fitting Options

DALI-2 Dimming / Monitoring -DA
Smooth White -SW
Smooth Cream -SC
Smooth Silver -SS
Casambi Node -DW

• For paint colour options, please replace -SW with required paint code.
• For DALI only version, please replace -DW with -DA. (DALI control system required).
• For Casambi User interface (White), order code CAUI-W.
• For Casambi User interface (Black), order code CAUI-B.

;
