Product Information

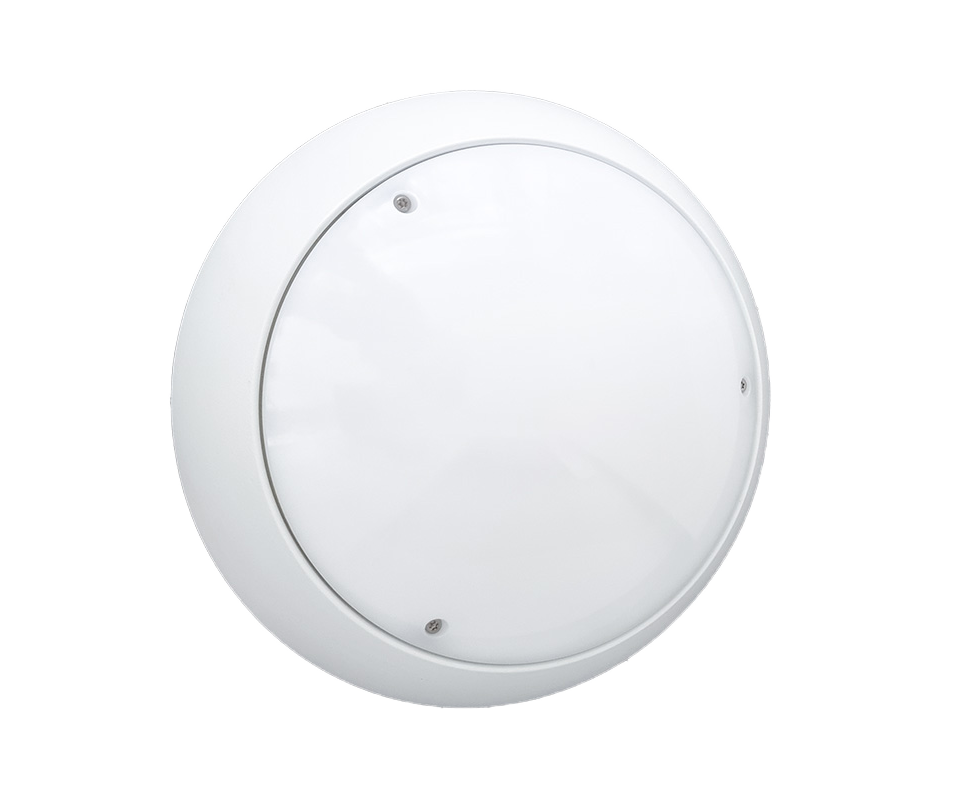

Basilica Tuneable White adjusts colour temperatures to help influence our wellbeing and replicate our natural circadian rhythm. Cool colour temperatures can boost activity whilst warm colour temperatures can aid relaxation. Basilica Tuneable White’s uniform illumination ensures a consistent light distribution, enhancing visibility and reducing glare to create a comfortable feel. The smooth surface enables easy cleaning, helping to maintain a bright welcoming environment.
Basilica Tuneable White is designed to meet the requirements of “Design in Mental Health Network’s (DiMHN) Testing Guidance for Products in Mental Health Facilities” rating LIG5-5/ES2 (ceiling mounted) and LIG5-5 (wall mounted). It minimises the risk of self-harm or injury by preventing the attachment of ligatures, and is designed to be disassembled and reinstated to ensure maintenance can be undertaken quickly and easily after anti-pick mastic application.
Custodial applications include police stations and law courts. Secure health applications include therapy rooms and communal areas.

Product Specification

Impact Resistance Rating: IK20 (250 joules of energy).
Ingress Protection Rating: IP66.
Housing: Die-cast aluminium body
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on a removable tray with plug and socket connector block. DALI (Device Type 8) Driver as standard.
Mounting: Wall or ceiling
Cable Entry: Provision for conduit entry in back.

Technical Information

Basilica Tuneable White Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
BA4-3250T-SW-DA 3264 @4000K 28 116 2700-6500
CRI Driver Lifetime (up to hours) Nightlight Output (Lum/lm) LED Lifetime
CRI>80 100,000 135 L₇₀B₁₀>54,000h
Emergency Output (Lum/lm) Weight (kg) LED Energy Rating Dimensions
501 4.5 C Ø455mm, 115mm

Fitting Options

Night Light -NL
DALI-2 Dimming / Monitoring -DA
Maintained Emergency 3 Hour -E3
Central Battery Maintained 110V -EV
Change Over Relay, 240V Relay Supplied -ER
Maintained Emergency 3 Hour, Self Test -ES
Maintained Emergency 3 Hour, DALI -ED
Smooth White -SW
Smooth Cream -SC
Smooth Silver -SS
Casambi Node -DW

• For paint colour options, please replace -SW with required paint code.
• For Casambi Node version, please replace -DA with DW.
• Emergency and Night Light CCT is 2700K.
• For Casambi User interface (White), order code CAUI-W.
• For Casambi User interface (Black), order code CAUI-B.
