Tuscan Recessed is a vandal resistant linear luminaire specifically designed for challenging environments. Such as transport applications and community and public installations.

Product Configurator

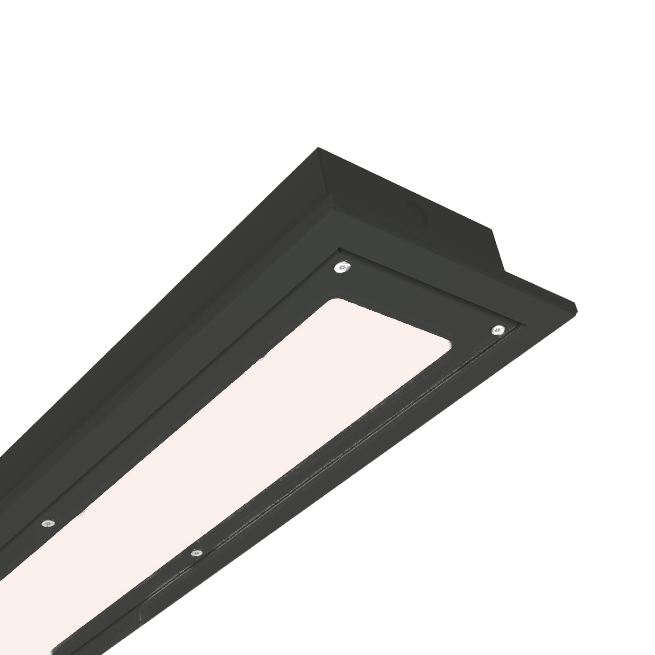

Tuscan Recessed Vandal Resistant Luminaire

Product Information

As part of the new generation of the Tuscan family, Tuscan Recessed combines improved efficiency, enhanced impact resistance, and a refined modern aesthetic. The specialist diffuser material provides a soft, uniform lit appearance, complemented by the durability expected from the Tuscan range. Featuring a removable gear tray, Tuscan Recessed is designed for ease of maintenance and seamless integration of future sustainable technology upgrades.

Community and Public applications include subways, car parks, and the perimeter of buildings. Custodial applications include police stations, law courts and association areas. Transport applications include covered platforms, general circulation, back of house, stairs and footbridges.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK18 (200J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in back and ends.

Design Life: 30+ years. What is Design Life?

Technical Information

Tuscan Recessed	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L670mm
TUR-2-1900N-X-TB	1945	5.9	123	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-2-2300N-X-TB	2256	6.9	124	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-2-2500N-X-TB	2541	7.7	125	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-2-1800W-X-TB	1848	5.7	117	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-2-2100W-X-TB	2145	6.7	118	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-2-2400W-X-TB	2440	7.5	119	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	4.8
	LED Energy Rating	Dimensions
	C	150mm x 80mm
L1243mm
TUR-4-2000N-X-TB	1969	6.1	133	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-2600N-X-TB	2629	8.1	136	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-3300N-X-TB	3301	10.2	138	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-3900N-X-TB	3915	12.1	137	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-4500N-X-TB	4517	14	137	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-5100N-X-TB	5110	15.8	136	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	B	150mm x 80mm
TUR-4-1900W-X-TB	1872	5.8	126	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
TUR-4-2500W-X-TB	2512	7.8	129	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
TUR-4-3100W-X-TB	3141	9.9	130	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
TUR-4-3700W-X-TB	3723	11.6	130	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
TUR-4-4300W-X-TB	4302	13.4	130	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
TUR-4-4900W-X-TB	4874	15.2	129	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₈₀B₁₀>102,000h
	Weight (kg)	LED Energy Rating	Dimensions
	9.6	C	150mm x 80mm
L1547mm
TUR-5-2400N-X-TB	2384	7.3	135	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-3200N-X-TB	3181	9.8	138	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-4000N-X-TB	3983	12.2	138	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-4800N-X-TB	4762	14.6	138	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-5500N-X-TB	5530	17	137	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-6300N-X-TB	6335	19.5	136	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	B	150mm x 80mm
TUR-5-2300W-X-TB	2271	7	129	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-5-3000W-X-TB	3047	9.4	131	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-5-3800W-X-TB	3835	11.9	132	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-5-4500W-X-TB	4524	14	131	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-5-5200W-X-TB	5280	16.3	131	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm
TUR-5-6000W-X-TB	5982	18.5	130	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Weight (kg)
	CRI>80	100,000	L₈₀B₁₀>102,000h	12
	LED Energy Rating	Dimensions
	C	150mm x 80mm

• For paint colour options, please replace -TB with required paint code.
• -CF will only work if combined with -M1 or -M2, or an external presence detection sensor supplied by others. 
• HT Applies for standard version. For any options (e.g.-E3) please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• Emergency options (-E3/ -ES/ -ED) and Dimming options (-DA/ -DI) cannot be combined on 670mm versions.
• Emergency options (-E3/ -ES/ -ED) and Corridor Function (-CF) cannot be combined on 670mm versions.
