Abrams AL

Abrams AL

IP65

IK16 (150J)

Linear

Class I

Surface

HT50°C

TM65/66

Custodial

Secure Healthcare

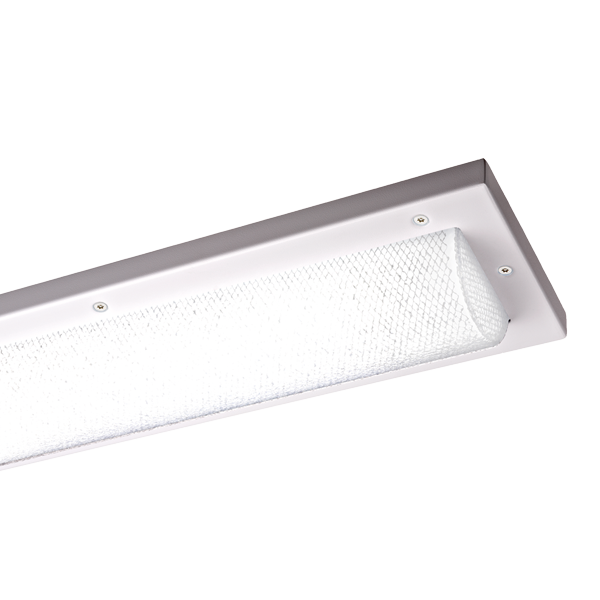

Abrams AL is a ligature resistant luminaire designed for challenging environments including custodial facilities and secure healthcare.

Standard Colours

Product Information

Abrams AL provides uniform light distribution and incorporates a removable, easy to maintain LED gear tray.

Abrams AL is designed to minimise the risk of self-harm or injury by preventing the attachment of ligatures. It is HMPPS “safer cell” approved and features a patented ‘sandwiched’ diffuser design, compliant with burns testing regulations, for additional peace of mind.

Applications include prison en-suites and showers plus association and communal areas. Abrams AL is also an ideal solution for police stations and law courts.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK16 (150J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Composite polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on a removable tray for ease of repair/upgrade with fused plug & socket connector block. 3 level switching & night light for versions 1025mm and 1325mm.

Mounting: Ceiling.

Cable Entry: Provision for conduit entry in the back.

Design Life: 30+ years. What is Design Life?

Technical Information

Abrams AL	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
L430mm
D224-1-2500W-P-TW	2004	23.6	85	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	High Temp (°C)
	CRI>80	100,000	196	50
	LED Lifetime	Weight (kg)	LED Energy Rating	Dimensions

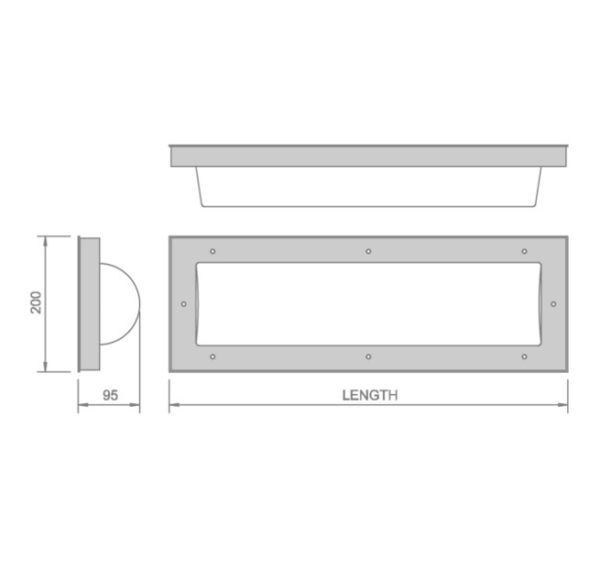

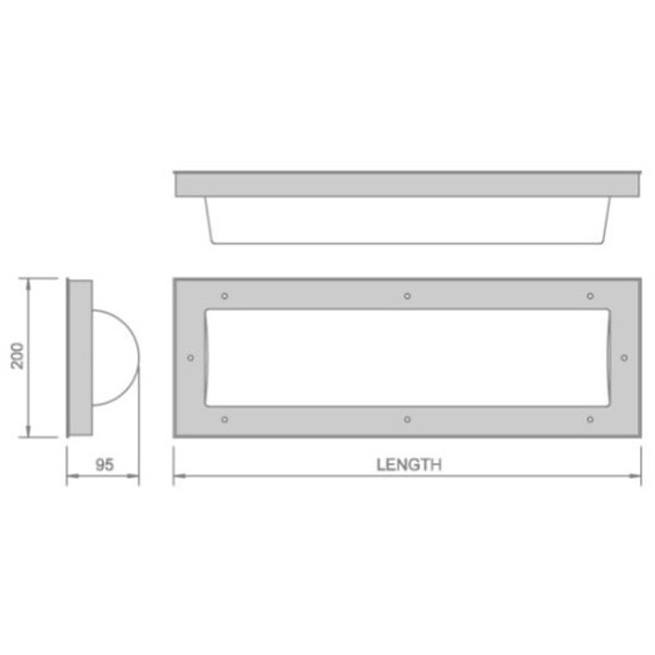

	L₈₀B₁₀>72,000h	5	C	200mm x 95mm
D224-1-2500N-P-TW	2109	23.6	89	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	High Temp (°C)
	CRI>80	100,000	196	50
	LED Lifetime	Weight (kg)	LED Energy Rating	Dimensions
	L₈₀B₁₀>72,000h	5	B	200mm x 95mm
L730mm
D224-2-4000W-P-TW	2906	31.8	92	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	8	C	200mm x 95mm
D224-2-4000N-P-TW	3059	31.8	96	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	8	B	200mm x 95mm
L1025mm
D224-3-3400W-P-TW-SE-NL	1328/2348 (Low/High Output)	43	86	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	13	C	200mm x 95mm
D224-3-3400N-P-TW-SE-NL	1394/2465 (Low/High Output)	43	101	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	13	B	200mm x 95mm
L1325mm
D224-4-6000W-P-TW-SE-NL	1812/3150 (Low/High Output)	55	90	3000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	14	C	200mm x 95mm
D224-4-6000N-P-TW-SE-NL	1902/3307 (Low/High Output)	55	94	4000
	CRI	Driver Lifetime (up to hours)	Nightlight Output (Lum/lm)	LED Lifetime
	CRI>80	100,000	196	L₈₀B₁₀>72,000h
	Weight (kg)	LED Energy Rating	Dimensions
	14	B	200mm x 95mm

Fitting Options

Night Light	-NL
Textured White	-TW

• For night light LED energy efficiency class D, LED Lifetime L₇₀B₁₀>100,000h at 25⁰C ambient and Driver Lifetime up to 50,000h at 25⁰C ambient.
• For 1025mm - Low Output Wattage: 15.6W. High Output Wattage: 24.2W.
• For 1325mm - Low Output Wattage: 20.1W. High Output Wattage: 35.1W.
