Bastion provides robust ambient lighting, featuring a removable gear tray for easy maintenance and sustainable technology upgrades.
Applications include car parks, perimeter of buildings and subways.
Bastion
IP65
IK16 (150J)
Linear
Class I
Surface
Community and Public
Custodial
Secure Healthcare

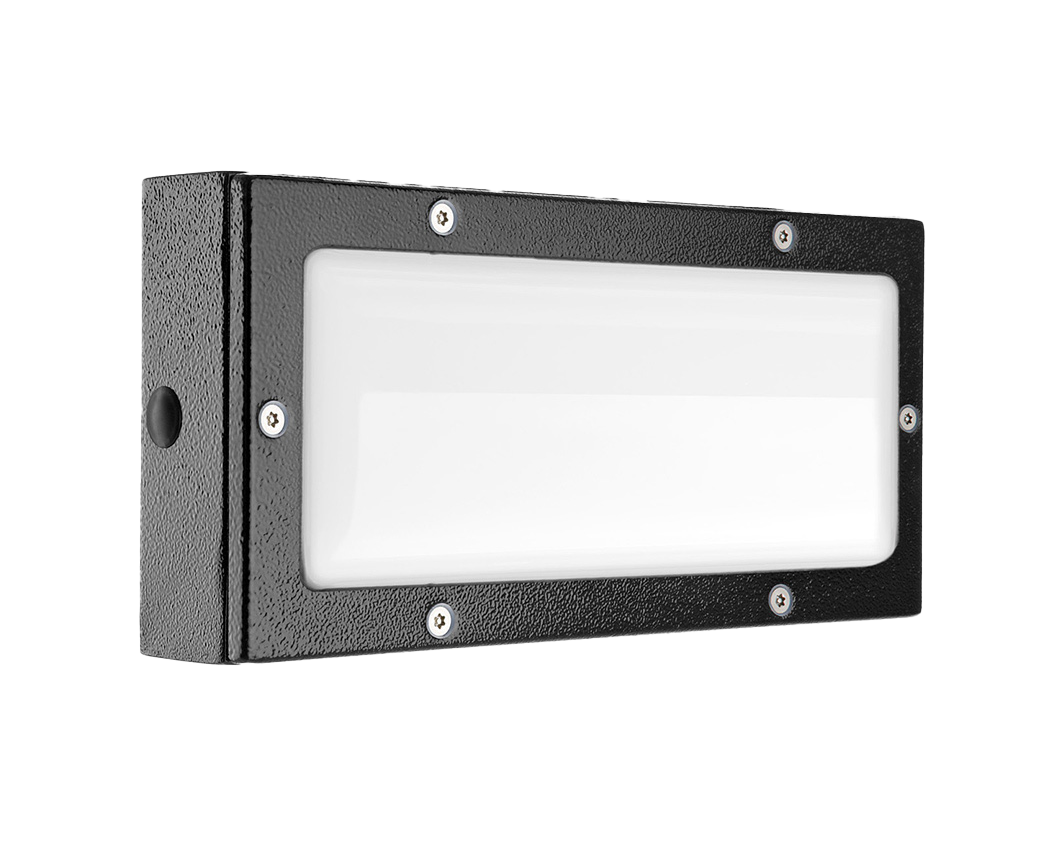

Bastion is a vandal resistant bulkhead designed for challenging environments including community and public, transport and custodial facilities.
Standard Colours
Textured White
Textured Black
Matt Titanium
Product Information
Product Specification
Impact Resistance Rating: IK16 (150J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back and ends.
Technical Information
| Bastion | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| D557-1200N-X-TB | 1233 | 13.8 | 89 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 480 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | C | 400mm x 200mm x 100mm | ||
| D557-1800N-X-TB | 1834 | 18.8 | 97 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 480 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | C | 400mm x 200mm x 100mm | ||
| D557-1200W-X-TB | 1181 | 13.8 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 459 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | C | 400mm x 200mm x 100mm | ||
| D557-1800W-X-TB | 1757 | 18.8 | 93 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 459 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.2 | C | 400mm x 200mm x 100mm | ||
Fitting Options
| Zone 2 (Seafront Areas) | -Z2 |
| Photo Electronic Cell | -PC |
| Blank Ends | -BE |
| Fully Recessed | -R |
| Non-Maintained 3 Hour Emergency | -NE |
| Maintained Emergency 3 Hour | -E3 |
| Central Battery Maintained 110V | -EV |
| Change Over Relay, 240V Relay Supplied | -ER |
| Textured White | -TW |
| Textured Black | -TB |
| Matt Titanium | -MT |
• For paint colour options, please replace -TB with required paint code.
