Tuscan 89 Angled

  • Reset Filter
  • Sectors

The market leading weather and vandal resistant fitting
  • Designed to resist extreme physical attack.

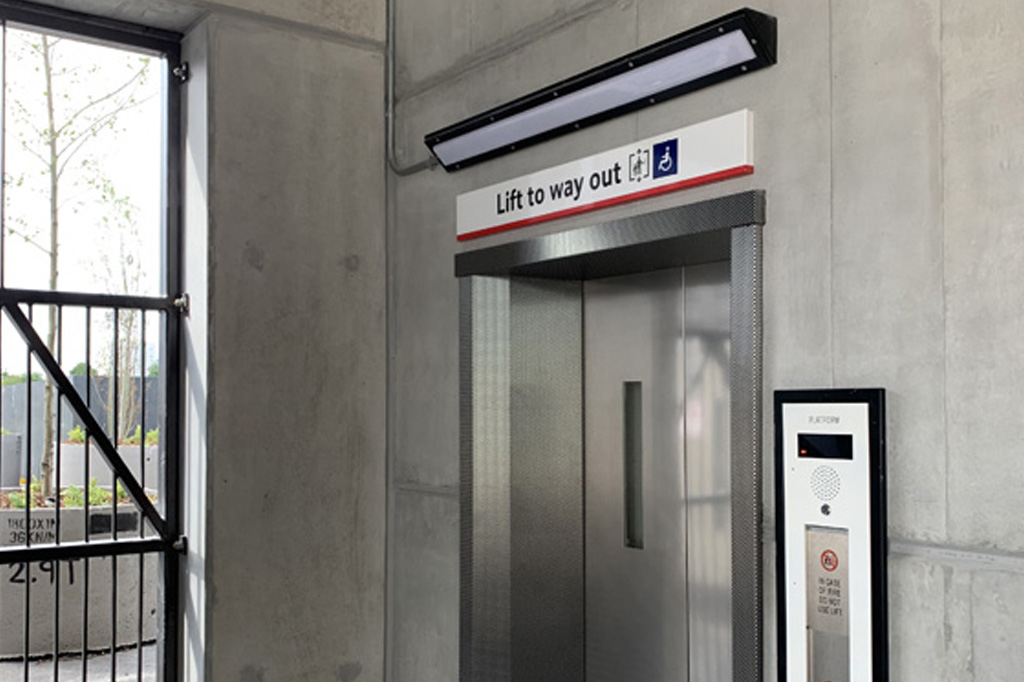

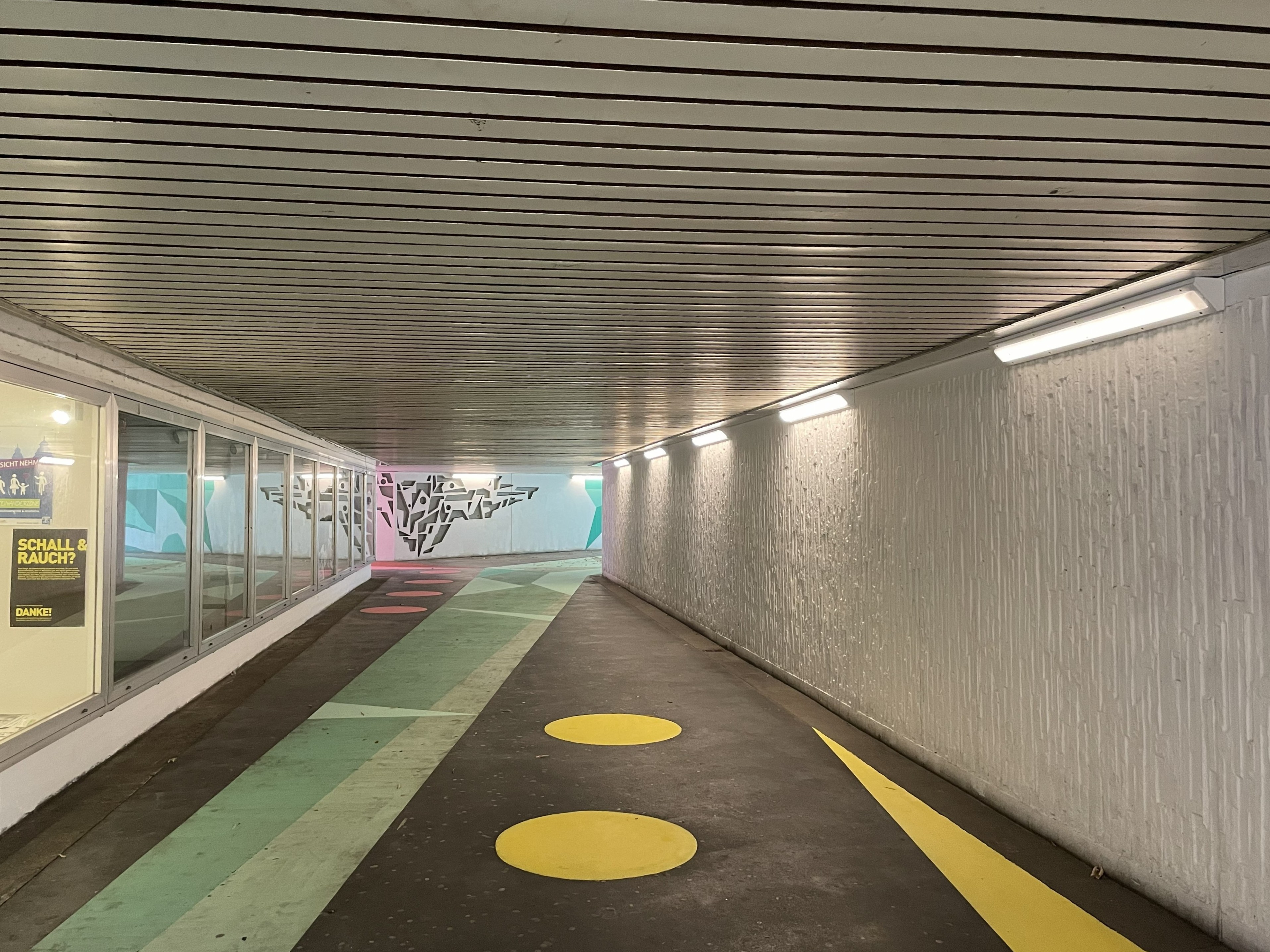

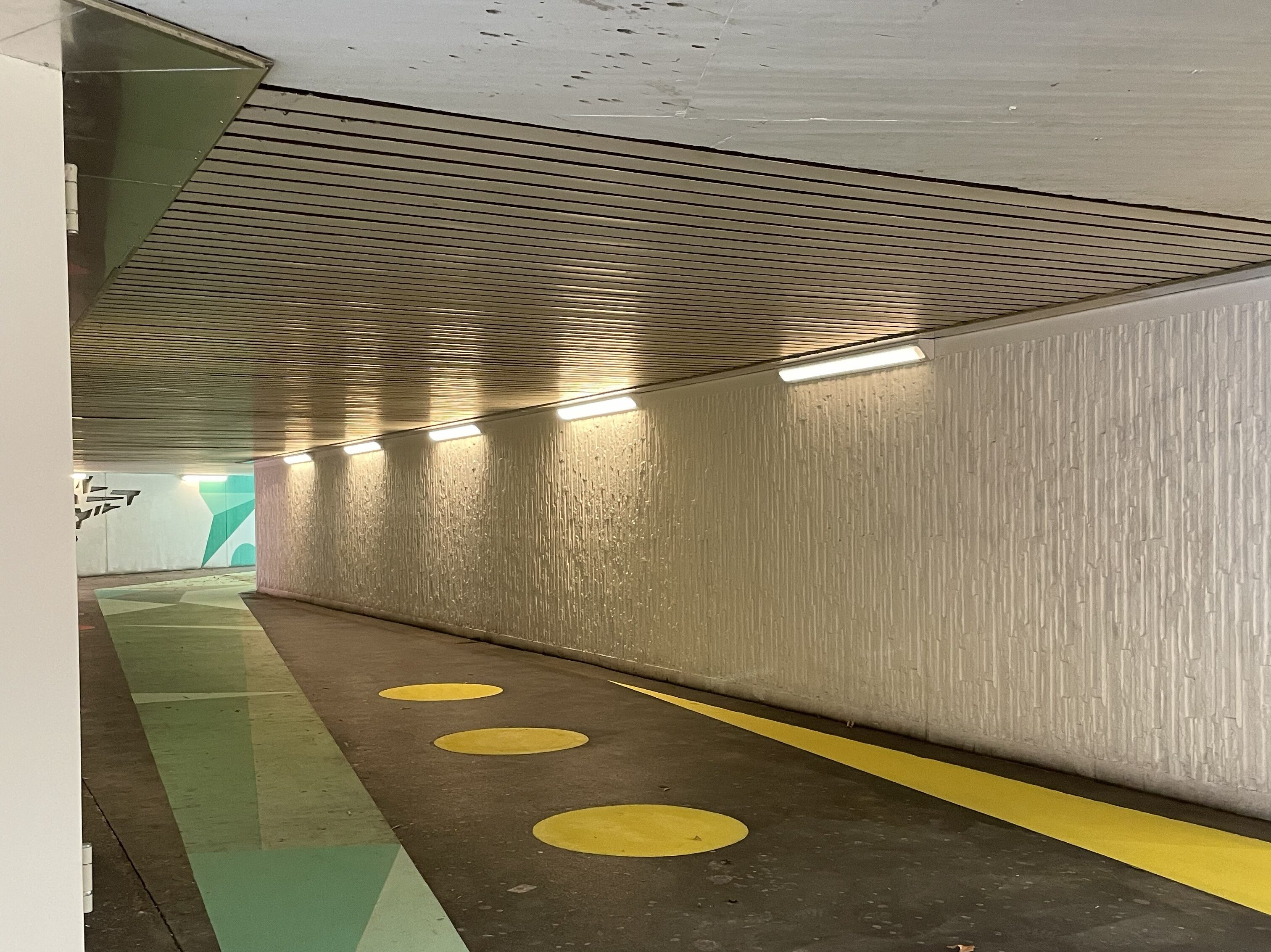

  • Applications include subways, platforms and pedestrian walkways.
  • Suitable for cornice mounting at either 45° or 30°/60° angles.
  • Heavy gauge steel body finished in black polyester powder coat.
  • Polycarbonate diffuser held against gasket with tamperproof screws.
  • Dummy bodies and infill panels available for continuous mounting, please contact technical sales.
  • Electronic control gear on removable tray with fused plug & socket connector block.
  • Provision for conduit entry in back and ends, gaskets provided.

Lamp options

LAMP OPTIONS The data below is for the 45° angled luminaire (D893). A 30°/60° angled luminaire is also available (D892). The lamp data is identical except that the weight of the 30°/60° angled luminaire (D892) is as follows: 650mm = 4.8kg, 1250mm = 8.6kg, 1600mm = 10.7kg.

650mm LONG
LED – OPAL Lamps Temp Load Lum/lms Efficacy Weight
D893/2/2000NW/XB LED Array 4000K 18.6W 1749lms 94lm/W 4.3KG
D893/2/2500NW/XB LED Array 4000K 22.8W 2108lms 93lm/W 4.3KG
D893/2/3000NW/XB LED Array 4000K 26W 2376lms 91lm/W 4.3KG
1250mm LONG
LED – OPAL Lamps Temp Load Lum/lms Efficacy Weight
D893/4/2000NW/XB LED Array 4000K 21W 2220lms 105lm/W 8KG
D893/4/3000NW/XB LED Array 4000K 27.5W 2863lms 104lm/W 8KG
D893/4/4000NW/XB LED Array 4000K 34.5W 3382lms 98lm/W 8KG
D893/4/5000NW/XB LED Array 4000K 42.1W 4021lms 95lm/W 8KG
D893/4/6000NW/XB LED Array 4000K 49W 4546lms 93lm/W 8KG
1550mm LONG
LED – OPAL Lamps Temp Load  Lum/lms Efficacy Weight
D893/5/2500NW/XB LED Array 4000K 25.7W 2720lms 106lm/W 10KG
D893/5/3750NW/XB LED Array 4000K 34.1W 3503lms 103m/W 10KG
D893/5/5000NW/XB LED Array 4000K 47W 4667lms 99lm/W 10KG
D893/5/6250NW/XB LED Array 4000K 52.2W 5067lms 97lm/W 10KG
D893/5/7500NW/XB LED Array 4000K 61.3W 5720lms 93lm/W 10KG



Fitting options

FITTING OPTIONS

Textured white finish replace B with W
Titanium finish replace B with C49
Integral 3 hour duration emergency add suffix /EM3
Self test 3 hour duration emergency add suffix /EM3S
DALI 3 hour duration emergency* add suffix /EM3D
DALI dimming/monitoring add suffix /DALI
Warm white LEDs (3000K) replace NW with WW
Switch dimming add suffix /DIM
For 30/60° angled version replace D893 with D892
Blank ends add suffix /BE
For Network Rail specification add suffix /NET
Corridor function** add suffix /CF10
Anti Graffiti Diffuser Upgrade add suffix /AGD
For use with 50V or 110V ac/dc central battery systems add suffix /EV
240V changeover relay add suffix /ER
* EM3D not available on all 2 foot (650mm) versions
** CF10 option available will only work if combined with an external presence detection sensor supplied by others
