Gateline

Gateline

IP65

IK14 (100J)

Bulkhead

Class I

Surface

Custodial

Gateline is a “defined emergency escape route” light specifically designed for challenging environments, such as custodial facilities.

Standard Colours

Product Information

Gateline is designed specifically to provide a uniform and consistent illumination of 15 lux at a working plane of 1.0m, based on a maximum mounting height of 3.8m, to ensure compliance with specific emergency lighting requirements in custodial environments.

Applications include emergency lighting for ancillary areas.

Product Specification

Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Zinc coated steel body.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Clear polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Integral 3h non-maintained emergency module and battery.

Mounting: Wall. Ceiling and other mounting versions are available on request, please contact Technical Sales on +44 (0)20 8254 2022 or e-mail technicalsales@designplan.co.uk

Cable Entry: Provision for conduit entry in back and ends.

Technical Information

Gateline	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
ODL-G1-1-LEDN-MT-BR-NE	N/A	6W in charging mode		4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	534

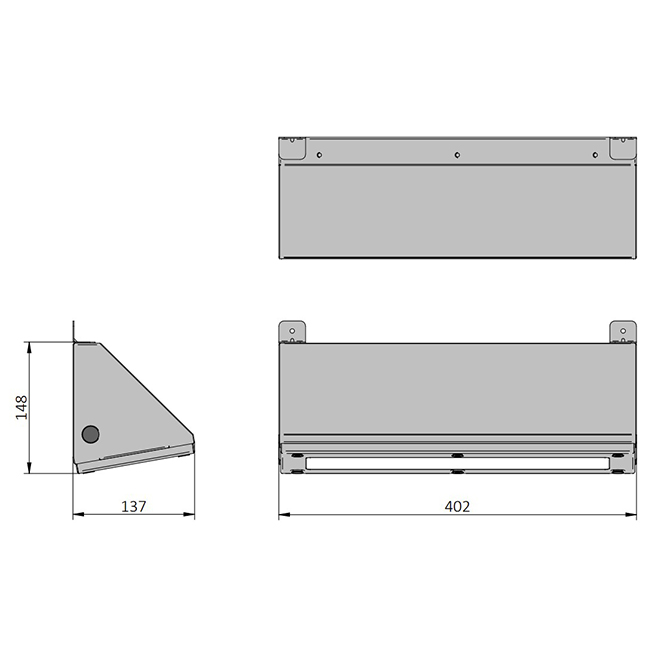

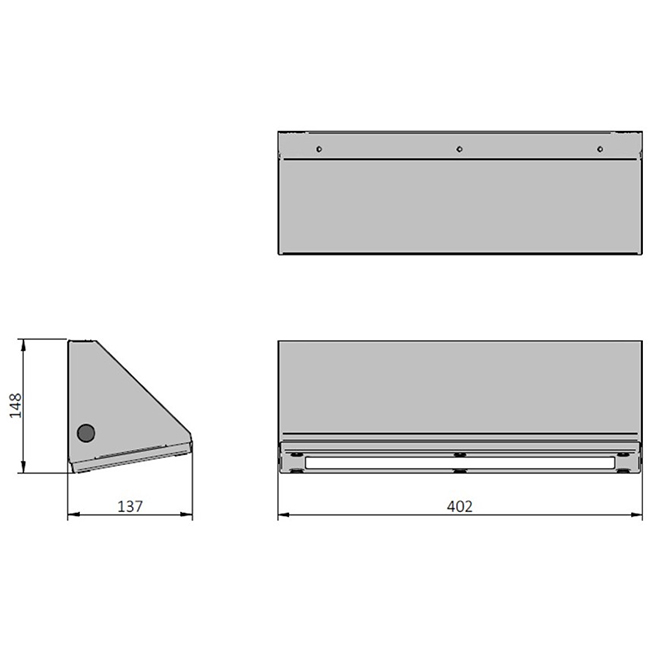

	Weight (kg)	LED Energy Rating	Dimensions
	3.5	C	402mm x 148mm x 137mm
ODL-G1-1-LEDW-MT-BR-NE	N/A	6W in charging mode		3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₈₀B₁₀>72,000h	507
	Weight (kg)	LED Energy Rating	Dimensions
	3.5	C	402mm x 148mm x 137mm
