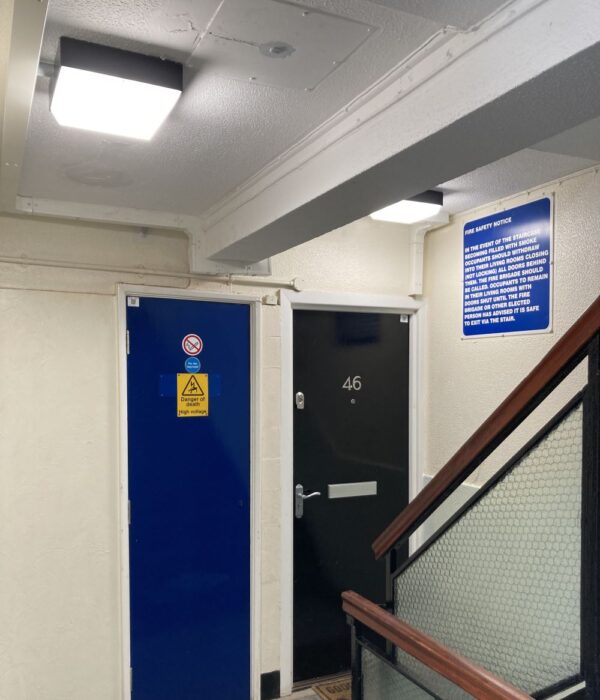

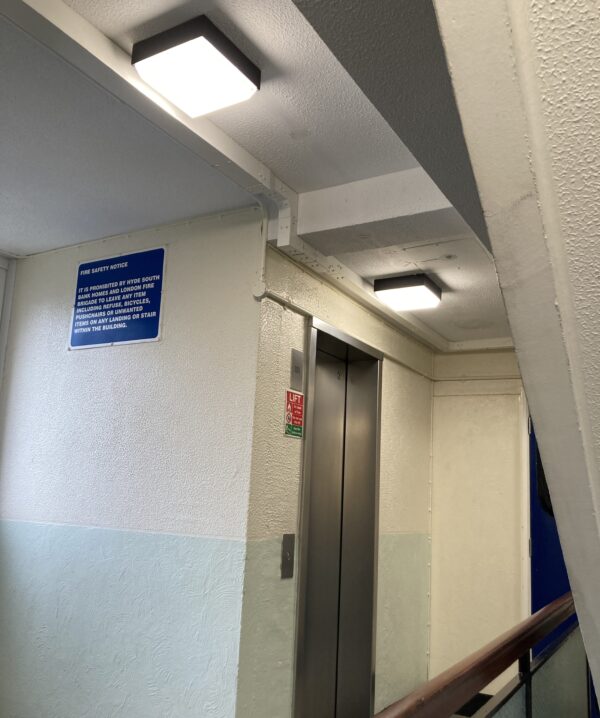

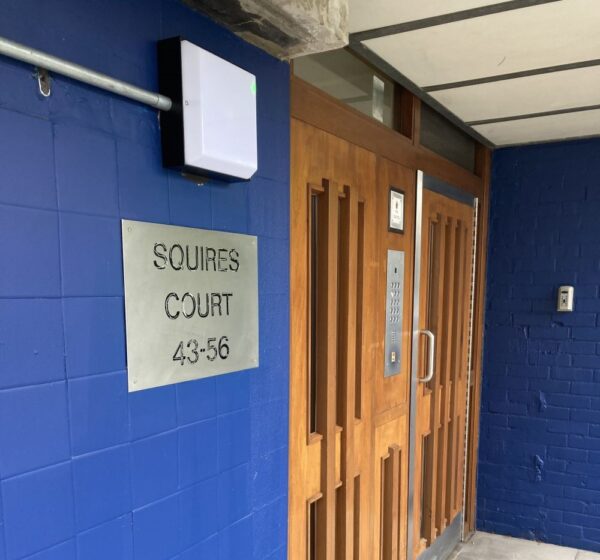

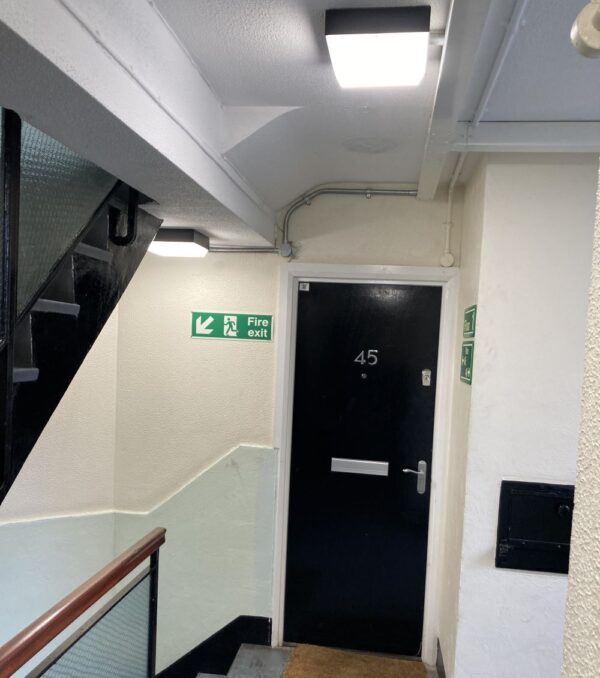

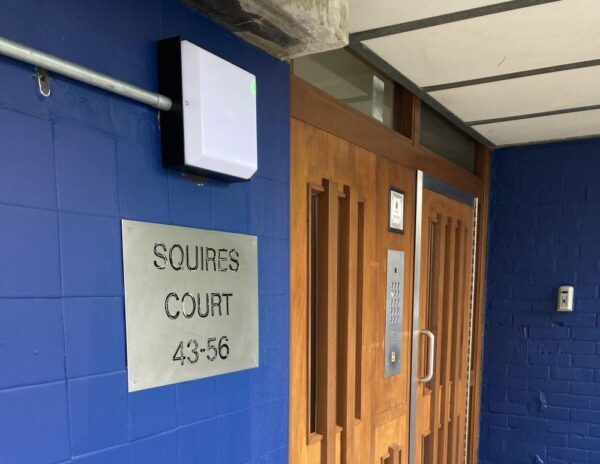

Quadrant Vandal and weather resistant bulkhead fitting for wall or ceiling mounting
Vandal and weather resistant bulkhead fitting for wall or ceiling mounting.
  • Widely specified for external social housing applications.
  • Zinc coated steel body finished in black polyester powder coat.
  • Opal or clear prismatic polycarbonate diffuser held against gasket by tamperproof screws.
  • Electronic control gear on removable tray with fused plug & socket connector block.
  • Provision for conduit entry in back and at ends.
  • 5 year warranty available for lithium battery emergency option (see fitting options table).

Technical Information

OPAL DIFFUSER
LED Temp Load Lum/lm Efficacy Weight
DQ/800NW/XB 4000K 8.4W 811 lm 97lm/W 1.5KG
DQ/1100NW/XB 4000K 11.4W 1149 lm 101lm/W 1.5KG
DQ/1400NW/XB 4000K 16.1W 1703 lm 106lm/W 1.5KG
DQ/1900NW/XB 4000K 23.3W 2348 lm 101lm/W 1.5KG



PRISMATIC DIFFUSER
COMPACT FLUORESCENT Lamps Temp Load Lum/lm Efficacy Weight
DQ/282DLHF/PB 1 x 28W 2D 3500K 29W 1531 lm 54lm/W 1.5KG

Fitting Options

Textured white finish replace B with W
Titanium finish replace B with C49
Opal diffuser (for fluorescent option) replace P with X
Integral 3 hour duration emergency add suffix /EM3
Integral 3 hour duration LiFePO4 emergency with 5 year warranty add suffix /EL3
Self test 3 hour duration emergency add suffix /EM3S
DALI 3 hour duration emergency add suffix /EM3D
DALI 3 hour duration LiFePO4 emergency with 5 year warranty add suffix /EL3D
Section 12 version available see below for part numbers
DALI dimming/monitoring add suffix /DALI
Switch dimming add suffix /DIM
Photocell add suffix /PEC
Microwave sensor – Advanced add suffix /MWSA
Microwave sensor – Basic add suffix /MWSB

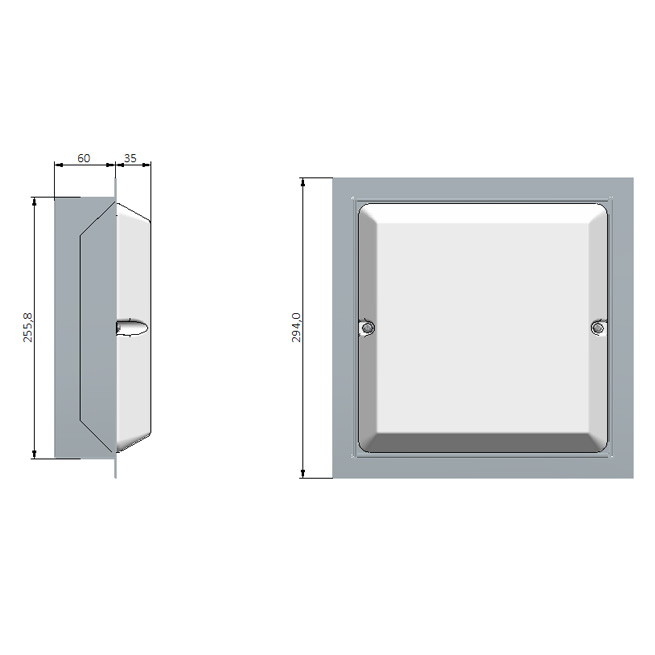

Semi-recessed add suffix /SR

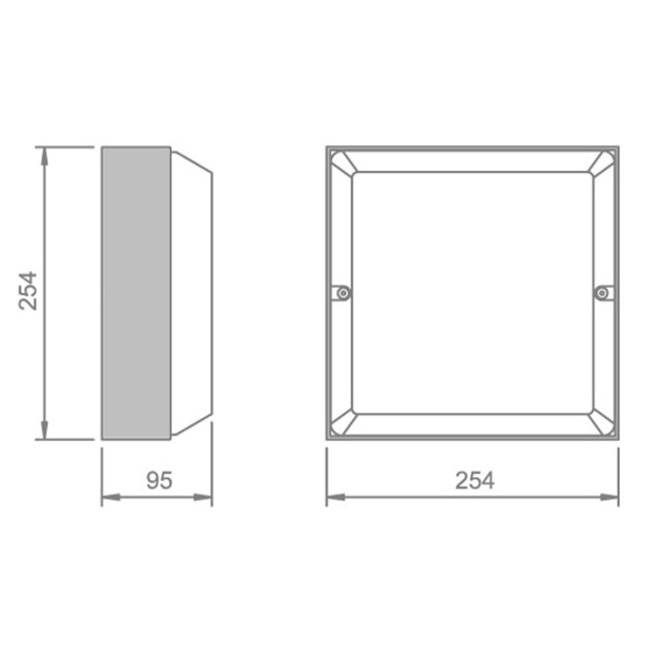

Blank ends add suffix /BE
IP65 upgrade (die cast aluminium body) add suffix /IP65
For use with 50V or 110V ac/dc central battery systems add suffix /EV
240V changeover relay add suffix /ER
Corridor function* add suffix /CF10
* CF10 option available on LED only and will only work if combined with /MWSB or /MWSA, or an external presence detection sensor supplied by others
DALI and MWS options cannot be combined.
No control and emergency options are available on the DQ/282DLHF/PB (2D version)
*S12 version is LED only, with borosilicate glass diffuser (IK8) and DALI driver as standard. Contact technical sales for efficacy figures. Part numbers as follows:
DQ/800NW/B/S12X/DALI      DQ/1100NW/B/S12X/DALI
DQ/1400NW/B/S12X/DALI      DQ/1900NW/B/S12X/DALI
Please note the Quadrant now comes with Knock Outs for fixing and conduit holes and with no Besa Slots, the Gear Tray is also no longer secured with plastic thumb screws R00047. If you require a replacement gear tray and your fixings are thumb screws R00047, please ask for QuadRetro trays.
