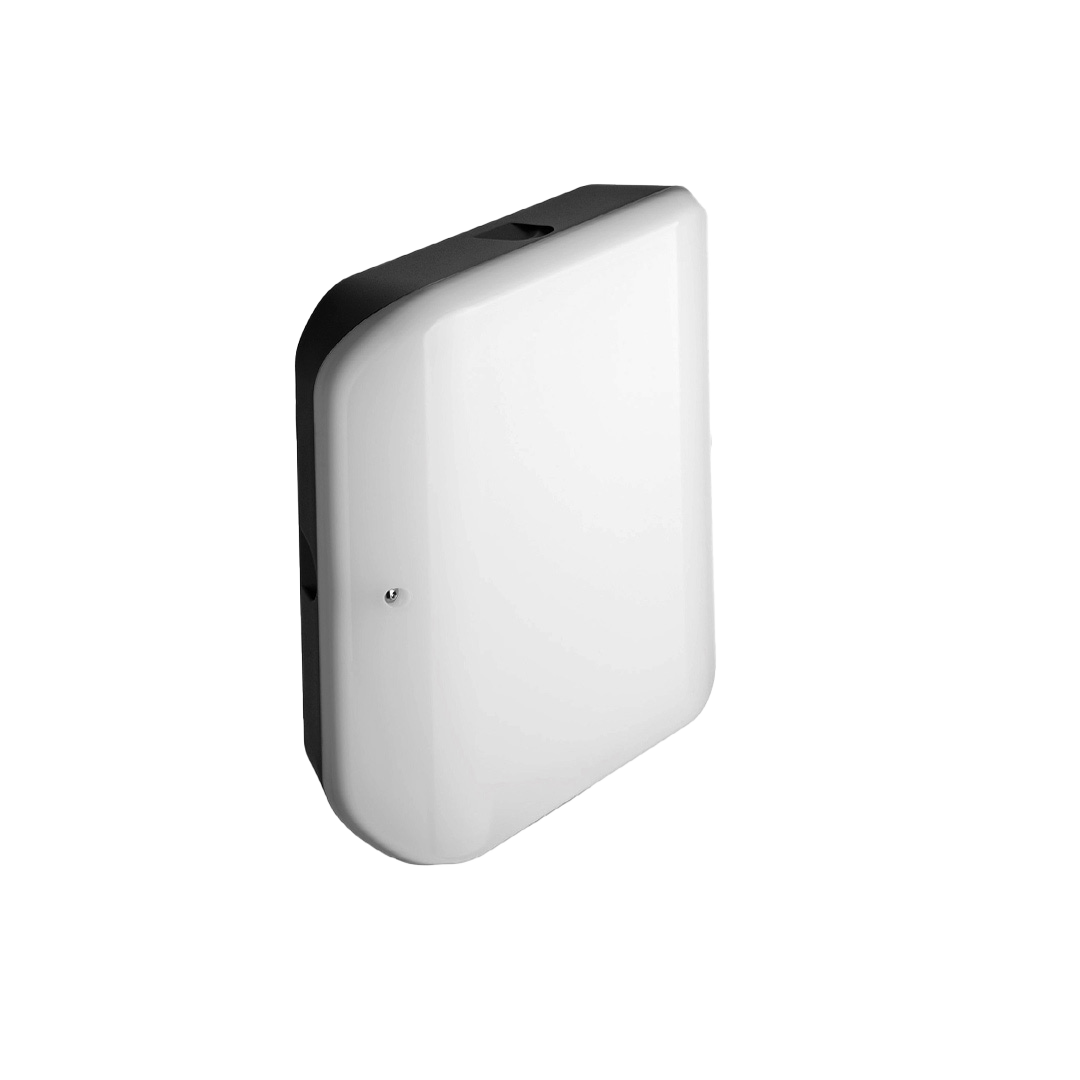

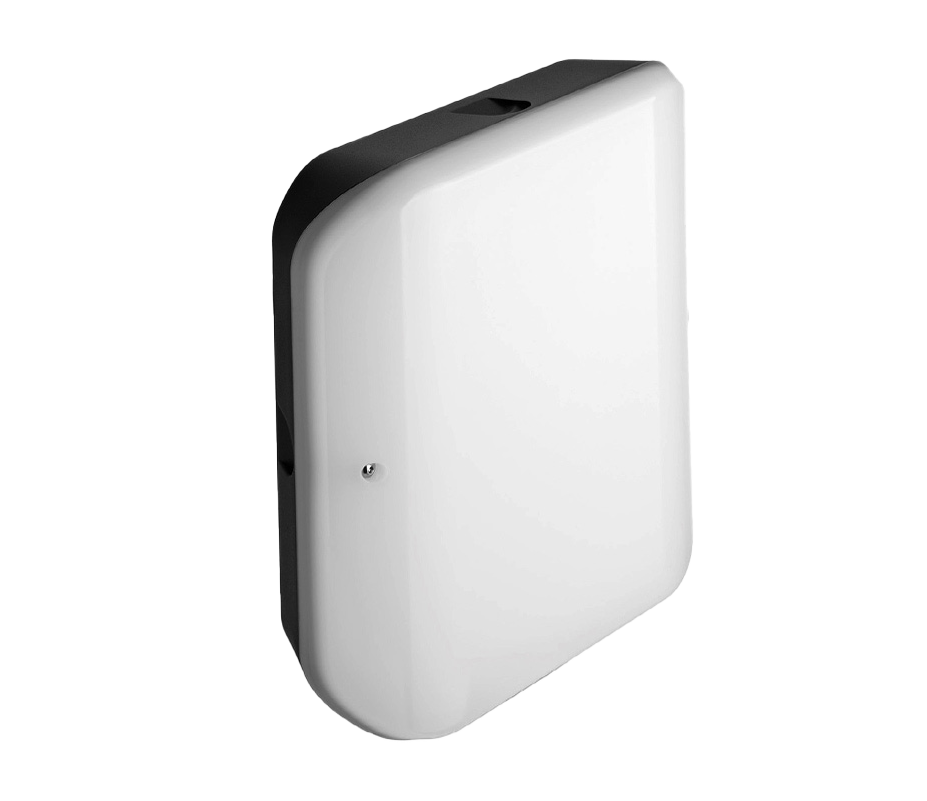

QuadEvo is a vandal resistant bulkhead designed specifically for transport environments and community and public applications.

Standard Colours

Product Information

QuadEvo’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures QuadEvo is quick and easy to maintain, whilst enabling sustainable technology upgrades.

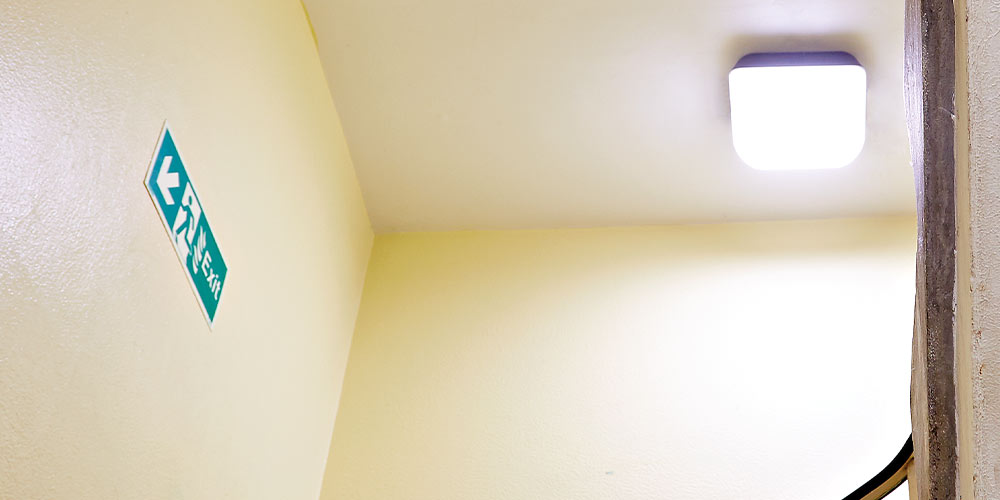

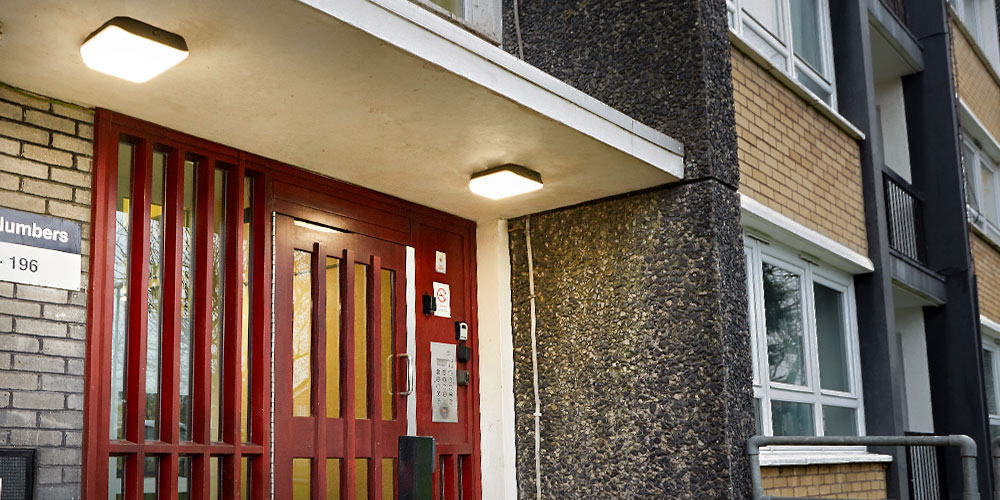

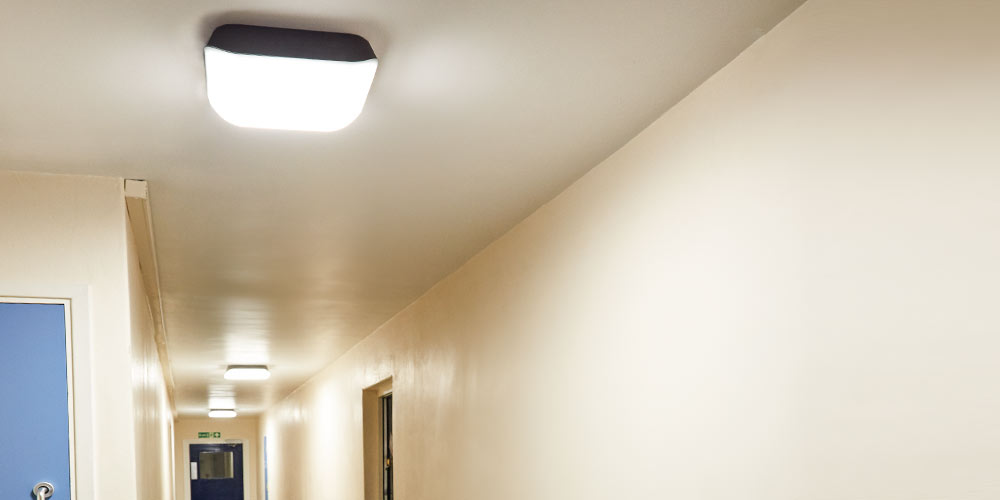

Community and Public applications include the interior communal spaces, exterior perimeter of buildings and car parks, both covered and open. Transport applications include public toilets.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK14 (100J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Die cast aluminium body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.

Driver: Electronic control gear on a removable tray for ease of repair/upgrade with fused plug and socket connector block.

Mounting: Wall or ceiling.

Cable Entry: Provision for conduit entry in back.

Design Life: 30+ years. What is Design Life?

Technical Information

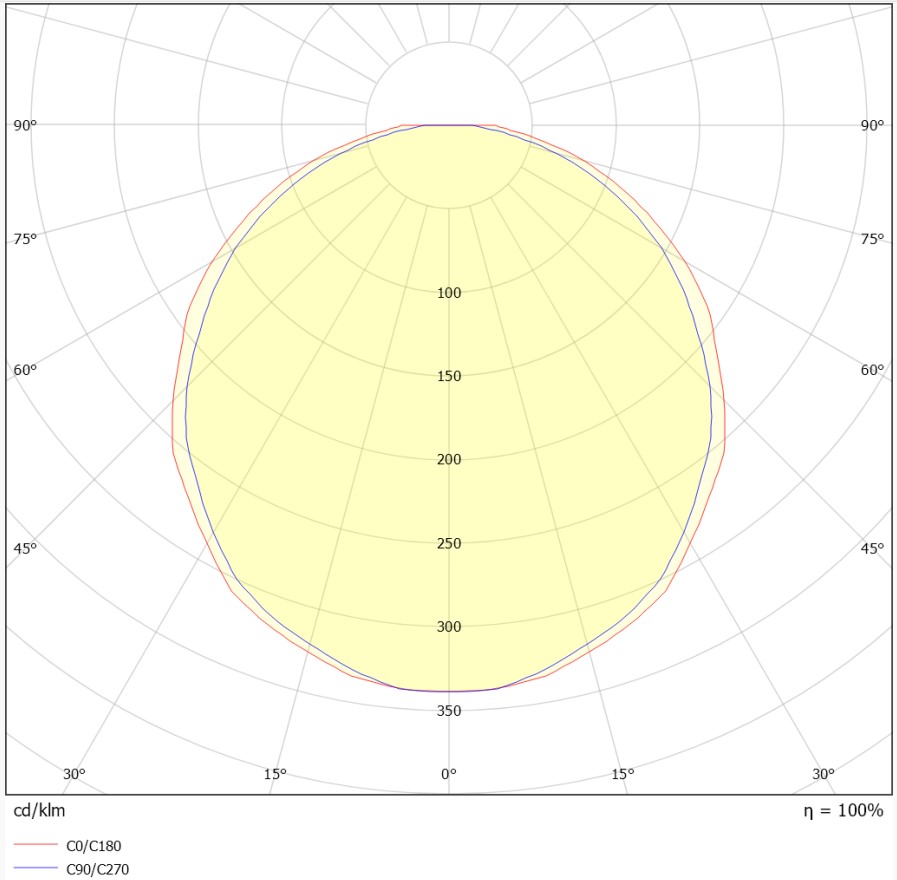

QuadEvo	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
QTR-1400N-X-MT	1296	12.3	105	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions

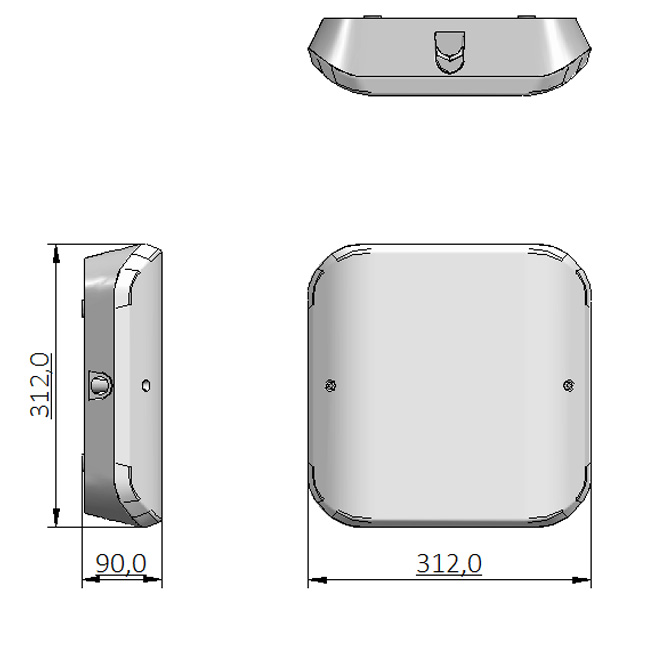

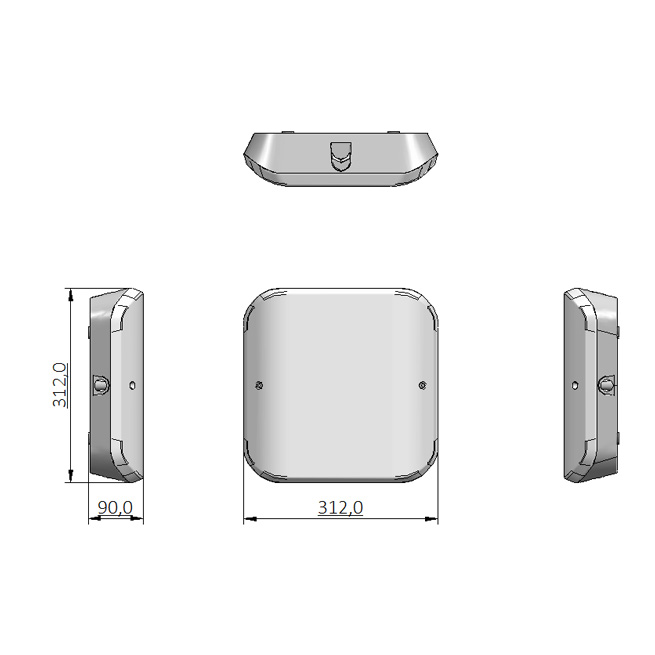

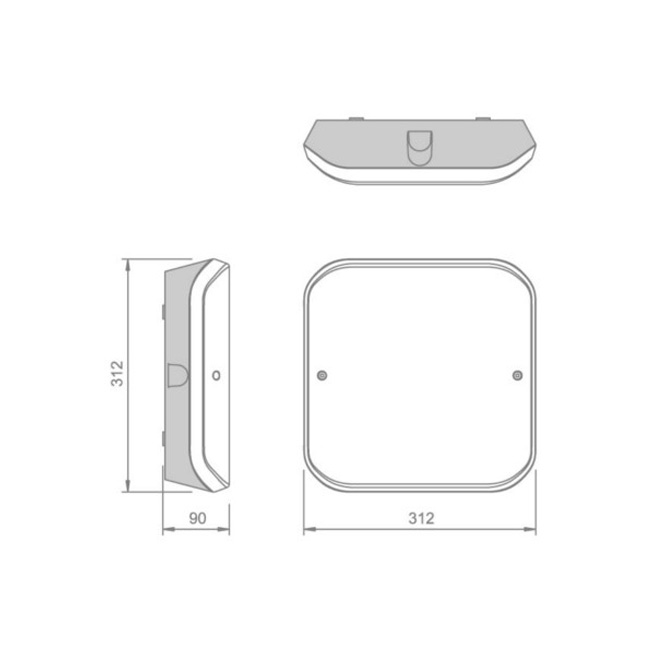

	398	3.1	C	312mm x 312mm x 90mm

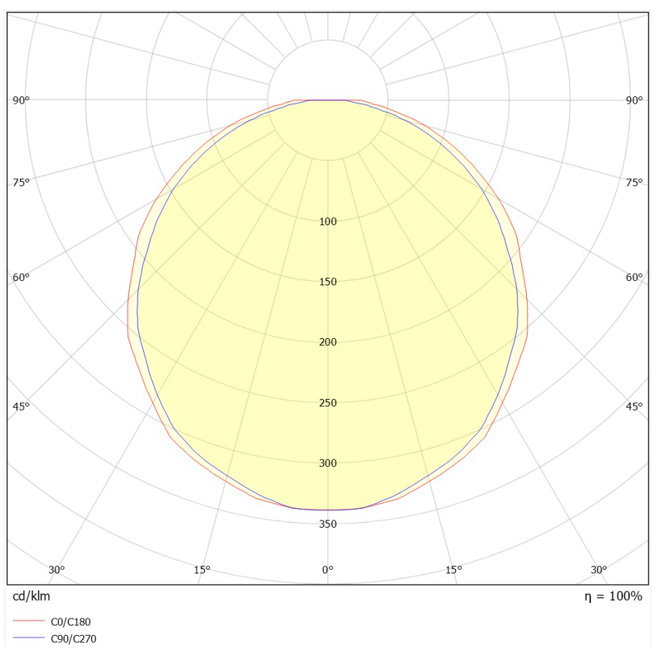

QTR-1900N-X-MT	1867	18	104	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	398	3.1	C	312mm x 312mm x 90mm
QTR-2600N-X-MT	2458	24.3	101	4000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>110,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	398	3.1	C	312mm x 312mm x 90mm
QTR-1400W-X-MT	1231	12.3	100	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>54,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	378	3.1	C	312mm x 312mm x 90mm
QTR-1900W-X-MT	1774	18	99	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>54,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	378	3.1	C	312mm x 312mm x 90mm
QTR-2600W-X-MT	2335	24.3	96	3000
	CRI	Driver Lifetime (up to hours)	High Temp (°C)	LED Lifetime
	CRI>80	100,000	50	L₇₀B₁₀>54,000h
	Emergency Output (Lum/lm)	Weight (kg)	LED Energy Rating	Dimensions
	378	3.1	C	312mm x 312mm x 90mm

Fitting Options

Photo Cell	-PC
Microwave Sensor - Basic	-M1
Microwave Sensor - Advanced	-M2
Conduit Hole in One End	-1H
Conduit Hole in Both Ends	-2H
Maintained Emergency 3 Hour, Self Test	-ES
Change Over Relay, 240V Relay Supplied	-ER
Central Battery Maintained 110V	-EV
Non-Maintained 3 Hour Emergency	-NE
Maintained Emergency 3 Hour, DALI	-ED
Maintained Emergency 3 Hour	-E3
Matt Black	-MB
Matt White	-MW
Matt Titanium	-MT
DALI-2 Dimming / Monitoring	-DA
Corridor Function	-CF

• For paint colour options, please replace -MT with required paint code.
• HT Applies for standard version. For any options (e.g. -E3), please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.
• -CF will only work if combined with -M1 or -M2, or an external presence detection sensor supplied by others.
• -DA / -DI and -M1 / -M2 options cannot be combined.
• -NE cannot be combined with -DA/ -CF/ -PC/ -M1/ -M2.
• -ER cannot be combined with -M1/ -M2.
