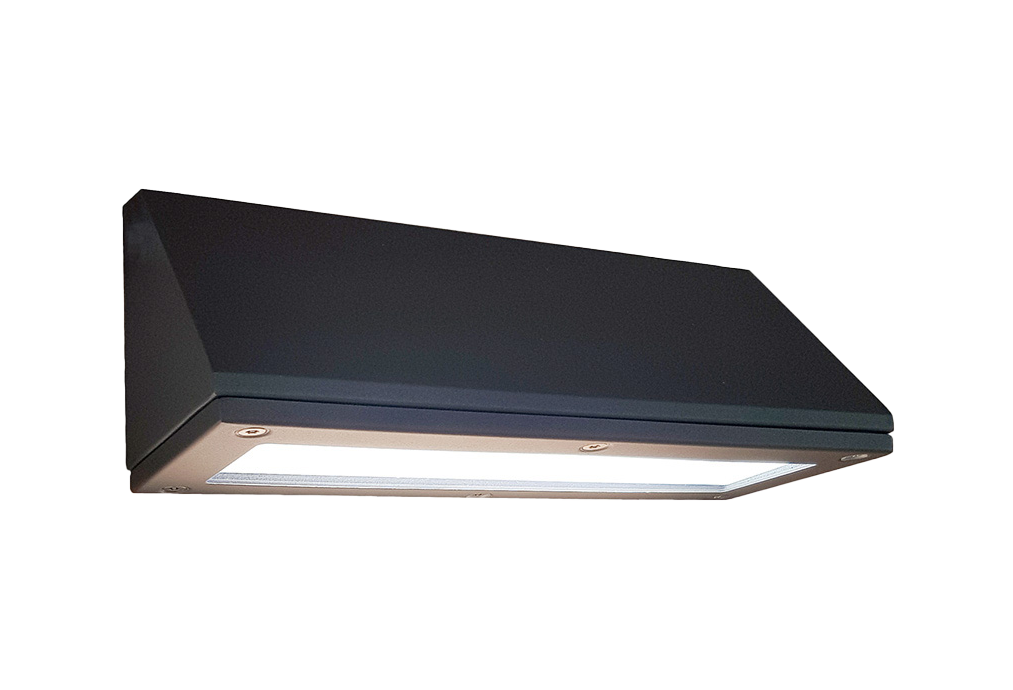

Tuscan Wall is a vandal resistant bulkhead specifically designed for community and public installations.
Standard Colours
Tuscan Wall is designed to provide luminaire spacing of up to nine metres and minimise upward light. Opal LED cover reduces glare whilst providing efficiency.
Flush diffuser and frame assembly makes cleaning simple. Hidden, robust wall mounted bracketry for ease of Mounting and a clean aesthetic.

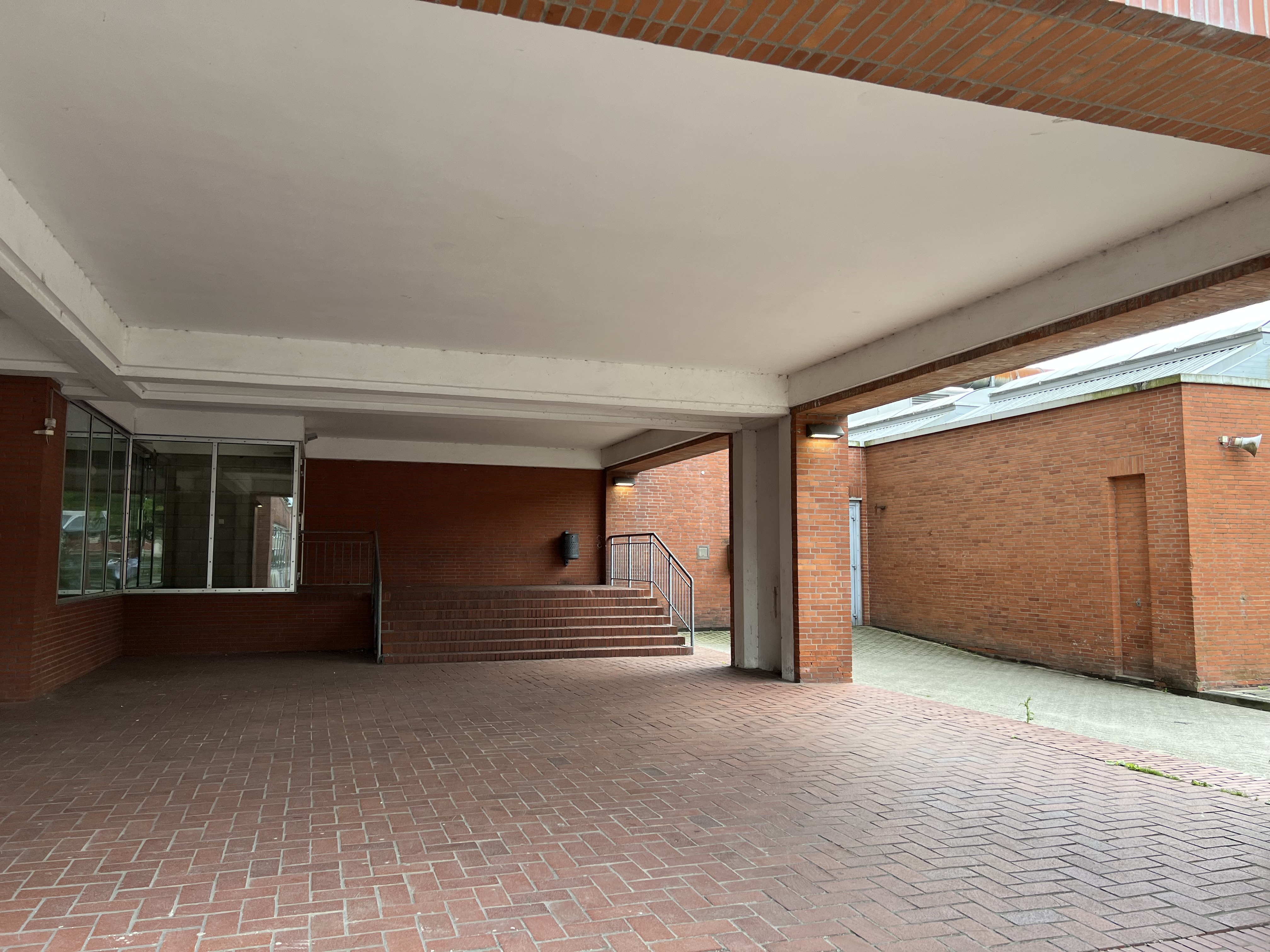

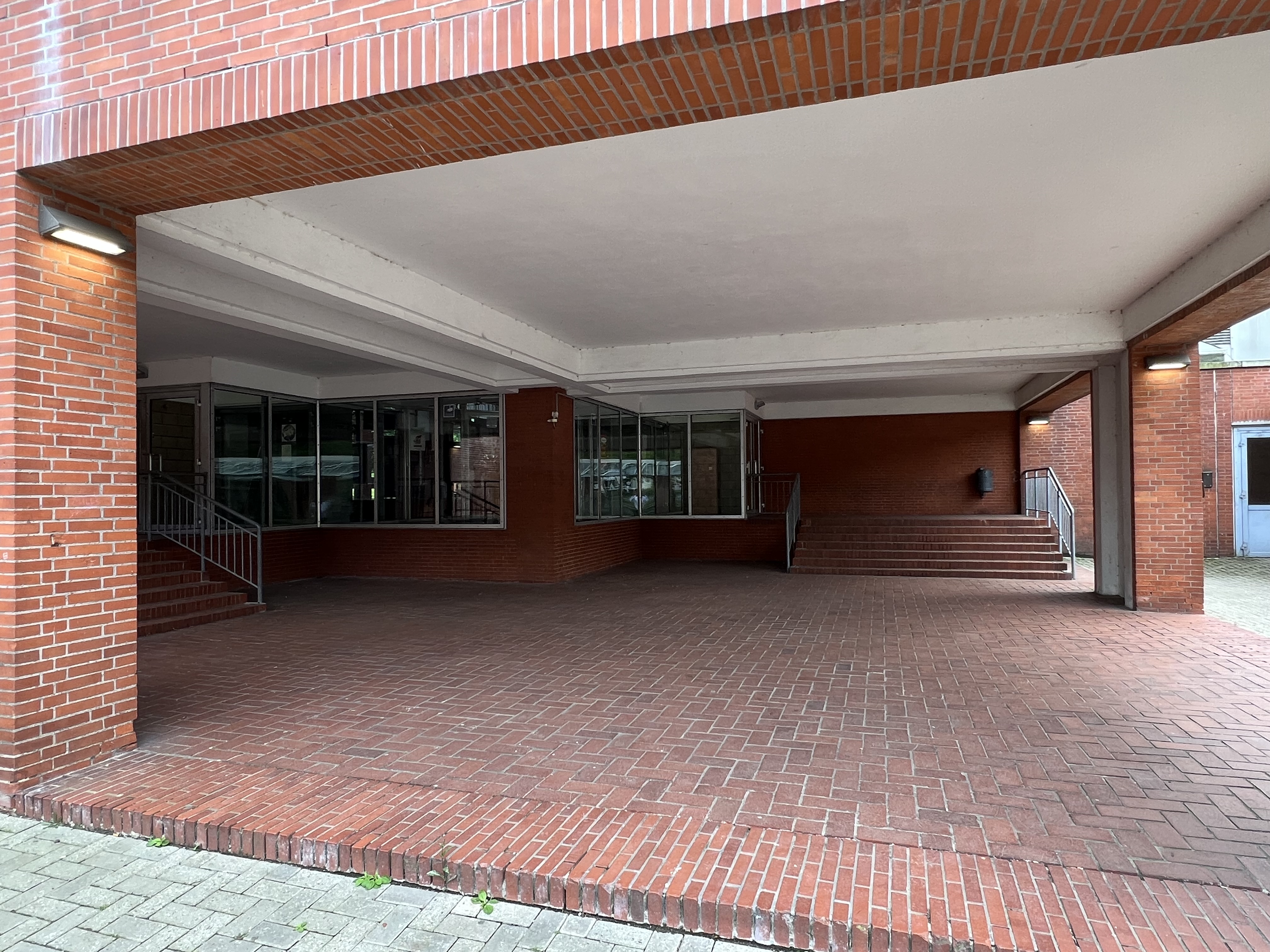

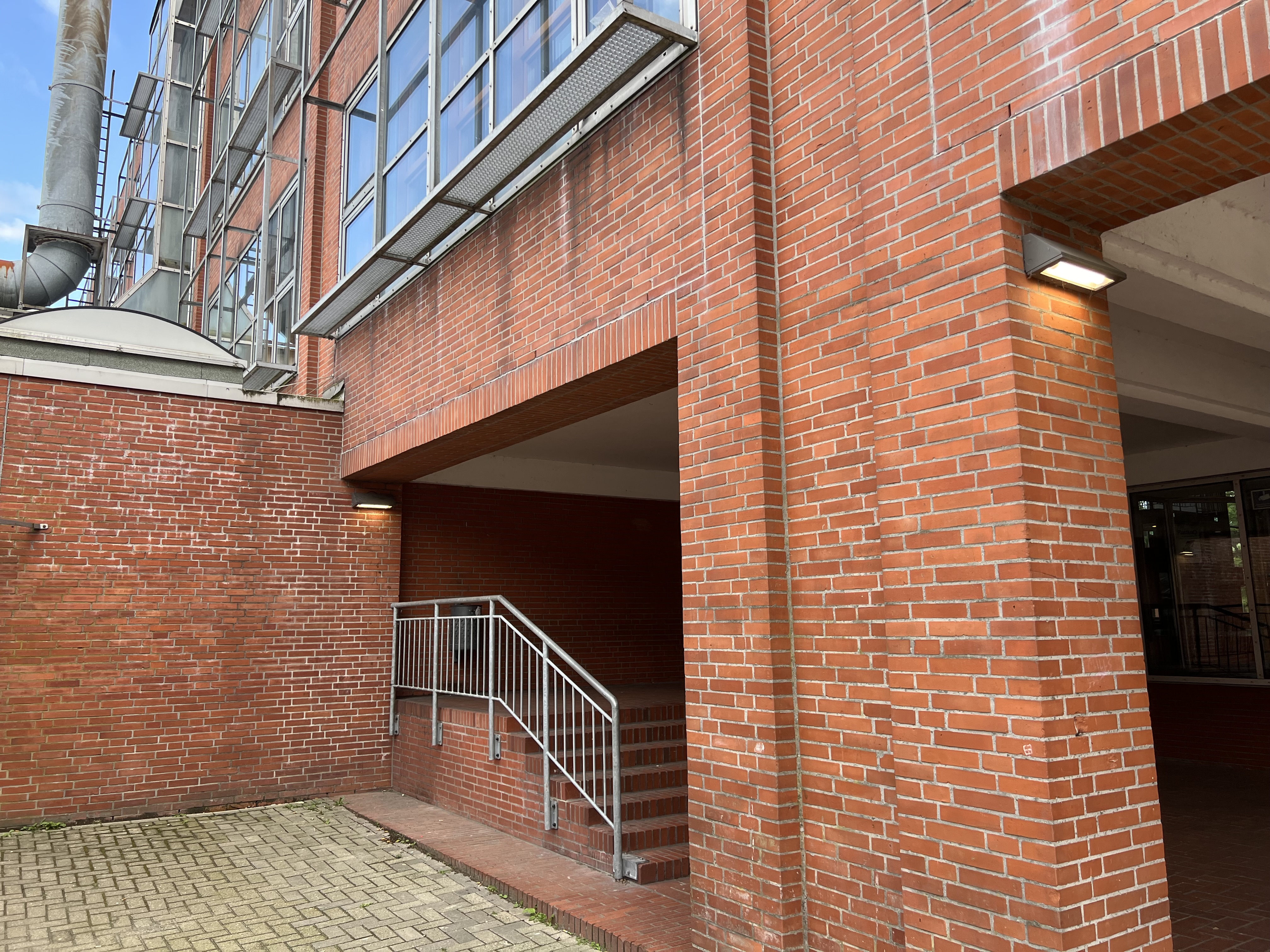

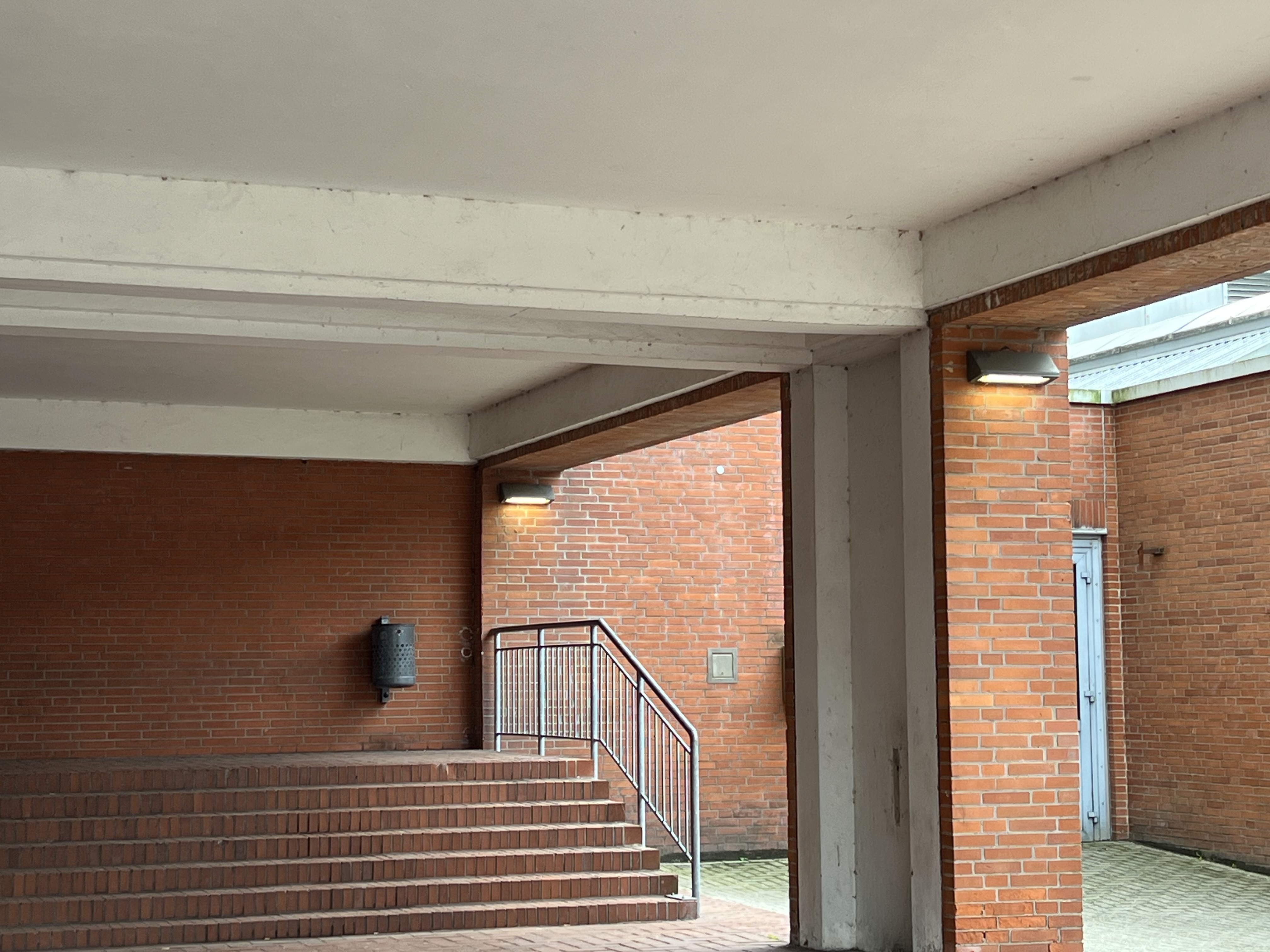

Community and Public applications include interior communal spaces, as well as the perimeter of buildings. Transport applications include station forecourts.
Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP65. More information, CLICK HERE.
Housing: Zinc coated steel body.
Paint: Polyester powder coat. For all colours available, CLICK HERE.
Diffuser: Flush clear polycarbonate diffuser in frame secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall.
Cable Entry: Provision for conduit entry in back and ends.
| Tuscan Wall | Output (Lum/lm) | Load (W) | Efficacy (lm/W) | CCT (K) |
|---|---|---|---|---|
| Opal | ||||
| TUW-G1-1-800N-MT | 887 | 9.7 | 91 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 425 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||

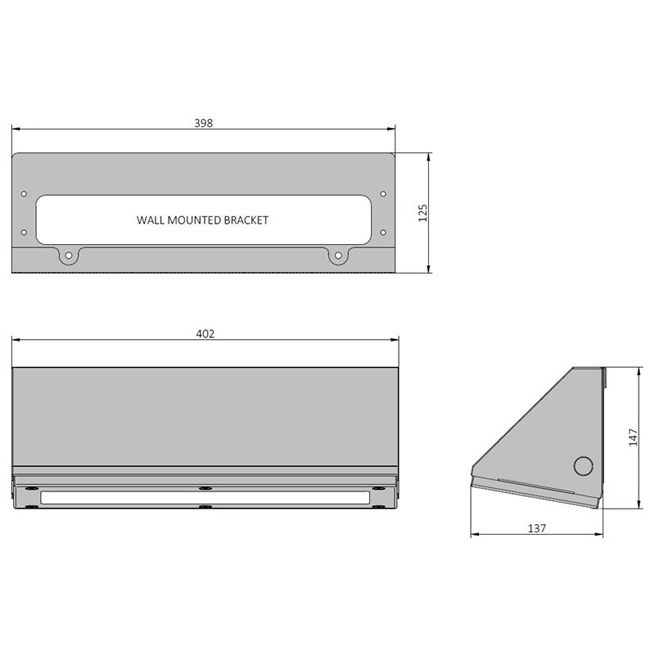

| 3.5 | C | 402mm x 137mm x 147mm | ||
| TUW-G1-1-1100N-MT | 1138 | 12.5 | 91 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 425 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.5 | C | 402mm x 137mm x 147mm | ||
| TUW-G1-1-1200N-MT | 1283 | 14.9 | 86 | 4000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 425 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.5 | C | 402mm x 137mm x 147mm | ||
| TUW-G1-1-800W-MT | 843 | 9.7 | 87 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 403 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.5 | C | 402mm x 137mm x 147mm | ||
| TUW-G1-1-1100W-MT | 1081 | 12.5 | 86 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 403 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.5 | C | 402mm x 137mm x 147mm | ||
| TUW-G1-1-1200W-MT | 1219 | 14.9 | 82 | 3000 |
| CRI | Driver Lifetime (up to hours) | LED Lifetime | Emergency Output (Lum/lm) | |
| CRI>80 | 100,000 | L₈₀B₁₀>72,000h | 403 | |
| Weight (kg) | LED Energy Rating | Dimensions | ||
| 3.5 | C | 402mm x 137mm x 147mm | ||
| Coastal Paint Finish (Zone 2) | -Z2 |
| Microwave Sensor - Intelligent (Basic) | -M5 |
| Microwave Sensor - Intelligent (Advanced) | -M7 |
| Microwave Sensor - Basic | -M1 |
| DALI-2 Dimming / Monitoring | -DA |
| Non-Maintained 3 Hour Emergency | -NE |
| Maintained Emergency 3 Hour | -E3 |
| Maintained Emergency 3 Hour, Self Test | -ES |
| Maintained Emergency 3 Hour, DALI | -ED |
| Matt White | -MW |
| Matt Titanium | -MT |
| Matt Black | -MB |
• For paint colour options, please replace -MT with required paint code.
• -M1 / -M5 / -M7 not available in 1100N version.
• -DA and -M1 / -M5 / -M7 options cannot be combined.
• Remote control for Intelligent MWS -M5 or -M7, order code : HRC-11.
