Mission Bulkhead

Mission Bulkhead

IP65

IK16 (150J)

Bulkhead

Class I

Surface

Community and Public

Transport

Mission Bulkhead is a vandal resistant luminaire designed specifically for transport environments and community and public applications

Standard Colours

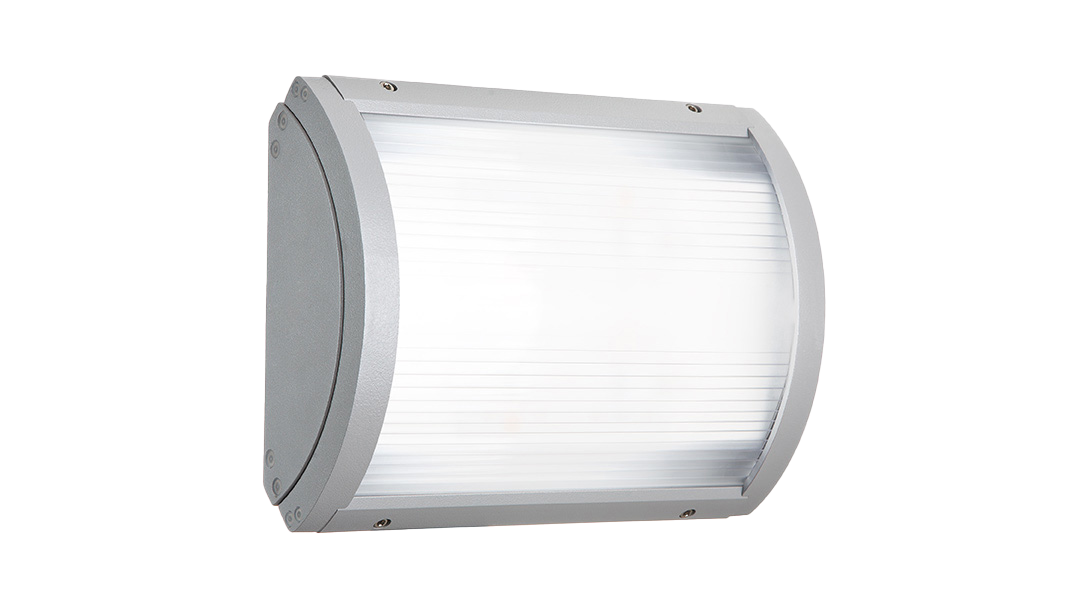

Mission Bulkhead Vandal Resistant Luminaire

Product Information

Mission Bulkhead’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution. Incorporating a removable gear tray ensures Mission Bulkhead is quick and easy to maintain, whilst enabling sustainable technology upgrades.

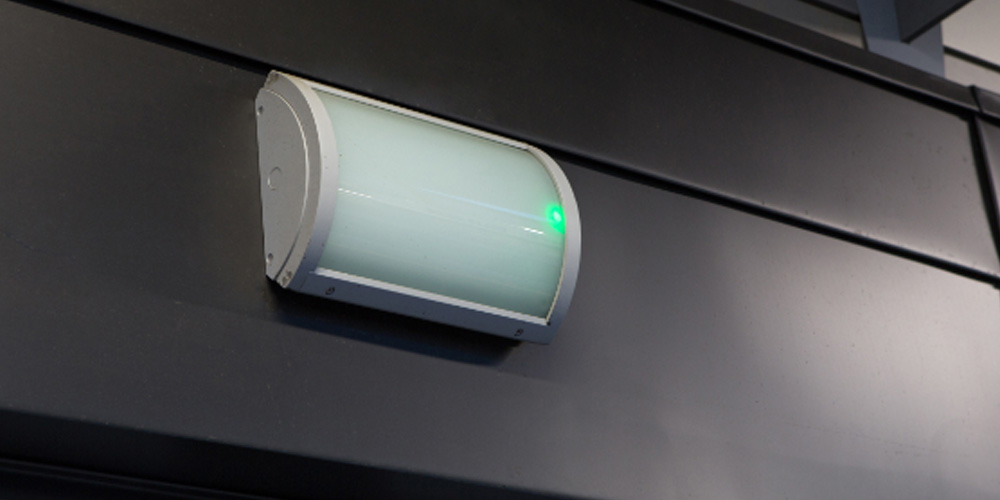

Transport applications include underpasses, covered platforms, station forecourts and stairs and footbridges. Community and Public applications include subways.

Product Specification

Impact Resistance Rating: IK16 (150J). More information, CLICK HERE.

Ingress Protection Rating: IP65. More information, CLICK HERE.

Housing: Extruded aluminium body with die cast aluminium end caps.

Paint: Polyester powder coat. All colours available, CLICK HERE.

Diffuser: Opal polycarbonate diffuser in frame secured with tamperproof screws.

Driver: Electronic control gear on removable tray with fused plug & socket connector block.

Mounting: Wall or ceiling.

Cable Entry: Provision for conduit entry in back.

Technical Information

Mission Bulkhead	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)
Opal
D599-1-1500N-X-MS	1423	15.3	93	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	524
	Weight (kg)	LED Energy Rating	Dimensions
	3.1	C	353mm x 235mm x 95mm
D599-1-2500N-X-MS	2076	22.7	92	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	524
	Weight (kg)	LED Energy Rating	Dimensions
	3.1	C	353mm x 235mm x 95mm
D599-1-1500W-X-MS	1352	15.3	88	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	498
	Weight (kg)	LED Energy Rating	Dimensions
	3.1	D	353mm x 235mm x 95mm
D599-1-2500W-X-MS	1972	22.7	87	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	498
	Weight (kg)	LED Energy Rating	Dimensions
	3.1	D	353mm x 235mm x 95mm

Fitting Options

Conduit Hole in One End	-1H
Conduit Hole in Both Ends	-2H
DALI with **% Pre-set	-D
DALI-2 Dimming / Monitoring	-DA
Maintained Emergency 3 Hour	-E3
Central Battery Maintained 110V	-EV
Change Over Relay, 240V Relay Supplied	-ER
Smooth White	-SW
Matt Silver	-MS
