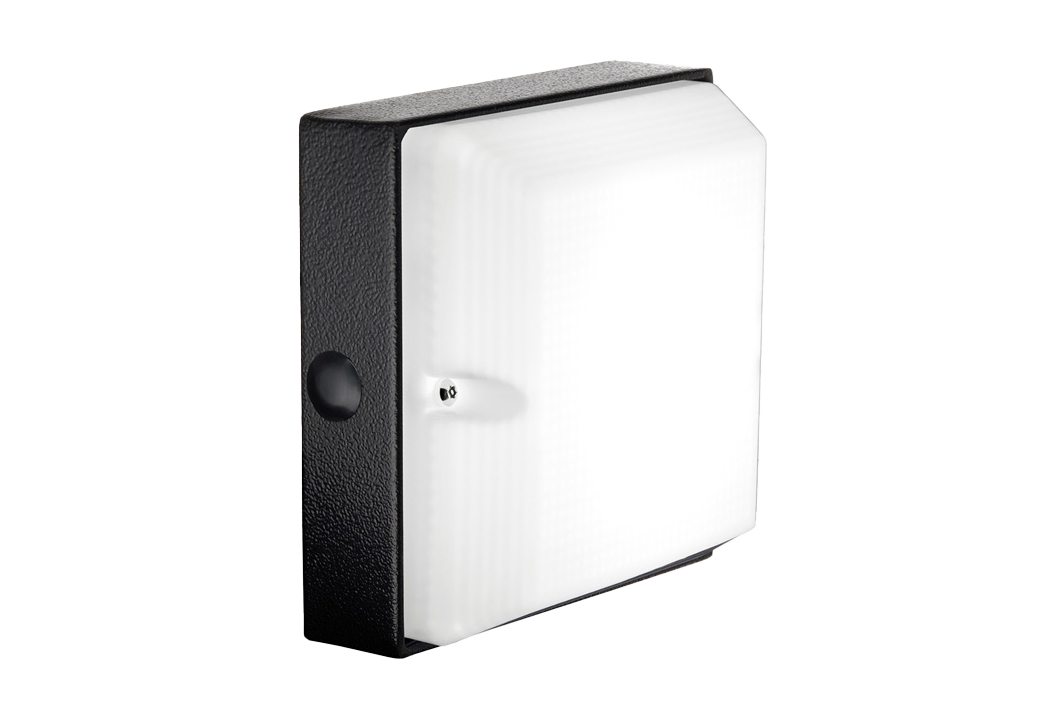

Product Information

Miniquad’s opal diffuser provides a soft lit appearance, while providing uniform illumination, ensuring a consistent light distribution.
Applications include the interior communal spaces of buildings.

Product Specification

Impact Resistance Rating: IK14 (100J). More information, CLICK HERE.
Ingress Protection Rating: IP54. More information, CLICK HERE.
Housing: Zinc coated steel body
Paint: Polyester powder coat. All colours available, CLICK HERE.
Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.
Driver: Electronic control gear on removable tray with fused plug & socket connector block.
Mounting: Wall or ceiling.
Cable Entry: Provision for conduit entry in back and two sides.

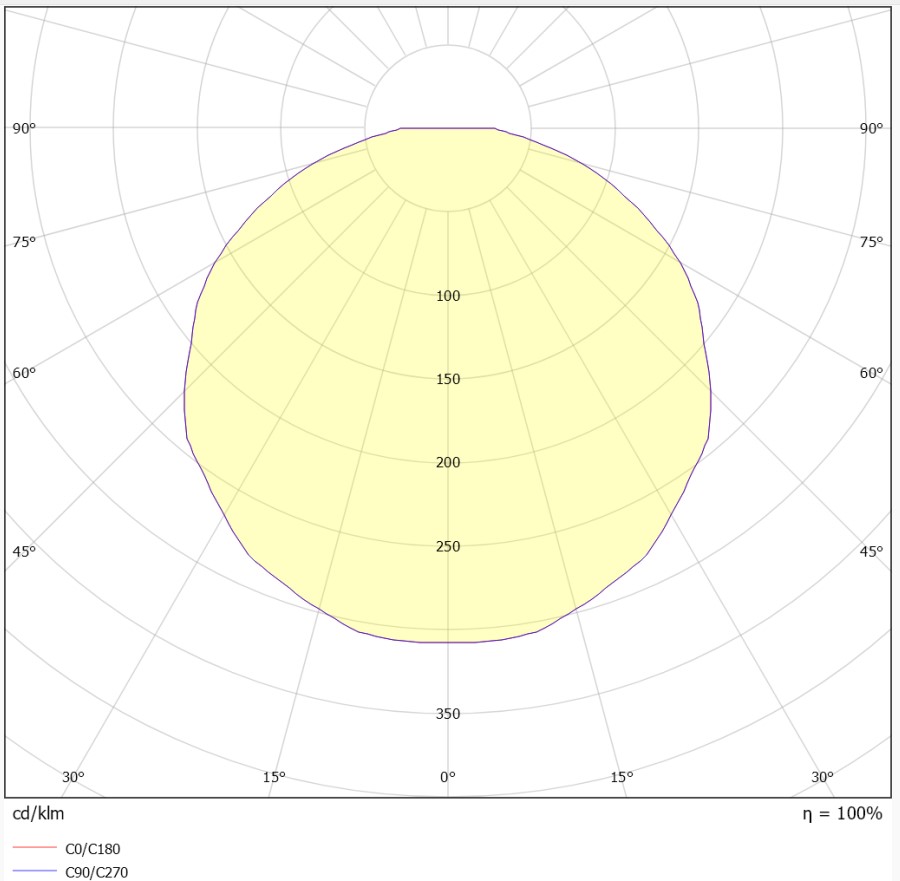

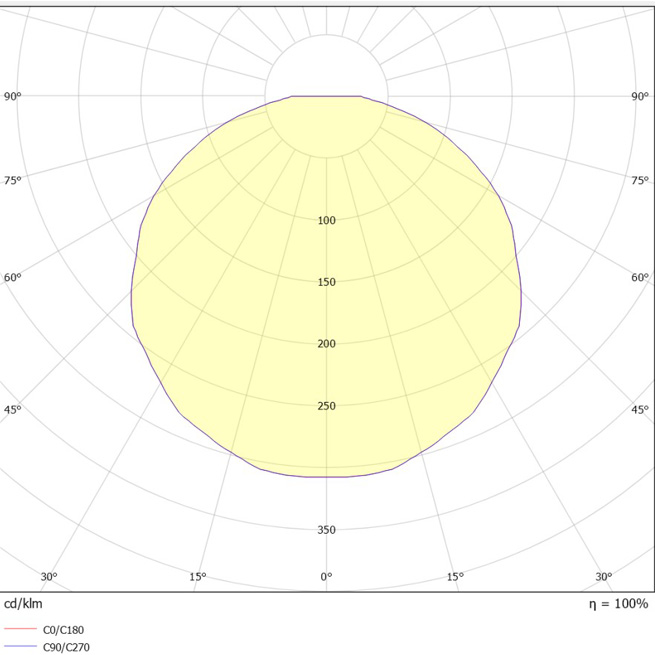

Technical Information

Miniquad Output (Lum/lm) Load (W) Efficacy (lm/W) CCT (K)
Opal
QM-800N-X-TB 807 8.5 95 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h

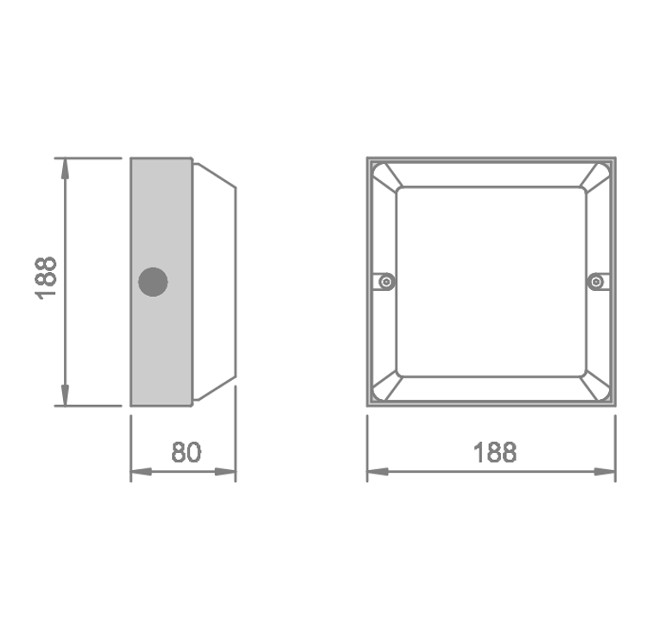

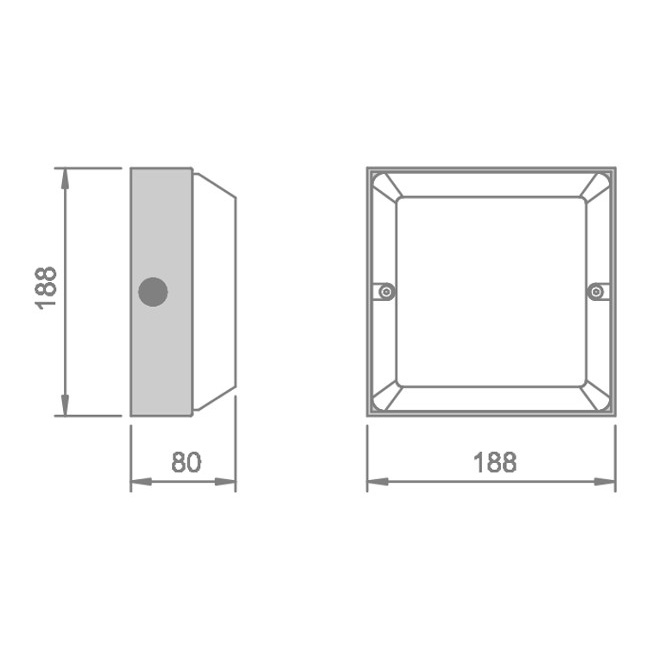

Weight (kg) LED Energy Rating Dimensions
1.7 D 188mm x 188mm x 80mm
QM-1100N-X-TB 1105 11.5 96 4000
CRI Driver Lifetime (up to hours) High Temp (°C) LED Lifetime
CRI>80 100,000 50 L₇₀B₁₀>100,000h
Weight (kg) LED Energy Rating Dimensions
1.7 D 188mm x 188mm x 80mm

Fitting Options

Coastal Paint Finish (Zone 2) -Z2
Photo Electronic Cell -PC
Microwave Sensor - Basic -M1

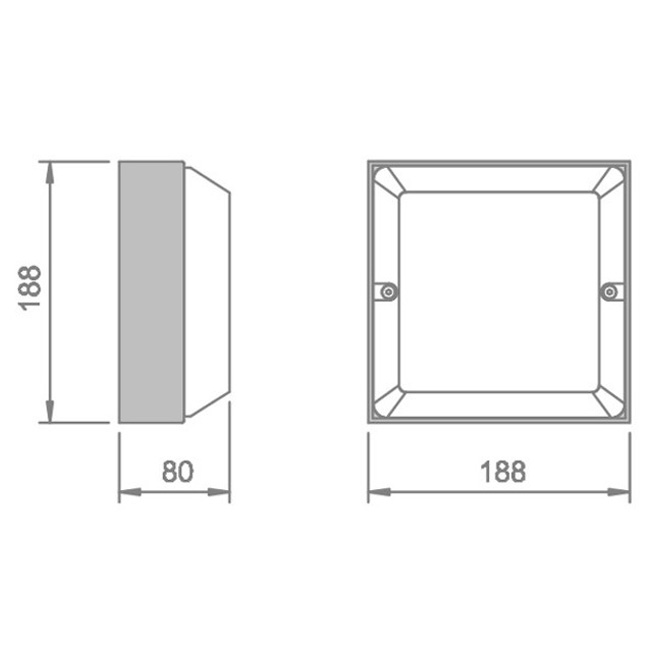

Blank Ends -BE
Semi-Recessed -SR
Textured White -TW
Textured Black -TB
Matt Titanium -MT

• For paint colour options, please replace -TB with required paint code.
• HT Applies for standard version. For any options, please contact technical sales on +44 (0)20 8254 2022 or email technical@designplan.co.uk.

;
