Mission vandal resistant luminaire is a versatile light for indoor and outdoor applications.
- Ideal for rail applications, as well as car parks and urban areas.
- Impact resistance rating: IK16 (150 joules of energy).
- Ingress protection rating: IP65.
- Suitable for ceiling, cornice or suspended mounting.
- Extruded aluminium body finished in matt silver polyester powder coat.
- Opal polycarbonate diffuser held against silicone gasket by tamperproof screws.
- Electronic control gear on removable tray with fused plug & socket connector block.
- Cable management rear housing available.
- Provision for conduit entry in back.
Technical Information

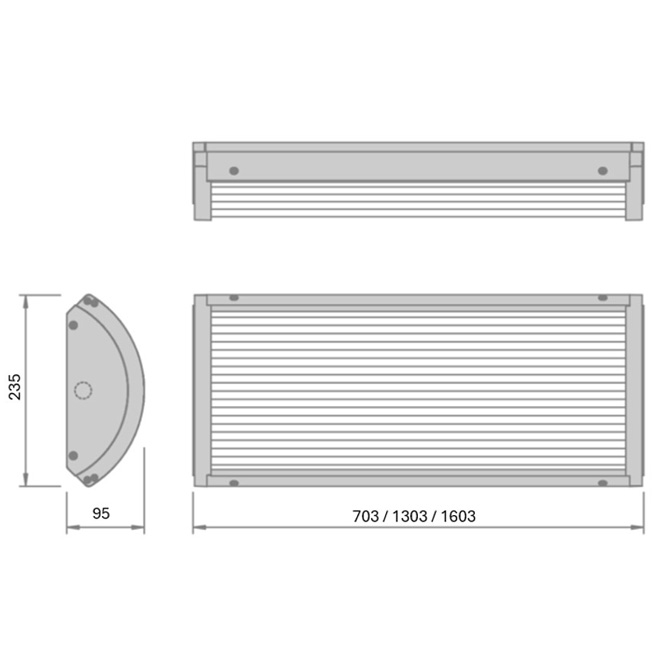

| L703mm x W235mm x H95mm | |||||||
| LED, Opal Diffuser | Temp | Load | Lum/lm | Efficiency | CRI | Weight | HT |
| D599/2/1500NW/XC48 | 4000K | 15.6W | 1566 lm | 100lm/W | CRI>80 | 6kg | HT50° |
| D599/2/2000NW/XC48 | 4000K | 19.2W | 1921 lm | 100lm/W | CRI>80 | 6kg | HT50° |
| D599/2/2500NW/XC48 | 4000K | 23.2W | 2284 lm | 98lm/W | CRI>80 | 6kg | HT50° |
| D599/2/3000NW/XC48 | 4000K | 26.8W | 2560 lm | 96lm/W | CRI>80 | 6kg | HT50° |
| Emergency Output | 4000 K | – | 534 lm | – | – | – | – |
| L1303mm x W235mm x H95mm | |||||||
| LED, Opal Diffuser | Temp | Load | Lum/lm | Efficiency | CRI | Weight | HT |
| D599/4/3000NW/XC48 | 4000K | 28.4W | 3176 lm | 112lm/W | CRI>80 | 8.5kg | HT50° |
| D599/4/4000NW/XC48 | 4000K | 35.3W | 3866 lm | 110lm/W | CRI>80 | 8.5kg | HT50° |
| D599/4/5000NW/XC48 | 4000K | 43.1W | 4549 lm | 106lm/W | CRI>80 | 8.5kg | HT50° |
| D599/4/6000NW/XC48 | 4000K | 50.3W | 5188 lm | 103m/W | CRI>80 | 8.5kg | HT50° |
| Emergency Output | 4000 K | – | 739 lm | – | – | – | – |
| L1603mm x W235mm x H95mm | |||||||
| LED, Opal Diffuser | Temp | Load | Lum/lm | Efficiency | CRI | Weight | HT |
| D599/5/3750NW/XC48 | 4000K | 34.3W | 4033 lm | 118lm/W | CRI>80 | 10kg | HT50° |
| D599/5/5000NW/XC48 | 4000K | 42.9W | 4884 lm | 114lm/W | CRI>80 | 10kg | HT50° |
| D599/5/6250NW/XC48 | 4000K | 53.2W | 5885 lm | 111lm/W | CRI>80 | 10kg | HT50° |
| D599/5/7500NW/XC48 | 4000K | 62.3W | 6705 lm | 108lm/W | CRI>80 | 10kg | HT50° |
| Emergency Output | 4000 K | – | 884 lm | – | – | – | – |
HT Applies for standard version. For any options (e.g.EM3) please check with technical sales.
Mission contains a light source of energy efficiency class C (4000K) and class D (3000K).
Mission LED Lifetime L70B10>110,000h (4000K), L70B10>100,000h (3000K) at 25oC ambient.
Mission Driver Lifetime up to 100,000h at 25oC ambient.
Fitting Options
| Pure white finish | replace C48 with C32 |
| Integral 3 hour duration emergency | add suffix /EM3 |
| Self test 3 hour duration emergency | add suffix /EM3S |
| DALI 3 hour duration emergency | add suffix /EM3D |
| DALI dimming/monitoring | add suffix /DALI |
| Switch dimming | add suffix /DIM |

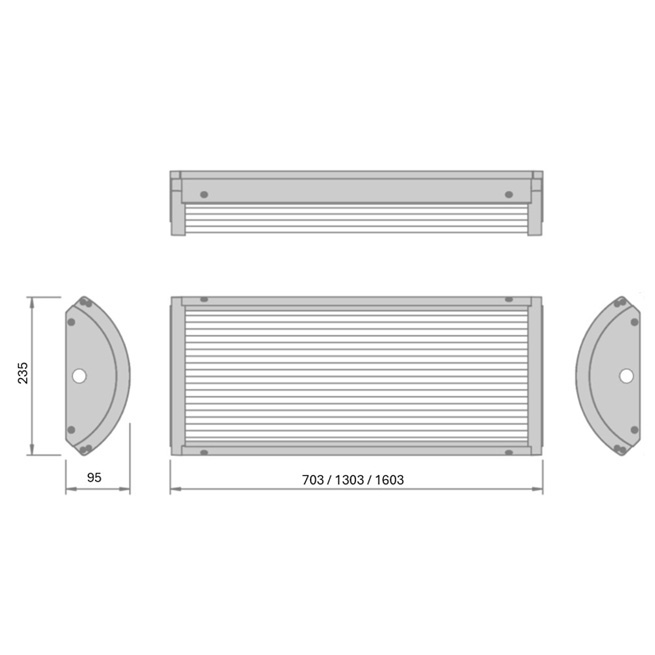

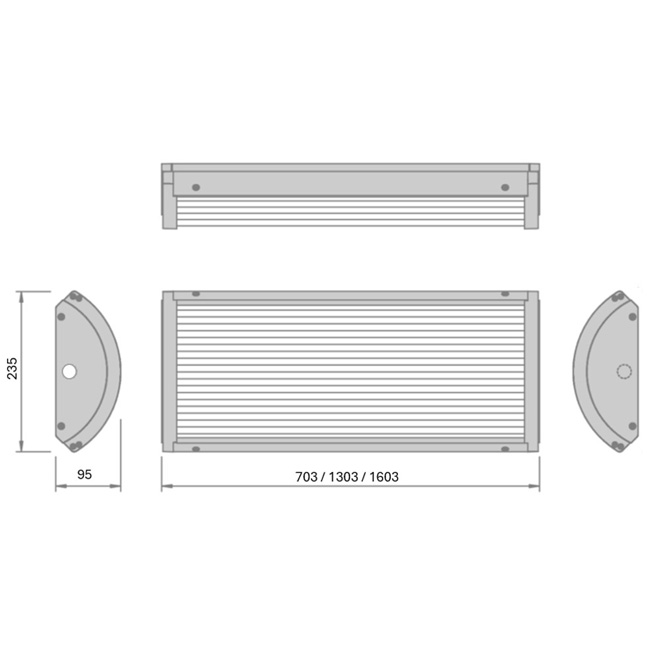

| End conduit entry(s) | Add suffix /H or /HH |
| Warm white LEDs (3000K) | replace NW with WW |
| For use with 110V ac/dc central battery systems | add suffix /EV |
| 240V changeover relay | add suffix /ER |
| **EM3D is not available on the 703mm version |
