Gemco

IP65

IK14 (100J)

Bulkhead

Class I

Surface

TM65/66

Community and Public

Custodial

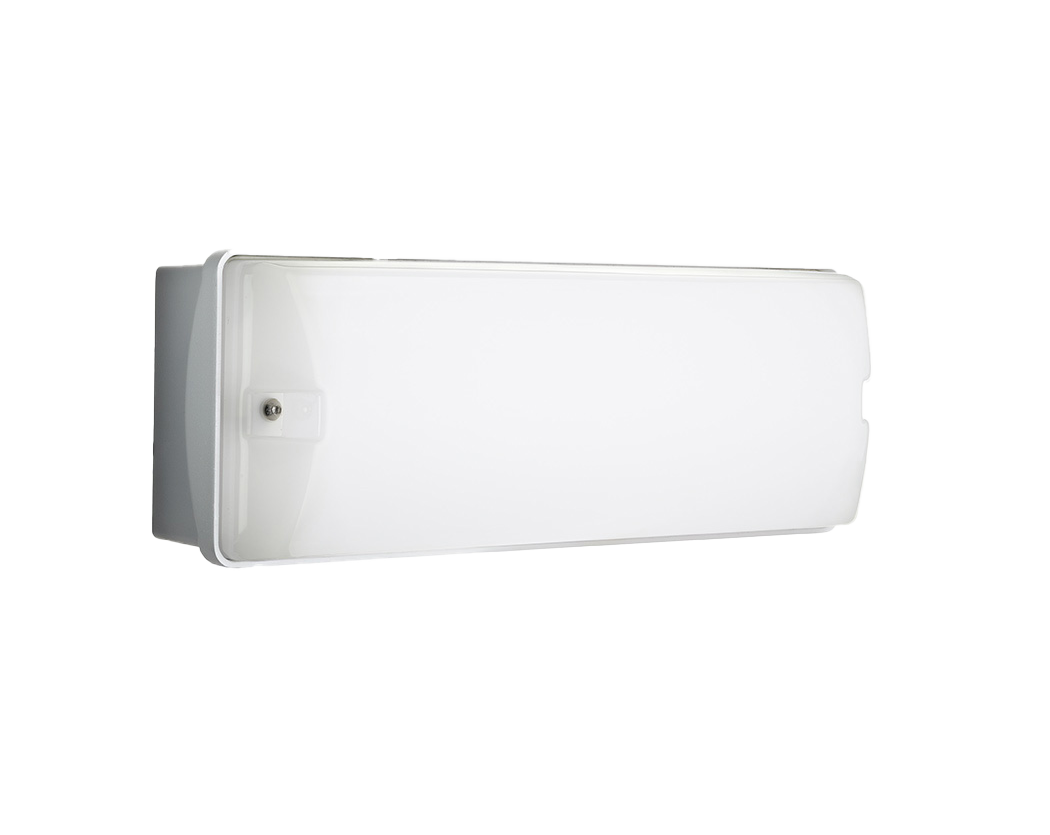

Gemco is a vandal resistant bulkhead designed specifically for challenging environments such as custodial facilities and community and public applications.

Standard Colours

Product Configurator

Product Information

Gemco provides robust ambient lighting, featuring a removable gear tray for easy maintenance and sustainable technology upgrades.

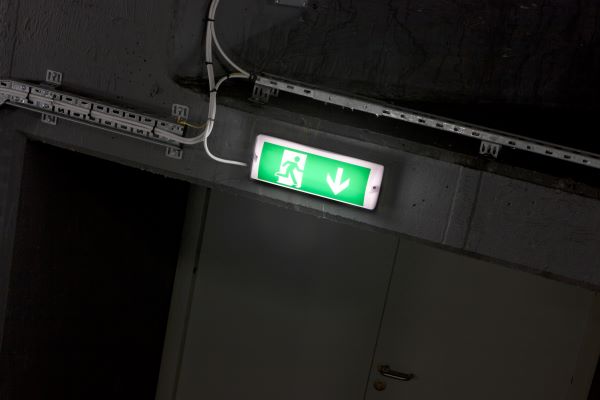

Applications include association areas in community and public environments and police and law courts. Also suitable for emergency escape routes.

This luminaire is designed for longevity and sustainability and adheres to our circular design principles. We conduct a circular economy assessment using TM66 and measure embodied carbon (kgCO₂e) in accordance with TM65.2.

Product Specification

Impact Resistance Rating: IK14 (100J). What is IK Rating?

Ingress Protection Rating: IP65. What is IP Rating?

Housing: Die cast aluminium body.

Paint: Polyester powder coat. All Colour Options Available Here.

Diffuser: Opal polycarbonate diffuser secured with tamperproof screws.

Driver: Electronic control gear on removable tray for ease of repair/upgrade with fused plug & socket connector block.

Mounting: Wall or ceiling

Cable Entry: Provision for conduit entry in back.

Design Life: 30+ years. What is Design Life?

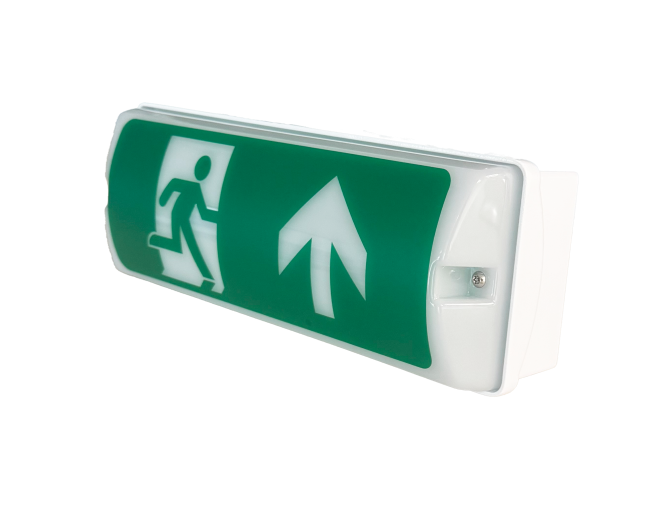

Additional Information: Available with exit legends to ISO 7010.

Robust Lighting, Vandal Resistant Lighting

Technical Information

Gemco	Output (Lum/lm)	Load (W)	Efficacy (lm/W)	CCT (K)

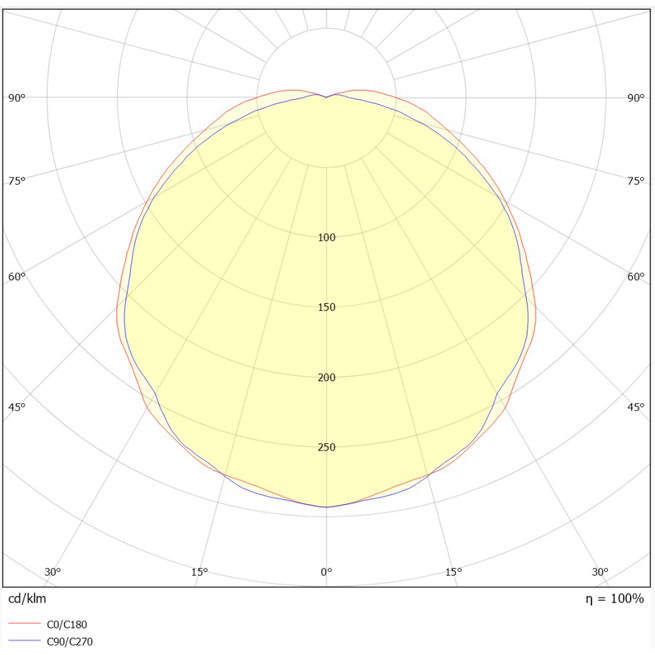

No Legend
D200-1200N-X-TW	1269	14.4	88	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	467
	Weight (kg)	LED Energy Rating	Dimensions

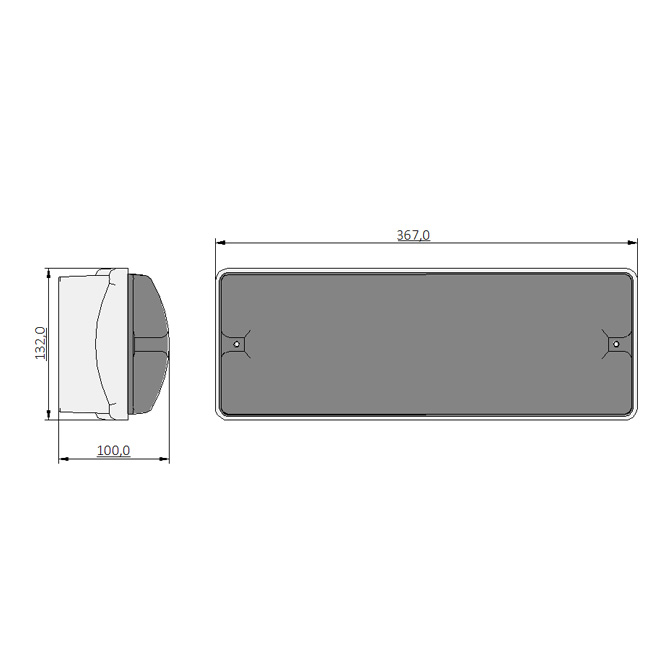

	2.7	C	367mm x 132mm x 100mm
D200-1800N-X-TW	1659	18.9	88	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	467
	Weight (kg)	LED Energy Rating	Dimensions
	2.7	C	367mm x 132mm x 100mm
D200-1200W-X-TW	1206	14.4	84	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	443
	Weight (kg)	LED Energy Rating	Dimensions
	2.7	D	367mm x 132mm x 100mm
D200-1800W-X-TW	1576	18.9	83	3000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>100,000h	443
	Weight (kg)	LED Energy Rating	Dimensions
	2.7	D	367mm x 132mm x 100mm

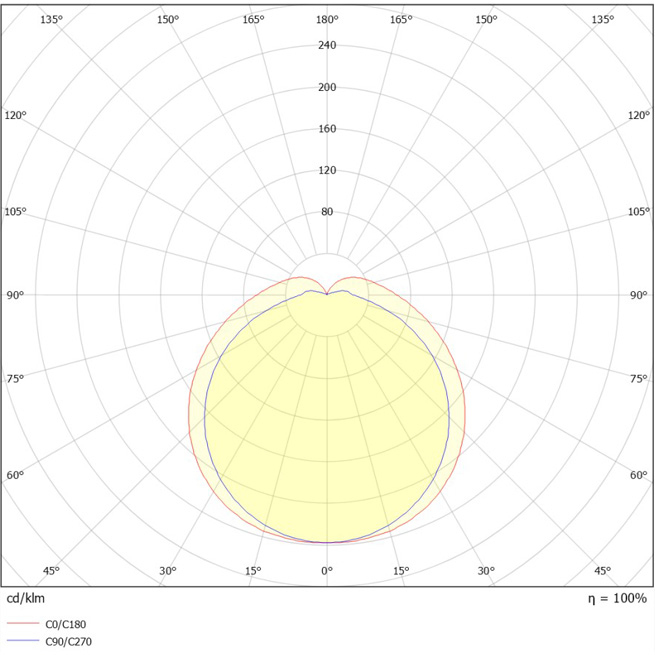

With Legend
D200-600N-X-TW-R#	613	17	36	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	230
	Weight (kg)	LED Energy Rating	Dimensions
	2.7	C	367mm x 132mm x 100mm
D200-800N-X-TW-R#	813	21	39	4000
	CRI	Driver Lifetime (up to hours)	LED Lifetime	Emergency Output (Lum/lm)
	CRI>80	100,000	L₇₀B₁₀>110,000h	230
	Weight (kg)	LED Energy Rating	Dimensions
	2.7	C	367mm x 132mm x 100mm

Fitting Options

Exit Legend - Running Man, Arrow Down/Left	-R6
Exit Legend - Running Man, Arrow Up	-R1
Exit Legend - Running Man, Arrow Left	-R7
Exit Legend - Running Man, Arrow Right	-R3
Exit Legend - Running Man, Arrow Down	-R5
Exit Legend - Running Man, Arrow Down/Right	-R4
Exit Legend - Running Man, Arrow Up/Right	-R2
Exit Legend - Running Man, Arrow Up/Left	-R8

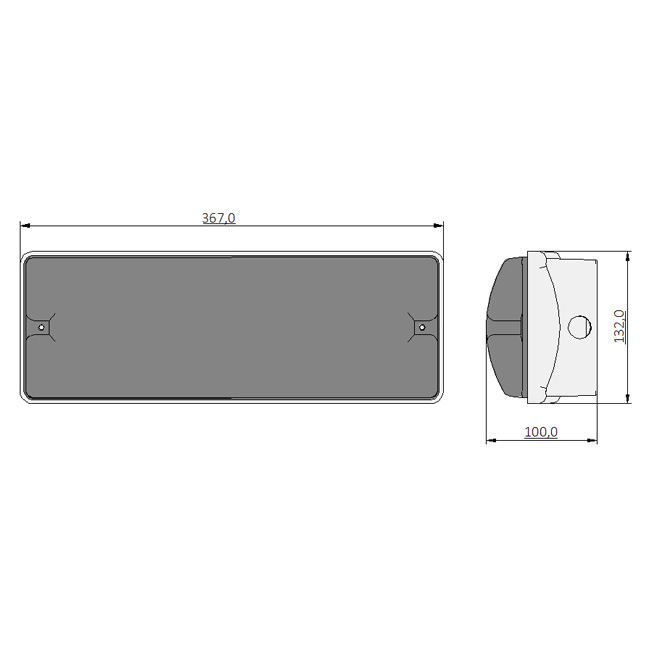

Conduit Hole in One End	-1H

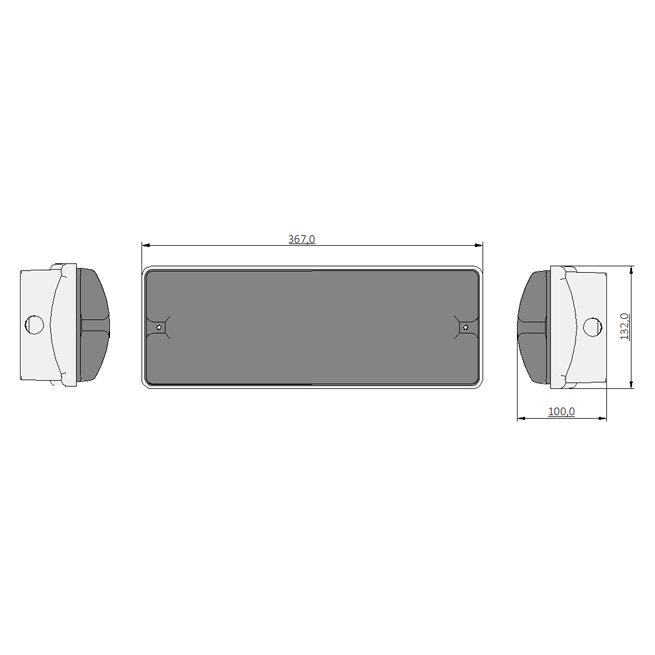

Conduit Hole in Both Ends	-2H
Maintained Emergency 3 Hour, Self Test	-ES
Non-Maintained 3 Hour Emergency, Self Test	-NS
Non-Maintained 3 Hour Emergency	-NE
Maintained Emergency 3 Hour	-E3
Textured Black	-TB
Textured White	-TW
