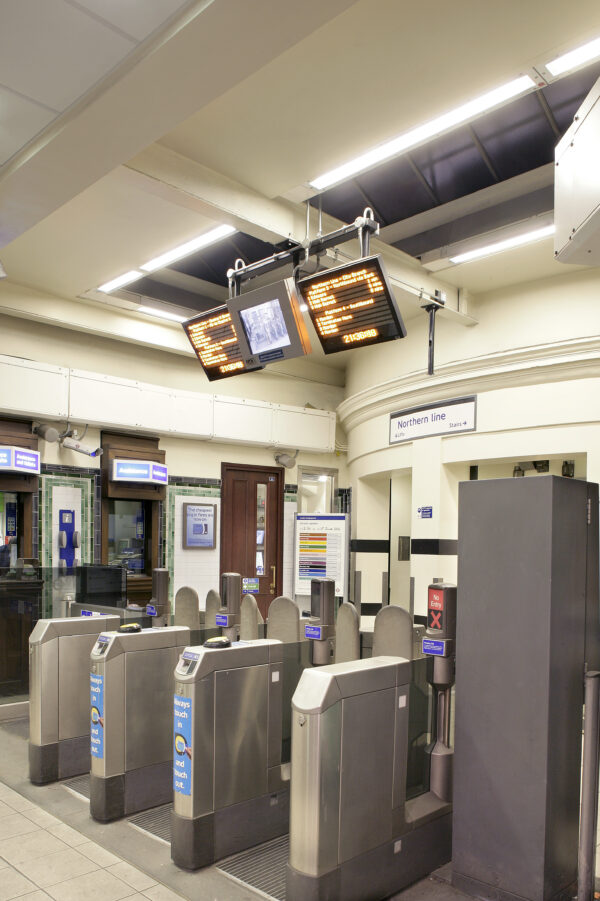

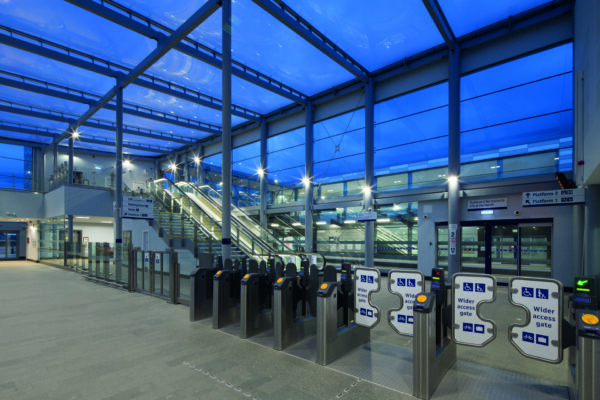

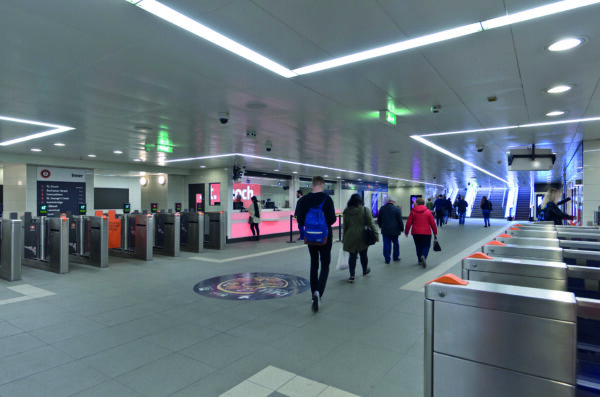

Lighting in ticket areas should be inviting with uniform brightness in booking halls, considering adjacent areas for seamless transitions. Increased vertical illumination aids recognition and usability of signage, self-service stations, barriers, exits, and displays.

High ceiling halls may benefit from some uplight. Highly compact LED luminaires can provide light on the upper structure, which helps to lighten and open up the visual impression of the space, although positions and visibility of display screens should be taken into account.

Where spaces have access to daylight, this should be maximised where possible, and lighting controls should be used to ensure that the lighting is energised only as required.

Designplan luminaires are fit for use in tough environments. They also incorporate the latest optical designs for highest efficiency and optimum visual comfort. This is very important in areas like a booking hall where passengers may spend some considerable time.

Technical Support

RIS-7702-INS Iss1 Rail Industry Standard for Lighting at Stations refers to EN12464-1:2011 with ticket halls and concourse areas at 200 lux and ticket and luggage offices at 300 lux.

For more traditional high ceiling halls, in our experience, it is desirable to provide an element of uplight to the structure. Especially where traditional globe type products are replaced by LED based luminaires – which may provide more downward directional lighting.

Light on the upper structure helps to lighten and open up the visual impression of the space. In the past, this type of desirable feature highlighting may have been excluded due to energy efficiency concerns. However, modern, highly compact LED sources can be used to light these surfaces from close offset distances which can increase efficiency significantly.

For further lighting advice speak to our technical sales team on 020 8254 2022 or e-mail

You can also connect with us on LinkedIn for ongoing updates.
